Industrial 5G NR Cellular Gateway with 4-Port 10/100/1000T PoE+
Upgrade Industrial Networks with a 5G NR PoE Cellular Gateway

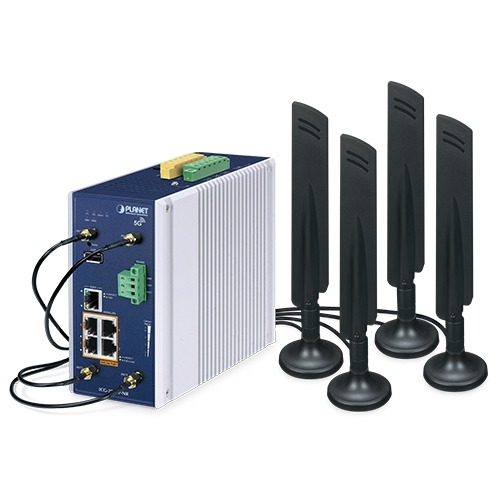

The PLANET ICG-2515P-NR is an industrial-grade 802.3at PoE+ cellular gateway designed for Industrial IoT, Machine-to-Machine (M2M), and remote communication applications. Powered by the latest 5G NR technology, it delivers ultra-fast, low-latency, and reliable wireless connectivity for mission-critical industrial environments.
Featuring four 802.3at PoE+ Gigabit LAN ports, one Gigabit WAN port, RS485, DI/DO, SD-WAN, and advanced VPN support, the ICG-2515P-NR enables secure, resilient networking while seamlessly connecting Ethernet and serial devices over high-speed 5G networks.
With built-in Hardware TRNG for secure cryptographic key generation and PQC TLS (Post-Quantum Cryptography TLS) readiness, it enhances long-term cybersecurity against emerging quantum computing threats. Combined with a 12~54V DC power input, built-in Power Boost technology, and a rugged fanless design operating from -40 to 75°C, it is ideal for industrial automation, smart manufacturing, smart infrastructure, and remote monitoring.
Key features
- Global 5G NR (NSA/SA)/4G LTE network with dual SIM design for cellular network redundancy
- Automatic failover between 5G NR and Gigabit WAN
- 2 x DI/DO and 1 serial port (RS485) for Modbus applications
- SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
- Stateful packet inspection (SPI) firewall and content filtering
- Blocks DoS/DDOS attack, port range forwarding
- High Availability, AP Controller, Captive Portal and RADIUS
- Compliant with the IEEE 802.3at PoE+ with PD alive check/schedule management
- Supports PLANET NMS and CloudNMS for centralized deployment and device management
- -40 to 75 degrees C operating temperature; DIN-rail and fanless designs
