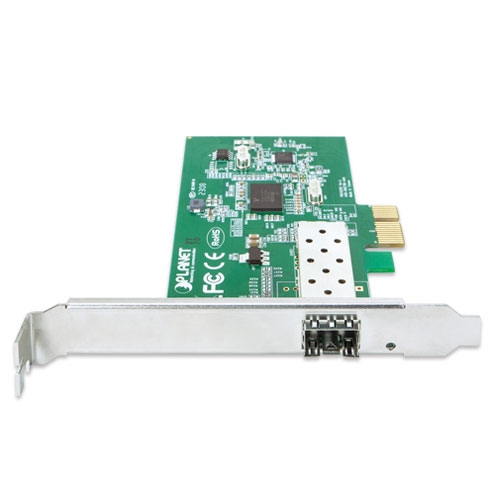

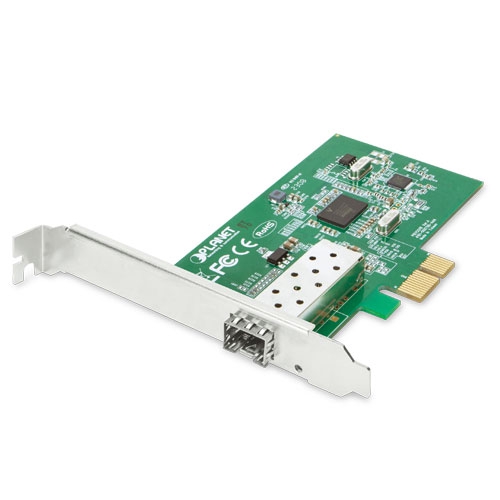

1000Base-SX / LX SFP PCI Express Fiber Adapter

» ENW-9701

High Performance Boosts Network Traffic Speed and Flexible Distance Extension

PLANET ENW-9701 1000BASE-X SFP PCI Express Gigabit Ethernet Adapter is ideal for high end servers to extend long distance network reliably and flexibly with up to 2000Mbps full-duplex bandwidth capacity. It is an optimal solution for Ethernet applications by providing strictly low-power budgets and small form factor.



Flexible Distance Option

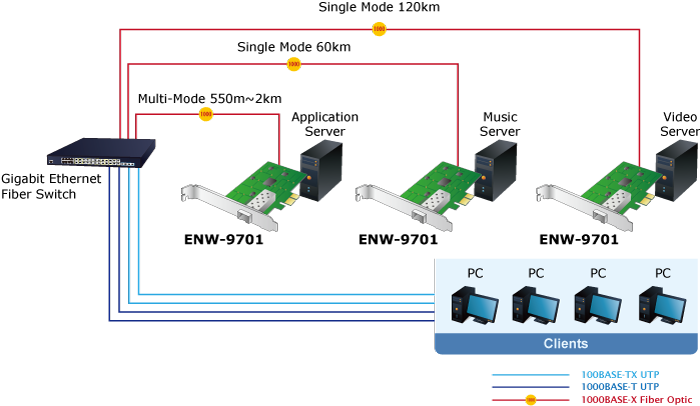

With the 1000BASE-X SFP (small-form factor pluggable) interface, the ENW-9701can extend fiber network deployment distance from 550 meters (via multi-mode fiber) to 10/20/30/40/50/70/120 kilometers (via single-mode fiber). Users can choose the most suitable SFP transceiver module for their needs. The ENW-9701 connects your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.



More Bandwidth and Advanced Functions

The ENW-9701 is designed to address high-performance system requirements. With the innovative PCI Express Bus Architecture, the ENW-9701 provides better bandwidth and performance than the network cards which are based on 32/64bit PCI architecture. Moreover, the ENW-9701 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9K Jumbo Frame ability and IEEE 802.3 Flow Control support, it offers further optimal throughput and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments.



Seamless Integration

 The ENW-9701 is completely harmonious with most of the servers’ operating systems, enabling simple integration into network designs. There is no need of any modification to the server’s operating system or any special software required for the ENW-9701 to be integrated into the system. The ENW-9701 can take the place of the Ethernet MAC of any conventional TCP connection and have the existing TCP/IP stack of server’s CPU still kept intact. It requires only a simple, standard PCIe driver to connect the ENW-9701 to the software.

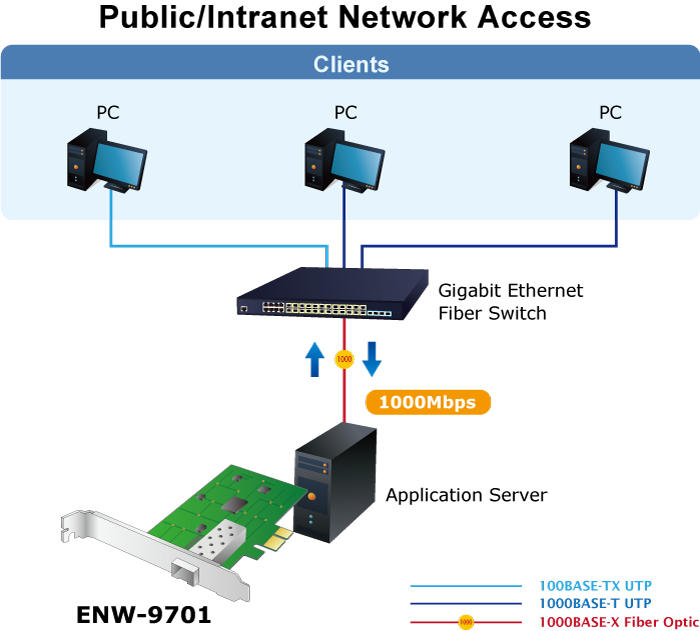

Server / Workstation NICs

PLANET ENW-9701 is equipped with one Gigabit SFP fiber connector which allows users to extend the network distances without any limitation and provides ten times performance than the existing Fast Ethernet transmission and PCI Express 1.1 technology. The ENW-9701 can easily act as a server NICs of your networks by wiring to the backbone switches and is right for the mainboard with PCI Express now and in the future. The ENW-9701 is a highly cost-effective solution and the best choice for the upgrade of various Fiber Optic network applications, such as:

  • High-end Server / Storage Server
  • Terminal Station
  • PC-based Video Recorder
  • Industrial Computer
  • POS Cash Register





  • One 1000BASE-X SFP slot
  • One PCI Express Host Bus interface
  • 9K Jumbo Frame
  • IP, TCP checksum offloading
  • IEEE 802.1Q Tagged VLAN
  • Low Power Consumption
  • Windows Server, Win7/8/10/11, Linux, and MAC OS X Ready
Hardware Specifications
Attachment InterfacePCI Express Host Bus Interface, 1 lane
PCI Express Rev 1.1
Media InterfaceSFP slot (LC Interface)
Cabling OptionsSFP LC connector :
50/125μm & 62.5/125μm Multi-Mode fiber cable
9/125μm Single-Mode cable
Jumbo Frame9Kbytes
LED IndicatorsLink / Active per port
Dimensions (W x D)121.4 x 119.5mm
Advanced Functions
Layer 2 FeaturesIEEE 802.3x Flow Control support
IEEE 802.1Q VLAN support
Performance EnhancementsReceive-side scaling (RSS): Optimization for multiple CPUs under Windows OS control
Reduced host bus traffic
IP, TCP and UDP Checksum Offloading
Transmit / Receive On-Chip Buffer Support
IPv4, IPv6
OS SupportWindows Server 2008R2/2012R2/2016R2/2019R2/2022R2 64bits
Windows 7/8/8.1/10 32/64bits
Windows 11 64bits
Linux (Kernel version 2.6.x/3.x/4.x or later)
VMware® ESX/ESXi 2.6.x/3.x/4.x/5.x/6.x or later
MacOS 10.7
Standards Conformance
Regulation ComplianceFCC Part 15 Class B, CE
Standards ComplianceIEEE 802.3z：1000BASE-X Gigabit Ethernet
IEEE 802.3x：Flow Control and Back pressure
IEEE 802.1Q：VLAN Tagging
Environment
OperatingTemperature：0 ~ 65 degrees C
Relative Humidity：5 ~ 95% (non-condensing)
StorageTemperature：-10 ~ 85 degrees C
Relative Humidity：5 ~ 95% (non-condensing)
DateVersionDescriptionDownload
2024/01/032.0

ENW-9701

 Download Icon
DateVersionDescriptionDownload
2024/01/032.0

Release for hardware version 2.0.

 Download Icon
DateVersionDescriptionDownload
2024/01/032.0

Release for hardware version 2.0.

 Download Icon


Model

Description

ENW-9740P

4-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter

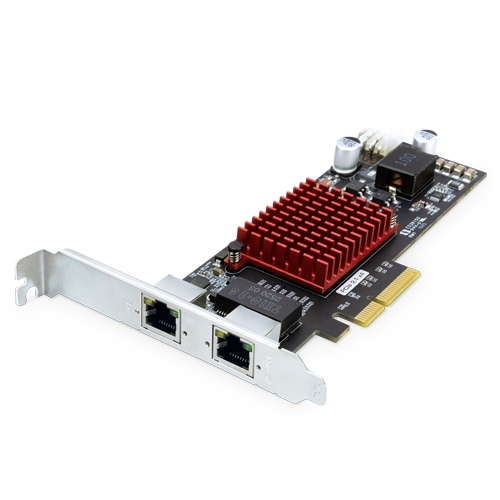

ENW-9720P

2-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter

Ordering Information

ENW-9701

1000Base-SX / LX SFP PCI Express Fiber Adapter

Ordering Information

ENW-9701

1000BASE-X SFP PCI Express Gigabit Ethernet Adapter
