• product_code: FST-80x Series

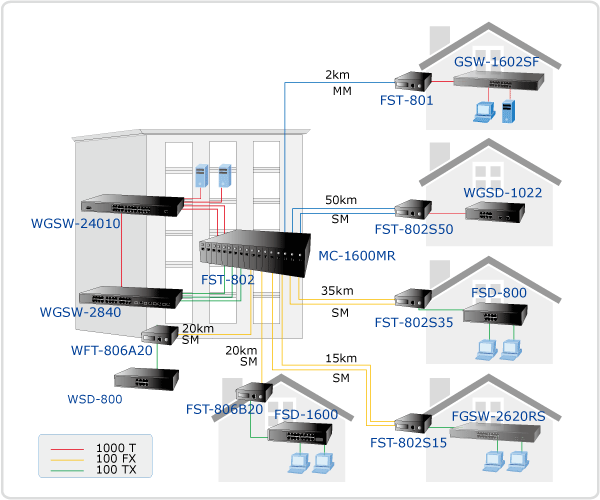

• product_editor_4418_tab_content: <b>Standalone and Centrally-managed Media Converter Installation</b> PLANET FST-80x adopts the advanced media conversion technology to meet the demand for today’s growing networking. It provides a diverse choice of fiber connecting types to meet different network applications. It is very flexible for the FST-80x to work as a standalone device or to be installed in the central web smart media converter chassis for centralized management, which supports hot swapping to avoid network downtime. The FST-80x is ideal for building a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) and FTTB (Fiber to the Building) for ISPs, campuses and enterprises. <p style="text-align: center;"><img class="img-fluid" src="https://www.planet.com.sa/planet-storage/2025/01/FST-80X_L.gif" /></p>
• product_editor_4418_tab_enabled: yes
• product_editor_4418_tab_content_changed: yes
• product_editor_4418_tab_title: Applications
• product_editor_4421_tab_content: <span style="color: #5070ab;"><b>Standards</b></span> <ul type="disc"> <li>Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX and 100BASE-FX Ethernet standards</li> </ul> <span style="color: #5070ab;"><b>Interface</b></span> <ul type="disc"> <li>One <b>10/100BASE-TX</b> port with RJ45 connector</li> <li>One <b>100BASE-FX</b> port with ST/SC/WDM connector supporting multi-mode or single-mode fiber optic cable</li> <li>Auto-negotiation and auto-MDI / MDI-X for 10/100BASE-TX port</li> </ul> <span style="color: #5070ab;"><b>Layer 2 Features</b></span> <ul type="disc"> <li>Back-pressure and IEEE 802.3x compliant flow control and full wire-speed forwarding rate</li> <li>Link Loss Return (<b>LLR</b>) switch on each fiber optic is to aid in troubleshooting remote network connections</li> <li>Link Loss Carry Forward (<b>LLCF</b>) works with LLR in diagnosing network connections</li> </ul> <span style="color: #5070ab;"><b>Smart Management</b></span> <ul type="disc"> <li>Provides DIP switch for setting fiber ( HDX/FDX), UTP ( auto-negotiation / manual), speed (10/100Mbps), duplex mode (half/full), LLR ( disable/enable), LLCF ( disable/enable)</li> <li>Manageable through web smart/managed media converter chassis system (MC-1600MR/MC-1610MR series)</li> </ul> <span style="color: #5070ab;"><b>Hardware</b></span> <ul type="disc"> <li>Used as a stand-alone device or works with web smart/managed media converter chassis for up to 16 converters with redundant power supply for optional expanding use</li> <li>LED indicators for converter status</li> <li>Choice of fiber-connector from ST/SC/WDM, multi-mode/single-mode fiber</li> <li>EMI standards complies with FCC, CE class B</li> </ul>
• product_editor_4421_tab_enabled: yes
• product_editor_4421_tab_content_changed: yes
• product_editor_4421_tab_title: Key Features
• product_editor_4422_tab_content:   <div class="table-responsive"> <table class="common_table_sky" style="width: 100%;"> <thead> <tr> <th colspan="2">Hardware Specification</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Standards</td> <td>IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX and 100BASE-FX</td> </tr> <tr> <td class="align-middle">Copper Port</td> <td>1 x 10/100BASE-TX port, auto-negotiation, auto-MDI-MDI-X</td> </tr> <tr> <td class="align-middle">Optical Port</td> <td>1 x 100BASE-FX</td> </tr> <tr> <td class="align-middle">Fiber Connector</td> <td>FST-801: ST / Multi-mode -- 2km FST-802: SC / Multi-mode -- 2km FST-802S15: SC / Single Mode -- 15km FST-802S35: SC / Single Mode -- 35km FST-802S50: SC / Single Mode -- 50km FST-806A20: WDM SC / Single Mode -- 20km FST-806B20: WDM SC / Single Mode -- 20km FST-806A60: WDM SC / Single Mode -- 60km FST-806B60: WDM SC / Single Mode -- 60km</td> </tr> <tr> <td class="align-middle">Optical Wavelength</td> <td>FST-801: 1310nm FST-802: 1310nm FST-802S15: 1310nm FST-802S35: 1310nm FST-802S50: 1310nm FST-806A20: TX: 1310nm, RX: 1550nm FST-806B20: TX: 1550nm, RX: 1310nm FST-806A60: TX: 1310nm, RX: 1550nm FST-806B60: TX: 1550nm, RX: 1310nm</td> </tr> <tr> <td class="align-middle">Maximum Launch Power (dBm)</td> <td>FST-801: -14 FST-802: -14 FST-802S15:0 FST-802S35:-8 FST-802S50:0 FST-806A20:-8 FST-806B20:-8 FST-806A60:0 FST-806B60:0</td> </tr> <tr> <td class="align-middle">Minimum Launch Power (dBm)</td> <td>FST-801: -20 (62.5/125µm), -23.5 (50/125µm) FST-802: -20 (62.5/125µm), -23.5 (50/125µm) FST-802S15: −20 FST-802S35: -15 FST-802S50:-5 FST-806A20:-14 FST-806B20:-14 FST-806A60:-5 FST-806B60:-5</td> </tr> <tr> <td class="align-middle">Receive Sensitivity (dBm)</td> <td>FST-801: -31.8 FST-802: -31.8 FST-802S15: -32 FST-802S35:-34 FST-802S50: -35 FST-806A20:-31 FST-806B20:-31 FST-806A60:-34 FST-806B60:-34</td> </tr> <tr> <td class="align-middle">Maximum Input Power (dBm)</td> <td>FST-801: -14 FST-802: -14 FST-802S15:0 FST-802S35:0 FST-802S50:0 FST-806A20:0 FST-806B20:0 FST-806A60:0 FST-806B60:0</td> </tr> <tr> <td class="align-middle">Speed</td> <td>Ethernet: 10/20Mbps for half / full-duplex Fast Ethernet: 100/200Mbps for half / full-duplex</td> </tr> <tr> <td class="align-middle">Maximum Forward Packet Size</td> <td>1600Bytes</td> </tr> <tr> <td class="align-middle">DIP Switch</td> <td>DIP-1: Fiber full / half duplex mode DIP-2: Copper forced mode / auto-negotiation mode DIP-3: Copper speed 10Mbps / 100Mbps DIP-4: Copper full / half duplex mode DIP-5: Fiber LLR (Link Loss Return) enable / disable DIP-6: Fiber LLCF(Link Loss Carry Forward) enable / disable</td> </tr> <tr> <td class="align-middle">LED Indicator</td> <td>System: PWR TP: LNK/ ACT, FDX/ COL, 100 FX: LNK/ ACT, FDX/ COL</td> </tr> <tr> <td class="align-middle">Power Input</td> <td>DC 5V, 2A</td> </tr> <tr> <td class="align-middle">Power Consumption</td> <td>6.2 watts/ 21 BTU (maximum)</td> </tr> <tr> <td class="align-middle">Dimensions (W x D x H)</td> <td>94 x 81 x 26 mm</td> </tr> <tr> <td class="align-middle">Weight</td> <td>0.22kg</td> </tr> <tr> <td class="align-middle">Cable</td> <td>10BASE-T: 2-pair Cat3, 4, 5 UTP cable, up to 100 meters 100BASE-TX: 2-pair Cat5 UTP cable, up to 100 meters 100BASE-FX: -50/ 125μm or 62.5/ 125μm multi-mode fiber cable, up to 2km - 9/ 125μm single-mode cable, providing long distance of 15/20/35/50/60km</td> </tr> <tr> <td class="align-middle">Operating Environment</td> <td>0~50 degrees C, 5~90% RH</td> </tr> <tr> <td class="align-middle">Storage Environment</td> <td>-10~70 degrees C, 5~90% RH</td> </tr> <tr> <td class="align-middle">Emission</td> <td>FCC Class B, CE mark</td> </tr> </tbody> </table> </div>
• product_editor_4422_tab_enabled: yes
• product_editor_4422_tab_content_changed: yes
• product_editor_4422_tab_title: Specifications
• ekit_post_views_count: 540
• product_editor_4418_tab_sticky_width: pw-content-1
• product_editor_4418_tab_sticky_position: pw-left-stick
• product_editor_4421_tab_sticky_width: pw-content-1
• product_editor_4421_tab_sticky_position: pw-left-stick
• product_editor_4422_tab_sticky_width: pw-content-1
• product_editor_4422_tab_sticky_position: pw-left-stick
• product_editor_4423_tab_content:
• product_editor_4423_tab_content_changed: yes
• product_editor_4423_tab_enabled: yes
• product_editor_4423_tab_title: Downloads
• product_editor_4423_tab_sticky_width: pw-content-1
• product_editor_4423_tab_sticky_height: 1
• product_editor_4423_tab_sticky_position: pw-left-stick
• product_editor_4424_tab_content:
• product_editor_4424_tab_content_changed: yes
• product_editor_4424_tab_enabled: yes
• product_editor_4424_tab_title: Related Products
• product_editor_4424_tab_sticky_width: pw-content-1
• product_editor_4424_tab_sticky_height: 1
• product_editor_4424_tab_sticky_position: pw-left-stick
• total_sales: 0
• accessories_table: <table class="common_table"> <thead> <tr> <th colspan="2">Ordering Information</th> </tr> </thead> <tbody> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">FST-801</h3> </td> <td>10/100Base-TX to 100Base-FX (ST, MM) Smart Media Converter-2km</td> </tr> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">FST-802</h3> </td> <td>10/100Base-TX to 100Base-FX (SC, MM) Smart Media Converter-2km</td> </tr> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">FST-802S15</h3> </td> <td>10/100Base-TX to 100Base-FX (SC, SM) Smart Media Converter-15km</td> </tr> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">FST-802S35</h3> </td> <td>10/100Base-TX to 100Base-FX (SC, SM) Smart Media Converter-35km</td> </tr> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">FST-802S50</h3> </td> <td>10/100Base-TX to 100Base-FX (SC, SM) Smart Media Converter-50km</td> </tr> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">FST-806A20</h3> </td> <td>10/100Base-TX to 100Base-FX (SC WDM, SM) Smart Media Converter- TX: 1310nm-20km</td> </tr> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">FST-806B20</h3> </td> <td>10/100Base-TX to 100Base-FX (SC WDM, SM) Smart Media Converter- TX: 1550nm-20km</td> </tr> </tbody> </table>
• product_label:
• prouduct_loop_image_transparent_bg_:
• 6_features_images: a:5:{i:0;s:5:"15559";i:1;s:5:"15558";i:2;s:5:"15557";i:3;s:5:"15556";i:4;s:5:"15555";}
• datasheet_0_date: 20150508
• datasheet_0_version: 1.0
• datasheet_0_description: FST-80x
• datasheet_0_download_pdf: https://www.planet.com.sa/storage/products/FST-80x%20Series/C-FST-80x_s.pdf
• datasheet: 1
• quick_guide:
• users_manual_0_date: 20100507
• users_manual_0_version: 1.2
• users_manual_0_description: Add energy note.
• users_manual_0_download_pdf: https://www.planet.com.sa/storage/products/FST-80x%20Series/EM-FST80x_v1.2_EuP.pdf
• users_manual: 1
• ec_declaration_0_date: 20151123
• ec_declaration_0_version: 1.1
• ec_declaration_0_description: EC Declaration.
• ec_declaration_0_download_pdf: https://www.planet.com.sa/storage/products/FST-80x%20Series/C-FST-80x_s.pdf
• ec_declaration: 1
• android_app:
• driver:
• firmware:
• utility:
• compatible_list:
• site-sidebar-layout: default
• ast-site-content-layout: default
• site-content-style: default
• site-sidebar-style: default
• theme-transparent-header-meta: default
• astra-migrate-meta-layouts: set
• applications_tab: <p><b>Standalone and Centrally-managed Media Converter Installation</b><br> PLANET FST-80x adopts the advanced media conversion technology to meet the demand for today’s growing networking. It provides a diverse choice of fiber connecting types to meet different network applications. It is very flexible for the FST-80x to work as a standalone device or to be installed in the central web smart media converter chassis for centralized management, which supports hot swapping to avoid network downtime. The FST-80x is ideal for building a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) and FTTB (Fiber to the Building) for ISPs, campuses and enterprises.</p><p style="text-align:center"><img class="img-fluid" src="https://www.planet.com.sa/planet-storage/2025/01/FST-80X_L.gif"></p>
• key_features_tab: <p><font color="#5070ab"><b>Standards</b></font></p><ul type="disc"><li>Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX and 100BASE-FX Ethernet standards</li></ul><br><font color="#5070ab"><b>Interface</b></font><ul type="disc"><li>One <b>10/100BASE-TX</b> port with RJ45 connector</li><li>One <b>100BASE-FX</b> port with ST/SC/WDM connector supporting multi-mode or single-mode fiber optic cable</li><li>Auto-negotiation and auto-MDI / MDI-X for 10/100BASE-TX port</li></ul><br><font color="#5070ab"><b>Layer 2 Features</b></font><ul type="disc"><li>Back-pressure and IEEE 802.3x compliant flow control and full wire-speed forwarding rate</li><li>Link Loss Return (<b>LLR</b>) switch on each fiber optic is to aid in troubleshooting remote network connections</li><li>Link Loss Carry Forward (<b>LLCF</b>) works with LLR in diagnosing network connections</li></ul><br><font color="#5070ab"><b>Smart Management</b></font><ul type="disc"><li>Provides DIP switch for setting fiber ( HDX/FDX), UTP ( auto-negotiation / manual), speed (10/100Mbps), duplex mode (half/full), LLR ( disable/enable), LLCF ( disable/enable)</li><li>Manageable through web smart/managed media converter chassis system (MC-1600MR/MC-1610MR series)</li></ul><br><font color="#5070ab"><b>Hardware</b></font><ul type="disc"><li>Used as a stand-alone device or works with web smart/managed media converter chassis for up to 16 converters with redundant power supply for optional expanding use</li><li>LED indicators for converter status</li><li>Choice of fiber-connector from ST/SC/WDM, multi-mode/single-mode fiber</li><li>EMI standards complies with FCC, CE class B</li></ul>
• specifications_tab: <table style="width:100%;" class="common_table_sky"><thead><tr><th colspan="2">Hardware Specification</th></tr></thead><tbody><tr><td class="align-middle">Standards</td><td>IEEE 802.3 10BASE-T<br /> IEEE 802.3u 100BASE-TX and 100BASE-FX</td></tr><tr><td class="align-middle">Copper Port</td><td>1 x 10/100BASE-TX port, auto-negotiation, <br /> auto-MDI-MDI-X</td></tr><tr><td class="align-middle">Optical Port</td><td>1 x 100BASE-FX</td></tr><tr><td class="align-middle">Fiber Connector</td><td>FST-801: ST / Multi-mode -- 2km<br /> FST-802: SC / Multi-mode -- 2km<br /> FST-802S15: SC / Single Mode -- 15km<br /> FST-802S35: SC / Single Mode -- 35km<br /> FST-802S50: SC / Single Mode -- 50km<br /> FST-806A20: WDM SC / Single Mode -- 20km<br /> FST-806B20: WDM SC / Single Mode -- 20km<br /> FST-806A60: WDM SC / Single Mode -- 60km<br /> FST-806B60: WDM SC / Single Mode -- 60km</td></tr><tr><td class="align-middle">Optical Wavelength</td><td>FST-801: 1310nm<br /> FST-802: 1310nm<br /> FST-802S15: 1310nm<br /> FST-802S35: 1310nm<br /> FST-802S50: 1310nm<br /> FST-806A20: TX: 1310nm, RX: 1550nm<br /> FST-806B20: TX: 1550nm, RX: 1310nm<br /> FST-806A60: TX: 1310nm, RX: 1550nm<br /> FST-806B60: TX: 1550nm, RX: 1310nm</td></tr><tr><td class="align-middle">Maximum Launch Power (dBm)</td><td>FST-801: -14<br /> FST-802: -14<br /> FST-802S15:0<br /> FST-802S35:-8<br /> FST-802S50:0<br /> FST-806A20:-8 <br /> FST-806B20:-8<br /> FST-806A60:0<br /> FST-806B60:0</td></tr><tr><td class="align-middle">Minimum Launch Power (dBm)</td><td>FST-801: -20 (62.5/125µm), -23.5 (50/125µm)<br /> FST-802: -20 (62.5/125µm), -23.5 (50/125µm)<br /> FST-802S15: −20<br /> FST-802S35: -15<br /> FST-802S50:-5<br /> FST-806A20:-14<br /> FST-806B20:-14<br /> FST-806A60:-5<br /> FST-806B60:-5</td></tr><tr><td class="align-middle">Receive Sensitivity (dBm)</td><td>FST-801: -31.8<br /> FST-802: -31.8<br /> FST-802S15: -32<br /> FST-802S35:-34<br /> FST-802S50: -35<br /> FST-806A20:-31<br /> FST-806B20:-31<br /> FST-806A60:-34<br /> FST-806B60:-34</td></tr><tr><td class="align-middle">Maximum Input Power (dBm)</td><td>FST-801: -14<br /> FST-802: -14<br /> FST-802S15:0<br /> FST-802S35:0<br /> FST-802S50:0<br /> FST-806A20:0<br /> FST-806B20:0<br /> FST-806A60:0<br /> FST-806B60:0</td></tr><tr><td class="align-middle">Speed</td><td>Ethernet: 10/20Mbps for half / full-duplex <br /> Fast Ethernet: 100/200Mbps for half / full-duplex</td></tr><tr><td class="align-middle">Maximum Forward Packet Size</td><td>1600Bytes</td></tr><tr><td class="align-middle">DIP Switch</td><td>DIP-1: Fiber full / half duplex mode<br /> DIP-2: Copper forced mode / auto-negotiation mode<br /> DIP-3: Copper speed 10Mbps / 100Mbps<br /> DIP-4: Copper full / half duplex mode<br /> DIP-5: Fiber LLR (Link Loss Return) enable / disable<br /> DIP-6: Fiber LLCF(Link Loss Carry Forward) enable / disable</td></tr><tr><td class="align-middle">LED Indicator</td><td>System: PWR <br /> TP: LNK/ ACT, FDX/ COL, 100<br /> FX: LNK/ ACT, FDX/ COL</td></tr><tr><td class="align-middle">Power Input</td><td>DC 5V, 2A</td></tr><tr><td class="align-middle">Power Consumption</td><td>6.2 watts/ 21 BTU (maximum)</td></tr><tr><td class="align-middle">Dimensions (W x D x H)</td><td>94 x 81 x 26 mm</td></tr><tr><td class="align-middle">Weight</td><td>0.22kg</td></tr><tr><td class="align-middle">Cable</td><td>10BASE-T: 2-pair Cat3, 4, 5 UTP cable, up to 100 meters <br /> 100BASE-TX: 2-pair Cat5 UTP cable, up to 100 meters<br /> 100BASE-FX: <br /> -50/ 125μm or 62.5/ 125μm multi-mode fiber cable, up to 2km <br /> - 9/ 125μm single-mode cable, providing long distance of 15/20/35/50/60km</td></tr><tr><td class="align-middle">Operating Environment</td><td>0~50 degrees C, 5~90% RH</td></tr><tr><td class="align-middle">Storage Environment</td><td>-10~70 degrees C, 5~90% RH</td></tr><tr><td class="align-middle">Emission</td><td>FCC Class B, CE mark</td></tr></tbody></table>
