A Perfect Managed PoE+ Switch with Advanced L2/L4 Switching and Security

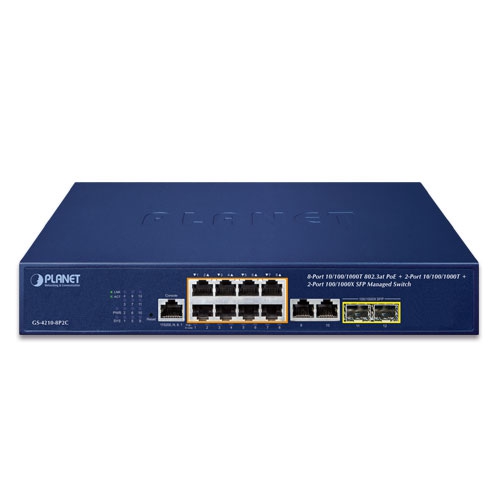

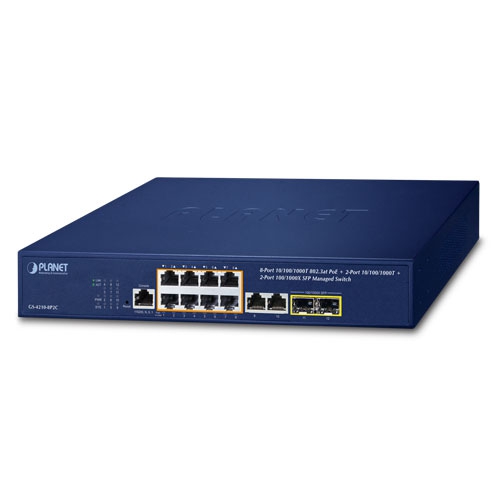

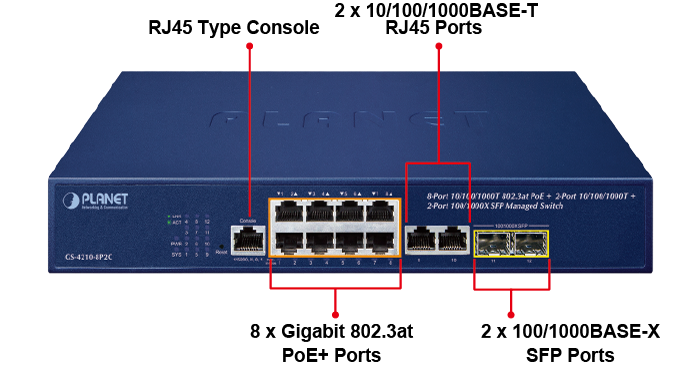

PLANET GS-4210-8P2C is a cost-optimized, desktop-size Managed Gigabit PoE+ Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports featuring 32-watt 802.3at PoE+, 2 additional Gigabit copper ports and 2 additional 100/1000BASE-X SFP fiber slots. With a total power budget of up to 120 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
Cybersecurity Network Solution to Minimize Security Risks
The GS-4210-8P2C supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

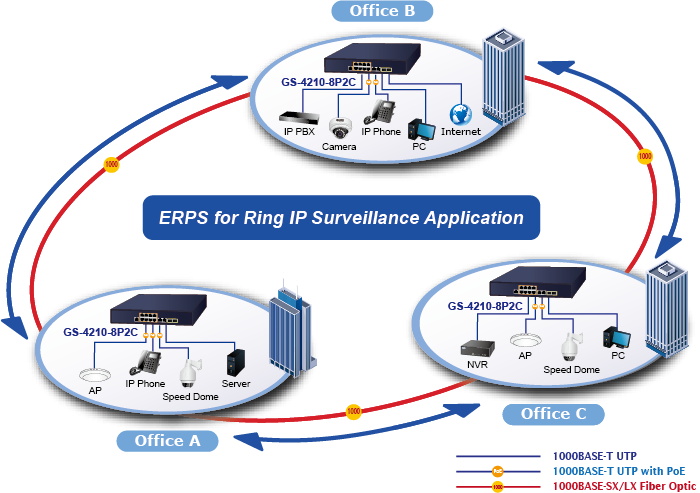

Redundant Ring, Fast Recovery for Critical Network Applications
The GS-4210-8P2C supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.
Built-in Unique PoE Functions for Powered Devices Management

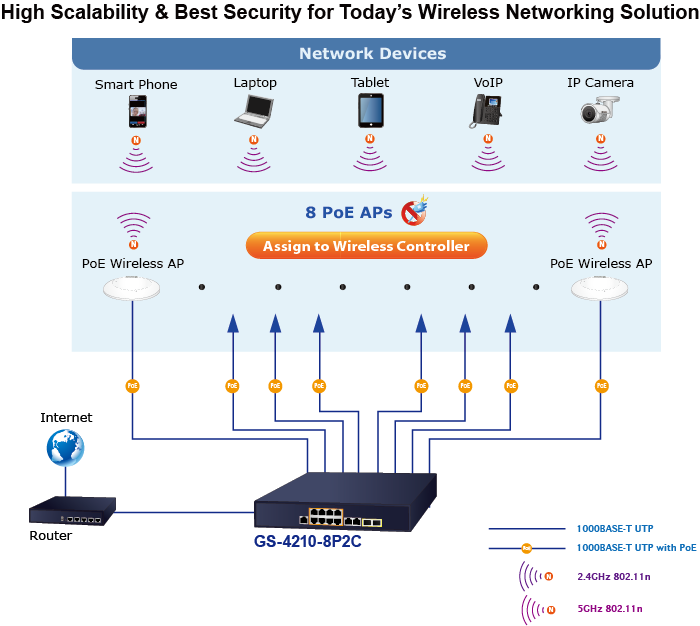

As it is the managed PoE switch for surveillance, wireless and VoIP networks, the GS-4210-8P2C features the following special PoE management functions:
- 　PD Alive Check
- 　Scheduled Power Recycling
- 　PoE Schedule
- 　PoE Usage Monitoring
- 　PoE Extension
Intelligent Powered Device Alive-Check
The GS-4210-8P2C can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-8P2C will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing the administrator’s management burden.
Scheduled Power Recycling
The GS-4210-8P2C allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

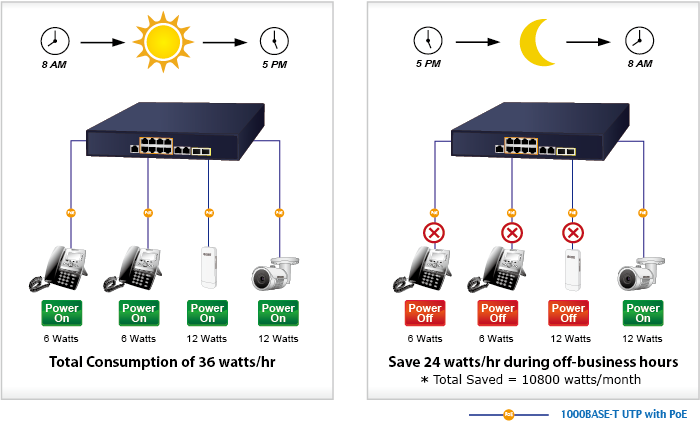

PoE Schedule for Energy Savings
Under the trend of energy savings worldwide and contributing to environmental protection, the GS-4210-8P2C can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.
PoE Usage Monitoring
Via the power usage chart in the web management interface, the GS-4210-8P2C enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.

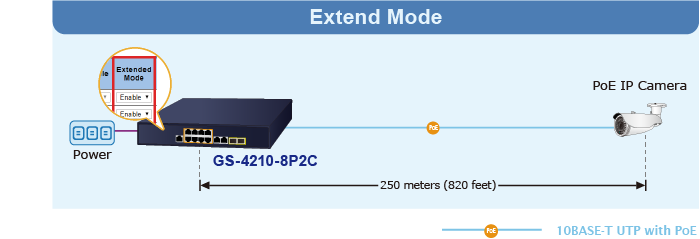

802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
In the “Extend” operation mode, the GS-4210-8P2C operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-8P2C provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.

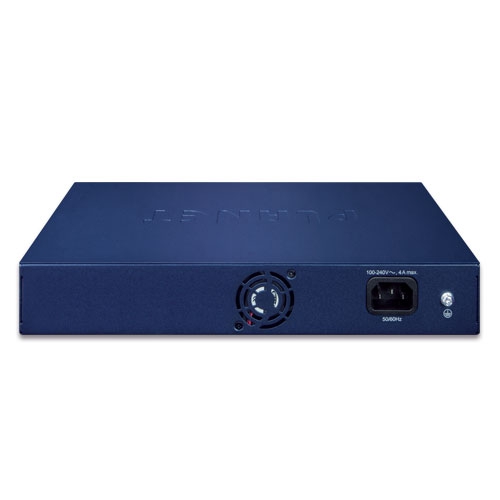

Environmentally-friendly, Silent Fan Design for System Cooling
The GS-4210-8P2C features a desktop-sized metal housing, a low noise design and an effective ventilation system that help maintain the temperature of the PoE switch for optimal power output capability. Thus, the GS-4210-8P2C is able to operate reliably, stably and quietly in any environment without affecting its performance.

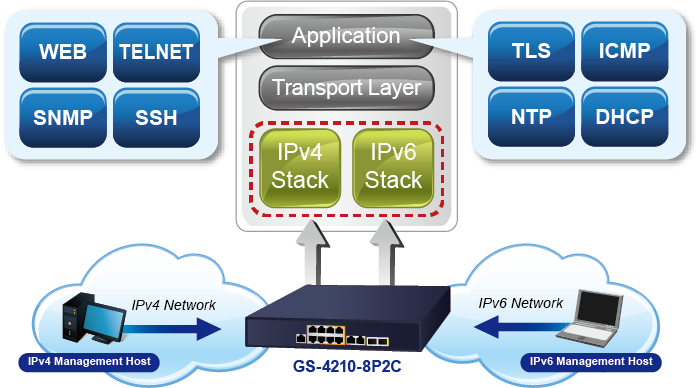

IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the GS-4210-8P2C helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.
Robust Layer 2 Features
The GS-4210-8P2C can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-8P2C allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.
Efficient Traffic Control
The GS-4210-8P2C is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
Powerful Security
The GS-4210-8P2C offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based user authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Friendly and Secure Management
For efficient management, the GS-4210-8P2C is equipped with Command line, Web and SNMP management interfaces.
- 　With the built-in Web-based management interface, the GS-4210-8P2C offers an easy-to-use, platform-independent management and configuration facility.
- 　For text-based management, it can be accessed via Telnet and the console port.
- 　By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.

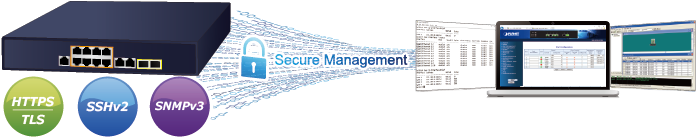

Moreover, the GS-4210-8P2C offers secure remote management by supporting SSHv2, TLSv1.2 and SNMPv3 connections which encrypt the packet content at each session.
Flexible Long-distance Extension Solution
The two mini-GBIC ports built in the GS-4210-8P2C support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (small form-factor pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Intelligent SFP Diagnosis Mechanism
The GS-4210-8P2C supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
