Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch

Name: IGS-R4215-24P4X - Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch | PLANET KSA
SKU: IGS-R4215-24P4X

» IGS-R4215-24P4X

Budget-friendly L2+ Manageable PoE Solution for Harsh Environments

PLANET IGS-R4215-24P4X Rack-mount L2+ Managed Gigabit Switch with 802.3at PoE+ injector function and one rack unit, and without fans is designed for heavy industrial environments. With IPv6/IPv4 dual stack management, a built-in Layer 3 static routing capability, and a powerful L2/L4 Gigabit switching engine, this switch delivers an array of versatile features for industrial settings. Featuring 24 10/100/1000BASE-T ports with each port powering up to 36 watts, 4 10GBASE-X SFP+ fiber slots and a USB Type C console port, the IGS-R4215-24P4X ensures unwavering, stable performance. Operating flawlessly and quietly within a temperature range of -40 to 75 degrees Celsius, it showcases remarkable adaptability.

High Performance 10Gbps Ethernet Capability

The four SFP+ ports built in the IGS-R4215-24P4X boast a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports 4 speeds, 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX, meaning the administrator can choose the transmission speed required to extend the network efficiently.

Redundant Ring, Fast Recovery for Critical Network Applications

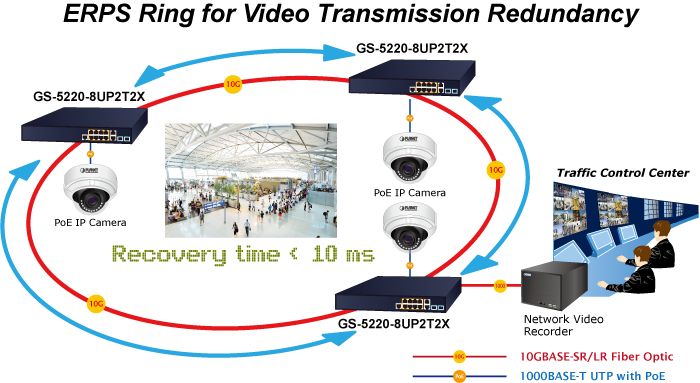

The IGS-R4215-24P4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments.

Cybersecurity Network Solution to Minimize Security Risks

The IGS-R4215-24P4X supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection Protection, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

The IGS-R4215-24P4X switch not only provides ultra high transmission performance, and excellent Layer 2 and Layer 4 technologies, but also Layer 3 IPv4 and IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexibly-managed and simple networking application.

Robust Layer 2 Features

The IGS-R4215-24P4X can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-R4215-24P4X allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control

The IGS-R4215-24P4X is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

Enhancing Network Security

PLANET IGS-R4215-24P4X offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

User-friendly Management Interfaces

For efficient management, the IGS-R4215-24P4X is equipped with console, Web and SNMP management interfaces.

With the built-in Web-based management interface, the IGS-R4215-24P4X offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, the switches can be accessed via Telnet and the console port.
For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

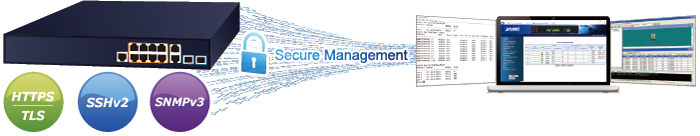

Moreover, the IGS-R4215-24P4X offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.

IPv6/IPv4 Dual Stack Management

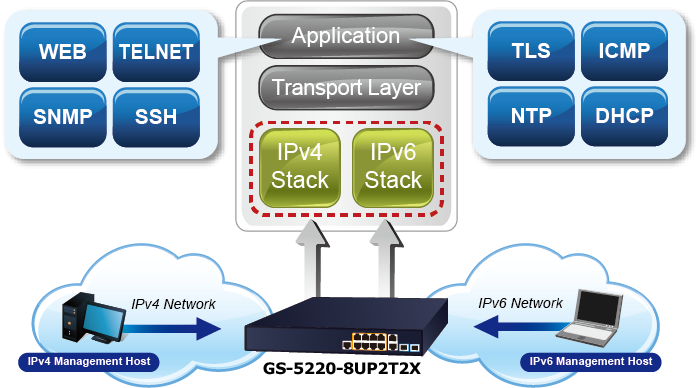

Supporting both IPv6 and IPv4 protocols, the IGS-R4215-24P4X helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

PoE Schedule for Energy Savings

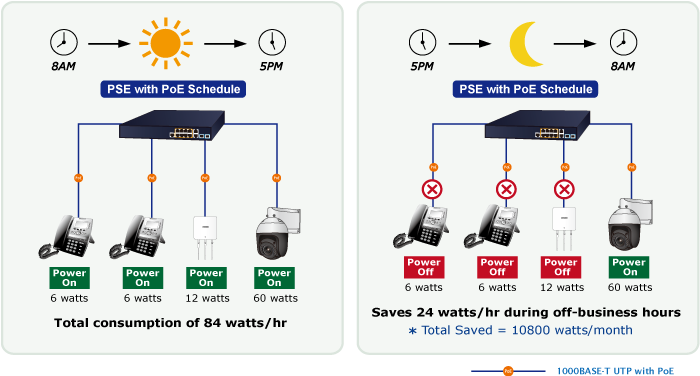

Under the global trend of energy saving and contributing to environmental protection, the IGS-R4215-24P4X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.

802.3at PoE+ Power and Ethernet Data Transmission Distance Extension

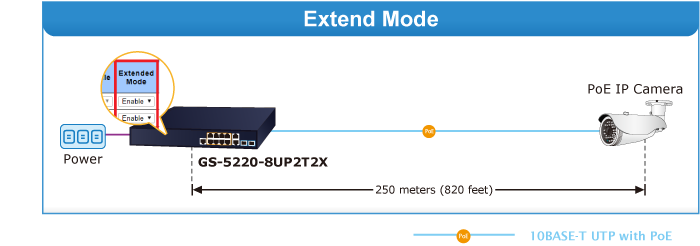

In the “Extend” operation mode, the IGS-R4215-24P4X operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-R4215-24P4X provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.

Intelligent Powered Device Alive Check

The IGS-R4215-24P4X can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-R4215-24P4X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden.

Scheduled Power Recycling

The IGS-R4215-24P4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

Digital Input and Digital Output for External Alarm

The IGS-R4215-24P4X supports Digital Input and Digital Output through a terminal block located on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-R4215-24P4X port shows link down, link up or power failure.

Effective Alarm Alert for Better Protection

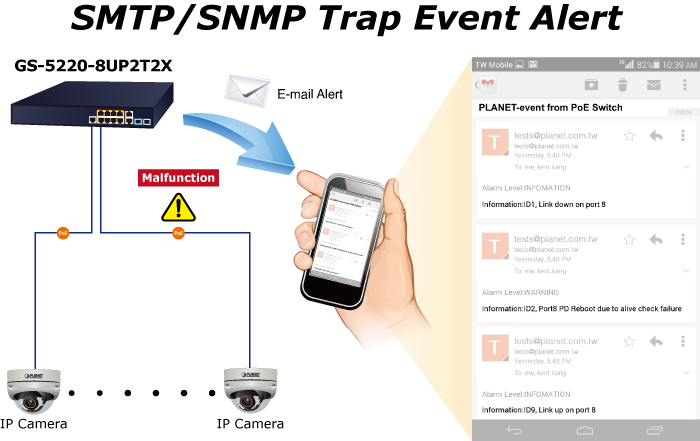

The IGS-R4215-24P4X incorporates a Fault Alarm feature that promptly notifies users of any issues with the switches. This valuable feature eliminates the need for users to spend time locating the problem, resulting in significant time and human resource savings.

Intelligent SFP Diagnosis Mechanism

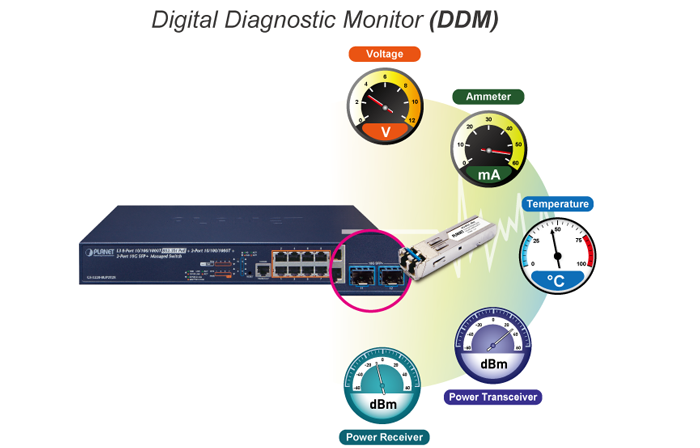

The IGS-R4215-24P4X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Remote Management Solution

PLANET’s Universal Network Management System (UNI-NMS), NMSViewerPro and CloudViewerPro app provide robust support for IT staff in effectively managing and monitoring all network devices, including the IGS-R4215-24P4X, from remote locations. Tailored for deployment in both enterprises and industries where the IGS-R4215-24P4X is utilized remotely, these systems enable the identification of bugs or faulty conditions without the need for on-site visits. With PLANET’s Remote Management Solution, businesses of all types can now be swiftly and efficiently managed through a unified platform, streamlining operational oversight.

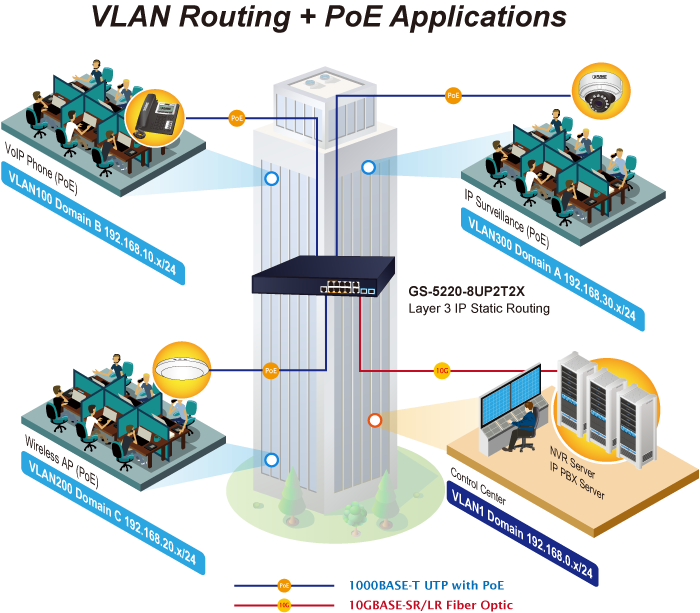

Layer 3 VLAN Static Routing and PoE Application

With the built-in robust IPv4/IPv6 Layer 3 traffic routing protocols, the GS-5220-8UP2T2X ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 128 routing entries. The GS-5220-8UP2T2X is certainly a cost-effective and ideal solution for enterprises.

Providing up to 8 Gigabit PoE++ ports and in-line power interface, the GS-5220-8UP2T2X PoE++ Managed Switch can easily build a centrally-controlled power network shared by wireless Gigabit AP, IP phone system, or mega-pixel IP camera system group for the enterprises.

PoE Wi-Fi Hotspot Solution with Extended Network Infrastructure for Public Spaces

The GS-5220-8UP2T2X comes with non-blocking design, desktop size and SFP fiber-optic modules, bringing network infrastructure higher flexibility but lower in cost. Providing eight 10/100/1000BASE-T PoE++ ports, in-line power interfaces and two 10 Gigabit SFP interfaces, the GS-5220-8UP2T2X can easily build a Networking Authentication on Wireless LAN Controllers system for the enterprises. For instance, it can work with the Wireless Controller and RADIUS Server to perform comprehensive security for wireless user authentication with powered APs.

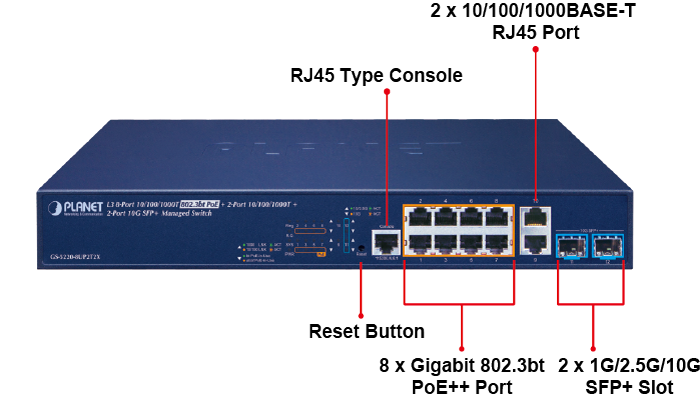

Physical Port

8-port 10/100/1000BASE-T with 95W PoE injector
2-port 1G/2.5G/10G BASE-X SFP+
RS-232 RJ45 console interface for switch basic management and setup

Power over Ethernet

Up to 8 ports of IEEE 802.3af/802.3at/802.3bt devices powered
Supports PoE Power up to 95 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters in standard mode and 250m in extend mode
PoE Management
- PoE Port Status monitoring
- Over Temperature Protection
- PoE usage threshold
- Temperature threshold
- Per port PoE function enable/disable
- PoE Port Power feeding priority
- Per PoE port power limit
- PD classification detection
- Sequence port PoE

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast/Multicast/Unknown unicast
Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 4K VLANs groups, out of 4094 VLAN IDs
- Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN
- MAC-based VLAN
- Voice VLAN
- GVRP
Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol
- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
- BPDU Guard
Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 6 trunk groups, up to 4 ports per trunk group
- Up to 44Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)

Layer 3 IP Routing Features

IP dynamic routing protocol supports OSPFv2
Routing interface provides per VLAN routing mode
Supports maximum 128 static routes and route summarization

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP Precedence of IPv4/IPv6 packets
- IP TCP/UDP port number
- Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port
DSCP remarking

Multicast

Supports IGMP Snooping v1, v2 and v3
Supports MLD Snooping v1 and v2
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
Multicast VLAN Registration (MVR) support

Security

Authentication
- IEEE 802.1x Port-based/MAC-based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers
- TACACS+ login users access authentication
- RADIUS/TACACS+ users access authentication
Access Control List
- IP-based Access Control List (ACL)
- MAC-based Access Control List
Source MAC/IP address binding
DHCP Snooping to filter un-trusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack
IP address access management to prevent unauthorized intruder

Management

IPv4 and IPv6 dual stack management
Switch Management Interfaces
- Web switch management
- Console/Telnet Command Line Interface
- SNMP v1 and v2c switch management
- SSHv2, TLSv1.2 and SNMPv3 secure access
IPv6 IP Address/NTP/DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System Maintenance
- Firmware upload/download via HTTP/TFTP
- Reset button for system reboot or reset to factory default
- Dual Images
DHCP Relay
DHCP Option82
User Privilege levels control
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) and LLDP-MED
Network Diagnostic
- ICMPv6/ICMPv4 Remote Ping
- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
SMTP/Syslog remote alarm
Four RMON groups (history, statistics, alarms and events)
SNMP trap for interface Linkup and Link down notification
System Log
PLANET NMS System and Smart Discovery Utility for deployment management
Provides ONVIF for co-operating with PLANET video IP surveillances

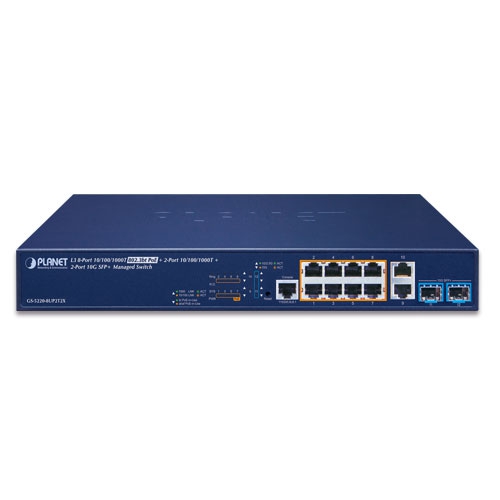

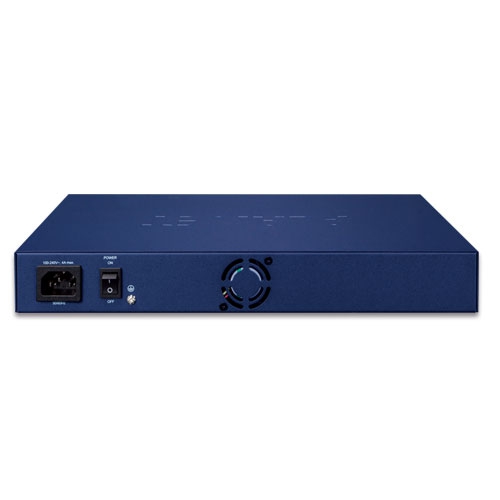

Hardware Specifications
Copper Ports	10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X interface with Port-1 to Port-10
SFP/mini-GBIC Slots	2 x 1G/2.5G/10G BASE-X SFP interfaces with Port-11 to Port-12
PoE Injector Port	8 ports with 802.3bt/at/af PoE injector function with Port-1 to Port-8
Console	1 x RJ45 serial port (115200 , 8, N, 1)
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Power Requirements	100~240V AC, 50/60Hz
Power Consumption (Full Loading)	284 watts/969BTU (max.)
ESD Protection	6KV DC
Dimensions (W x D x H)	330.2 x 200 x 44 mm, 1U height
Weight	2.1kg
LED	System: Ring (Green), R.O (Green), SYS (Green), PWR ((Green) 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 10): 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Orange) 802.3bt PoE-in-Use (Green) (Port 1 to Port 8) 802.3at/af PoE-in-Use (Orange) (Port 1 to Port 8) 1G/2.5G/10G Mbps SFP Interfaces (Port 11 to Port 12): 1G/2.5G LNK/ACT (Green) 10G Mbps (Orange)
Switching Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	60Gbps/non-blocking
Throughput	44.642Mpps@ 64Bytes packet
Address Table	16K entries, automatic source address learning and aging
Shared Data Buffer	16Mbits
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Jumbo Frame	9KB
Power over Ethernet
PoE Standard	802.3bt PoE++ PSE Backward compatible with IEEE 802.3at PoE PSE
PoE Power Supply Type	802.3bt UPoE End-span Mid-span Force
PoE Power Output	Per port 52V DC 802.3bt mode, Port-1 to Port-8: maximum 90 watts UPoE mode, Port-1 to Port-8: maximum 95 watts Force mode, Port-1 to Port-8: maximum 60 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts
Power Pin Assignment	802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-)
PoE Power Budget	240 watts (max.) @ 25 degrees C 200 watts (max.) @ 50 degrees C
Number of 90W 802.3bt Type-4 PDs	2
Number of 60W 802.3bt Type-3 PDs	4
Number of 802.3at PDs	8
PoE Functions
PoE System Management	System PoE Admin control PoE Legacy mode Over-temperature threshold alarm PoE usage threshold alarm
PoE Port Management	Port Enable/Disable/Schedule PoE mode control 802.3bt UPoE 802.3at End-span 802.3at Mid-span Force mode Port Priority
PoE Extend Mode	Per PoE port, max. 160 to 250 meters
PoE Device Live Detection	Per port remote PD IP address 4 actions None PD reboot PR reboot and alarm Alarm
PoE Power Recycle	Yes, daily or predeinded schedule
PoE Schedule	4 schedule profiles
Layer2 Functions
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring	TX/RX/Both Many-to-1 monitor
VLAN	802.1Q tagged based VLAN, up to 4K VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/Static Trunk Supports 6 trunk groups with 4 ports per trunk
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet
IGMP Snooping	IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups
MLD Snooping	IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups
MLD Snooping	IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups
Access Control List	IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 256 entries
Bandwidth Control	Per port bandwidth control Ingress: 10Kbps~13000Mbps Egress: 10Kbps~13000Mbps
Layer 3 Functions
IP Interfaces	Max. 128 VLAN interfaces
Routing Table	Max. 128 routing entries
Routing Protocols	IPv4 OSPFv2 dynamic routing IPv4 hardware static routing IPv6 hardware static routing
Management
Basic Management Interfaces	Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLSv1.2, SNMPv3
Management Functions	Firmware upgrade by HTTP/TFTP protocol through Ethernet network Remote syslog and local system log LLDP protocol SNTP PLANET Smart Discovery Utility
ONVIF	ONVIF device discovery ONVIF device monitoring Floor Map
SNMP MIBs	RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2618 RADIUS Client MIB RFC 3411 SNMP-Frameworks-MIB RFC 3621 Power Ethernet MIB IEEE 802.1X PAE LLDP MAU-MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Plus Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2
Environments
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Datasheet

Date	Version	Description	Download
2024/23/08	1.0	IGS-R4215-24P4X

Quick Guide

Date	Version	Description	Download
2024/20/09	1.2	Modify contents of Quick Guide.
2024/23/08	1.1	Initial Release.

Users Manuals

Date	Version	Description	Download
2024/30/08	1.1	Initial release.

Ec Declaration

Date	Version	Description	Download
2025/23/04	1.0	EC Declaration.
2025/23/04	1.0	Declaration for FCC.

Firmware

Date	Version	Description
2025/07/11	1.441b251106	Fix the bug in the Fault Alarm setting.
2025/13/10	1.441b250925	Added the CloudNMS function to replace CloudViewerPRO.
2025/12/06	1.441b250423	Enhanced product security and improved system robustness.

Ordering Information

IGS-R4215-24P4X
