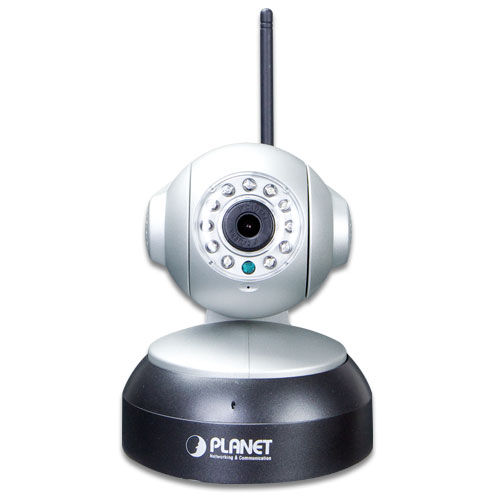

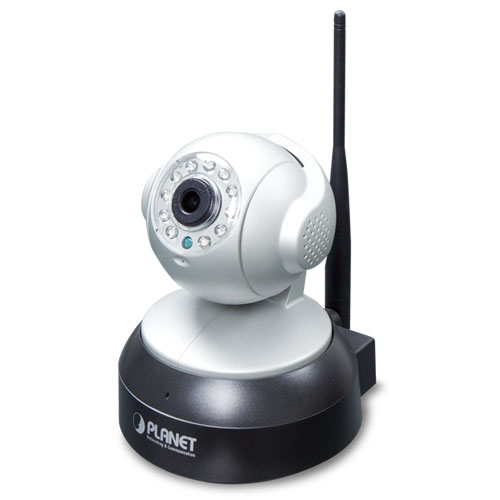

720P Wireless IR PT IP Camera

» ICA-W7100

Compact and Cost-effective 720p HD Surveillance
PLANET ICA-W7100 is easily and conveniently installed anywhere as it is compact in size. It Incorporates 1 megapixel resolution sensors, and supports H.264 compression format, thus delivering excellent picture quality in up to 1280 x 720 pixels (720p) at 30 frames per second. In addition, there is also a 10/100 Mbps network connection and an Micro SD slot for storage. Along with the motion detection function and the function of the pan-tilt camera, you can safely and reliably observe larger areas. Complying with ONVIF, the ICA-W7100 is therefore interoperable with the third brand camera in the market, which greatly supports users to integrate with their existing surveillance network.

Day & Night Surveillance
The ICA-W7100 brings the clearest vision at night by featuring 0.1 lux illumination and the 11 IR LEDs built around the lens. It offers color pictures both in the day time and night time with the built-in CMOS sensor supporting up to 10 meters. The ICA-W7100 is able to maintain clear images 24 hours a day.

Exceptional Image Quality
Together with powerful image processing attributes like Wide Dynamic Range (WDR) and Dimensional Noise Reduction (DNR) technology, the ICA-W7100 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

Advanced Event Management
Users can save consecutive videos in local storage and events on memory card and thus you never have to miss an important moment. Users can set their area of interest to only detect motion in that area, thus greatly reduces the number of unnecessary alarms. The ICA-W7100 also offers 2-way audio surveillance; therefore, the administrator can speak to anyone at the ICA-W7100 remote site with a speaker connected.

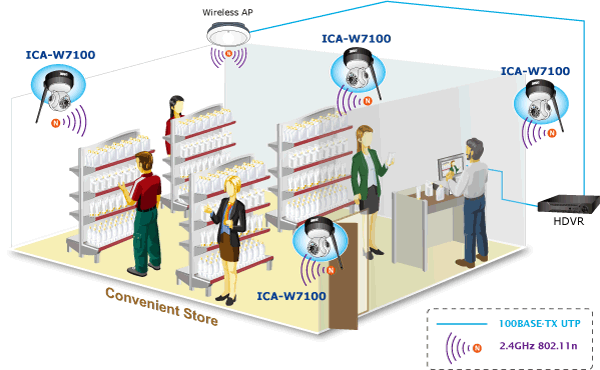

Flexible Installation with 11n Wireless Connectivity
The ICA-W7100 adopts IEEE 802.11n wireless technology to communicate at up to 150Mbps wireless signal rate and ensures secure transmission with WEP and WPA encryptions. The wireless N functionality enables rapid integration into the wireless network and offers a flexible choice of the site.
The ICA-W7100 is indisputably the ideal choice for reliable and high-performance surveillance.

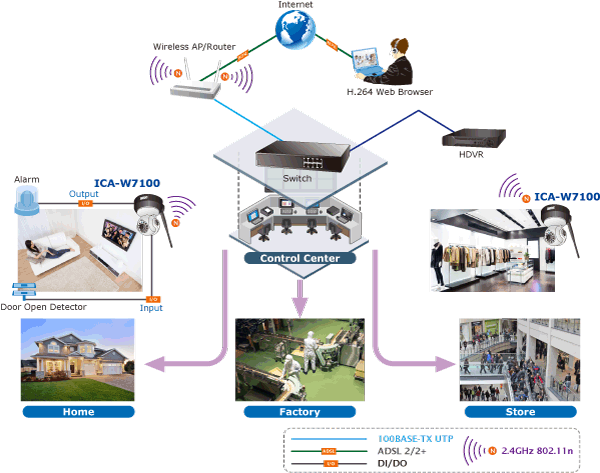

PLANET ICA-W7100 is a highly cost-effective wireless IP camera designed for home monitoring. It provides clear identification of objects and people, so it perfectly satisfies surveillance needs from all aspects such as homes, small businesses, boutiques, restaurants, hotels and residences, etc.

Camera

  • 1/4" progressive CMOS sensor
  • 3.6mm fixed lens
  • 0.1 lux minimum illumination at F1.2
  • Maximum resolution 1280 x 720
  • Built-in 11 IR illuminators, effective up to 10 meters

Video / Audio
  • H.264 video compression
  • Simultaneous multi-stream support
  • Max. resolution 720p at 30fps

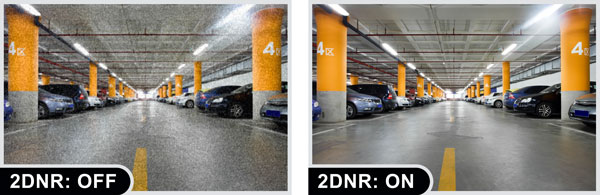

  • 2DNR to improve picture quality at low lux
  • 2-way audio support with enhanced audio quality

Network and Configuration
  • IEEE 802.11n wireless LAN capability
  • WEP / WPA / WPA2-PSK wireless security
  • Auto MDI/MDI-X supported
  • RTSP / DDNS / FTP protocols selectable

Easy Installation & Management

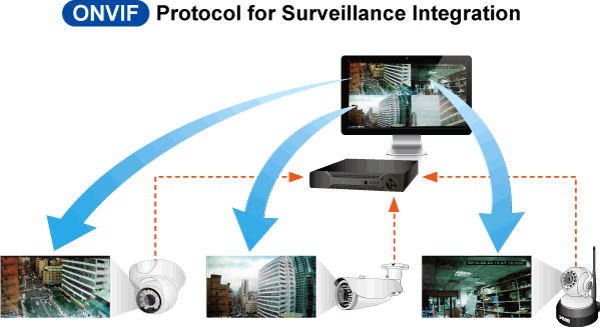

  • ONVIF compliant for interoperability
  • Intelligent motion detection alarm triggering
  • Micro SD/SDHC card for event recording supported
  • Digital input/output for integration with sensors and alarms
  • Easy configuration and management via Windows-based utility or web interface
Camera
Image Device1/4" 1mega-pixel CMOS image sensor
LensFixed lens 3.6mm, F1.4
Angle of view:
Horizontal: 75 degrees
Vertical: 55 degrees
Effective Pixels1280 x 720
Min IlluminationColor: 0.1 lux @ F1.2
B/W: 0 lux (IR on)
LEDBuilt-in IR LED x 11, effective up to 10 meters
*The IR distance is based on the environment

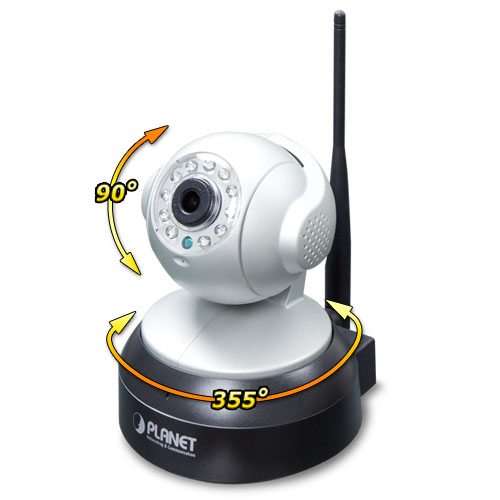

Angle of Pan0~355 degrees
Angle of Tilt0~90 degrees
Video
Video EncoderH.264
Video ResolutionMain Stream (H.264): 1280 x 720 / 720 x 576 / 640 x 480
Sub Stream (H.264): 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144
Frame RateUp to 30fps for all resolutions
Image Setting2D noise reduction
Color, brightness, contrast
Mirror / Rotate
4 privacy masks
Text, time and date overlay
StreamingSimultaneous multi-streaming
Streaming over UDP, TCP, or HTTP
Controllable frame rate and bandwidth
Constant and variable bit rate
Audio
Audio Streaming2-way audio
Audio CompressionPCM, G.711ALAW, G.711ULAW
MicrophoneInternal microphone
Audio OutputAdjustable audio output gain
Network and Configuration
Network StandardIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.11 b/g/n
Network ProtocolIPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, 802.1X
Antenna ConnectorRP-SMA Female
Frequency2.4GHz
RF Transmit Power802.11b mode: 20 dbm
802.11g mode: 17 dbm
802.11n mode: 17 dbm
RF Receiver Sensitivity802.11b (11Mbps): -85dbm
802.11g (54Mbps): -68dbm
802.11n (20MHz): -68dbm
802.11n (40MHz): -68dbm
RF Data Rate802.11b: 11Mbps
802.11g: 54Mbps
802.11n (20MHz): up to 72Mbps
802.11n (40MHz): up to 150Mbps
SecurityPassword protection; WEP, WPA-PSK and WPA2-PSK encryptions
Users2 clients on-line monitoring at the same time
System Integration
Application Programming InterfaceONVIF compliant
Alarm TriggeringMotion Detection
External Input
Alarm EventsEvent snapshot uploads via FTP
Event recording uploads via SD card
Notification via email, HTTP External output activation
Environment
Power Requirements5V DC, 10W max.
Power ConsumptionUp to 7.8W (IR & PT on)
Operating Temperature-10 ~ 50 degrees C
Operating Humidity20 ~ 85% (non-condensing)
Dimensions (W x D x H)103 x 106 x 131mm
Weight305g
EmissionCE, FCC

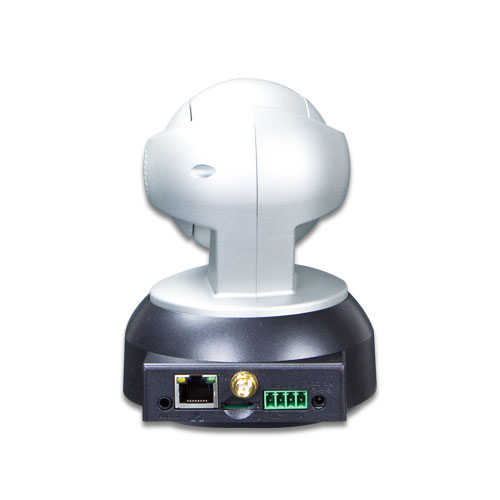

Connectors10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
Audio out
MicroSD/SDHC card (max 32GB)
Factory default reset
DateVersionDescriptionDownload
2015/26/021.0

ICA-W7100

 Download Icon
DateVersionDescriptionDownload
2014/06/101.0

Initial Release

 Download Icon
DateVersionDescriptionDownload
2014/03/121.0

Initial Release

 Download Icon
DateVersionDescriptionDownload
2015/03/111.0

Initial Release

 Download Icon
DateVersionDescriptionDownload
2015/16/10114

Improvements:
– Enhance ONVIF compatible ability.

Fixes:
– Motion detection doesn’t work in HDVR.

 Download Icon
2014/12/12112

Initial Release

 Download Icon
DateVersionDescriptionDownload
2014/18/121.0

Search Tool
Initial release.
