Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch

» IGS-R4215-24P4X

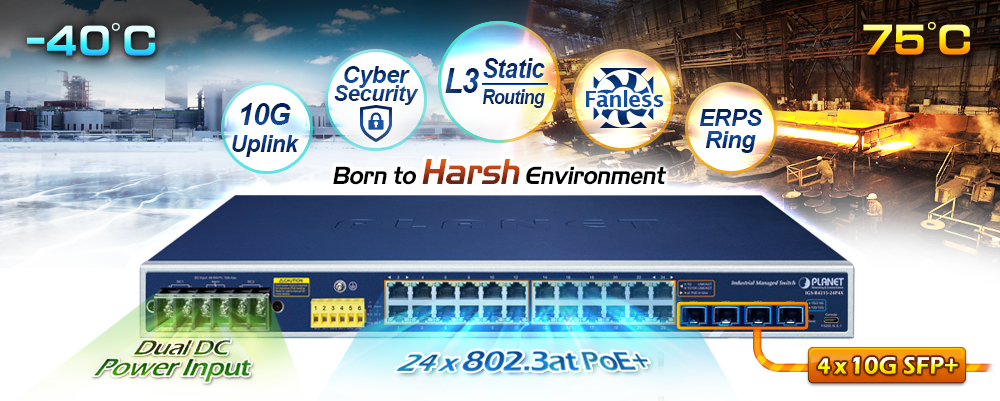

Budget-friendly L2+ Manageable PoE Solution for Harsh Environments

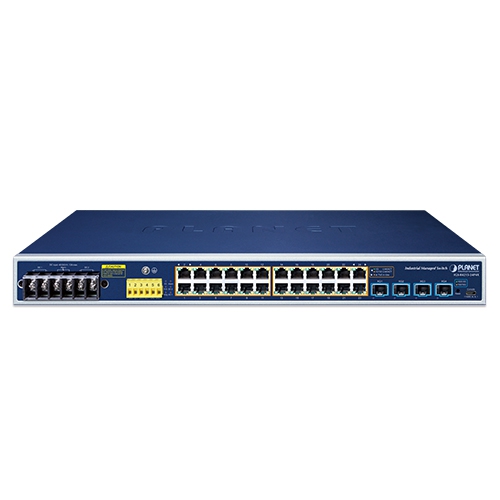

PLANET IGS-R4215-24P4X Rack-mount L2+ Managed Gigabit Switch with 802.3at PoE+ injector function and one rack unit, and without fans is designed for heavy industrial environments. With IPv6/IPv4 dual stack management, a built-in Layer 3 static routing capability, and a powerful L2/L4 Gigabit switching engine, this switch delivers an array of versatile features for industrial settings. Featuring 24 10/100/1000BASE-T ports with each port powering up to 36 watts, 4 10GBASE-X SFP+ fiber slots and a USB Type C console port, the IGS-R4215-24P4X ensures unwavering, stable performance. Operating flawlessly and quietly within a temperature range of -40 to 75 degrees Celsius, it showcases remarkable adaptability.





High Performance 10Gbps Ethernet Capability

The four SFP+ ports built in the IGS-R4215-24P4X boast a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports 4 speeds, 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX, meaning the administrator can choose the transmission speed required to extend the network efficiently.

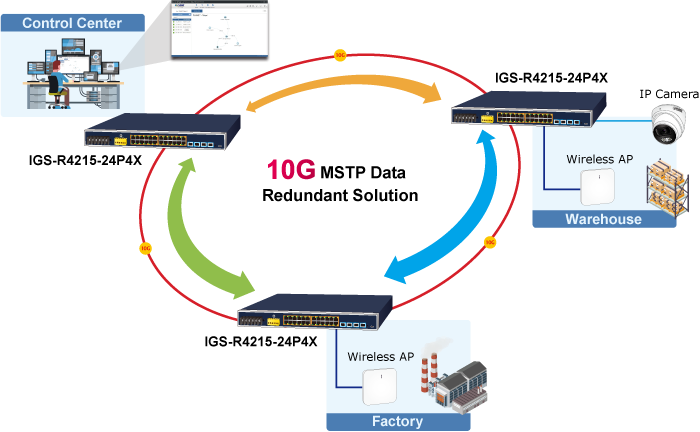

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-R4215-24P4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments.



Cybersecurity Network Solution to Minimize Security Risks

The IGS-R4215-24P4X supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection Protection, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.



Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

The IGS-R4215-24P4X switch not only provides ultra high transmission performance, and excellent Layer 2 and Layer 4 technologies, but also Layer 3 IPv4 and IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexibly-managed and simple networking application.



Robust Layer 2 Features

The IGS-R4215-24P4X can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-R4215-24P4X allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.





Efficient Traffic Control

The IGS-R4215-24P4X is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



Enhancing Network Security

PLANET IGS-R4215-24P4X offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



User-friendly Management Interfaces

For efficient management, the IGS-R4215-24P4X is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the IGS-R4215-24P4X offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, the switches can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Moreover, the IGS-R4215-24P4X offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.



IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the IGS-R4215-24P4X helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.



PoE Schedule for Energy Savings

Under the global trend of energy saving and contributing to environmental protection, the IGS-R4215-24P4X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.



802.3at PoE+ Power and Ethernet Data Transmission Distance Extension

In the “Extend” operation mode, the IGS-R4215-24P4X operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-R4215-24P4X provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.



Intelligent Powered Device Alive Check

The IGS-R4215-24P4X can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-R4215-24P4X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden.





Scheduled Power Recycling

The IGS-R4215-24P4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

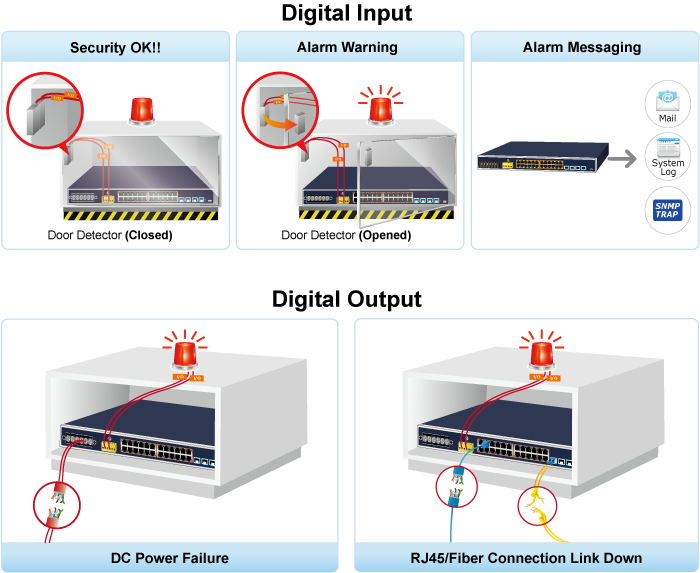

Digital Input and Digital Output for External Alarm

The IGS-R4215-24P4X supports Digital Input and Digital Output through a terminal block located on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-R4215-24P4X port shows link down, link up or power failure.



Effective Alarm Alert for Better Protection

The IGS-R4215-24P4X incorporates a Fault Alarm feature that promptly notifies users of any issues with the switches. This valuable feature eliminates the need for users to spend time locating the problem, resulting in significant time and human resource savings.

Intelligent SFP Diagnosis Mechanism

The IGS-R4215-24P4X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.



Remote Management Solution

PLANET’s Universal Network Management System (UNI-NMS), NMSViewerPro and CloudViewerPro app provide robust support for IT staff in effectively managing and monitoring all network devices, including the IGS-R4215-24P4X, from remote locations. Tailored for deployment in both enterprises and industries where the IGS-R4215-24P4X is utilized remotely, these systems enable the identification of bugs or faulty conditions without the need for on-site visits. With PLANET’s Remote Management Solution, businesses of all types can now be swiftly and efficiently managed through a unified platform, streamlining operational oversight.

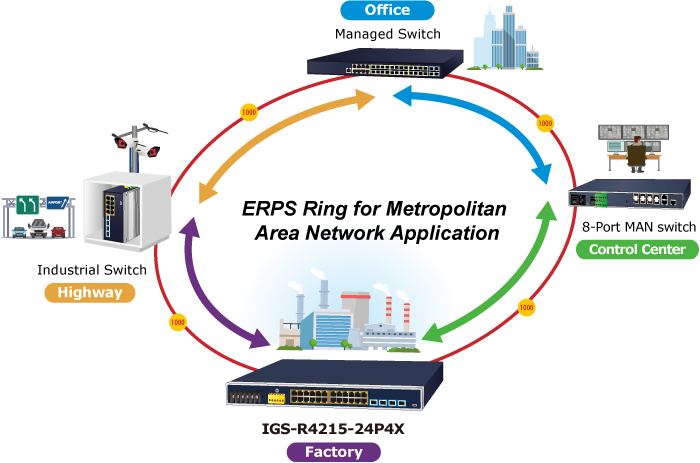

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-R4215-24P4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments.

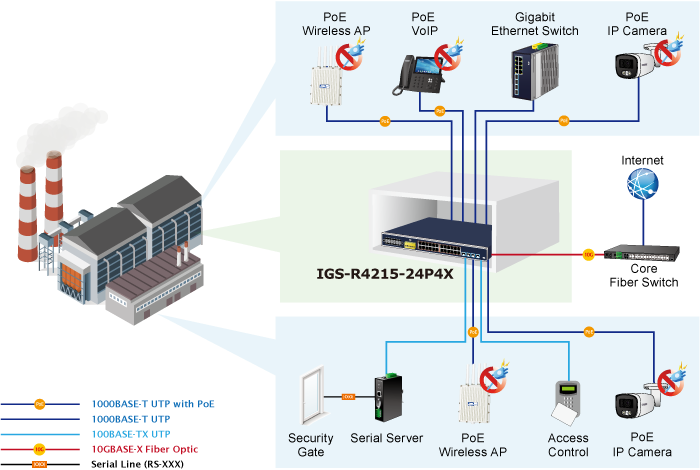

Industrial Area Department/Workgroup PoE Switch

Providing up to 24 PoE+, in-line power interfaces, the IGS-R4215-24P4X can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 24 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-R4215-24P4X makes the installation of IP cameras or wireless AP easier and more efficient.



Physical Port

  • 24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
  • 4 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP  transceivers
  • One USB Type-C console interface for basic management and setup.



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Power Up to 24 IEEE 802.3af PoE devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • PoE budget
    • Dual power input: 440W
    • Single power input: 240W
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode and 250m in extend mode
  • PoE management features
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE admin-mode control
    • PoE port power feeding priority
    • Per PoE port power limitation
    • PD classification detection
    • PoE extension
  • Intelligent PoE features
    • Temperature threshold control
    • PoE usage threshold control
    • PD alive check
    • PoE schedule
    • PD recycling schedule



Industrial Case and Installation

  • IP30 metal case
  • 19-inch rack-mountable design
  • Dual 48~54V, redundant power with reverse polarity protection
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience
  • Supports EFT protection for 6KV DC power and 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Digital Input and Digital Output

  • 2 digital input (DI)
  • 2 digital output (DO)
  • Integrate sensors into auto alarm system
  • Transfer alarm to IP network via SNMP trap



Switching

  • Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex mode), auto-negotiation, and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • 16K MAC address table size
  • 12K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization
  • Routing interface provides per VLAN routing mode



Layer 2 Features

  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) support
    • Protocol VLAN
    • Voice VLAN
    • Private VLAN (Protected port)
    • Management VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • STP (Spanning Tree Protocol)
    • RSTP (Rapid Spanning Tree Protocol)
    • MSTP (Multiple Spanning Tree Protocol)
    • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (Static Trunk)
    • Maximum 8 trunk groups, up to 8 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Link Layer Discovery Protocol (LLDP)



Quality of Service

  • Ingress/Egress Rate Limit per port bandwidth control
  • Traffic classification
    • IEEE 802.1p CoS
    • TOS/DSCP/IP Precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies



Multicast

  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering



Security

  • Storm Control support
    • Broadcast / Multicast / Unknown Unicast
  • Authentication
    • Built-in RADIUS client to co-operate with the RADIUS servers
    • DHCP Option 82
    • RADIUS/TACACS+ login user access authentication
  • Access Control List
    • IPv4/IPv6 IP-based ACL
    • IPv4/IPv6 IP-based ACE
    • MAC-based ACL
    • MAC-based ACE
  • MAC Security
    • Static MAC
    • MAC Filtering
  • Port Security for Source MAC address entries filtering
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • DoS Attack Prevention



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
    • Web switch management
    • Console/Telnet Command Line Interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    • SNMP trap for interface Link Up and Link Down notification
    • Four RMON groups (history, statistics, alarms, and events)
  • User Privilege Levels Control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTPs/TFTP
    • Configuration upload/download through HTTPs/TFTP
    • Dual Images
    • Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
    • Cable Diagnostics
    • ICMPv6/ICMPv4 Remote Ping
    • SFP-DDM (Digital Diagnostic Monitor)
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
  • Event message logging to remote Syslog server
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS system and NMSViewerPro/CloudViewerPro App for deployment management
Hardware Specifications
Copper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 24)
PoE Injector Port24 ports with 802.3at PoE+ injector function (Ports 1 to 24)
SFP+ Ports4 10GBASE-SR/LR SFP+ interfaces (Ports XG1 to XG4)
Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX transceivers
Console1 x USB Type-C to RS232 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Terminal BlockFixed 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
AlarmOne relay output for port breakdown and power failure.
Alarm relay current carry ability: 3A @ 24V DC
Digital Input (DI)2 digital input (DI)
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max.
Digital Output (DO)2 digital output (DO)
Open collector to 24V DC, 100mA max.
EnclosureIP30 metal case
InstallationRack-mount kit
Dimensions (W x D x H)444 x 200 x 44.2 mm, 1U height
Weight3250g
Power RequirementsDual 48-54V DC, 12A max.
Power Consumption/ DissipationMax. 10.7 watts / 36.6 BTU (system on)
Max. 486 watts / 1658.4 BTU (Full loading)
EFT Protection6KV DC
ESD Protection6KV DC
LEDSystem:
DC1 (Green)
DC2 (Green)
Alarm (Red)
Ring (Green)
R.O. (Green)
I/O (Red)
Per 10/100/1000T RJ45 PoE+ Ports:
Left: 1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Right: 802.3at (Amber)
Per 10G SFP+ Interface:
1G/2.5G LNK/ACT (Green)
100/10G LNK/ACT (Amber)
Switching Specifications
Switch ArchitectureStore-and-forward
Switch Fabric128Gbps/non-blocking
Switch Throughput@64Bytes95.23Mpps @64Bytes
Address Table16K MAC address table with auto learning function
Shared Data Buffer12Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame12KBytes
Power over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus PSE
PoE Power Supply TypeEnd-span
PoE Power OutputIEEE 802.3af Standard
Per port 48V~54V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
Per port 50V~54V DC (depending on the power supply), max. 36 watts
Power Pin Assignment1/2(+), 3/6(-)
Power Power BudgetSingle Power input: 240W maximum
Dual Power input: 440W maximum
※Dual power input must be the same as DC voltage, like dual 54V.
Max. Number of Class 2 PDs24
Max. Number of Class 3 PDs24
Max. Number of Class 4 PDs16
PoE Management Functions
PoE ManagementPD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension
Enhanced PoE ModeStandard/ Legacy/ Force
Active PoE Device Live DetectionYes
PoE Power RecyclingYes, daily or predefined schedule
PoE Schedule4 schedule profiles
PoE Extend ModeYes, max. up to 250 meters
Layer 2 Functions
Port MirroringTX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLAN802.1Q tag-based VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP/Static Trunk
Static Port Trunking, (Max. 8 groups with 8 ports for each group)
Dynamic LACP (Max. 8 groups with 8 ports for each group)
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP SnoopingIPv4 IGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups
MLD SnoopingIPv6 MLD snooping v2, v3, up to 256 multicast groups
QoS8 mapping ID to 8 level priority queues
Port number
802.1p priority
802.1Q VLAN tag
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
RingSupports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms
Layer 3 Functions
IP InterfacesMax. 64 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIPv4 hardware static routing
IPv6 hardware static routing
Security Functions
Access Control ListIPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries
Port SecurityBuilt-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC SecurityIP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries
Enhanced SecurityDHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management InterfacesConsole/ Telnet/ Web browser/ SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMP v3
System ManagementFirmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System, NMSViewerPro and CloudViewerPro App
Event ManagementRemote/Local Syslog
System log
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
DateVersionDescriptionDownload
2024/23/081.0

IGS-R4215-24P4X

 Download Icon
DateVersionDescriptionDownload
2024/20/091.2

Modify contents of Quick Guide.

 Download Icon
2024/23/081.1

Initial Release.

 Download Icon
DateVersionDescriptionDownload
2024/30/081.1

Initial release.

 Download Icon


Model

Description

IGS-6325-20T4C4X

Industrial L3 20-Port 10/100/1000T + 4-Port Gigabit TP/SFP + 4-Port 10G SFP+ Managed Ethernet Switch

IGS-6325-16T4X

Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch

IGS-6325-16T4S

Industrial L3 16-Port 10/100/1000T + 4-Port 1G/2.5G SFP Managed Ethernet Switch

IGS-5225-8P2S2X

Industrial L3 8-Port 10/100/1000T 802.3at PoE + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

IGS-4215-24T4X

Industrial L2+ 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

IGS-10020MT

Industrial 8-port 10/100/1000T + 2-port 1G/2.5G SFP Managed Gigabit Switch

Ordering Information

IGS-R4215-24P4X

Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch

Ordering Information

IGS-R4215-24P4X

Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch


Subscribe to PLANET e Newsletter

Receive the latest product information and company news!
