Industrial Single-Port 10Gbps 802.3bt PoE++ Injector

» IPOE-176

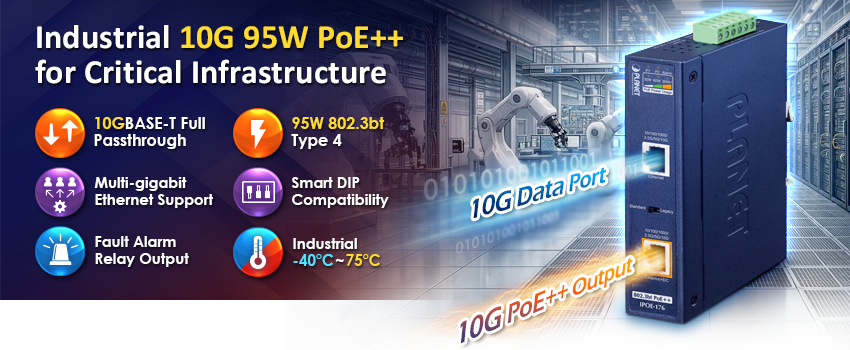

Advanced Industrial 10Gbps and 802.3bt PoE++ Network Solution

PLANET IPOE-176 is an industrial-grade, single-port 10Gbps 802.3bt PoE++ injector designed to deliver both ultra-high data throughput and up to 95W of power over Ethernet. It is also equipped with two 10/100/1000/2.5G/5G/10GBASE-T RJ45 copper interfaces (one for data input and one for PoE data and power output) to handle extremely large amounts of data transmission, making it ideal for next-generation high-bandwidth and high-power network applications.

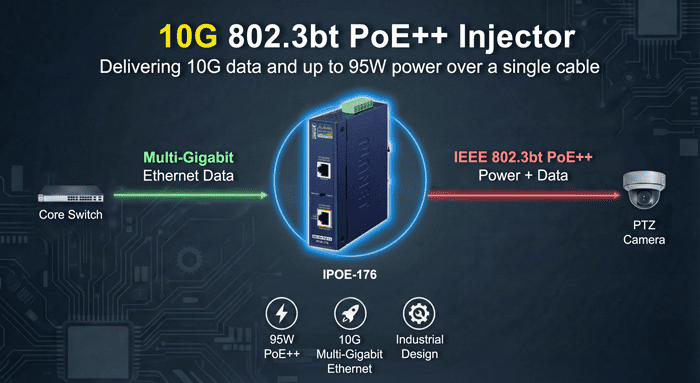

95W Power Delivery over 4-Pair Ethernet Cabling

The IPOE-176, adopting the IEEE 802.3bt standard, instead of delivering power over 2-pair twisted UTP – be it end-span or mid-span – provides the capability to source up to 95 watts of power by using all four pairs of standard Cat. 5e / Cat. 6 Ethernet cabling. This 4-pair PoE++ design enables more advanced applications, such as Wi-Fi 7 wireless access points, outdoor and industrial wireless devices, high-power IP cameras, edge computing equipment, and digital signage systems, where both power and bandwidth are critical.







Intelligent MCU-Controlled FAULT Alarm for Reliable Monitoring

Designed for industrial environments, the IPOE-176 not only delivers high-speed 10Gbps Ethernet data with 95W PoE++ power, but also integrates an MCU-controlled intelligent FAULT alarm mechanism. By actively monitoring power input and PoE operating status, the FAULT LED indicator and relay alarm output can accurately reflect real fault conditions, reducing false alarms and providing clear and reliable status indication for industrial monitoring systems.

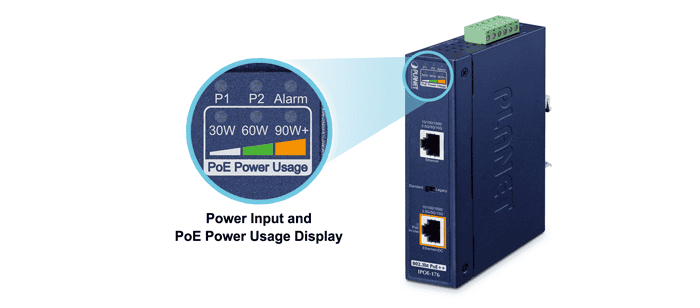

Intelligent LED Indicator for PoE Mode and Real-time PoE Usage

The IPOE-176 features an intuitive LED indication design for monitoring PoE operating status and real-time power usage. When operating in Legacy Mode, the Legacy LED lights up to indicate support for non-standard powered devices, and Force Mode can be used when the connected PD cannot be powered on under Legacy mode. In addition, the front-panel three amber PoE Power Usage LEDs indicate the current PoE load condition based on output power, representing 30W, 60W, and 90W levels through steady or blinking illumination, allowing users to quickly check the PoE power status of the connected device.

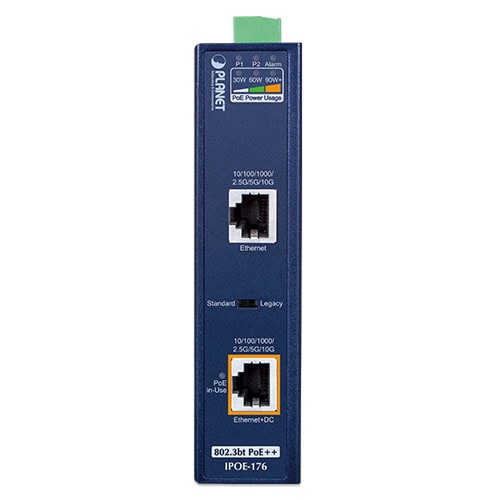

All-in-One and Industrial Compact Design

The IPOE-176 is designed for easy installation with true plug-and-play operation, requiring no software configuration. Featuring an industrial slim-type metal housing, the IPOE-176 integrates dual 48–54V DC power inputs via terminal block, LED indicators for Power, PoE-in-Use, Legacy Mode, and PoE Usage, and two 10Gbps RJ45 ports for data input and PoE output. With its compact all-in-one design, the IPOE-176 is ready to deliver high-speed 10Gbps Ethernet connectivity and 802.3bt PoE++ power simultaneously, making it ideal for industrial and mission-critical network deployments.



Quick and Easy Cabling Installation for PoE Network Deployment

Backward compatible with IEEE 802.3af/at/bt PoE standards, the IPOE-176 allows users to flexibly deploy both standard and high-powered devices, delivering data and power over a single Ethernet cable for distances of up to 100 meters. By eliminating the need for additional AC power outlets at the device installation site, the IPOE-176 simplifies network deployment for industrial wireless access points, IP surveillance systems, and edge devices, reduces cabling complexity, and significantly shortens installation time in harsh or hard-to-reach environments.





Powering Next-Generation Wi-Fi 7 Networks

Combines 10Gbps Ethernet performance with up to 95W PoE++ power, enabling Wi-Fi 7 and high-end wireless access points to unleash full throughput, support high user density, and deliver a truly future-ready wireless experience.

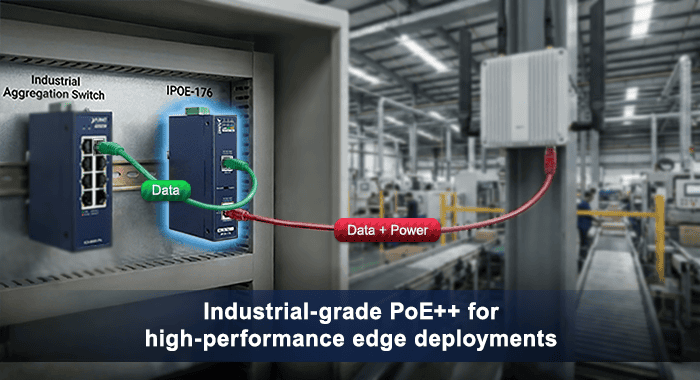

Supporting Industrial and Outdoor Deployments

Ideal for industrial wireless systems, edge computing devices, and outdoor network installations that demand high power, high bandwidth, and long-term reliability, especially in environments where stable operation is critical and AC power is difficult to deploy.



Enabling High-Power PoE for Video and Edge Applications

Perfect for PTZ cameras, high-resolution IP surveillance, and intelligent edge devices, delivering reliable PoE power and high-speed data transmission for smooth video streaming, real-time monitoring, and data-intensive applications.



Interface

  • 2 Multi-Gigabit Speed RJ45 interfaces
    • 1-port Data + Power output
    • 1-port Data input
  • 1 terminal block for dual DC power input
    • Power range: 48–54V DC, supports redundant power input
  • 1 PoE mode DIP switch
    • Supports Standard / Legacy / Force PoE modes



Power over Ethernet

  • Complies with IEEE 802.3af / 802.3at / 802.3bt PoE end-span and mid-span PSE
  • Supports PoE++ power output up to 95 watts for the PoE port
  • Auto-detection of IEEE 802.3af/at/bt powered devices to prevent damage from incorrect installation
  • Real-time monitoring of total PoE power usage via LED indicators
  • Supports remote power feeding up to 100 meters



Hardware

  • IP30 slim-type metal enclosure suitable for industrial environments
  • LED indicators for Power, PoE-in-Use, Legacy Mode, and PoE Power Usage
  • Fanless design for silent and reliable operation



Industrial Case and Installation

  • Supports DIN-rail and wall-mount installation
  • Provides 6KV DC Ethernet ESD protection
  • Designed for wide operating temperature range: -40 to 75°C
Hardware Specifications
InterfaceInput Port: 1 × RJ45 10/100/1000/2.5G/5G/10GBASE-T Data In
Output Port: 1 × RJ45 10/100/1000/2.5G/5G/10GBASE-T PoE (Data + Power) Out
PoE Mode Control: DIP switch for Standard / Legacy / Force modes
Data Rate10G/5G/2.5G/1G/100/10Mbps

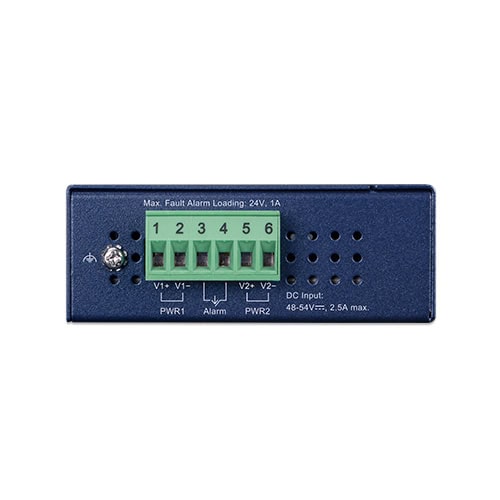

ConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1
Pin 3/4 for fault alarm
Pin 5/6 for Power 2
Power RequirementsDC 48-54V, 2.5A max
Power ConsumptionMax. 1.62 watts/ 5.5 BTU (Power on without any connection)
Max. 98 watts/ 334.2 BTU (54V DC input, full PoE load)
Dimensions (W x D x H)32 × 87 × 135 mm
Weight454g
Unit Output VoltageDC 48–54V
LED IndicatorsSystem:
　Power 1 (Green)
　Power 2 (Green)
　Alarm (Red)
PoE Port:
　PoE-in-Use × 1 (Amber)
PoE Usage:
　PoE Usage × 3 (Amber, 30W / 60W / 90W)
Network CableTwisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7
5G: 4-pair UTP Cat 6/Cat 6A/Cat 7
10G:4-pair UTP Cat 6A/Cat 7
Power over Ethernet
PoE StandardIEEE 802.3af/at/bt PSE
PoE Power Supply TypeEnd-span + Mid-span
Power Pin AssignmentPair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
PoE ModeStandard mode
Legacy and Force modes
PoE Power Output Budget95W (IEEE 802.3bt Type 4)
PoE Power OutputDC 54V input:
　Max. 95W @1m cable
　Max. 71W @100m cable
DC 48V input:
　Max. 94W @1m cable
　Max. 67W @100m cable
Actual available power may vary depending on cable length and DC input voltage
No. of Devices that can be powered1
Standards Conformance
Standards ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3an 10GBASE-T
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet (Type 4)
Regulatory ComplianceFCC Part 15 Class A, CE
Environment
Operating Temperature-40 ~ 75 degrees C
Storage Temperature-40 ~ 85 degrees C
Operating Humidity5 ~ 90%, relative humidity, non-condensing
Storage Humidity5 ~ 90%, relative humidity, non-condensing


Model

Description

IGS-6325-8UP2S2X

Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000X SFP + 2-Port 10G SFP+ Managed Ethernet Switch

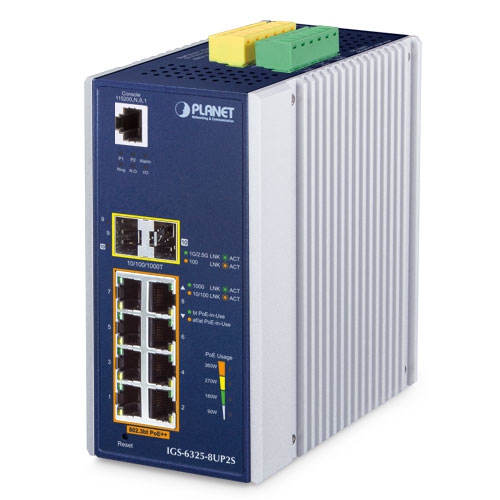

IGS-6325-8UP2S

Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000X SFP Managed Ethernet Switch

IGS-5225-8P4S

Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch

IGS-4215-4P4T2S

Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

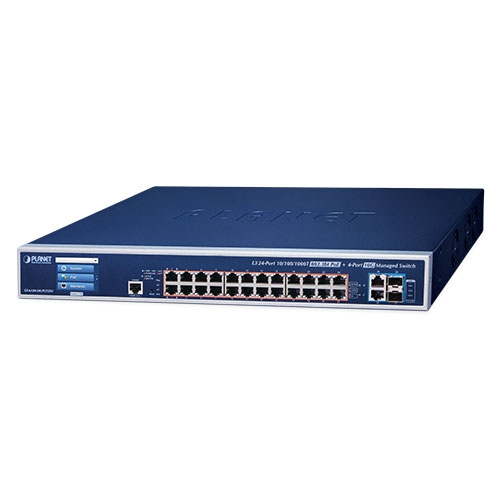

GS-6320-24UP2T2XV

L3 24-Port 10/100/1000T 802.3bt PoE + 2-Port 10GBASE-T + 2-Port 10G SFP+ Managed Switch with LCD Touch Screen and Redundant Power

FGSW-2624HPS4

24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch

Ordering Information

IPOE-176

Industrial Single-Port 10Gbps 802.3bt PoE++ Injector
