Compact Size for More Practicability and Convenience

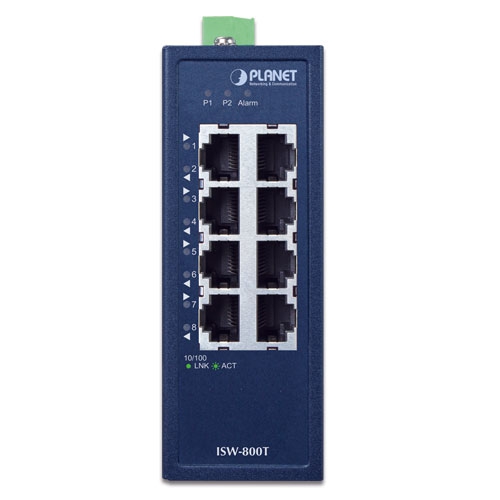

PLANET ISW-800T Compact Industrial 8-Port 10/100TX Ethernet Switch is tailored for industrial applications, featuring 8 auto-negotiation 10/100Mbps ports, an IP30-rated rugged yet compact case, and a versatile redundant power system (12~48V DC or 24V AC). The ISW-800T operates efficiently in harsh environments, with an operating temperature range of -40 to 75 degrees Celsius.

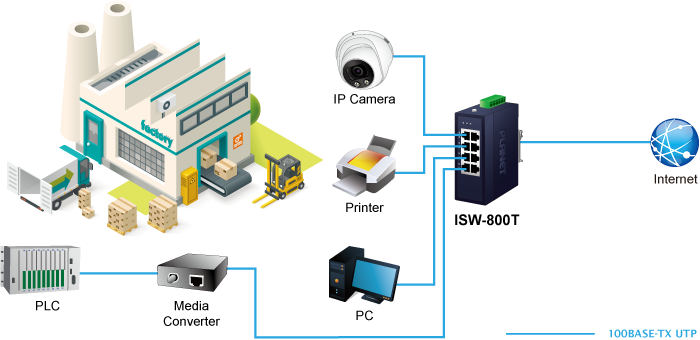

In response to the growing demand for IIoT (Industrial Internet of Things) infrastructure, the ISW-800T is designed for easy deployment of industrial networks with its Plug and Play capability. Furthermore, it ensures stable and reliable fast data and power transmission. The ISW-800T also PROFINET traffic pass-through with QoS, making it an ideal choice for integrating with industrial automation systems and enhancing communication between devices in a factory setting.
PROFINET Traffic Pass-through with QoS
The ISW-800T features a brand-new function that enhances support for recognizing the PROFINET traffic for higher delivery priority. Once the ISW-800T receives the PROFINET traffic, it will forward the PROFINET traffic first, and then handle other Ethernet traffic. With this enhanced function, the ISW-800T will become the ideal Industrial Unmanaged Switch for the faster PROFINET traffic.
Low Power Consumption for Green Networking
The ISW-800T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features make the ISW-800T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the ISW-800T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.
Dual Power Input for High Availability Network System

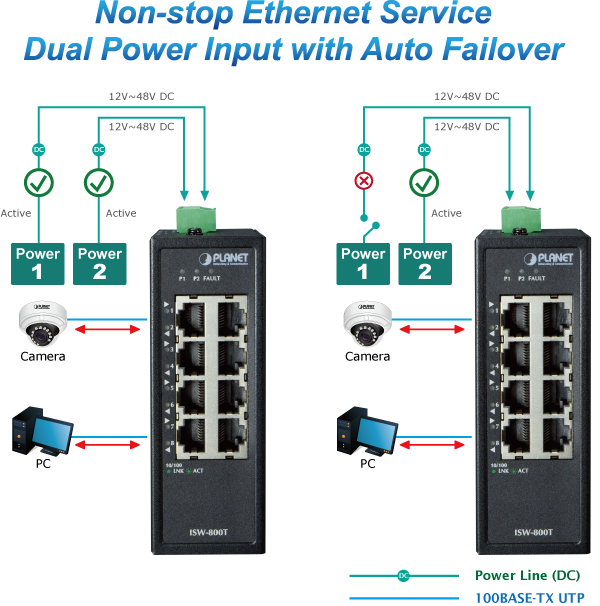

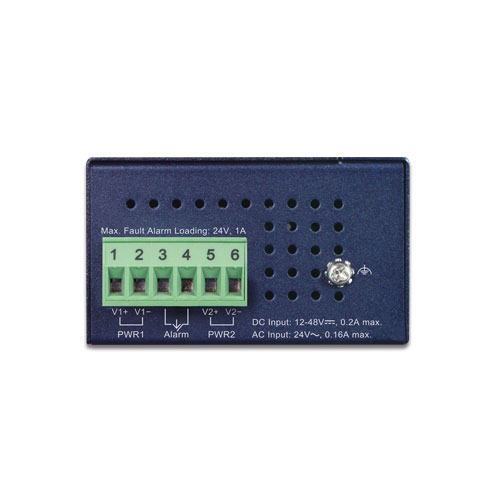

The ISW-800T features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the ISW-800T via power supply 2 alternatively without any loss of operation.
Robust Protection
The ISW-800T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
High Switch Performance
The ISW-800T offers a high-performance switch architecture. With the 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps and the 1K MAC address table, the ISW-800T can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the ISW-800T to provide fast and reliable data transfer.
Plug and Play
All of the RJ45 copper interfaces in the ISW-800T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 5, 5e, 6, 6a or 7 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

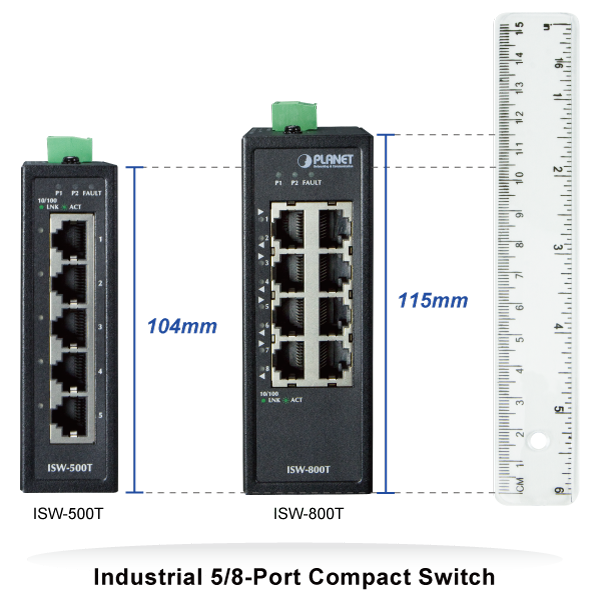

Flexible and Easy Installation with Limited Space
The compact sized ISW-800T is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.
