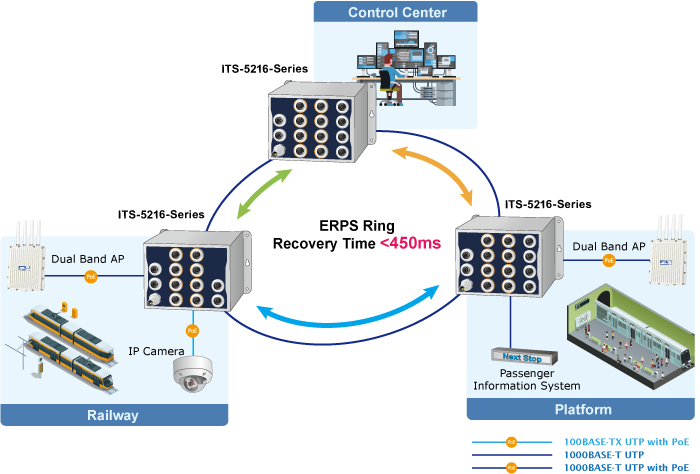

Suitable for Transportation Networking Applications
PLANET ITS-5216-8P4T-WV, an Industrial Layer 2+ Managed Ethernet Switch, comes with an IP50-rated industrial case, 8-port 10/100/1000T 802.3at PoE+ and 4-port 10/100/1000T M12 interfaces, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. The ITS-5216-8P4T-WV can be easily mounted on a wall taking up less space. Each of the eight Gigabit PoE+ ports provides 36 watts of power, which means a total power budget of up to 100 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It also provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

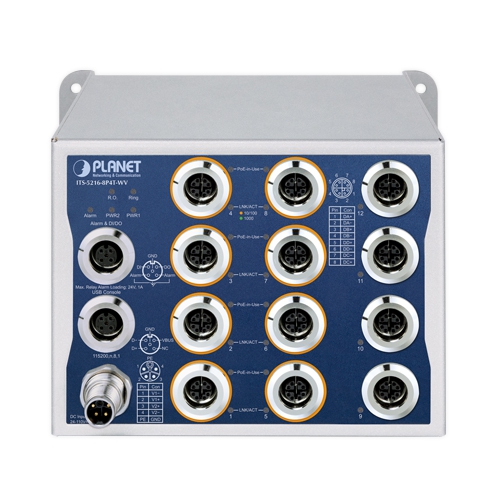

Vibration-proof and Dustproof M12 Ethernet Connector
The ITS-5216-8P4T-WV is equipped with 12-port 10/100/1000BASE-T auto-negotiation dustproof M12 connector. The M12 connector provides tight and strong connection, and guarantees stable Ethernet operation performance under high vibration and shock environment. It comes with the industrial protection rating of IP50 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold. The ITS-5216-8P4T-WV is able to operate under the temperature range from -40 to 70 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.
Dual Power Input for High Availability Network System
The ITS-5216-8P4T-WV features a strong dual power input system (Dual 24V~110V DC) incorporated into customer’s automation network to enhance system reliability and uptime. For example, when DC Power 1 fails to work, the hardware failover function will be activated automatically to keep powering the ITS-5216-8P4T-WV via DC Power 2 alternatively without any loss of operation.

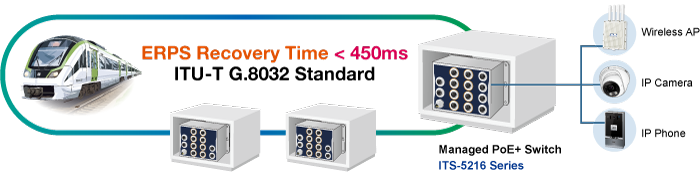

Redundant Ring, Fast Recovery for Critical Network Applications
The ITS-5216-8P4T-WV supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 450ms.

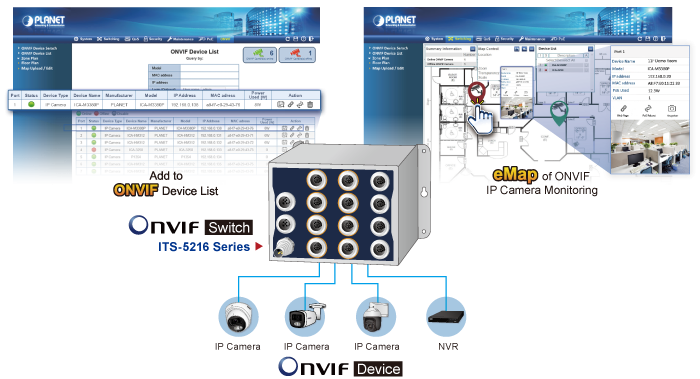

Convenient and Smart ONVIF Devices with Detection Feature
PLANET has newly developed an awesome feature — ONVIF Support — which is specifically designed for co-operating with video IP surveillances. From the ITS-5216 series GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to the switch series, making the deployments of surveillance and other devices easy for planning and inspection purposes. Moreover, clients can get real-time surveillance’s information and online/offline status; the PoE reboot can be controlled from the GUI.
Centralized Power Management for Gigabit Ethernet PoE+ Networking
To fulfill the needs of higher power required PoE+ network applications with Gigabit speed transmission, the ITS-5216-8P4T-WV features high-performance Gigabit IEEE 802.3at PoE+ (up to 36 watts) on PoE+ ports. It perfectly meets the power requirements of PoE VoIP phone, PoE Wireless AP and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras and even box type IP cameras with a built-in fan and heater for high power consumption. The ITS-5216-8P4T-WV’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates cost for additional AC wiring and reduces installation time.
Built-in Unique PoE Functions for Surveillance Management
As an Industrial managed PoE Switch for surveillance network, the ITS-5216-8P4T-WV features the following intelligent PoE management functions:
- PD Alive Check
- PoE Schedule
- Scheduled Power Recycling
Intelligent Alive Check for Powered Device
The ITS-5216-8P4T-WV can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the ITS-5216-8P4T-WV will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.
PoE Schedule for Energy Saving
Besides being used for IP surveillance, the ITS-5216-8P4T-WV is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the ITS-5216-8P4T-WV can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.
Scheduled Power Recycling
The ITS-5216-8P4T-WV allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
Cybersecurity Network Solution to Minimize Security Risks
The ITS-5216-8P4T-WV supports SSHv2 and TLSv1.3 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection and 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.
Robust Layer 2 Features
The ITS-5216-8P4T-WV can be programmed for advanced switch management functions such as dynamic port link aggregation, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. Via the link aggregation of supporting ports, the ITS-5216-8P4T-WV allows the operation of a high-speed trunk to combine with multiple fiber ports and supports fail-over as well.
Excellent Traffic Control
The ITS-5216-8P4T-WV is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers’ applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.

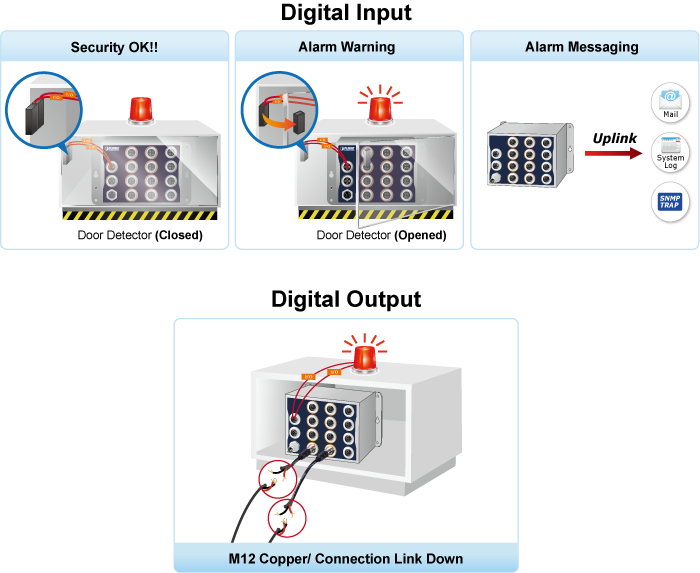

Digital Input and Digital Output for External Alarm
This external alarm system enables users to utilize a Digital Input to monitor and log the status of external devices, such as door intrusion detectors, and send event alarms to administrators. The Digital Output can be used to alarm administrators of any changes in link status, whether the link is down or up, on the ITS-5216-8P4T-WV port.

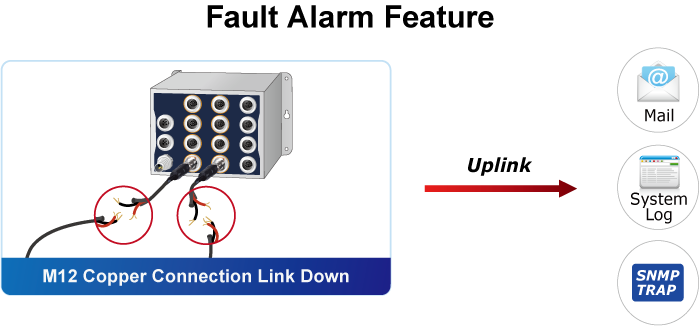

Effective Alarm Alert for Better Protection
The ITS-5216-8P4T-WV includes a Fault Alarm feature that promptly alerts users to any issues with the switches. This valuable functionality eliminates the need for users to spend time identifying the problem, resulting in significant savings in both time and human resources.
Friendly and Secure Management
For efficient management, the ITS-5216-8P4T-WV is equipped with Command line, Web and SNMP management interfaces.
- With the built-in Web-based management interface, the ITS-5216-8P4T-WV offers an easy-to-use, platform-independent management and configuration facility.
- For text-based management, it can be accessed via Telnet and the console port.
- By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.
Moreover, the ITS-5216-8P4T-WV offers secure remote management by supporting SSHv2, TLSv1.3 and SNMP v3 connections which encrypt the packet content at each session.
Remotely Manage Solution
PLANET’s Universal Network Management System (UNI-NMS) and CloudNMS App support IT staff to remotely manage all network devices and monitor the PDs’ operation statuses. Thus, they’re designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudNMS App, all kinds of businesses can now be speedily and efficiently managed from one platform.
