IP65 LoRaWAN TVOC Sensor

» LS200-VOC

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor

PLANET LS200-VOC IP65 LoRaWAN TVOC Sensor is a versatile environmental monitoring device designed to enhance air quality management in various settings. It detects total volatile organic compounds (TVOCs), providing crucial information about indoor air pollution levels. Additionally, the integrated temperature and humidity sensors ensure optimal climate control by monitoring and maintaining comfortable and safe indoor conditions. Ideal for use in residential, commercial, and industrial environments, the LS200-VOC sensor helps maintain healthy air quality, preventing exposure to harmful pollutants while ensuring a comfortable living and working atmosphere.



LoRa and LoRaWAN Wireless Technology

LoRa is a low-power wide-area network (LPWAN) technology designed for long-range data transmission. The LoRaWAN protocol standardizes device communication, making IoT applications more efficient and easy to deploy. LoRa can achieve a range of up to 3 miles (5 kilometers) in urban areas and over 6 miles (10 kilometers) in rural areas with a clear line of sight. The range varies based on factors like frequency, environment, antenna design, and power. Its low power consumption enables battery-powered devices to run for years, depending on usage.

LoRaWAN uses a star topology, ideal for gathering small data from many low-power devices. Its open protocol supports various applications, transmitting data efficiently via gateways. The LS series is optimized for LoRa IoT, offering low power use, high reliability, and long-range communication, perfect for efficient data collection.



Expanding Capabilities with PLANET Industrial LoRa Node Controllers

The integration of PLANET LS200-VOC into the NMS-AIoT platform enhances the system’s capabilities by enabling seamless connectivity via LoRa, HaLow, and wireless, or wired options. This allows the LS200-VOC to contribute to real-time data collection and AI-driven insights for applications in smart cities, agriculture, and industrial environments, strengthening the platform’s overall ecosystem.

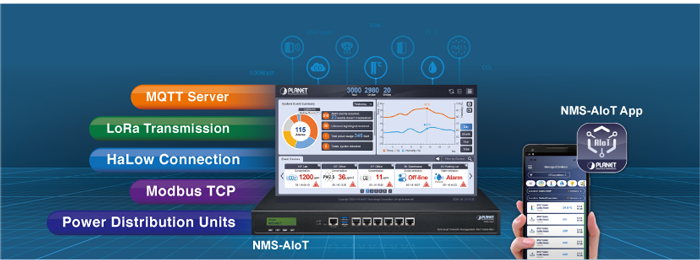

The NMS-AIoT platform enables comprehensive integration of diverse devices, such as sensors, RS485/Modbus systems, and PDUs, through flexible connectivity options. This unified architecture supports environmental data collection and AI processing, empowering applications like smart cities, precision agriculture, and intelligent manufacturing.

LoRaWAN-based Sensor

PLANET LoRaWAN LS100/LS200 Sensor series is fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supporting the LoRaWAN class A. It is ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor facilitates the seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

Environmental Sensors:

  • Temperature and Humidity
    • LS200-TH IP65 LoRaWAN Indoor Temperature and Humidity Sensor
  • Water Leakage
    • LS100-WL IP65 LoRaWAN Water Leak Sensor
  • Light Detection
    • LS200-LG IP65 LoRaWAN Light Level Sensor
  • Gas
    • LS200-VOC IP65 LoRaWAN TVOC Sensor
    • LS200-PM25 IP30 LoRaWAN PM2.5 Sensor
    • LS100-CO IP20 LoRaWAN CO Detector
  • Smoke
    • LS100-SMK IP20 LoRaWAN Smoke Detector



Device Sensors:

  • Temperature and Humidity Sensing
    • LS200-PT IP65 LoRaWAN Product Temperature Sensor
    • LS200-TC IP65 LoRaWAN Machine Temperature Sensor
    • LS200-RF IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor
  • Security Monitoring
    • LS100-PIR IP30 LoRaWAN Indoor Occupancy Sensor
    • LS100-DW IP30 LoRaWAN Door and Window Sensor
  • Power and Current Monitoring
    • LS200-CM3 IP53 LoRaWAN 3-phase Current Meter
    • LS200-CM IP53 LoRaWAN 1-phase Current Meter
    • LS250-PLUG IP20 LoRaWAN Power Plug with Power Meter
  • Multi-function
    • LS200-MF8 IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/Reed Switch/Light/Glass Break Sensor

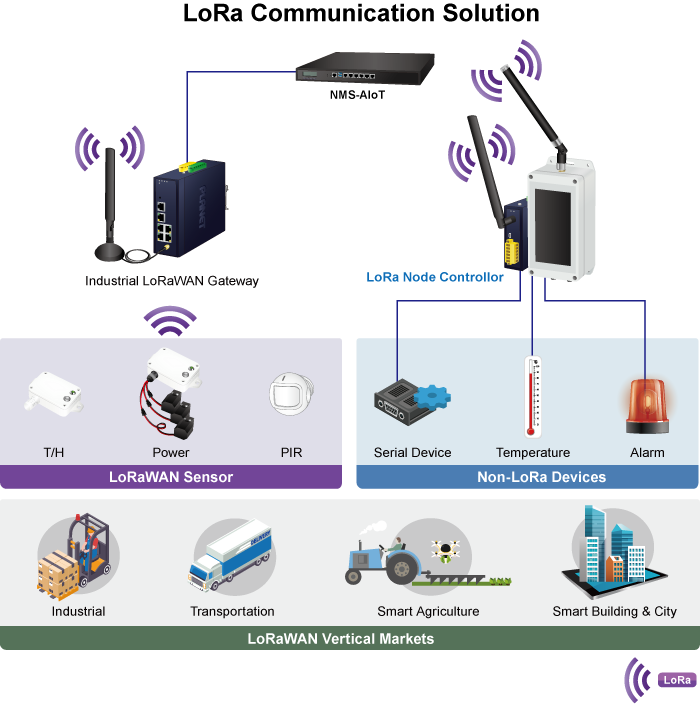

LoRa Communication Solution

PLANET LoRaWAN LS100/LS200 Sensor series, fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supports the LoRaWAN class A or class C. Beyond compatibility, it offers advanced features enhancing IoT applications. With reliable data transmission and low power consumption, it meets diverse IoT demands. In building automation, the sensor enables real-time monitoring and control, optimizing HVAC systems for energy efficiency. In agriculture, it aids precision farming by monitoring soil conditions and livestock well-being. For smart metering, it excels in accurate data acquisition, facilitating energy consumption monitoring and resource management. Its retrofitting capabilities seamlessly integrate various sensors, transforming the existing infrastructure into smart, connected systems. In summary, PLANET LoRaWAN Sensor enriches IoT applications with advanced features, ensuring compatibility and empowering industries for increased efficiency and sustainability in a concise manner.

  • TVOC Sensor
  • Temperature and Humidity (-20~55 °C)
  • IP65 rating
  • LoRaWAN™ Class A compatible
Wireless Transmission
TechnologyLoRaWAN
FrequencyLS200-VOC-868M
863–870 MHz

LS200-VOC-915M
902–928 MHz
TX PowerLS200-VOC-868M
EU868 16dBm
IN865 20dBm (optional)

LS200-VOC-915M
US915 20dBm
AS923 16dBm (optional)
AU915 20dBm (optional)
KR920 14dBm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.6V ER14505 AA battery in parallel (Battery not included)
Operating VoltageDC 3.1V～3.65V
Battery Life Time2.7 years
(25°C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current28µA
Wake-up Current (Typical value)0.8mA-20mA
Low Battery Threshold3.2V
Physical Characteristics
Dimensions (L x W x H)88 x 65 x 19 mm
Weight113g
Sensor Measurement InfoTVOC Sensor
　Measurement Range: 0 ppb – 60000 ppb
Temperature Sensor
　Measurement Range: -20°C to 55°C
Humidity Sensor
　Measurement Range: 0% to 100% RH
Ingress ProtectionIP65
Operating Temperature-20°C to 55°C
Relative Humidity<90% RH (non condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B


Model

Description

LS200-CM

IP53 LoRaWAN 1-phase Current Meter

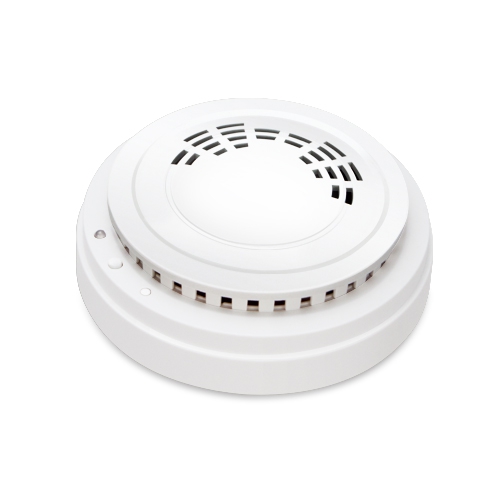

LS100-CO

IP20 LoRaWAN CO Detector

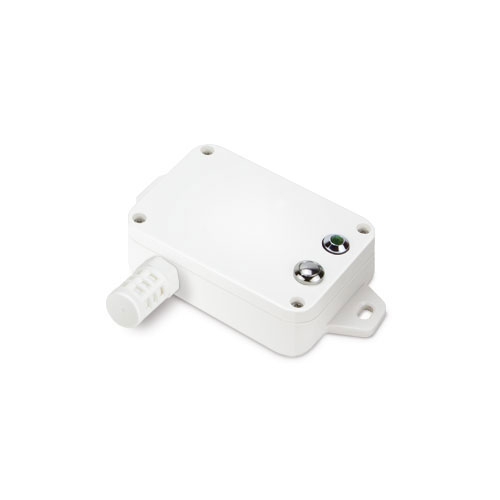

LS200-TH

IP65 LoRaWAN Indoor Temperature and Humidity Sensor

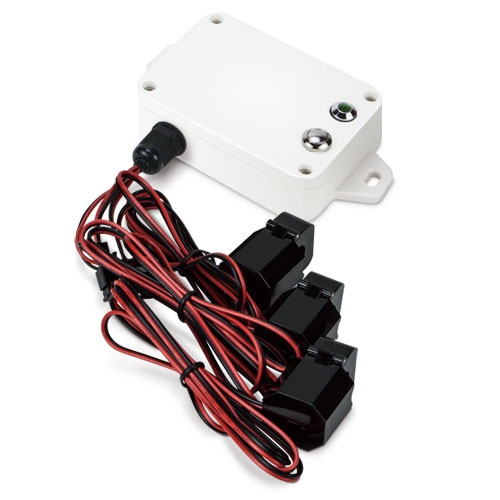

LS200-CM3

IP53 LoRaWAN 3-Phase Current Meter

LS100-SMK

IP20 LoRaWAN Smoke Detector (High-Temperature Alarm, EU868/US915 Sub 1G)

LS100-PIR

IP30 LoRaWAN Indoor Occupancy Sensor

Ordering Information

LS200-VOC

IP65 LoRaWAN TVOC Sensor
