100BASE-FX SFP Transceiver

» MFB-Series Transceiver

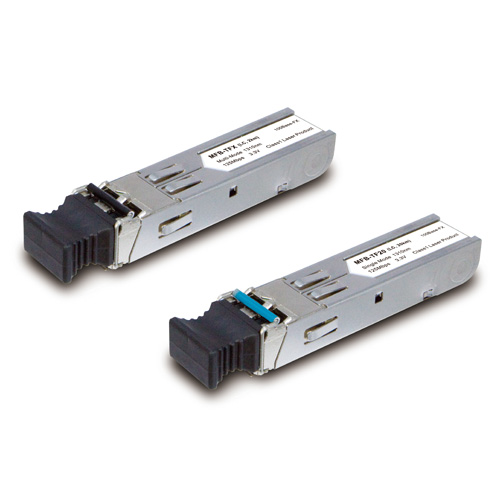

The MFB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MFB SFP transceivers using a long wavelength (1310nm) FP LD enable data transmission up to 2km on a multimode optical fiber and up to 60km on a single mode optical fiber.

To meet the increasing demand of Industrial Ethernet fiber solution, Planet has released the MFB-T 100Base-FX transceiver series that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 85℃) environment. The MFB-T 100Base-FX transceiver series provides easy and fast 100Base-FX connection for Planet wide temperature industrial equipment.

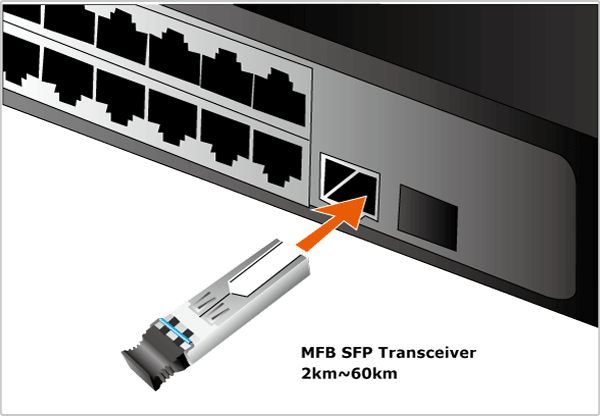

The MFB family SFP Fast Ethernet transceivers can be installed in PLANET Switch and Media Converter products with 100Base-FX SFP interface. The deployment distance can be extended from 2km (Multi-Mode, LC) up to 60 kilometers (Single-Mode, LC).

The MFB family SFP Fast Ethernet transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to / from any SFP port without having to power off the Switch / Media Converter.

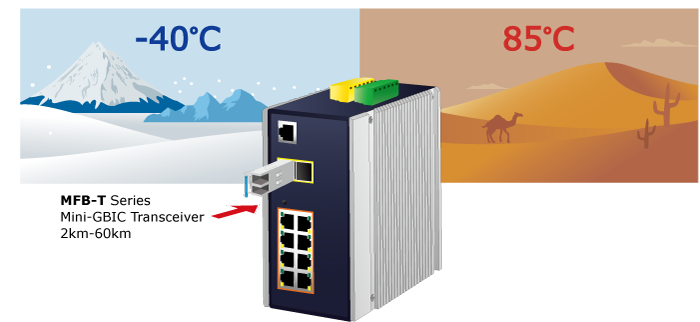

The MFB-T 100Base-FX transceiver series is an ideal solution for -40℃ to 85℃ wide temperature industrial equipment with 100Base-FX SFP interfaces. The deployment distance can be extended from 2km (Multi-Mode, LC) up to 20km (Single-Mode, LC).

  • SFP Multi-Source Agreement compliant
  • 125Mbps IEEE 802.3u 100Base-FX compliant
  • Industry standard small form pluggable (SFP) package (for model MFB-TFX / MFB-TF20 )
  • 125Mbps FDDI ISO / IEC 9314-1 compliant
  • Serial ID functionality support
  • AC-coupled differential inputs and outputs
  • Class 1 laser safety standard IEC 825 compliant
  • 2km link on a multimode fiber and 20km to 60km on a single mode fiber
  • Low power dissipation
  • 0 to 60 degrees C operating temperature for MFB-FX / MFB-F20 / MFB-F40 / MFB-F60 / MFB-FA20 / MFB-FB20
  • -40 to 85 degrees C operating temperature for MFB-TFX / MFB-TF20 /MFB-TF120/MFB-TSA & MFB-TSB/MFB-TFA20 & MFB-TFB20/MFB-TFA40 & MFB-TFB40/MFB-TFA60 & MFB-TFB60

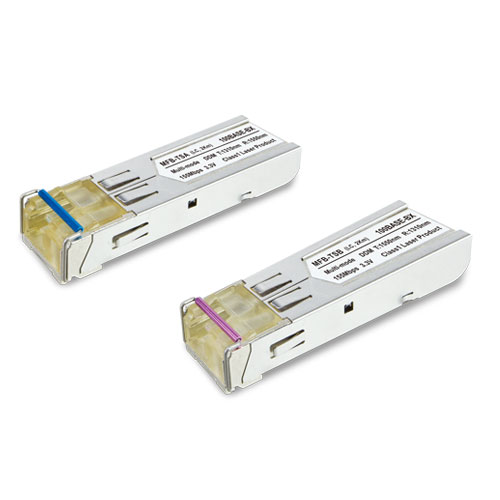

MFB-TSA
PHY TypeIEEE 802.3u 100BASE-FX
Fiber TypeMulti-mode
ConnectorLC
Speed155Mbps (maximum)
Wavelength (TX/RX)1310nm/1550nm
Maximum Distance2km
Digital Diagnostics MonitoringSFF-8472 DDM
Operating Temperature-40 to +85 degrees C
Humidity5% to 90% (non-condensing)
MFB-TSB
PHY TypeIEEE 802.3u 100BASE-FX
Fiber TypeMulti-mode
ConnectorLC
Speed155Mbps (maximum)
Wavelength (TX/RX)1550nm/1310nm
Maximum Distance2km
Digital Diagnostics MonitoringSFF-8472 DDM
Operating Temperature-40 to +85 degrees C
Humidity5% to 90% (non-condensing)
MFB-FX
PHY Type100Base-FX
Fiber TypeMulti-Mode
ConnectorLC
Wavelength1310nm
Maximum Distance2km
Operating Temperature0 ~ 60 degrees C
MFB-F20
PHY Type100Base-FX
Fiber TypeSingle Mode
ConnectorLC
Wavelength1310nm
Maximum Distance20km
Operating Temperature0 ~ 60 degrees C
MFB-F40
PHY Type100Base-FX
Fiber TypeSingle Mode
ConnectorLC
Wavelength1310nm
Maximum Distance40km
Operating Temperature0 ~ 60 degrees C
MFB-F60
PHY Type100Base-FX
Fiber TypeSingle Mode
ConnectorLC
Wavelength1310nm
Maximum Distance60km
Operating Temperature0 ~ 60 degrees C
MFB-FA20
PHY Type100Base-BX
Fiber TypeSingle Mode
ConnectorWDM / Bidi LC
WavelengthTX: 1310nm, RX: 1550nm
Maximum Distance20km
Operating Temperature0 ~ 60 degrees C
MFB-FB20
PHY Type100Base-BX
Fiber TypeSingle Mode
ConnectorWDM / Bidi LC
WavelengthTX: 1550nm, RX: 1310nm
Maximum Distance20km
Operating Temperature0 ~ 60 degrees C
MFB-TFX
PHY Type100Base-FX
Fiber TypeMulti-Mode
ConnectorLC
Wavelength1310nm
Maximum Distance2km
Operating Temperature-40 ~ 85 degrees C
MFB-TF20
PHY Type100Base-FX
Fiber TypeSingle Mode
ConnectorLC
Wavelength1310nm
Maximum Distance20km
Operating Temperature-40 ~ 85 degrees C
MFB-TF120
PHY Type100Base-FX
Fiber TypeSingle Mode
ConnectorLC
Wavelength1550nm
Maximum Distance120km
Operating Temperature-40~85 degrees C
MFB-TFA20
PHY Type100Base-BX
Fiber TypeSingle Mode
ConnectorWDM / Bidi LC
WavelengthTX: 1310nm, RX: 1550nm
Maximum Distance20km
Operating Temperature-40 ~ 85 degrees C
MFB-TFB20
PHY Type100Base-BX
Fiber TypeSingle Mode
ConnectorWDM / Bidi LC
WavelengthTX: 1550nm, RX: 1310nm
Maximum Distance20km
Operating Temperature-40 ~ 85 degrees C
MFB-TFA40
PHY Type100Base-BX
Fiber TypeSingle Mode
ConnectorWDM / Bidi LC
WavelengthTX: 1310nm, RX: 1550nm
Maximum Distance40km
Operating Temperature-40 ~ 85 degrees C
MFB-TFB40
PHY Type100Base-BX
Fiber TypeSingle Mode
ConnectorWDM / Bidi LC
WavelengthTX: 1550nm, RX: 1310nm
Maximum Distance40km
Operating Temperature-40 ~ 85 degrees C
DateVersionDescriptionDownload
2024/15/031.0

MFB-Series

 Download Icon
DateVersionDescriptionDownload
2023/21/042.0

Modify contents of user manual.

 Download Icon
2018/23/111.97

Add MGB-L40/80 and MGB-LA/LB80.

 Download Icon
2018/30/031.95

Add MTB-RJ

 Download Icon
2017/11/121.94

Add MFB-TSA and MFB-TSB.

 Download Icon
2016/10/051.92

Add: MTB-TSR, MTB-TLR.

 Download Icon
2015/30/071.91

Modify page 17.

 Download Icon
2014/15/081.9

Add MTB-LAx and MTB-LBx.

 Download Icon
2010/16/071.4

Add Wide Temperature Transceiver.

 Download Icon
2009/24/021.3

User’s Manual

 Download Icon
DateVersionDescriptionDownload
2017/06/011.1

EC Declaration

 Download Icon


Model

Description

Ordering Information

MFB-Series Transceiver

100BASE-FX SFP Transceiver

Ordering Information

MFB-FX

SFP-Port 100BASE-FX Transceiver (1310nm) -2km

MFB-F20

SFP-Port 100BASE-FX Transceiver (1310nm) - 20km

MFB-FA20

SFP-Port 100BASE-BX Transceiver (WDM,TX:1310nm) -20km

MFB-FB20

SFP-Port 100BASE-BX Transceiver (WDM,TX:1550nm) -20km

MFB-F40

SFP-Port 100BASE-FX Transceiver (1310nm) - 40KM

MFB-F60

SFP-Port 100BASE-FX Transceiver (1310nm) - 60KM

MFB-TFX

SFP-Port 100BASE-FX Transceiver (1310nm) -2km (-40~85 degrees C)

MFB-TF20

SFP-Port 100BASE-FX Transceiver (1310nm) - 20km (-40~85 degrees C)

MFB-TFA20

SFP-Port 100BASE-BX (WDM, TX:1310nm) mini-GBIC module-20km (-40~85 degrees C)

MFB-TFB20

SFP-Port 100BASE-BX (WDM, TX:1550nm) mini-GBIC module-20km (-40~85 degrees C)

MFB-TFA40

SFP-Port 100BASE-BX (WDM, TX:1310nm) mini-GBIC module-40km (-40~85 degrees C)

MFB-TFB40

SFP-Port 100BASE-BX (WDM, TX:1550nm) mini-GBIC module-40km (-40~85 degrees C)

MFB-TSB

SFP-Port 100BASE-BX Transceiver (Multi-mode/WDM,TX:1550nm RX:1310nm / DDM) - 2km (-40~85 degrees C)

MFB-TF120

SFP-Port 100BASE -FX Transceiver (1550nm) - 120km (-40~85℃)

MFB-TSA

SFP-Port 100BASE-BX (Multi-mode/WDM,TX:1310nm) mini-GBIC module-2km (-40~85℃)

MFB-TFB60

MFB-TFB60 SFP-Port 100BASE-BX (WDM, TX:1550nm) mini-GBIC module-60km (-40~85℃)

MFB-F120

SFP-Port 100BASE -FX Transceiver (1550nm) - 120km

MFB-TFA60

SFP-Port 100BASE-BX (WDM, TX:1310nm) mini-GBIC module-60km (-40~85℃)
