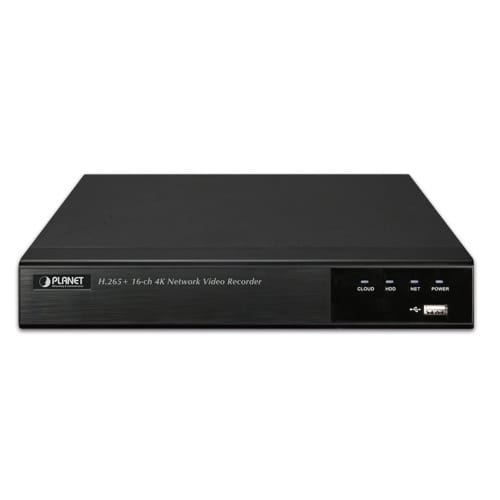

H.265+ 16-ch 4K Network Video Recorder

» NVR-1600

High Efficiency Surveillance Solution

PLANET NVR-1600 is a brand-new 16-channel Linux embedded network video recorder (NVR) for campuses, communities, restaurants and more. Designed for IP surveillance applications with HDMI local display, the NVR-1600 supports IP cameras with up to 4K and H265/H264/H265+/H264+ video codec for high-quality real-time monitoring, recording and playback. It also supports 4K video resolution on any HD monitor.

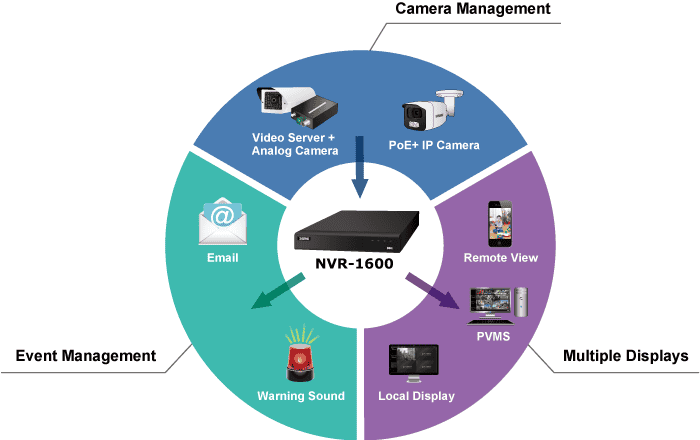

The NVR-1600 can be used as a control center to control and monitor up to 16 connected network cameras locally or remotely, perfectly designed for IP surveillance applications, with one internal SATA hard disks drawers interface and video files kept in the NVR for a long period of time. Once the NVR-1600, armed with complete surveillance equipment, detects any suspicious events, you will be alerted via built-in buzzer, email notification and on-screen alerts.

The recorded video files can be saved in the NVR without the need for an additional PC for file storage, thus bringing users a secure surveillance system at a lower total cost. Fully compatible with iOS, Android and Google Chrome on Windows operating system for multi-platform remote access, the NVR-1600 is thus able to further enhance security within the premises to protect your property. Moreover, it supports mobile app access for remote monitoring.

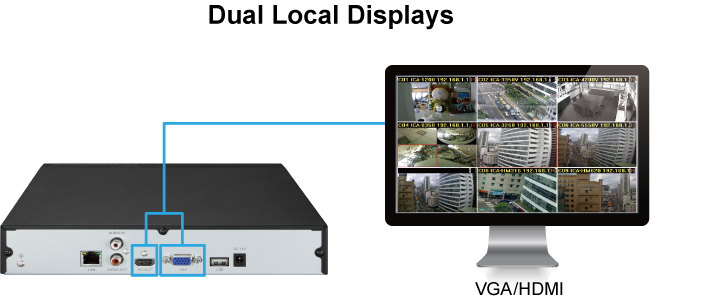

High-resolution Local Display

The NVR-1600 comes with HDMI and VGA video output interfaces for dual local display. It can be connected to a 4K HDMI monitor and 1080p VGA monitor separately, where live viewing contents or playback contents can be displayed simultaneously. With the dual local display function, users can monitor locally with high flexibility in a different display resolution, thus eliminating the need for a separate PC to view video from the unit. Besides, the NVR can also be operated with the USB mouse to configure and monitor all the systems easily.

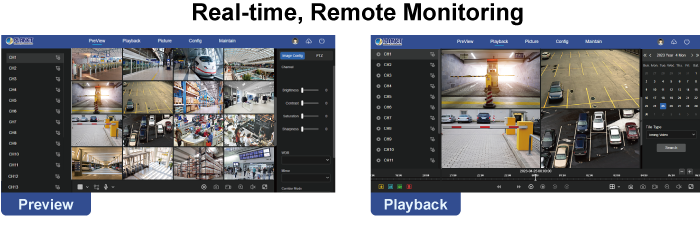

Real-time, Remote Monitoring

Up to 16 IP cameras can be connected to the NVR-1600 via a connected IP network. With the NVR-1600, it delivers high-performance video recordings and smooth playbacks of multiple megapixel cameras. Users can view remote surveillance in real time and play back recorded videos via the Web browser or the bundled PVMS (Professional Video/Central Management Software).

You are able to search and install Planet IP cameras via Web interface with more convenience and efficiency. The NVR-1600 also can support discovery and management ONVIF IP camera. Besides the Web interface, the NVR also supports viewer app software for smart phone so you can connect to the NVR anytime, anywhere.

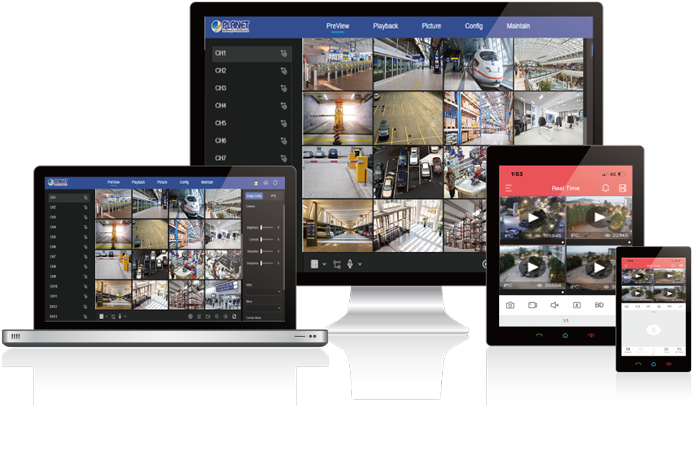

Remote Access via Mobile App, Web Browser or PVMS

The NVR-1600 provides central surveillance management capability with the adoption of its bundled PLANET Video Management Software. With the PVMS, the NVR-1600 NVR system is expandable for multi-sites management of up to 256-ch IP cameras simultaneously. Besides, users are able to monitor the NVR via mobile app viewer or the Web browser anytime, anywhere.

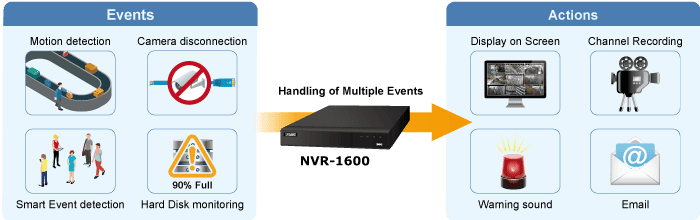

Advanced Intelligent Event Management

The NVR-1600 is equipped with multiple event detections like motion detection, video loss. It also supports smart event notifications when working with compatible AI IP cameras. All of them are able to send alarms through on-screen alerts, buzzer, channel recording and email notifications. These alarm notifications provide extra protection to ensure that no critical events are missed. In addition, the NVR provides diagnostic information for system status monitoring and troubleshooting.





Perfect for Indoor Surveillance Applications

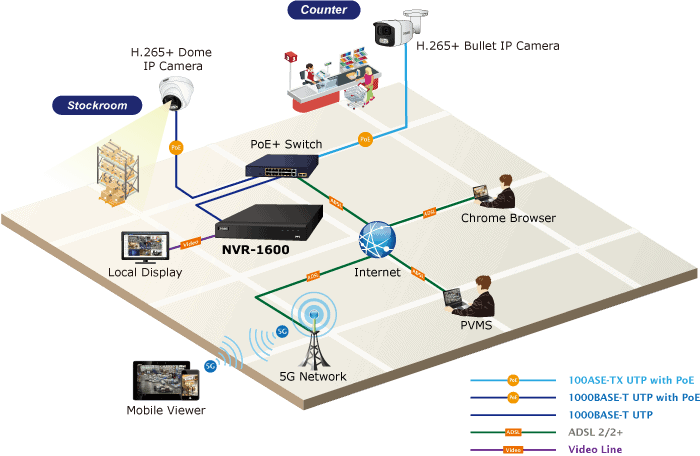

PLANET NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. Users can also log in from their mobile phones to check the monitoring screen anywhere, anytime. It is especially perfect for indoor surveillance in such places as campuses, communities, restaurants and more.





Hardware

  • Linux-embedded, highly-reliablestandalone NVR
  • 1 Gigabit Ethernet RJ45 port
  • One 1080P VGA and 4K HDMI video interface for dual local display
  • One 3.5" SATA III HDD interface, supporting up to 10TB capacity (HDD not included)
  • Two USB 2.0 interfaces
  • One audio in interface and audio out interface



Video and Audio

  • Simultaneous recording and live viewing
  • 16-channel input of IP cameras
  • Supports H.265/H.264/H.265+/H.264+ compression
  • Video resolution up to 4K (3840 x 2160)
  • Supports bandwidth up to 128Mbps
  • Two-way audio support
  • Image adjustment options:
  • Image adjustment
    • Exposure
    • Day and Night Mode
    • White balance
    • Image enhancement



Video Recording and Backup

  • Scheduled recording of 16 IP cameras simultaneously
  • Simultaneous main/sub-stream support
  • Supports operation simultaneously for Preview, Recording, Playback, Live and Backup
  • Exports recorded video file in AVI format to USB device or local network storage
  • Multiple event detections like motion detection, video loss and PLANET AI IP camera event management



Network Service

  • Easy access with PLANET Dynamic DNS
  • SNTP Network Time Protocol/synchronize with system time
  • Supports PPPoE/DHCP/static network connection
  • Supports low bit-rate connection for remote access
  • Supports P2P Cloud service
  • TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE Network functions



Easy Installation and Management

  • Supports discovery and manage ONVIF IP camera.
  • Supports multiple languages
  • PLANET Search Tools utility and PVMS (Professional Video/Central Management Software) for easy configuration
  • Up to 256 channels management through PVMS
  • Easy configuration and management via Windows-based software or web interface
  • System log
  • User management options for various authorities:
    • Admin
    • Operator
    • Guest
  • Supports mobile phone remote app application

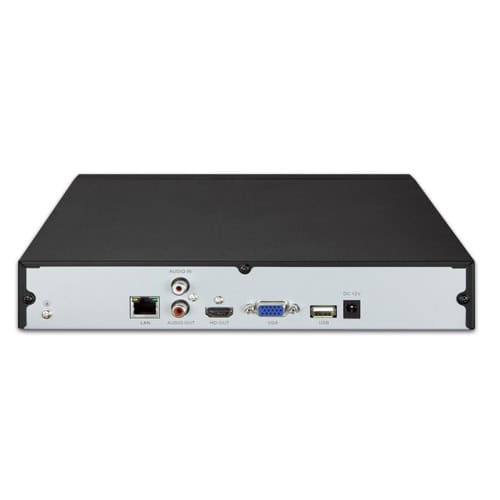

Hardware
Ethernet1 x RJ45 10M/100M/1000M Adaptive Ethernet Interface
USB Interface2 x USB2.0
Video Interface1 x HDMI, 1 x VGA
Audio Interface1 x Input, 1 x Output
Storage Device1 x Hard Disk Interface (3.5" SATA), supports up to 10TB capacity (HDD not included)
Camera
Max. Channels16-channel IP cameras
Incoming Bandwidth128Mbps
Outgoing Bandwidth80Mbps
ONVIF ProfileProfile S / Profile T supported
Video
CompressionH.264/H.265/H.264+/H.265+
Resolutions12MP (4000×3000)
8MP (3840×2160)
5MP (2592×1944)
4MP (2688×1520/2560×1440)
3MP (2048×1536)
1080P (1920×1080)
960P (1280x960)
720P (1280×720)
D1 (720×576/720×480)
Note: Recording performance may vary depending on camera resolution, frame rate and system configuration.
Recording Rate(PAL/NTSC)12MP@10ch × 25fps/30fps
4K@10ch × 25fps/30fps
5MP@16ch × 25fps/30fps
4MP@16ch x 25fps/30fps
3MP@16ch × 25fps/30fps
1080P@16ch × 25fps/30fps
960P@16ch × 25fps/30fps
720P@16ch × 25fps/30fps
D1@16ch × 25fps/30fps
Recording ModeManualTimerMotion DetectionSmart Event
Audio
AudioType2-way audio
Input1 Port RCA
Output1 Port RCA (Linear, 1kΩ)
Audio Bit Rate64kbps
Audio CompressionG711u, G711a, AAC, MP2L2
Local Display
HDMI4K (3840 × 2160)/30Hz
1920 × 1080/60Hz
1280 × 1024/60Hz
1280 × 720/60Hz
1024 × 768/60Hz
VGA1920 × 1080/60Hz
1280 × 1024/60Hz
1280 × 720/60Hz
1024 × 768/60Hz
Display Split16CH/13CH/10CH/9CH/8CH/6CH/4CH/1CH
DigitalZoomYes
OSDCameraTitle, Time, Recording, MotionDetection, EventAlarm
Alarm
Motion Detection16 Channels, MD Zones: 396 (22×18)
Trigger EventsRecording, Email, FTP, Snapshot, Pop-up Window, Buzzer, Notify Surveillance Center
Playback and Backup
Local SyncPlay back1CH 12MP@30fps
1CH 4K@30fps
1CH 5MP@30fps
2CH 4MP@30fps
2CH 3M@30fps
4CH 1080P@30fps
4CH 960P@30fps
4CH 720P@30fps
16CH D1@30fps
Decode Capability1080P @210fps
Total decoding capability across all channels.
Remote Sync PlaybackYes
Search ModeALL, Timing Video, Motion Detection, Alarm, Tag search, Smart Event, Picture, Log
Playback FunctionsPlay, Pause, Fast Forward, Rewind, Previous Frame, Next Frame, Electronic Zoom, Clip, Audio
Backup ModeUSBDevice/Network
Network and Configuration
Network FunctionsTCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE
Cloud Support(P2P)Yes
Management
Web BrowerGoogle Chrome, Firefox, Edge, Mac Safari (partial)
PVMSSupport Windows 7/ Windows 8/Windows 10/ Windows 11
AppYes (Android, IOS with P2P QR code)
LanguageSimplified Chinese, English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Japanese
Environment
PowerDC 12V/2A
Operating Temperature-10~50 degrees C
Humidity10~90% RH
Weight0.85kg (without HDD)
Dimensions (W x D x H)260 x 230 x 43mm
