Personal VoIP Gateway

» SKG-300

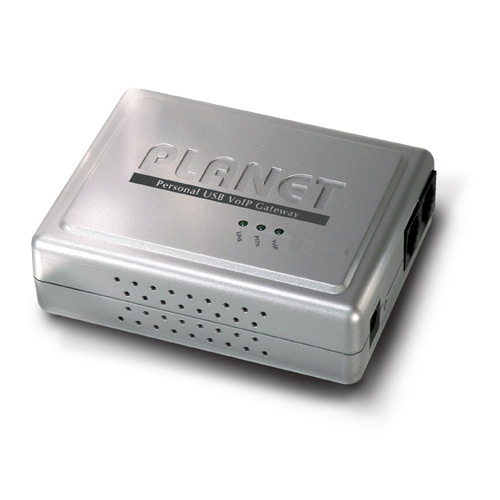

Planet VoIP Gateway SKG-300 offers the seamless integration of traditional and IP-based telephony, allowing any standard home phone to turn into a dual function PSTN and Skype handset. Just pick up the standard home phone and press the hot key to enable user to call anyone no matter the receiver is using PSTN or Skype.

The SKG-300 also provides Incoming Call Forwarding feature, that is, an easy configuration that allows user to forward the incoming calls to the specific Skype account or PSTN call. Without many technical details, consumers can enjoy the SKG-300’s unparalleled functionality such as three-way conference calling between PSTN and Skype callers and automatic switching between analog and digital sessions.

It has never been so easy to take advantage of VoIP benefits which provide consumers with the most straightforward mechanism for placing high-quality, and competitively-priced voice over IP calls. Just requiring a simple installation and configuration, Planet VoIP Gateway SKG-300 will be the ideal for both residential telephony and the mobile computing.

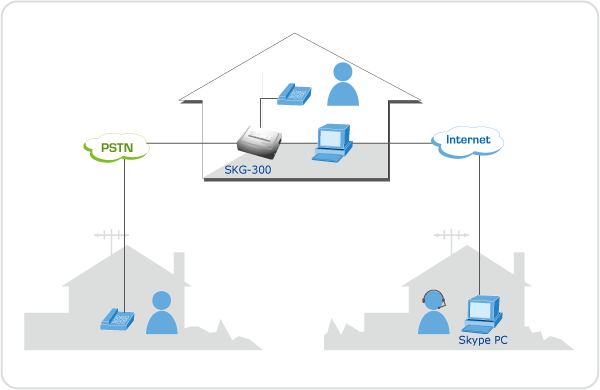

PLANET provides several types of Skype solution to meet various demands. As illustrated, customers can use any home phone for both Internet-based and standard telephony, without needing for special phone, headsets or microphones. Following the wizard to install software, customers can easily dial up or receive Skype or PSTN calls from one handset through a simple setting of Call Forward feature. Customers can receive any incoming call wherever they are, even away from home.

  • Auto detection and switching of incoming PSTN or Skype calls
  • RJ-11 phone port to POTS phone, RJ-11 line port to PSTN
  • One handset for both PSTN and Internet calls
  • No need for microphone and speaker to make Skype call
  • Three-way conference calling between PSTN and Skype calls
  • Supports forward incoming PSTN call to Skype, and forward incoming Skype call to PSTN
  • Call waiting 　
  • Full-duplex and echo-free sound quality
Hardware
USB1 x USB interface
Telephone1 x RJ-11 connection for regular telephone
LINE (PSTN)1 x RJ-11 connection for PSTN
Dimensions (W x D x H)95 x 72 x 31 mm
Operating Environment0~50 degrees C, 0~90% humidity
Power RequirementUSB powered
EMC/EMICE, FCC Class B
PC hardware and software requirements
Operating SystemWin2000, or XP
PC HardwareCPU Pentium 400MHz or equivalent, 128MB RAM or above with USB 1.1/ 2.0 compliant interface
Disk Capacity10MB available hard disk space
VoIP SoftwareSkype version 1.3 or higher must be installed
DateVersionDescriptionDownload
2007/24/111.0

SKG-300

 Download Icon
DateVersionDescriptionDownload
2007/23/111.0

User’s Manual

 Download Icon
DateVersionDescriptionDownload
2007/23/111.4007

New Release Version

 Download Icon


Model

Description

Ordering Information

SKG-300

Personal VoIP Gateway
