• product_code: VC-231G

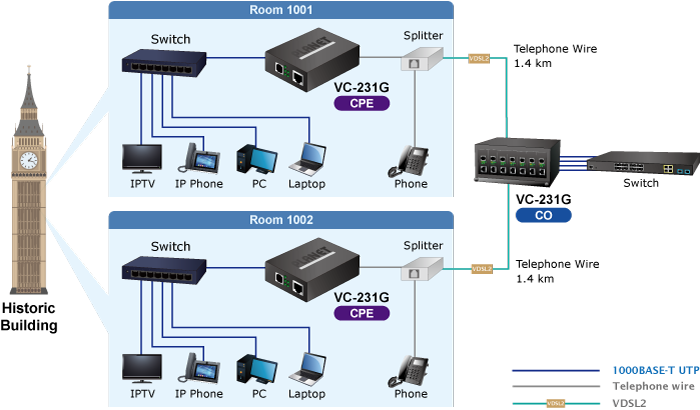

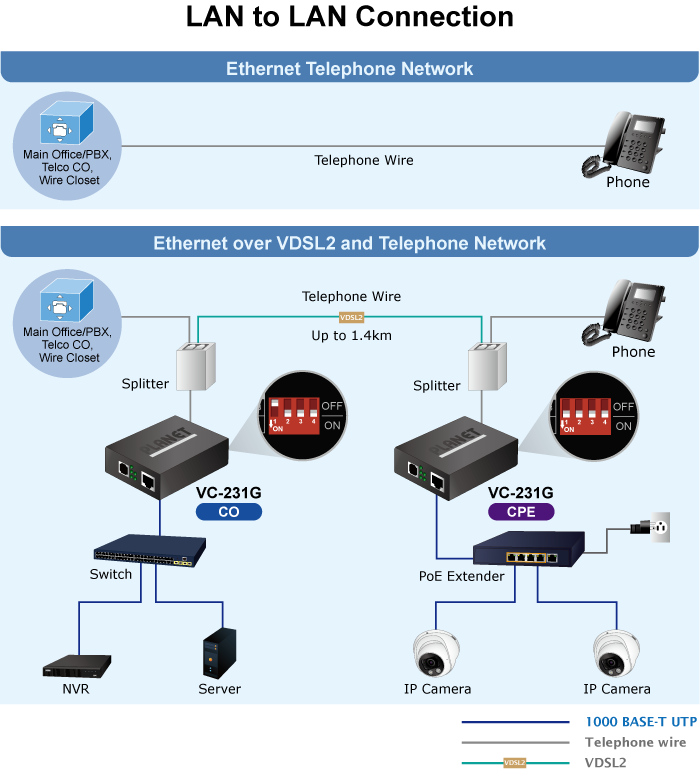

• product_editor_4418_tab_content: <strong>Ethernet Distance Extension</strong> Two VC-231G converters can act as a standalone pair which is good for Ethernet distance extension over the existing telephone wires. With just one pair of AWG-24 copper wires, two Ethernet networks can be easily connected to each other with a maximum data transmission rate of 200Mbps. The telephone service can still be used while the VC-231G CO/CPE is in operation. The two solutions listed below are typical applications for the Ethernet over VDSL2 bridge. <img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VC-231Gv2-1.png" alt="" width="700" height="770" /> <strong>MTU/MDU/Hospitality Solution</strong> The VC-231G is a perfect solution to quickly providing cost-effective yet high-speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels and hospitals. By utilizing the existing telephony infrastructure, a new network installation can be easily built, without requiring new wiring. With a transmission rate of up to <strong>316/60Mbps (G.INP, Asym, 8dB)</strong>, VoD, IP telephony and various broadband services can be easily provided. <img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VC-231Gv2-2.png" alt="" width="700" height="646" /> <strong>Last Mile of FTTx Deployment</strong> The VC-231G is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications.  It supports high-bandwidth VDSL2 over the existing telephone wires in the “<strong>last mile</strong>” from the ISP/telecom/service provider’s fiber node to the buildings and customers’ apartments. The 10/100/1000Mbps port of the VC-231G can be directly connected to a PC or Ethernet devices such as Ethernet switches or broadband routers. It is excellent for phone line network built under Internet because every room or house can use the existing phone line to transmit data through the Internet and the whole building can share the Internet to the wider area network at a minimum cost. <img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VC-231Gv2-3.png" alt="" width="700" height="410" />
• product_editor_4418_tab_enabled: yes
• product_editor_4418_tab_content_changed: yes
• product_editor_4418_tab_title: Applications
• product_editor_4421_tab_content: <ul> <li>Supports ITU-T G.993.2 <strong>VDSL2 Profile 17a/30a/35b</strong></li> <li>Supports ITU-T G.993.5 G.vectoring and G.INP</li> <li>DMT-based coding technology</li> <li>Additional splitter to share voice and data</li> <li>CO/CPE mode selectable via DIP switch</li> <li>Selectable target band plan and SNR margin</li> <li>Up to 200/200Mbps bandwidth (in<strong> G.INP</strong>, <strong>Sym</strong>,<strong> 8dB mode</strong>)</li> <li>1 10/100/1000BASE-T LAN ports.</li> <li>Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3x, flow control Ethernet standards</li> <li>Half duplex back pressure and IEEE 802.3x full duplex pause frame flow control</li> <li>One RJ11 connector for VDSL port with VDSL connection</li> <li>Voice and data communication can be shared simultaneously based on the existing telephone wire</li> <li>Supports IEEE 802.1Q VLAN tag transparency</li> <li>VDSL2 standalone transceiver for simple bridge modem application</li> <li>Advantage of minimum installation time (Simply by Plug-and-Play)</li> <li>Supports extensive LED indicators for network diagnosis</li> <li>Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48)</li> <li>Compact in size and easy to install</li> </ul>
• product_editor_4421_tab_enabled: yes
• product_editor_4421_tab_content_changed: yes
• product_editor_4421_tab_title: Key Features

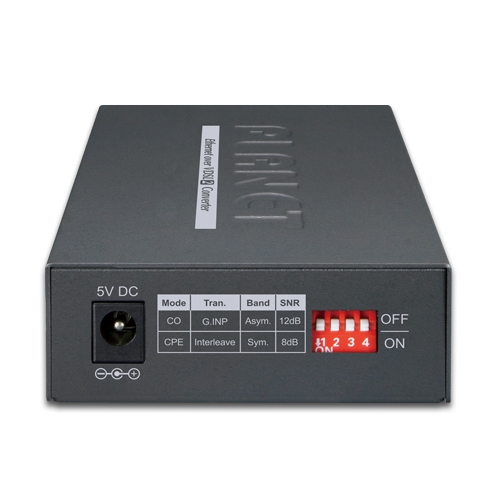

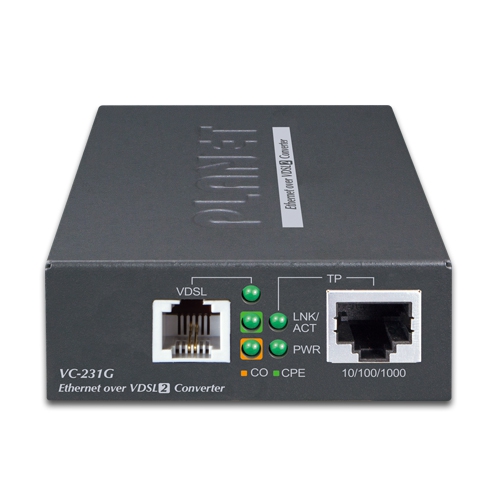

• product_editor_4422_tab_content:   <div class="table-responsive"> <table class="common_table_sky" style="width: 100%;"> <thead> <tr> <th colspan="2">Hardware Specifications</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Hardware Version</td> <td>2</td> </tr> <tr> <td class="align-middle">LAN Ports</td> <td>1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports</td> </tr> <tr> <td class="align-middle">VDSL Port</td> <td>1 VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG-24 or better) up to 1.4km</td> </tr> <tr> <td class="align-middle">DIP Switch & Functionality</td> <td>4-position DIP switch <b>CO</b> or <b>CPE</b> mode selectable Selectable <b>G.INP</b> and <b>interleaved mode</b> Selectable target <b>Band plan</b> Selectable target <b>SNR mode</b></td> </tr> <tr> <td class="align-middle">Phone Port</td> <td>Additional splitter for POTS connection</td> </tr> <tr> <td class="align-middle">Dimensions (W x D x H)</td> <td>94 x 70.3 x 26.2 mm</td> </tr> <tr> <td class="align-middle">Weight</td> <td>196g</td> </tr> <tr> <td class="align-middle">Power Requirements</td> <td>DC 5V, 2A external power</td> </tr> <tr> <td class="align-middle">LED Indicators</td> <td>1 x power： <span style="color: green;"><b>Green</b></span> 1 x 10/100/1000BASE-T LNK/ACT： <span style="color: green;"><b>Green</b></span> 1 x VDSL： <span style="color: green;"><b>Green</b></span> 1 x CO： <span style="color: green;"><b>Green</b></span> 1 x CPE： <span style="color: green;"><b>Green</b></span></td> </tr> <tr> <td class="align-middle">Housing</td> <td>Metal</td> </tr> </tbody> <thead> <tr> <th colspan="2">Switch Specifications</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Switch Processing Scheme</td> <td>Store-and-Forward</td> </tr> <tr> <td class="align-middle">Address Table</td> <td>1K entries</td> </tr> <tr> <td class="align-middle">Flow Control</td> <td>Back pressure for half duplex IEEE 802.3x pause frame for full duplex</td> </tr> <tr> <td class="align-middle">Maximum Packet Size</td> <td>1522bytes</td> </tr> </tbody> <thead> <tr> <th colspan="2">Standards Conformance</th> </tr> </thead> <tbody> <tr> <td class="align-middle">VDSL Compliance</td> <td><b>VDSL-DMT</b> ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support) ITU-T G.993.5 <b>G.vectoring</b> ITU-T G.998 G.INP</td> </tr> <tr> <td class="align-middle">ADSL Compliance</td> <td>Capable of <b>ADSL2/2+</b> standard ITU G.992.3 G.dmt.bis ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbps</td> </tr> <tr> <td class="align-middle">Standards Compliance</td> <td>IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998</td> </tr> <tr> <td class="align-middle">Regulatory Compliance</td> <td>FCC Part 15 Class A, CE</td> </tr> </tbody> <thead> <tr> <th colspan="2">Environment</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Temperature</td> <td>Operating: 0~50 degrees C Storage: -10~70 degrees C</td> </tr> <tr> <td class="align-middle">Humidity</td> <td>Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)</td> </tr> </tbody> <thead> <tr> <th colspan="2">Performance</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Performance* (Downstream/Upstream)</td> <td> <table class="table-bordered-bone" cellpadding="6"> <tbody> <tr> <td valign="middle" bgcolor="#7f9cd3" width="500"><span style="color: #ffffff;"> Interleave, Asym, 8dB</span></td> <td valign="middle" bgcolor="#7f9cd3" width="500"><span style="color: #ffffff;"> Interleave, Asym, 12dB</span></td> </tr> <tr> <td>200M ----> 260Mbps/56Mbps 400M ----> 180Mbps/53Mbps 600M ----> 111Mbps/48Mbps 800M ----> 68Mbps/39Mbps 1000M --> 53Mbps/18Mbps 1200M--> 42Mbps/8Mbps 1400M --> 24Mbps/4Mbps</td> <td>200M ----> 267Mbps/57Mbp 400M ---->161Mbps/49Mbps 600M ---->93Mbps/46Mbps 800M ----> 56Mbps/33Mbps 1000M --> 47Mbps/14Mbps 1200M--> 34Mbps/8Mbps 1400M --> 30Mbps/6Mbps</td> </tr> <tr> <td valign="middle" bgcolor="#7f9cd3" width="350"><span style="color: #ffffff;"> Interleave, Sym, 8dB</span></td> <td valign="middle" bgcolor="#7f9cd3" width="350"><span style="color: #ffffff;"> Interleave, Sym, 12dB</span></td> </tr> <tr> <td>200M ---->175Mbps/180Mbps 400M ----> 109Mbps/130Mbps 600M ----> 75Mbps/93Mbps 800M ----> 50Mbps/65Mbps 1000M --> 37Mbps/33Mbps 1200M--> 26Mbps/22Mbps 1400M --> 20Mbps/13Mbps</td> <td>200M ----> 165Mbps/172Mbp 400M ----> 107Mbps/115Mbps 600M ----> 65Mbps/82Mbps 800M ----> 43Mbps/55Mbps 1000M --> 31Mbps/29Mbps 1200M--> 21Mbps/16Mbps 1400M --> 12Mbps/8Mbps</td> </tr> <tr> <td valign="middle" bgcolor="#7f9cd3" width="350"><span style="color: #ffffff;"> G.INP, Asym, 8dB</span></td> <td valign="middle" bgcolor="#7f9cd3" width="350"><span style="color: #ffffff;"> G.INP, Asym, 12dB</span></td> </tr> <tr> <td>200M ---->316Mbps/60Mbps 400M ----> 185Mbps/56Mbps 600M ----> 110Mbps/51Mbps 800M ----> 68Mbps/38Mbps 1000M --> 51Mbps/18Mbps 1200M--> 39Mbps/10Mbps 1400M --> 37Mbps/6Mbps</td> <td>200M ----> 291Mbps/60Mbp 400M ----> 161Mbps/51Mbps 600M ----> 91Mbps/4Mbps 800M ----> 55Mbps/34Mbps 1000M --> 47Mbps/15Mbps 1200M--> 35Mbps/8Mbps 1400M --> 32Mbps/2Mbps</td> </tr> <tr> <td valign="middle" bgcolor="#7f9cd3" width="350"><span style="color: #ffffff;"> G.INP, Sym, 8dB</span></td> <td valign="middle" bgcolor="#7f9cd3" width="350"><span style="color: #ffffff;"> G.INP, Sym, 12dB</span></td> </tr> <tr> <td>200M ---->187Mbps/190Mbps 400M ----> 108Mbps/134Mbps 600M ----> 74Mbps/95Mbps 800M ----> 50Mbps/66Mbps 1000M --> 34Mbps/35Mbps 1200M--> 24Mbps/22Mbps 1400M --> 21Mbps/13Mbps</td> <td>200M ----> 174Mbps/184Mbp 400M ----> 99Mbps/119Mbps 600M ----> 63Mbps/84Mbps 800M ----> 40Mbps/55Mbps 1000M --> 30Mbps/30Mbps 1200M--> 22Mbps/18Mbps 1400M --> 20Mbps/10Mbps</td> </tr> </tbody> </table> ＊The performance data above is for reference only. The actual data rate will vary on the quality of the copper wire and environmental factors</td> </tr> </tbody> </table> </div>
• product_editor_4422_tab_enabled: yes
• product_editor_4422_tab_content_changed: yes
• product_editor_4422_tab_title: Specifications
• ekit_post_views_count: 517
• product_editor_4418_tab_sticky_width: pw-content-1
• product_editor_4418_tab_sticky_position: pw-left-stick
• product_editor_4421_tab_sticky_width: pw-content-1
• product_editor_4421_tab_sticky_position: pw-left-stick
• product_editor_4422_tab_sticky_width: pw-content-1
• product_editor_4422_tab_sticky_position: pw-left-stick
• product_editor_4423_tab_content:
• product_editor_4423_tab_content_changed: yes
• product_editor_4423_tab_enabled: yes
• product_editor_4423_tab_title: Downloads
• product_editor_4423_tab_sticky_width: pw-content-1
• product_editor_4423_tab_sticky_height: 1
• product_editor_4423_tab_sticky_position: pw-left-stick
• product_editor_4424_tab_content:
• product_editor_4424_tab_content_changed: yes
• product_editor_4424_tab_enabled: yes
• product_editor_4424_tab_title: Related Products
• product_editor_4424_tab_sticky_width: pw-content-1
• product_editor_4424_tab_sticky_height: 1
• product_editor_4424_tab_sticky_position: pw-left-stick
• total_sales: 0
• accessories_table: <table class="common_table"> <thead> <tr> <th colspan="2">Ordering Information</th> </tr> </thead> <tbody> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">VC-231G</h3> </td> <td>1-Port 10/100/1000T Ethernet to VDSL2 Converter (35b profile w/ G.vector)</td> </tr> </tbody> </table>   <div class="table-responsive"> <div class="table-responsive"> <div class="table-responsive"></div> </div> </div>
• product_label:
• prouduct_loop_image_transparent_bg_:
• 6_features_images: a:6:{i:0;s:5:"14713";i:1;s:5:"14712";i:2;s:5:"14711";i:3;s:5:"14710";i:4;s:5:"14709";i:5;s:5:"14708";}
• datasheet_0_date: 20250110
• datasheet_0_version: 2.0
• datasheet_0_description: VC-231G
• datasheet_0_download_pdf: https://www.planet.com.sa/storage/products/VC-231G/C-VC-231Gv2_L.pdf
• datasheet: 1
• quick_guide:
• users_manual_0_date: 20250103
• users_manual_0_version: 1.5
• users_manual_0_description: Release for hardware version 2.0.
• users_manual_0_download_pdf: https://www.planet.com.sa/storage/products/VC-231G/EM-VC-231G%20Series%20Ethernet%20over%20VDSL2%20Brdige_v1.5.pdf
• users_manual: 1
• ec_declaration:
• android_app:
• driver:
• firmware:
• utility:
• compatible_list:
• site-sidebar-layout: default
• ast-site-content-layout: default
• site-content-style: default
• site-sidebar-style: default
• theme-transparent-header-meta: default
• astra-migrate-meta-layouts: set
• applications_tab: <p><strong>Ethernet Distance Extension</strong></p><p>Two VC-231G converters can act as a standalone pair which is good for Ethernet distance extension over the existing telephone wires. With just one pair of AWG-24 copper wires, two Ethernet networks can be easily connected to each other with a maximum data transmission rate of 200Mbps. The telephone service can still be used while the VC-231G CO/CPE is in operation. The two solutions listed below are typical applications for the Ethernet over VDSL2 bridge.</p><p> <img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VC-231Gv2-1.png" alt="" width="700" height="770"></p><p><strong>MTU/MDU/Hospitality Solution</strong></p><p>The VC-231G is a perfect solution to quickly providing cost-effective yet high-speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels and hospitals. By utilizing the existing telephony infrastructure, a new network installation can be easily built, without requiring new wiring. With a transmission rate of up to <strong>316/60Mbps (G.INP, Asym, 8dB)</strong>, VoD, IP telephony and various broadband services can be easily provided.</p><p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VC-231Gv2-2.png" alt="" width="700" height="646"> </p><p><strong>Last Mile of FTTx Deployment</strong></p><p>The VC-231G is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications.  It supports high-bandwidth VDSL2 over the existing telephone wires in the “<strong>last mile</strong>” from the ISP/telecom/service provider’s fiber node to the buildings and customers’ apartments. The 10/100/1000Mbps port of the VC-231G can be directly connected to a PC or Ethernet devices such as Ethernet switches or broadband routers. It is excellent for phone line network built under Internet because every room or house can use the existing phone line to transmit data through the Internet and the whole building can share the Internet to the wider area network at a minimum cost.</p><p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VC-231Gv2-3.png" alt="" width="700" height="410"></p>
• key_features_tab: <ul> <li>Supports ITU-T G.993.2 <strong>VDSL2 Profile 17a/30a/35b</strong> </li> <li>Supports ITU-T G.993.5 G.vectoring and G.INP</li> <li>DMT-based coding technology </li> <li>Additional splitter to share voice and data</li> <li>CO/CPE mode selectable via DIP switch</li> <li>Selectable target band plan and SNR margin</li> <li>Up to 200/200Mbps bandwidth (in <strong>G.INP, Sym, 8dB mode</strong>)</li> <li>1 10/100/1000BASE-T LAN ports.</li> <li>Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards</li> <li>One RJ11 connector for VDSL port with VDSL connection</li> <li>Voice and data communication can be shared simultaneously based on the existing telephone wire</li> <li>Supports IEEE 802.1Q VLAN tag transparency</li> <li>VDSL2 standalone transceiver for simple bridge modem application</li> <li>Advantage of minimum installation time (Simply by Plug-and-Play)</li> <li>Supports extensive LED indicators for network diagnosis</li> <li>Wall mounting or DIN-rail installation (optional)</li> <li>Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48)</li> <li>Compact in size and easy to install</li> </ul>
• specifications_tab: <table style="width:100%;" class="common_table_sky"><thead><tr><th colspan="2">Hardware Specifications</th></tr></thead><tbody><tr><td class="align-middle">Hardware Version</td><td>2</td></tr><tr><td class="align-middle">LAN Ports</td><td>1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports</td></tr><tr><td class="align-middle">VDSL Port</td><td>1 VDSL2 RJ11 female phone jack <br /> Twisted-pair telephone wires (AWG-24 or better) up to 1.4km</td></tr><tr><td class="align-middle">DIP Switch & Functionality</td><td>4-position DIP switch<br /> 　<b>CO</b> or <b>CPE</b> mode selectable<br /> 　Selectable <b>G.INP</b> and <b>interleaved mode</b><br /> 　Selectable target <b>Band plan</b><br /> 　Selectable target <b>SNR mode</b></td></tr><tr><td class="align-middle">Phone Port</td><td>Additional splitter for POTS connection</td></tr><tr><td class="align-middle">Dimensions (W x D x H)</td><td>94 x 70.3 x 26.2 mm</td></tr><tr><td class="align-middle">Weight</td><td>196g</td></tr><tr><td class="align-middle">Power Requirements</td><td>DC 5V, 2A external power</td></tr><tr><td class="align-middle">LED Indicators</td><td>1 x power： <font color="Green"><b>Green</b></font><br /> 1 x 10/100/1000BASE-T LNK/ACT： <font color="Green"><b>Green</b></font><br /> 1 x VDSL： <font color="Green"><b>Green</b></font><br /> 1 x CO： <font color="Green"><b>Green</b></font><br /> 1 x CPE： <font color="Green"><b>Green</b></font></td></tr><tr><td class="align-middle">Housing</td><td>Metal</td></tr><tr><td class="align-middle">Installation</td><td>Wall-mount or DIN-rail installation (optional)</td></tr></tbody><thead><tr><th colspan="2">Switch Specifications</th></tr></thead><tbody><tr><td class="align-middle">Switch Processing Scheme</td><td>Store-and-Forward</td></tr><tr><td class="align-middle">Address Table</td><td>1K entries</td></tr><tr><td class="align-middle">Maximum Packet Size</td><td>1522bytes</td></tr></tbody><thead><tr><th colspan="2">Standards Conformance</th></tr></thead><tbody><tr><td class="align-middle">VDSL Compliance</td><td><b>VDSL-DMT</b><br /> 　ITU-T G.993.1 VDSL<br /> 　ITU-T G.997.1<br /> 　ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)<br /> 　ITU-T G.993.5 <b>G.vectoring</b><br /> 　ITU-T G.998<br /> 　G.INP</td></tr><tr><td class="align-middle">ADSL Compliance</td><td>Capable of <b>ADSL2/2+</b> standard<br /> 　ITU G.992.3 G.dmt.bis<br /> 　ITU G.992.5 G.dmt.bisplus<br /> Data Rate: Up to 24Mbps</td></tr><tr><td class="align-middle">Standards Compliance</td><td>IEEE 802.3 Ethernet <br /> IEEE 802.3u Fast Ethernet<br /> IEEE 802.3ab Gigabit Ethernet<br /> IEEE 802.1p Class of Service<br /> ITU-T G.993.1 VDSL<br /> ITU-T G.997.1<br /> ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)<br /> ITU-T G.993.5 G.Vectoring & G.INP<br /> ITU-T G.998</td></tr><tr><td class="align-middle">Regulatory Compliance</td><td>FCC Part 15 Class A, CE</td></tr></tbody><thead><tr><th colspan="2">Environment</th></tr></thead><tbody><tr><td class="align-middle">Temperature</td><td>Operating: 0~50 degrees C<br /> Storage: -10~70 degrees C</td></tr><tr><td class="align-middle">Humidity</td><td>Operating: 5~95% (non-condensing)<br /> Storage: 5~95% (non-condensing)</td></tr></tbody><thead><tr><th colspan="2">Performance</th></tr></thead><tbody><tr><td class="align-middle">Performance* (Downstream/Upstream)</td><td><table class="table-bordered-bone" cellpadding="6"><tr><td width="500" valign="middle" bgcolor="#7f9cd3"><font color="#FFFFFF"> Interleave, Asym, 8dB</font></td><td width="500" valign="middle" bgcolor="#7f9cd3"><font color="#FFFFFF"> Interleave, Asym, 12dB</font></td></tr><tr><td>200M ----> 260Mbps/56Mbps<br>400M ----> 180Mbps/53Mbps<br>600M ----> 111Mbps/48Mbps<br>800M ----> 68Mbps/39Mbps<br>1000M --> 53Mbps/18Mbps<br>1200M--> 42Mbps/8Mbps<br>1400M --> 24Mbps/4Mbps</td><td>200M ----> 267Mbps/57Mbp<br>400M ---->161Mbps/49Mbps<br>600M ---->93Mbps/46Mbps <br>800M ----> 56Mbps/33Mbps<br>1000M --> 47Mbps/14Mbps<br>1200M--> 34Mbps/8Mbps<br>1400M --> 30Mbps/6Mbps</td></tr><tr><td width="350" valign="middle" bgcolor="#7f9cd3"><font color="#FFFFFF"> Interleave, Sym, 8dB</font></td><td width="350" valign="middle" bgcolor="#7f9cd3"><font color="#FFFFFF"> Interleave, Sym, 12dB</font></td></tr><tr><td> 200M ---->175Mbps/180Mbps<br>400M ----> 109Mbps/130Mbps<br>600M ----> 75Mbps/93Mbps<br>800M ----> 50Mbps/65Mbps<br>1000M --> 37Mbps/33Mbps<br>1200M--> 26Mbps/22Mbps<br>1400M --> 20Mbps/13Mbps</td><td> 200M ----> 165Mbps/172Mbp<br>400M ----> 107Mbps/115Mbps<br>600M ----> 65Mbps/82Mbps <br>800M ----> 43Mbps/55Mbps<br>1000M --> 31Mbps/29Mbps<br>1200M--> 21Mbps/16Mbps<br>1400M --> 12Mbps/8Mbps</td></tr><tr><td width="350" valign="middle" bgcolor="#7f9cd3"><font color="#FFFFFF"> G.INP, Asym, 8dB</font></td><td width="350" valign="middle" bgcolor="#7f9cd3"><font color="#FFFFFF"> G.INP, Asym, 12dB</font></td></tr><tr><td> 200M ---->316Mbps/60Mbps<br>400M ----> 185Mbps/56Mbps<br>600M ----> 110Mbps/51Mbps<br>800M ----> 68Mbps/38Mbps<br>1000M --> 51Mbps/18Mbps<br>1200M--> 39Mbps/10Mbps<br>1400M --> 37Mbps/6Mbps</td><td> 200M ----> 291Mbps/60Mbp<br>400M ----> 161Mbps/51Mbps<br>600M ----> 91Mbps/44Mbps <br>800M ----> 55Mbps/34Mbps<br>1000M --> 47Mbps/15Mbps<br>1200M--> 35Mbps/8Mbps<br>1400M --> 32Mbps/2Mbps</td></tr><tr><td width="350" valign="middle" bgcolor="#7f9cd3"><font color="#FFFFFF"> G.INP, Sym, 8dB</font></td><td width="350" valign="middle" bgcolor="#7f9cd3"><font color="#FFFFFF"> G.INP, Sym, 12dB</font></td></tr><tr><td> 200M ---->187Mbps/190Mbps<br>400M ----> 108Mbps/134Mbps<br>600M ----> 74Mbps/95Mbps<br>800M ----> 50Mbps/66Mbps<br>1000M --> 34Mbps/35Mbps<br>1200M--> 24Mbps/22Mbps<br>1400M --> 21Mbps/13Mbps</td><td> 200M ----> 174Mbps/184Mbp<br>400M ----> 99Mbps/119Mbps<br>600M ----> 63Mbps/84Mbps <br>800M ----> 40Mbps/55Mbps<br>1000M --> 30Mbps/30Mbps<br>1200M--> 22Mbps/18Mbps<br>1400M --> 20Mbps/10Mbps</td></tr></table><br /> ＊The performance data above is for reference only. The actual data rate will vary on the quality of the copper wire and environmental factors</td></tr></tbody></table>
