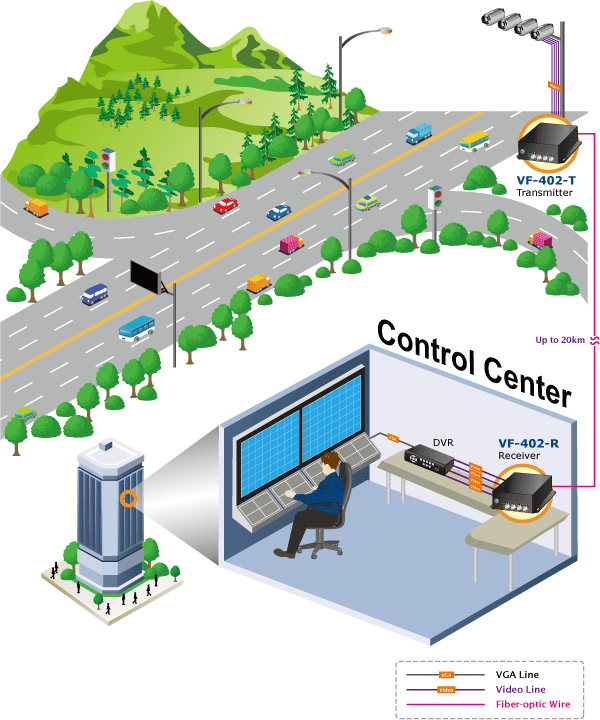

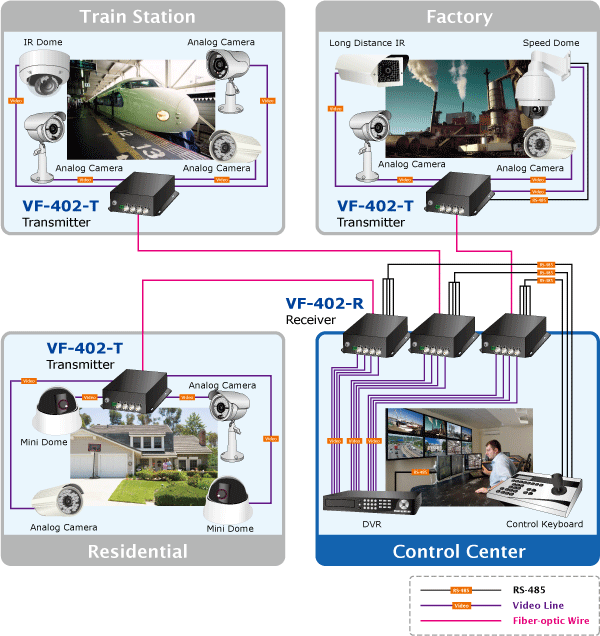

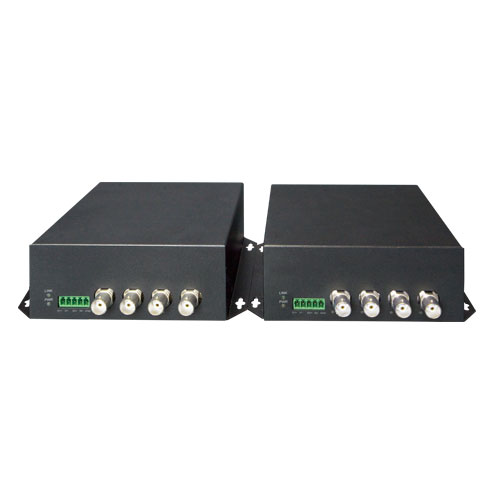

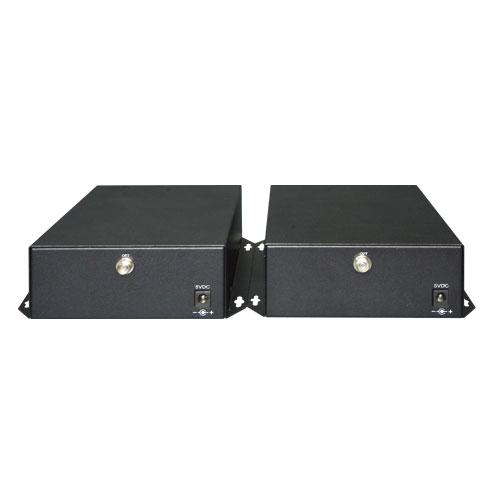

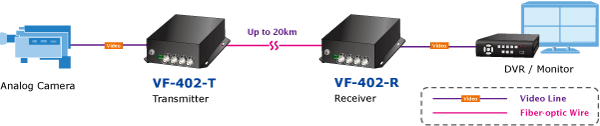

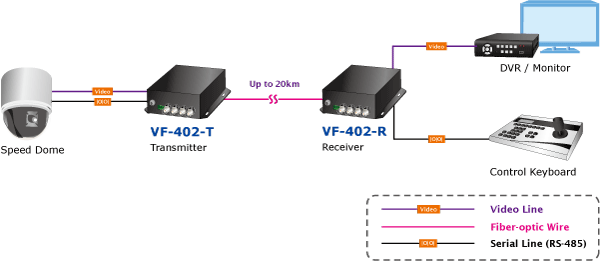

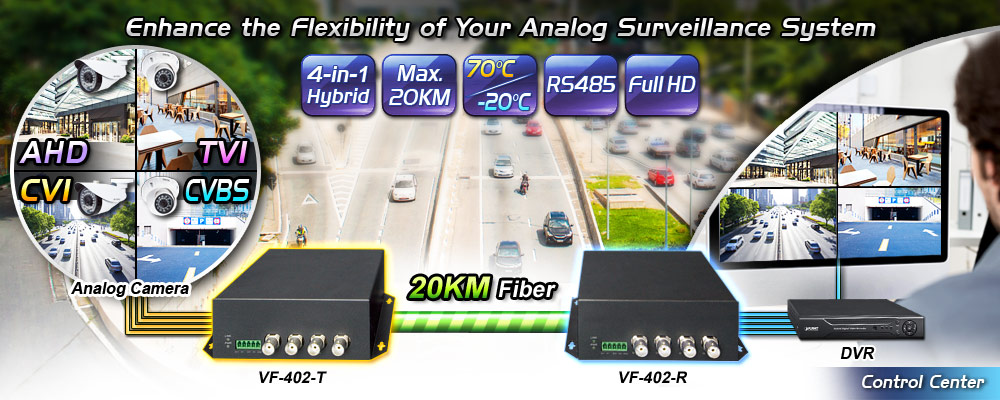

• product_editor_4418_tab_content: The VF-402-KIT consists of 4-channel video over fiber optical transceiver and receiver to transmit video and RS485 signal through a reliable single mode or single fiber link. It is an ideal cost-effective solution for surveillance system that requires high display quality and high-performance signal transmission over long distances. The VF-402-KIT can be installed easily by way of “Plug and Play”, meaning the operator does not need to configure the pair of the video over fiber transmission in advance. <p style="text-align: center;"><img class="img-fluid" src="https://www.planet.com.sa/planet-storage/2025/01/VF-402-KIT-3_L.gif" /></p> <strong>Typical Applications</strong> <ul> <li>Intelligent Transportation Systems (ITS)</li> <li>Toll Collection</li> <li>Traffic Surveillance</li> <li>Air Traffic Management (ATM)</li> <li>Rail Signaling</li> <li>Perimeter Alarms and Area Monitoring</li> <li>Telemedicine and Teleconference</li> <li>Industrial Surveillance</li> <li>Intelligent Building</li> <li>CCTV Network</li> </ul>   <p style="text-align: center;"></p>
• product_editor_4418_tab_enabled: yes
• product_editor_4418_tab_content_changed: yes
• product_editor_4418_tab_title: Applications
• product_editor_4421_tab_content: <ul type="disc"> <li>Compliant with hybrid video (AHD/TVI/CVI/CVBS)</li> <li>20km long-distance data transmission</li> <li>Fiber optic transmission of four video signals on one fiber with RS485 data signals which may be one way with the video or optional duplex</li> <li>Status indication for power supply, optical signal and video</li> <li>High-speed synchronous digital transmission technology</li> <li>Effective against electromagnetic interference, radio frequency interference, 6KV high-level lightning protection design</li> <li>Guarantees safe transmission under poor electromagnetic environment</li> <li>Maximum tolerable link loss for single mode single fiber is 0.35dB/km</li> <li>Video bandwidth of 60MHz, SNR>67dB</li> <li>Wide temperature range from -20 to 70 degrees C</li> </ul>
• product_editor_4421_tab_enabled: yes
• product_editor_4421_tab_content_changed: yes
• product_editor_4421_tab_title: Key Features
• product_editor_4422_tab_content:   <div class="table-responsive"> <table class="common_table_sky" style="width: 100%;"> <thead> <tr> <th colspan="2">Video Characteristics</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Video Channel</td> <td>4-channel bi-direction</td> </tr> <tr> <td class="align-middle">Video Connector</td> <td>BNC</td> </tr> <tr> <td class="align-middle">Supported Video Type</td> <td>1080p: AHD/TVI/CVI 480p: CVBS</td> </tr> <tr> <td class="align-middle">Video Input/Output Impedance</td> <td>75ohm/unbalanced interface</td> </tr> <tr> <td class="align-middle">Video Input/Output Voltage</td> <td>1.0 Vpp / typical peak-to-peak value</td> </tr> <tr> <td class="align-middle">Video Bandwidth</td> <td>25 to 60MHz</td> </tr> <tr> <td class="align-middle">Video Digital Bit Width</td> <td>8/10 bit</td> </tr> <tr> <td class="align-middle">Differential Gain (DG)</td> <td>< 2% (typical value)</td> </tr> <tr> <td class="align-middle">Differential Phase (DP)</td> <td>< 2° (typical value)</td> </tr> <tr> <td class="align-middle">SNR-weighted Scheme</td> <td>> 67dB (typical value)</td> </tr> </tbody> <thead> <tr> <th colspan="2">Data Interface</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Data Channel</td> <td>4 channels</td> </tr> <tr> <td class="align-middle">Physical Protocol</td> <td>RS485</td> </tr> <tr> <td class="align-middle">Operation Mode</td> <td>Simplex</td> </tr> <tr> <td class="align-middle">Data Connector</td> <td>4 Pin terminal block with screw clamps</td> </tr> <tr> <td class="align-middle">Data Rate</td> <td>DC-150Kbps</td> </tr> <tr> <td class="align-middle">Data Distance</td> <td>RS485: 0-20km</td> </tr> <tr> <td class="align-middle">BPS</td> <td>0-115.2Kbps</td> </tr> <tr> <td class="align-middle">Bit Error Rate (BER)</td> <td>< 10^-9</td> </tr> </tbody> <thead> <tr> <th colspan="2">Optical Interface</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Optical Connector</td> <td>FC</td> </tr> <tr> <td class="align-middle">Fiber Type</td> <td>Single-mode, single fiber</td> </tr> <tr> <td class="align-middle">Distance</td> <td>20km for single mode</td> </tr> <tr> <td class="align-middle">Optical Wavelength</td> <td><b>VF-402-T</b> TX: 1310nm RX: 1550nm<b>VF-402-R</b> TX: 1550nm RX: 1310nm</td> </tr> <tr> <td class="align-middle">Transmitter Coupled Power</td> <td>Max.: 0dBm Min.: -8dBm</td> </tr> <tr> <td class="align-middle">Receive Sensitivity</td> <td>-22dBm</td> </tr> <tr> <td class="align-middle">Link Budget</td> <td>From 15dB to 20dB at 1310nm or 1550nm</td> </tr> <tr> <td class="align-middle">Cable</td> <td>9/125μm single-mode cable</td> </tr> </tbody> <thead> <tr> <th colspan="2">Hardware Specifications</th> </tr> </thead> <tbody> <tr> <td class="align-middle">LED Indicators</td> <td> <ul> <li>Power</li> <li>Each channel</li> <li>Link (fiber optic)</li> </ul> </td> </tr> <tr> <td class="align-middle">Dimensions (W x D x H)</td> <td>157 × 118.5 × 48.8 mm</td> </tr> <tr> <td class="align-middle">Weight</td> <td>580g</td> </tr> <tr> <td class="align-middle">Power Requirement</td> <td>5V DC, 2A</td> </tr> <tr> <td class="align-middle">Chassis Current Consumption</td> <td>1.10 amp for 4-channel video and 1-channel data</td> </tr> <tr> <td class="align-middle">Mechanical</td> <td>Metal</td> </tr> </tbody> <thead> <tr> <th colspan="2">Standards Conformance</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Regulatory Compliance</td> <td>FCC, CE</td> </tr> </tbody> <thead> <tr> <th colspan="2">Environment</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Operating</td> <td>Temperature: -20 ~ 70 degrees C Relative Humidity: 0 ~ 95% (non-condensing)</td> </tr> <tr> <td class="align-middle">Storage</td> <td>Temperature: -40 ~ 85 degrees C Relative Humidity: 0 ~ 95% (non-condensing)</td> </tr> </tbody> <thead> <tr> <th colspan="2">Standard Accessories</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Packet Contents</td> <td>VF-402-T x 1 VF-402-R x 1 User’s manual x 1 5V/2A power adapter x 2</td> </tr> </tbody> </table> </div>
• product_editor_4422_tab_enabled: yes
• product_editor_4422_tab_content_changed: yes
• product_editor_4422_tab_title: Specifications
• ekit_post_views_count: 491
• product_editor_4418_tab_sticky_width: pw-content-1
• product_editor_4418_tab_sticky_position: pw-left-stick
• product_editor_4421_tab_sticky_width: pw-content-1
• product_editor_4421_tab_sticky_position: pw-left-stick
• product_editor_4422_tab_sticky_width: pw-content-1
• product_editor_4422_tab_sticky_position: pw-left-stick
• product_editor_4423_tab_content:
• product_editor_4423_tab_content_changed: yes
• product_editor_4423_tab_enabled: yes
• product_editor_4423_tab_title: Downloads
• product_editor_4423_tab_sticky_width: pw-content-1
• product_editor_4423_tab_sticky_height: 1
• product_editor_4423_tab_sticky_position: pw-left-stick
• product_editor_4424_tab_content:
• product_editor_4424_tab_content_changed: yes
• product_editor_4424_tab_enabled: yes
• product_editor_4424_tab_title: Related Products
• product_editor_4424_tab_sticky_width: pw-content-1
• product_editor_4424_tab_sticky_height: 1
• product_editor_4424_tab_sticky_position: pw-left-stick
• total_sales: 0

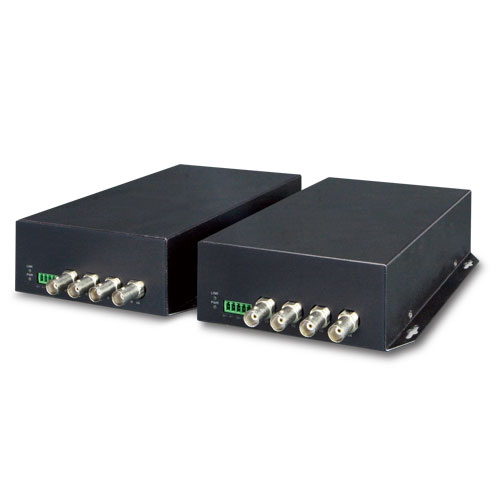

• accessories_table: <div class="table-responsive"> <div class="table-responsive"> <div class="table-responsive"> <table class="common_table"> <thead> <tr> <th colspan="2">Ordering Information</th> </tr> </thead> <tbody> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">VF-402-KIT</h3> </td> <td>4-Channel Video over Fiber Bundled Kit (VF-402-T + VF-402-R)</td> </tr> </tbody> </table> </div> </div> </div>
