• product_code: VGW-3220FS

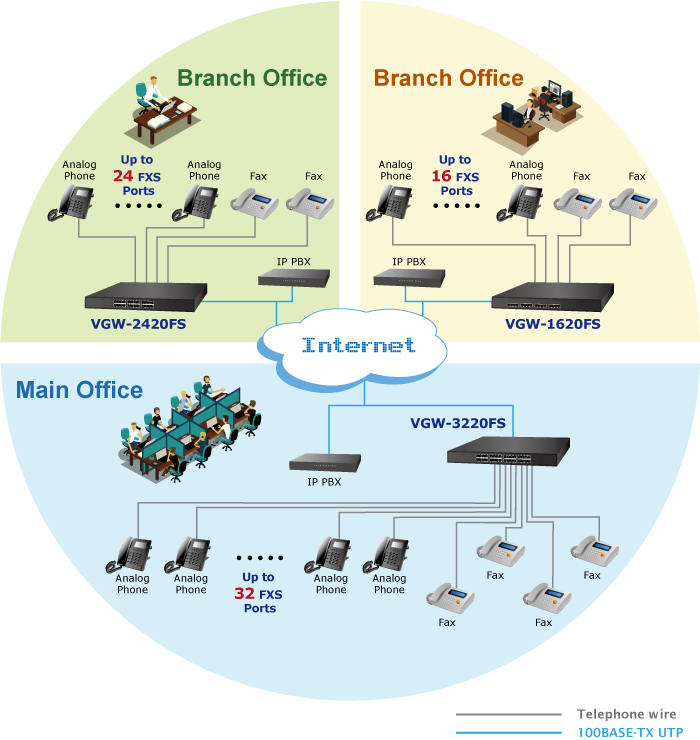

• product_editor_4418_tab_content: The VGW-3220FS provides the essential features you need for business-class voice communications in an easy-to-manage solution. Designed for businesses with branch offices, it helps the enterprises to save money on long-distance calls. <p style="text-align: center;"><img src="https://www.planet.com.sa/planet-storage/2025/01/VGW-x20-Series-6.png" alt="" width="700" height="740" /></p>
• product_editor_4418_tab_enabled: yes
• product_editor_4418_tab_content_changed: yes
• product_editor_4418_tab_title: Applications

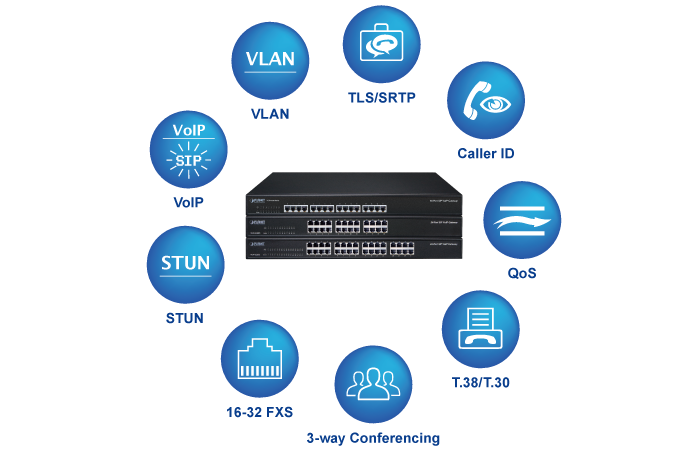

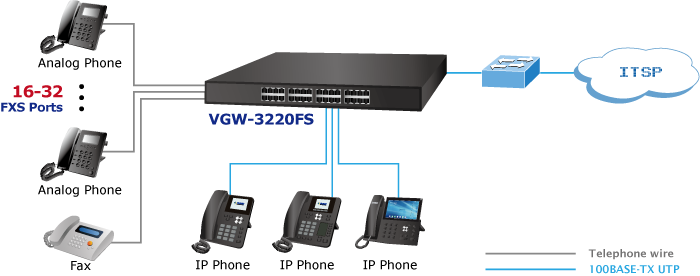

• product_editor_4421_tab_content: <span style="color: #5070ab;"><strong>SIP Applications</strong></span> <ul> <li>IETF SIP RFC3261 based on UDP/TCP/TLS</li> <li>32-line FXS connects to analog phone set or PABX</li> <li>Fax over T.38 and Pass-through</li> <li>ITU-T G.711 A-law, G.711 μ-law, G.723.1 and G.729 voice coding</li> <li>In-band / out of band DTMF (RFC4733, RFC2833 / SIP INFO)</li> <li>Echo cancellation exceeding ITU-T G.168, up to 128ms tail length</li> <li>Supports SIP Trunk and Caller ID: DTMF/FSK CLI Presentation</li> </ul>   <span style="color: #5070ab;"><strong>Internet Features</strong></span> <ul> <li>Supports SNMP v1/v2/v3</li> <li>Supports VLAN 802.1P and 802.1Q</li> <li>Supports Layer3 QoS and DiffServ</li> <li>Supports STUN (RFC 3489) and Outbound Proxy</li> <li>Supports TR069 and Auto Provisioning</li> <li>Supports TLS/SRTP Security</li> </ul>   <span style="color: #5070ab;"><strong>Call Features</strong></span> <ul> <li>Call waiting, transfer (Blind transfer, Attend transfer)</li> <li>Call hold, quick pick</li> <li>Call forwarding unconditional</li> <li>Call forwarding on no reply</li> <li>Hotline, speed dial, direct IP call</li> <li>Do not disturb (DND), 3-way conferencing</li> </ul>
• product_editor_4421_tab_enabled: yes
• product_editor_4421_tab_content_changed: yes
• product_editor_4421_tab_title: Key Features

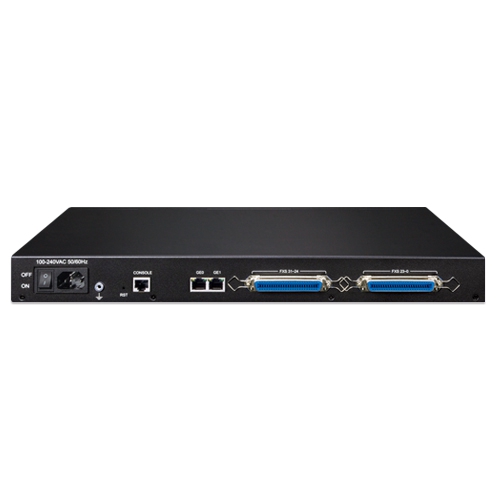

• product_editor_4422_tab_content:   <div class="table-responsive"> <table class="common_table_sky" style="width: 100%;"> <thead> <tr> <th colspan="2">Hardware</th> </tr> </thead> <tbody> <tr> <td class="align-middle">LAN</td> <td>4 x 10/100BASE-TX RJ45 port</td> </tr> <tr> <td class="align-middle">Voice</td> <td>32 x RJ11 connection (32 x Foreign eXchange Station) 2 x RJ21, 50 PIN</td> </tr> <tr> <td class="align-middle">Console</td> <td>1 x RS232, 115200bps</td> </tr> <tr> <td class="align-middle">Weight</td> <td>3200g</td> </tr> <tr> <td class="align-middle">Dimensions (W x D x H)</td> <td>440 x 250 x 44 mm</td> </tr> <tr> <td class="align-middle">Power Requirements</td> <td>100-240VAC, 50-60 Hz</td> </tr> <tr> <td class="align-middle">Power Consumption</td> <td>40W</td> </tr> </tbody> <thead> <tr> <th colspan="2">Protocols and Standard</th> </tr> </thead> <tbody> <tr> <td class="align-middle">FXS</td> <td>Dial Mode: DTMF and Pulse Pulse: 10 and 20 PPS Caller ID: DTMF/FSK CLI Presentation Max Cable Length: 3KM Reverse Polarity Programmable Call Progress Tone</td> </tr> <tr> <td class="align-middle">Voice & Fax</td> <td>G.711A/U law, G.723.1, G.729A/B,G.726 and iLBC Silence Suppression Comfort Noise Generation (CNG) Voice Activity Detection (VAD) Echo Cancellation (G.168), with up to 128ms Adaptive (Dynamic) Jitter Buffer Hook Flash Programmable Gain Control T.38/Pass-through Modem/POS DTMF mode: Signal/RFC 2833/INBAND VLAN 802.1P and 802.1Q Layer 3 QoS and DiffServ</td> </tr> <tr> <td class="align-middle">VoIP</td> <td>IETF Session Initiation Protocol (SIP) v2.0 (UDP/TCP) RFC 3261 and Session Description Protocol (SDP) RTP (RFC 2833), RFC 3262, RFC 3263, RFC 3264, RFC 3265, RFC 3515, RFC 2976 and RFC 3311 RTP/RTCP, RFC 2198 and RFC 1889 RFC 4028 Session Timer RFC 3266 IPv6 in SDP RFC 2806 TEL URI RFC 3581 NAT and rport Primary/Backup SIP Server Outbound Proxy DNS SRV/A Query/NATPR Query SIP Trunk Early Media/Early Answer NAT:STUN, Static/Dynamic NAT</td> </tr> <tr> <td class="align-middle">Supplementary Service</td> <td>Call Waiting Blind Transfer Attend Transfer Call Forward on Busy Call Forward on No Reply Unconditional Call Forward Warm/Immediately Hotline Call Hold Do-not-disturb 3-Way Conferencing Message Waiting Indicator</td> </tr> <tr> <td class="align-middle">Software Features</td> <td>Hunting Group Web ACL Telnet ACL Action URL PPPoE/IPv4/IPv6 Digitmap Bandwidth Optimization Routing Rules based Prefixes Caller/Called Number Manipulation</td> </tr> <tr> <td class="align-middle">Management</td> <td>SNMP v1/v2/v3 TR069 Auto Provisioning Web/Telnet Configuration Backup/Restore Firmware Upgrade via Web CDR Syslog Ping and Tracert Test Network Capture Outward Test (GR909) NTP and Daylight Saving Time IVR local Maintenance</td> </tr> </tbody> <thead> <tr> <th colspan="2">Standards Conformance</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Emission</td> <td>CE, FCC</td> </tr> </tbody> </table> </div>
• product_editor_4422_tab_enabled: yes
• product_editor_4422_tab_content_changed: yes
• product_editor_4422_tab_title: Specifications
• ekit_post_views_count: 537
• product_editor_4418_tab_sticky_width: pw-content-1
• product_editor_4418_tab_sticky_position: pw-left-stick
• product_editor_4421_tab_sticky_width: pw-content-1
• product_editor_4421_tab_sticky_position: pw-left-stick
• product_editor_4422_tab_sticky_width: pw-content-1
• product_editor_4422_tab_sticky_position: pw-left-stick
• product_editor_4423_tab_content:
• product_editor_4423_tab_content_changed: yes
• product_editor_4423_tab_enabled: yes
• product_editor_4423_tab_title: Downloads
• product_editor_4423_tab_sticky_width: pw-content-1
• product_editor_4423_tab_sticky_height: 1
• product_editor_4423_tab_sticky_position: pw-left-stick
• product_editor_4424_tab_content:
• product_editor_4424_tab_content_changed: yes
• product_editor_4424_tab_enabled: yes
• product_editor_4424_tab_title: Related Products
• product_editor_4424_tab_sticky_width: pw-content-1
• product_editor_4424_tab_sticky_height: 1
• product_editor_4424_tab_sticky_position: pw-left-stick
• total_sales: 0

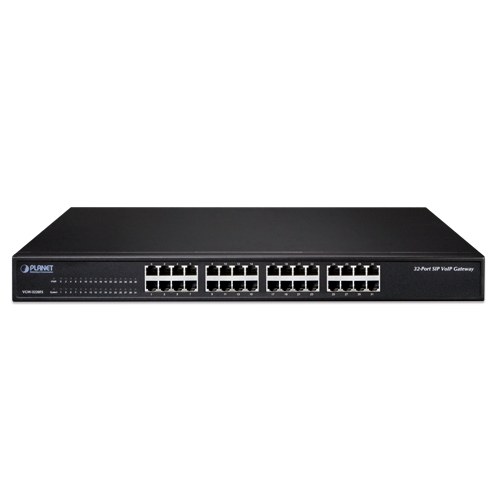

• accessories_table: <table class="common_table"> <thead> <tr> <th colspan="2">Ordering Information</th> </tr> </thead> <tbody> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">VGW-3220FS</h3> </td> <td>32-Port SIP VoIP Gateway (32 FXS)</td> </tr> </tbody> </table>
• product_label:
• prouduct_loop_image_transparent_bg_:
• 6_features_images: a:6:{i:0;s:5:"14595";i:1;s:5:"14594";i:2;s:5:"14593";i:3;s:5:"14592";i:4;s:5:"14591";i:5;s:5:"14590";}
• datasheet_0_date: 20201204
• datasheet_0_version: 1.0
• datasheet_0_description: VGW-3220FS
• datasheet_0_download_pdf: https://www.planet.com.sa/storage/products/VGW-3220FS/C-VGW-3220FS_L.pdf
• datasheet: 1
• quick_guide_0_date: 20241101
• quick_guide_0_version: 1.3
• quick_guide_0_description: [Release for hardware version 3.0.] Added PSTI function.
• quick_guide_0_download_pdf: https://www.planet.com.sa/storage/products/VGW-3220FS/EMQ-VGW-x20%20series_v1.3.pdf
• quick_guide_1_date: 20220826
• quick_guide_1_version: 1.2
• quick_guide_1_description: Modify contents of Quick Guide.
• quick_guide_1_download_pdf: https://www.planet.com.sa/storage/products/VGW-3220FS/EMQ-VGW-x20%20series_v1.2.pdf
• quick_guide_2_date: 20201023
• quick_guide_2_version: 1.1
• quick_guide_2_description: For VGW-420FS/820FS/1620FS/2420FS/3220FS
• quick_guide_2_download_pdf: https://www.planet.com.sa/storage/products/VGW-3220FS/EMQ-VGW-x20%20series_v1.1.pdf
• quick_guide: 3
• users_manual_0_date: 20201117
• users_manual_0_version: 1.0
• users_manual_0_description: Initial Release
• users_manual_0_download_pdf: https://www.planet.com.sa/storage/products/VGW-3220FS/EM-VGW-x20-Series_v1.0.pdf
• users_manual: 1
• ec_declaration:
• android_app:
• driver:
• firmware_0_date: 20240919
• firmware_0_version: 24.831124
• firmware_0_description: [Release for hardware version 3.0.] 1. The firmware updates for VGW-420FO, VGW-820FS, VGW-1620FS, VGW-2420FS, and VGW-3220FS are the same. 2. Added PSTI function. <b>FW upgrade for PSTIA</b> (Product Security and Telecommunications Infrastructure Act) <b>*Note:</b> After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update.
• firmware_0_download_pdf: https://www.planet.com.sa/storage/products/VGW-3220FS/FW-VGW-2420FS_3220FS%28v3%29_v24.83.11.24.zip
• firmware_1_date: 20230825
• firmware_1_version: 24.831115
• firmware_1_description: [Release for hardware version 2.0.] 1.Fixed the webpage display issue after resetting to default from Web UI. 2.Fixed REN3, 4 issues and hid the Long Line Support function.
• firmware_1_download_pdf: https://www.planet.com.sa/storage/products/VGW-3220FS/FW-VGW-820FS_1620FS_2420FS_3220FS%20%28v2%29_24.83.11.15%20%281%29.zip
• firmware_2_date: 20230407
• firmware_2_version: 24.831112
• firmware_2_description: Release for hardware version 2.0.
• firmware_2_download_pdf: https://www.planet.com.sa/storage/products/VGW-3220FS/FW-VGW-820FS_1620FS_2420FS_3220FS%20%28v2%29_24.83.11.12%20%281%29.zip
• firmware: 3
• utility:
• compatible_list:
• site-sidebar-layout: default
• ast-site-content-layout: default
• site-content-style: default
• site-sidebar-style: default
• theme-transparent-header-meta: default
• astra-migrate-meta-layouts: set
• applications_tab: <p>The VGW-3220FS provides the essential features you need for business-class voice communications in an easy-to-manage solution. Designed for businesses with branch offices, it helps the enterprises to save money on long-distance calls.</p><p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VGW-x20-Series-6.png" alt="" width="700" height="740"></p>
• key_features_tab: <p><strong>SIP Applications</strong></p><ul> <li>IETF SIP RFC3261 based on UDP/TCP/TLS</li> <li>32-line FXS connects to analog phone set or PABX</li> <li>Fax over T.38 and Pass-through</li> <li>ITU-T G.711 A-law, G.711 μ-law, G.723.1 and G.729 voice coding</li> <li>In-band / out of band DTMF (RFC4733, RFC2833 / SIP INFO)</li> <li>Echo cancellation exceeding ITU-T G.168, up to 128ms tail length</li> <li>Supports SIP Trunk and Caller ID: DTMF/FSK CLI Presentation</li> </ul><p> </p><p><strong>Internet Features</strong></p><ul> <li>Supports SNMP v1/v2/v3 </li> <li>Supports VLAN 802.1P and 802.1Q</li> <li>Supports Layer3 QoS and DiffServ</li> <li>Supports STUN (RFC 3489) and Outbound Proxy</li> <li>Supports TR069 and Auto Provisioning </li> <li>Supports TLS/SRTP Security </li> </ul><p> </p><p><strong>Call Features</strong></p><ul> <li>Call waiting, transfer (Blind transfer, Attend transfer)</li> <li>Call hold, quick pick</li> <li>Call forwarding unconditional</li> <li>Call forwarding on no reply</li> <li>Hotline, speed dial, direct IP call</li> <li>Do not disturb (DND), 3-way conferencing</li> </ul>
• specifications_tab: <table style="width:100%;" class="common_table_sky"><thead><tr><th colspan="2">Hardware</th></tr></thead><tbody><tr><td class="align-middle">LAN</td><td>2 x 10/100/1000BASE-T RJ45 port</td></tr><tr><td class="align-middle">Voice</td><td>32 x RJ11 connection (32 x Foreign eXchange Station)<br /> 2 x RJ21, 50 PIN</td></tr><tr><td class="align-middle">Console</td><td>1 x RS232, 115200bps</td></tr><tr><td class="align-middle">Weight</td><td>3200g</td></tr><tr><td class="align-middle">Dimensions (W x D x H)</td><td>440 x 250 x 44 mm</td></tr><tr><td class="align-middle">Power Requirements</td><td>100-240VAC, 50-60 Hz</td></tr><tr><td class="align-middle">Power Consumption</td><td>40W</td></tr></tbody><thead><tr><th colspan="2">FXS</th></tr></thead><tbody><tr><td class="align-middle">Voice & Fax</td><td>G.711A/U law, G.723.1, G.729A/B,G.726 and iLBC<br /> Silence Suppression <br /> Comfort Noise Generation (CNG)<br /> Voice Activity Detection (VAD)<br /> Echo Cancellation (G.168), with up to 128ms <br /> Adaptive (Dynamic) Jitter Buffer<br /> Hook Flash<br /> Programmable Gain Control<br /> T.38/Pass-through<br /> Modem/POS<br /> DTMF mode: Signal/RFC 2833/INBAND<br /> VLAN 802.1P and 802.1Q<br /> Layer 3 QoS and DiffServ</td></tr><tr><td class="align-middle">VoIP</td><td>IETF Session Initiation Protocol (SIP) v2.0 (UDP/TCP)<br /> RFC 3261 and Session Description Protocol (SDP)<br /> RTP (RFC 2833), RFC 3262, RFC 3263, RFC 3264, RFC 3265, RFC 3515, RFC 2976 and RFC 3311<br /> RTP/RTCP, RFC 2198 and RFC 1889<br /> RFC 4028 Session Timer<br /> RFC 3266 IPv6 in SDP<br /> RFC 2806 TEL URI<br /> RFC 3581 NAT and rport<br /> Primary/Backup SIP Server<br /> Outbound Proxy<br /> DNS SRV/A Query/NATPR Query<br /> SIP Trunk<br /> Early Media/Early Answer<br /> NAT:STUN, Static/Dynamic NAT</td></tr><tr><td class="align-middle">Supplementary Service</td><td>Call Waiting<br /> Blind Transfer <br /> Attend Transfer<br /> Call Forward on Busy<br /> Call Forward on No Reply<br /> Unconditional Call Forward<br /> Warm/Immediately Hotline<br /> Call Hold <br /> Do-not-disturb<br /> 3-Way Conferencing<br /> Message Waiting Indicator</td></tr><tr><td class="align-middle">Software Features</td><td>Hunting Group<br /> Web ACL<br /> Telnet ACL<br /> Action URL<br /> PPPoE/IPv4<br /> Digitmap<br /> Bandwidth Optimization<br /> Routing Rules based Prefixes<br /> Caller/Called Number Manipulation</td></tr><tr><td class="align-middle">Management</td><td>SNMP v1/v2/v3<br /> TR069<br /> Auto Provisioning<br /> Web/Telnet<br /> Configuration Backup/Restore<br /> Firmware Upgrade via Web<br /> CDR<br /> Syslog<br /> Ping and Tracert Test<br /> Network Capture<br /> Outward Test (GR909)<br /> NTP and Daylight Saving Time<br /> IVR local Maintenance</td></tr></tbody><thead><tr><th colspan="2">Environments</th></tr></thead><tbody><tr><td class="align-middle">Operating Temperature</td><td>0 ~ 45 degrees C</td></tr><tr><td class="align-middle">Storage Temperature</td><td>-20 ~ 80 degrees C</td></tr><tr><td class="align-middle">Operating Humidity</td><td>10%~90% relative humidity, non-condensing</td></tr><tr><td class="align-middle">Emission</td><td>CE, FCC</td></tr></tbody></table>
