• product_code: VIP-1140PT

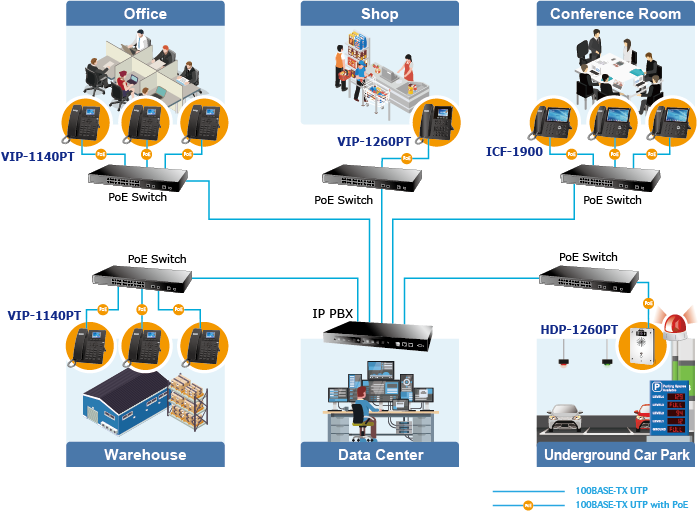

• product_editor_4418_tab_content: <strong>Enhanced, Full-Featured SIP IP Phone</strong> The VIP-1140PT is optimized for executive use for administrative assistants and those working with bandwidth-intensive application on collocated PCs. Four programmable extension keys could beconfigured as IP PBX features like BLF, MWI, DND, Call Forward, Call Park and many others. <img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VIP-1140PT-31.png" alt="" width="700" height="399" /> <strong>Enterprise IP Telephony Deployment of VIP-1140PT</strong> Help your teams move faster with exceptional audio quality and built-in flexibility. The VIP-1140PT is much easier to install and configure than the traditional phone system. Its low cost and high-definition voice quality give you value for money. Based on standard SIP 2.0, it is compatible with all the standard SIP-based servers. <img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VIP-1140PT-4.png" alt="" width="700" height="511" />
• product_editor_4418_tab_enabled: yes
• product_editor_4418_tab_content_changed: yes
• product_editor_4418_tab_title: Applications

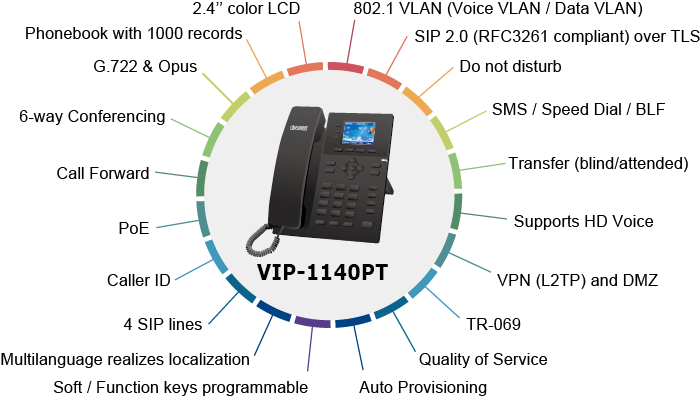

• product_editor_4421_tab_content: <strong>Highlights</strong> <ul> <li>2.4-inch WVA color LCD monitor</li> <li>3-line key with color LED</li> <li>4 SIP identities</li> <li>Wideband G.722 HD audio</li> <li>Support G.723.1 and G.726 for efficient low-bandwidth and high-quality wideband audio</li> <li>Opus codec support</li> <li>Power over Ethernet (PoE) compliant</li> <li>QoS, TR069, auto-provisioning and multi-language</li> </ul>   <strong>Advantageous Applications</strong> <ul> <li>Supports SIP 2.0 (RFC 3261)</li> <li>Inband, SIP info, RFC 2833 DTMF relay</li> <li>Soft keys and function keys programmable</li> <li>Echo cancellation: Supports G.168, and 96ms max. filter length in hands-free mode</li> <li>Supports voice gain setting, Voice Activity Detection (VAD) & Comfort Noise Generation (CNG)</li> <li>Full duplex hands-free speakerphone</li> <li>Hands-free headset ringing choice</li> <li>Voice codec setting for each SIP line</li> </ul>   <strong>SIP Applications</strong> <ul> <li>Call forward and transfer (blind/attended)</li> <li>Call holding and waiting</li> <li>6-way conferencing</li> <li>Paging and intercom</li> <li>Call park, call pickup and join call</li> <li>Redial and click to dial</li> <li>Automatic secondary dialing</li> <li>Incoming calls, outgoing calls and missing calls (Each supports 600 records)</li> <li>SMS and speed dial</li> <li>Phonebook up to 1000 records</li> </ul>   <strong>Call Control Features</strong> <ul> <li>Flexible dial map, hotline and empty calling no. for rejected service</li> <li>Black list for rejected authenticated calls</li> <li>White list and call limit</li> <li>Do not disturb (DND)</li> <li>Caller ID display</li> <li>Dial without registration</li> </ul>   <strong>Network Features</strong> <ul> <li>PPPoE/DHCP client</li> <li>802.1 VLAN (voice VLAN/data VLAN)</li> <li>VPN (L2TP) and openVPN</li> <li>Quality of Service</li> </ul>   <strong>Maintenance and Management</strong> <ul> <li>Integrated web server provides web-based administration and configuration</li> <li>Telephone keypad configuration via display menu/navigation</li> <li>Automated provisioning and upgrade via HTTPS, HTTP, TFTP</li> <li>User authentication for configuration pages</li> <li>SNTP time synchronization</li> <li>TR069</li> <li>PLANET Easy DDNS and PLANET DDNS</li> </ul>
• product_editor_4421_tab_enabled: yes
• product_editor_4421_tab_content_changed: yes
• product_editor_4421_tab_title: Key Features

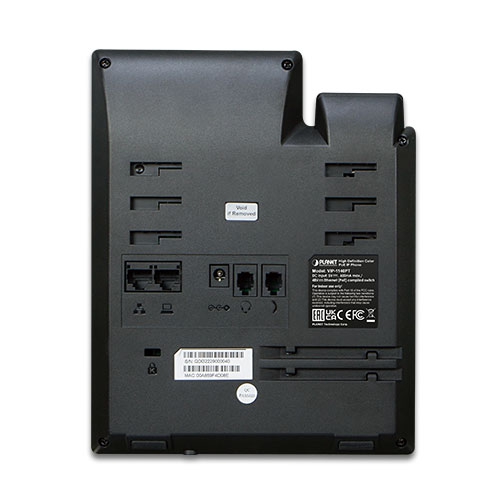

• product_editor_4422_tab_content:   <div class="table-responsive"> <table class="common_table_sky" style="width: 100%;"> <thead> <tr> <th colspan="2">Hardware</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Lines (Direct Numbers)</td> <td>4 SIP Lines</td> </tr> <tr> <td class="align-middle">Physical Interfaces</td> <td>LCD x 1: 2.4-inch (320 x 240) WVA color LCD Keypad: 36 keys, including 3 line keys with tri-color LED 4 soft-keys 5 navigation keys 8 function keys 12 standard phone digit keys 3 volume control keys -- Up, Down, Mute (microphone) 1 hands-free key HD hands-free speaker (0 ~ 7KHz) x 1 HD hands-free microphone (0 ~ 7KHz) x 1 HD handset (RJ9) x 1</td> </tr> <tr> <td class="align-middle">Connectors</td> <td>RJ9 phone jacket x 2: Handset x 1 Headphone x 1 RJ45 10/100BASE-TX Ethernet jacket x 2: Network x 1 (802.3af PoE Class 1 enabled) PC x 1 (Bridged Network)</td> </tr> <tr> <td class="align-middle">Power Requirements</td> <td>IEEE 802.3af/at Power over Ethernet 5V 600mA</td> </tr> <tr> <td class="align-middle">Weight</td> <td>665g</td> </tr> <tr> <td class="align-middle">Dimensions (W x D x H)</td> <td>210 x 168 x 60 mm</td> </tr> </tbody> <thead> <tr> <th colspan="2">Protocols and Standard</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Protocols</td> <td>SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP PPPoE 802.1x L2TP (basic unencryption) OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR069</td> </tr> <tr> <td class="align-middle">Request for Comments (RFCs)</td> <td>354, 1321, 1350, 1769, 1889, 1890, 2131, 2132, 2616, 2617, 2661, 2833, 2976, 3261, 3262, 3263, 3264, 3265, 3268, 3311, 3489, 3711, 4346, 4566, 5630, 5865</td> </tr> </tbody> <thead> <tr> <th colspan="2">Networking</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Networking</td> <td>Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass IP Configuration: Static, DHCP, PPPoE Network Access Control: 802.1x VPN: L2TP (basic unencryption), OpenVPN VLAN QoS</td> </tr> <tr> <td class="align-middle">Deployment & Maintenance</td> <td>Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069 Web management portal Web-based packet dump Configuration backup/restore Auto/Manual online software upgrade Syslog</td> </tr> </tbody> <thead> <tr> <th colspan="2">Features</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Call Features</td> <td>Call out, answer, reject Mute/unmute (microphone) Call hold, resume Call waiting Intercom Caller ID display Call forwarding (always/busy/no answer) Call transfer (attended/unattended) Call parking, pick-up (depending on server) Redial Do-not-disturb (per line/per phone) Auto-answering (per line) Voice message (on server) Local 6-way conferencing Hot line</td> </tr> <tr> <td class="align-middle">Phone Features</td> <td>Phone accessibility control by user PIN Intelligent phonebook (up to 500 entries in total) Remote phonebook (XML/LDAP) Intelligent contact number matching/filtering Call log (300 entries in total, in/out/missed) Voice message waiting indication (VMWI) Network time synchronization Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Russian, Italian, German, French, Hebrew, Spanish, Catalan, Euskara, Galego, Turkish, Slovenian, Czech, Dutch, Korean, Ukrainian, Portuguese</td> </tr> <tr> <td class="align-middle">Audio Features</td> <td>HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response) Wideband ADC/DAC 16KHz sampling Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729A/B. iLBC Wideband codec: Opus, G.722 Full-duplex acoustic echo canceller (AEC) – 96ms tail-length in hands-free mode Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR) Packet loss concealment (PLC) Dynamic adaptive jitter buffer up to 300ms DTMF: In-band, out-of-band – DTMF-relay (RFC 2833), SIP info</td> </tr> </tbody> <thead> <tr> <th colspan="2">Environment</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Operating Temperature</td> <td>0 ~ 45 degrees C</td> </tr> <tr> <td class="align-middle">Operating Humidity</td> <td>10 ~ 65% (non-condensing)</td> </tr> <tr> <td class="align-middle">Emission</td> <td>CE, FCC, RoHS</td> </tr> </tbody> </table> </div>
• product_editor_4422_tab_enabled: yes
• product_editor_4422_tab_content_changed: yes
• product_editor_4422_tab_title: Specifications
• ekit_post_views_count: 516
• product_editor_4418_tab_sticky_width: pw-content-1
• product_editor_4418_tab_sticky_position: pw-left-stick
• product_editor_4421_tab_sticky_width: pw-content-1
• product_editor_4421_tab_sticky_position: pw-left-stick
• product_editor_4422_tab_sticky_width: pw-content-1
• product_editor_4422_tab_sticky_position: pw-left-stick
• product_editor_4423_tab_content:
• product_editor_4423_tab_content_changed: yes
• product_editor_4423_tab_enabled: yes
• product_editor_4423_tab_title: Downloads
• product_editor_4423_tab_sticky_width: pw-content-1
• product_editor_4423_tab_sticky_height: 1
• product_editor_4423_tab_sticky_position: pw-left-stick
• product_editor_4424_tab_content:
• product_editor_4424_tab_content_changed: yes
• product_editor_4424_tab_enabled: yes
• product_editor_4424_tab_title: Related Products
• product_editor_4424_tab_sticky_width: pw-content-1
• product_editor_4424_tab_sticky_height: 1
• product_editor_4424_tab_sticky_position: pw-left-stick
• total_sales: 0
• accessories_table: <table class="common_table"> <thead> <tr> <th colspan="2">Ordering Information</th> </tr> </thead> <tbody> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">VIP-1140PT</h3> </td> <td>High Definition Color PoE IP Phone (4-Line)</td> </tr> </tbody> </table>
• product_label:
• prouduct_loop_image_transparent_bg_:
• 6_features_images: a:6:{i:0;s:5:"14572";i:1;s:5:"14571";i:2;s:5:"14576";i:3;s:5:"14575";i:4;s:5:"14574";i:5;s:5:"14573";}
• datasheet_0_date: 20231201
• datasheet_0_version: 1.0
• datasheet_0_description: VIP-1140PT
• datasheet_0_download_pdf: https://www.planet.com.sa/storage/products/VIP-1140PT/C-VIP-1140PT_L.pdf
• datasheet: 1
• quick_guide_0_date: 20221223
• quick_guide_0_version: 1.1
• quick_guide_0_description: Initial release.
• quick_guide_0_download_pdf: https://www.planet.com.sa/storage/products/VIP-1140PT/EMQ-VIP-1260PT_1140PT_v1.1.pdf
• quick_guide: 1
• users_manual: 1
• ec_declaration:
• android_app:
• driver:
• firmware_0_date: 20230331
• firmware_0_version: 2.1261
• firmware_0_description: Initial release.
• firmware_0_download_pdf: https://www.planet.com.sa/storage/products/VIP-1140PT/FW-VIP-1140PT_v2.12.6.1.zip
• firmware: 1
• utility:
• compatible_list:
• site-sidebar-layout: default
• ast-site-content-layout: default
• site-content-style: default
• site-sidebar-style: default
• theme-transparent-header-meta: default
• users_manual_0_date: 20230203
• users_manual_0_version: 1.0
• users_manual_0_description: Initial release.
• users_manual_0_download_pdf: https://www.planet.com.sa/storage/products/VIP-1140PT/EM-VIP-1140PT_v1.0.pdf
• astra-migrate-meta-layouts: set
• applications_tab: <p><strong>Enhanced, Full-Featured SIP IP Phone</strong></p><p>The VIP-1140PT is optimized for executive use for administrative assistants and those working with bandwidth-intensive application on collocated PCs. Four programmable extension keys could beconfigured as IP PBX features like BLF, MWI, DND, Call Forward, Call Park and many others. </p><p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VIP-1140PT-31.png" alt="" width="700" height="399"></p><p><strong>Enterprise IP Telephony Deployment of VIP-1140PT</strong></p><p>Help your teams move faster with exceptional audio quality and built-in flexibility. The VIP-1140PT is much easier to install and configure than the traditional phone system. Its low cost and high-definition voice quality give you value for money. Based on standard SIP 2.0, it is compatible with all the standard SIP-based servers.</p><p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/01/VIP-1140PT-4.png" alt="" width="700" height="511"></p>
• key_features_tab: <p><strong>Highlights</strong></p><ul> <li>2.4-inch WVA color LCD monitor</li> <li>3-line key with color LED</li> <li>4 SIP identities</li> <li>Wideband G.722 HD audio</li> <li>Support G.723.1 and G.726 for efficient low-bandwidth and high-quality wideband audio</li> <li>Opus codec support</li> <li>Power over Ethernet (PoE) compliant</li> <li>QoS, TR069, auto-provisioning and multi-language</li> </ul><p> </p><p><strong>Advantageous Applications</strong></p><ul> <li>Supports SIP 2.0 (RFC 3261)</li> <li>Inband, SIP info, RFC 2833 DTMF relay</li> <li>Soft keys and function keys programmable</li> <li>Echo cancellation: Supports G.168, and 96ms max. filter length in hands-free mode</li> <li>Supports voice gain setting, Voice Activity Detection (VAD) & Comfort Noise Generation (CNG)</li> <li>Full duplex hands-free speakerphone</li> <li>Hands-free headset ringing choice</li> <li>Voice codec setting for each SIP line</li> </ul><p> </p><p><strong>SIP Applications</strong></p><ul> <li>Call forward and transfer (blind/attended)</li> <li>Call holding and waiting</li> <li>6-way conferencing</li> <li>Paging and intercom</li> <li>Call park, call pickup and join call</li> <li>Redial and click to dial</li> <li>Automatic secondary dialing</li> <li>Incoming calls, outgoing calls and missing calls (Each supports 600 records)</li> <li>SMS and speed dial</li> <li>Phonebook up to 1000 records</li> </ul><p> </p><p><strong>Call Control Features</strong></p><ul> <li>Flexible dial map, hotline and empty calling no. for rejected service</li> <li>Black list for rejected authenticated calls</li> <li>White list and call limit</li> <li>Do not disturb (DND)</li> <li>Caller ID display</li> <li>Dial without registration</li> </ul><p> </p><p><strong>Network Features</strong></p><ul> <li>PPPoE/DHCP client </li> <li>802.1 VLAN (voice VLAN/data VLAN)</li> <li>VPN (L2TP) and openVPN</li> <li>Quality of Service</li> </ul><p> </p><p><strong>Maintenance and Management</strong></p><ul> <li>Integrated web server provides web-based administration and configuration</li> <li>Telephone keypad configuration via display menu/navigation</li> <li>Automated provisioning and upgrade via HTTPS, HTTP, TFTP</li> <li>User authentication for configuration pages</li> <li>SNTP time synchronization</li> <li>TR069</li> <li>PLANET Easy DDNS and PLANET DDNS</li> </ul>
• specifications_tab: <table style="width:100%;" class="common_table_sky"><thead><tr><th colspan="2">Hardware</th></tr></thead><tbody><tr><td class="align-middle">Lines (Direct Numbers)</td><td>4 SIP Lines</td></tr><tr><td class="align-middle">Physical Interfaces</td><td>LCD x 1: 2.4-inch (320 x 240) WVA color LCD<br /> Keypad: 36 keys, including<br /> 　3 line keys with tri-color LED<br /> 　4 soft-keys<br /> 　5 navigation keys<br /> 　8 function keys<br /> 　12 standard phone digit keys<br /> 　3 volume control keys -- Up, Down, Mute (microphone)<br /> 　1 hands-free key <br /> HD hands-free speaker (0 ~ 7KHz) x 1<br /> HD hands-free microphone (0 ~ 7KHz) x 1<br /> HD handset (RJ9) x 1</td></tr><tr><td class="align-middle">Connectors</td><td>RJ9 phone jacket x 2: <br /> 　Handset x 1<br /> 　Headphone x 1<br /> RJ45 10/100BASE-TX Ethernet jacket x 2: <br /> 　Network x 1 (802.3af PoE Class 1 enabled)<br /> 　PC x 1 (Bridged Network)</td></tr><tr><td class="align-middle">Power Requirements</td><td>IEEE 802.3af/at Power over Ethernet<br /> 5V 600mA</td></tr><tr><td class="align-middle">Weight</td><td>665g</td></tr><tr><td class="align-middle">Dimensions (W x D x H)</td><td>210 x 168 x 60 mm</td></tr></tbody><thead><tr><th colspan="2">Protocols and Standard</th></tr></thead><tbody><tr><td class="align-middle">Protocols</td><td>SIP2.0 over UDP/TCP/TLS<br /> RTP/RTCP/SRTP<br /> STUN<br /> DHCP<br /> PPPoE<br /> 802.1x<br /> L2TP (basic unencryption)<br /> OpenVPN<br /> SNTP<br /> FTP/TFTP<br /> HTTP/HTTPS<br /> TR069</td></tr><tr><td class="align-middle">Request for Comments (RFCs)</td><td>354, 1321, 1350, 1769, 1889, 1890, 2131, 2132, 2616, 2617, 2661, 2833, 2976, 3261, 3262, 3263, 3264, 3265, 3268, 3311, 3489, 3711, 4346, 4566, 5630, 5865</td></tr></tbody><thead><tr><th colspan="2">Networking</th></tr></thead><tbody><tr><td class="align-middle">Networking</td><td>Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass <br /> IP Configuration: Static, DHCP, PPPoE<br /> Network Access Control: 802.1x<br /> VPN: L2TP (basic unencryption), OpenVPN<br /> VLAN<br /> QoS</td></tr><tr><td class="align-middle">Deployment & Maintenance</td><td>Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069<br /> Web management portal<br /> Web-based packet dump<br /> Configuration backup/restore<br /> Auto/Manual online software upgrade<br /> Syslog</td></tr></tbody><thead><tr><th colspan="2">Features</th></tr></thead><tbody><tr><td class="align-middle">Call Features</td><td>Call out, answer, reject<br /> Mute/unmute (microphone)<br /> Call hold, resume<br /> Call waiting<br /> Intercom<br /> Caller ID display<br /> Call forwarding (always/busy/no answer)<br /> Call transfer (attended/unattended)<br /> Call parking, pick-up (depending on server)<br /> Redial<br /> Do-not-disturb (per line/per phone)<br /> Auto-answering (per line)<br /> Voice message (on server)<br /> Local 6-way conferencing<br /> Hot line</td></tr><tr><td class="align-middle">Phone Features</td><td>Phone accessibility control by user PIN<br /> Intelligent phonebook (up to 500 entries in total)<br /> Remote phonebook (XML/LDAP)<br /> Intelligent contact number matching/filtering<br /> Call log (300 entries in total, in/out/missed)<br /> Voice message waiting indication (VMWI) <br /> Network time synchronization<br /> Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Russian, Italian, German, French, Hebrew, Spanish, Catalan, Euskara, Galego, Turkish, Slovenian, Czech, Dutch, Korean, Ukrainian, Portuguese</td></tr><tr><td class="align-middle">Audio Features</td><td>HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response)<br /> Wideband ADC/DAC 16KHz sampling<br /> Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729A/B. iLBC<br /> Wideband codec: Opus, G.722<br /> Full-duplex acoustic echo canceller (AEC) – 96ms tail-length in hands-free mode<br /> Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR)<br /> Packet loss concealment (PLC)<br /> Dynamic adaptive jitter buffer up to 300ms<br /> DTMF: In-band, out-of-band – DTMF-relay (RFC 2833), SIP info</td></tr></tbody><thead><tr><th colspan="2">Environment</th></tr></thead><tbody><tr><td class="align-middle">Operating Temperature</td><td>0 ~ 45 degrees C</td></tr><tr><td class="align-middle">Operating Humidity</td><td>10 ~ 65% (non-condensing)</td></tr><tr><td class="align-middle">Emission</td><td>CE, FCC, RoHS</td></tr></tbody></table>
