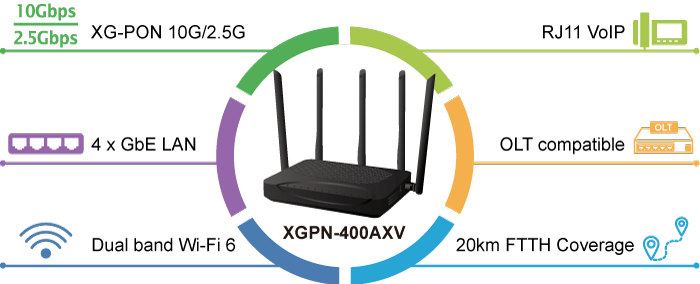

• product_editor_4418_tab_content: <strong>Seamless 10G XG-PON Connectivity for Residential Triple-Play and FTTH Services</strong> PLANET XGPN-400AXV is a high-performance XG-PON Home Gateway Unit designed for next-generation fiber-to-the-home (FTTH) deployments. Working seamlessly with PLANET’s XGPL-16000 OLT, the XGPN-400AXV delivers up to 10Gbps downstream and 2.5Gbps upstream connectivity, providing users with ultra-fast, low-latency broadband services across various environments, from single homes to multi-dwelling units.   With dual-band Wi-Fi 6, Gigabit Ethernet LAN ports, and a built-in VoIP FXS port, it supports triple-play services, including high-definition IPTV, IP telephony, and high-speed internet, all in a single, compact device. Its extended 20km transmission distance and support for 1:256 split ratio enable wide-area deployment while keeping cost and infrastructure complexity low.   Perfect for modern FTTH networks, the XGPN-400AXV ensures a highly-scalable, service-ready solution for both residential and commercial users, enabling stable wired and wireless access with superior throughput and coverage.
• product_editor_4418_tab_content_changed: yes
• product_editor_4418_tab_enabled: yes
• product_editor_4418_tab_title: Applications
• product_editor_4418_tab_description: hi
• product_editor_4418_tab_sticky_width: pw-content-1
• product_editor_4418_tab_sticky_height: 1
• product_editor_4418_tab_sticky_position: pw-left-stick
• product_editor_4421_tab_content_changed: yes
• product_editor_4421_tab_enabled: yes
• product_editor_4421_tab_title: Key Features
• product_editor_4421_tab_sticky_width: pw-content-1
• product_editor_4421_tab_sticky_height: 1
• product_editor_4421_tab_sticky_position: pw-left-stick
• product_editor_4422_tab_content_changed: yes
• product_editor_4422_tab_enabled: yes
• product_editor_4422_tab_title: Specifications
• product_editor_4422_tab_sticky_width: pw-content-1
• product_editor_4422_tab_sticky_height: 1
• product_editor_4422_tab_sticky_position: pw-left-stick
• product_editor_4423_tab_content:
• product_editor_4423_tab_content_changed: yes
• product_editor_4423_tab_enabled: yes
• product_editor_4423_tab_title: Downloads
• product_editor_4423_tab_sticky_width: pw-content-1
• product_editor_4423_tab_sticky_height: 1
• product_editor_4423_tab_sticky_position: pw-left-stick
• product_editor_4424_tab_content:
• product_editor_4424_tab_content_changed: yes
• product_editor_4424_tab_enabled: yes
• product_editor_4424_tab_title: Related Products
• product_editor_4424_tab_sticky_width: pw-content-1
• product_editor_4424_tab_sticky_height: 1
• product_editor_4424_tab_sticky_position: pw-left-stick
• total_sales: 0
• accessories_table: <table class="common_table"> <thead> <tr> <th colspan="2">Ordering Information</th> </tr> </thead> <tbody> <tr> <td class="text-center align-middle"> <h3 class="h6 m-0">XGPN-400AXV</h3> </td> <td>XG-PON HGU with 4-Port GbE, 3000Mbps 802.11AX Wireless and 1-Port FXS</td> </tr> </tbody> </table>
• product_label: 21254
• product_code: XGPN-400AXV
• prouduct_loop_image_transparent_bg_:
• 6_features_images: a:6:{i:0;s:5:"15648";i:1;s:5:"17498";i:2;s:5:"15618";i:3;s:5:"15643";i:4;s:5:"16897";i:5;s:5:"16297";}
• datasheet: 1
• quick_guide:
• users_manual:
• ec_declaration:
• android_app:
• driver:
• firmware:
• utility:
• compatible_list:
• site-sidebar-layout: default
• ast-site-content-layout: default
• site-content-style: default
• site-sidebar-style: default
• theme-transparent-header-meta: default

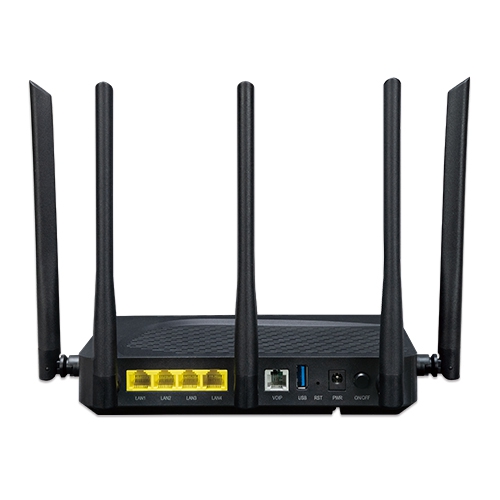

• product_editor_4422_tab_content: <table class="common_table_sky"> <thead> <tr> <th colspan="2">Hardware Specifications</th> </tr> </thead> <tbody> <tr> <td class="align-middle">UNI port</td> <td>4 x 10/100/1000BASE-T RJ45 copper Wi-Fi 6 external 5 antennas 1 USB 1 x RJ11 FXS port</td> </tr> <tr> <td class="align-middle">PON port</td> <td>Transmission rate: Downlink 10Gbps and uplink 2.5Gbps Network Coverage Radius: 20 kilometers Receiver Sensitivity: ≤-28dBm Transmit Optical Power: 0.5~5dBm Optical interface type: SC/UPC</td> </tr> <tr> <td class="align-middle">Button</td> <td>1 x power ON/OFF button 1 x reset button (Press for about 10 seconds to reset the device to factory default.) 1 x WLAN enable/disable button 1 x WPS enable/disable button 1 x LED on/off button</td> </tr> <tr> <td class="align-middle">Thermal Fan</td> <td>Fanless</td> </tr> <tr> <td class="align-middle">LED Indicators</td> <td>PWR (<span style="color: green;"><b>Green</b></span>) LOS/PON (<span style="color: red;"><b>Red</b></span>)/(<span style="color: green;"><b>Green</b></span>) Internet (<span style="color: green;"><b>Green</b></span>) LAN1-LAN4 (<span style="color: green;"><b>Green</b></span>) Wi-Fi (<span style="color: green;"><b>Green</b></span>) WPS (<span style="color: green;"><b>Green</b></span>) USB (<span style="color: green;"><b>Green</b></span>) VoIP (<span style="color: green;"><b>Green</b></span>)</td> </tr> <tr> <td class="align-middle">Installation</td> <td>Desktop installation or wall mounting</td> </tr> <tr> <td class="align-middle">Power Requirements</td> <td>12V DC, 1.5A max.</td> </tr> <tr> <td class="align-middle">Power Consumption</td> <td>7.32W max.</td> </tr> <tr> <td class="align-middle">Weight</td> <td>494g</td> </tr> <tr> <td class="align-middle">Enclosure</td> <td>Plastic</td> </tr> <tr> <td class="align-middle">Wi-Fi</td> <td>802.11b/g/n/ac/ax MIMO, with a maximum rate of 3000Mbps. multiple SSIDs and SSID encryption</td> </tr> <tr> <td class="align-middle">Dimensions (WxDxH)</td> <td>185 x 135 x 36mm (excluding antennas)</td> </tr> <tr> <td class="align-middle">Heat dissipation</td> <td>Extended use (24 hours) does not result in performance degradation or damage due to device overheating or deformation.</td> </tr> </tbody> <thead> <tr> <th colspan="2">Wireless Interface Specifications</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Standard</td> <td>IEEE 802.11ax 5GHz IEEE 802.11ax 2.4GHz IEEE 802.11a/b/g/n/ac compatible</td> </tr> <tr> <td class="align-middle">Frequency Band</td> <td>Simultaneous 2.4GHz and 5GHz</td> </tr> <tr> <td class="align-middle">Modulation Type</td> <td>802.11ax: OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM) 802.11n/g/a: OFDM 802.11b: DSSS (DBPSK / DQPSK / CCK)</td> </tr> <tr> <td class="align-middle">Data Transmission Rates</td> <td>2.4GHz up to 574Mbps 5GHz up to 2402Mbps @ 160MHz)</td> </tr> <tr> <td class="align-middle">Channel</td> <td>2.4GHz: FCC (America): 2.412–2.462GHz (11 Channels) ETSI (Europe): 2.4122.472GHz (13 Channels) 5.180~5.825GHz (up to 24 channels, depending on country)</td> </tr> <tr> <td class="align-middle">Channel Width</td> <td>802.11ax: 20/40/80/160MHz</td> </tr> <tr> <td class="align-middle">Max. RF Power / EIRP</td> <td>2.4GHz: < 20dBm 5GHz: < 23dBm (varies by region)</td> </tr> </tbody> <thead> <tr> <th colspan="2">Wireless Management Features</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Encryption Security</td> <td>64/128-bit WEP, WPA, WPA2-PSK, WPA3-SAE</td> </tr> <tr> <td class="align-middle">Wireless Security</td> <td>SSID broadcast enable/disable Wireless MAC address filtering WPS (Wi-Fi Protected Setup) support Client isolation</td> </tr> <tr> <td class="align-middle">Wireless Advanced</td> <td>Transmit power adjustment Beacon interval configuration WMM (Wi-Fi Multimedia) support Band steering (2.4GHz/5GHz auto-switch) Wi-Fi schedule</td> </tr> <tr> <td class="align-middle">Max. Supported Clients</td> <td>Up to 128 wireless clients</td> </tr> </tbody> <thead> <tr> <th colspan="2">Router Features</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Data Forwarding</td> <td>Routing mode, bridging mode, and routing + bridging hybrid Mode</td> </tr> <tr> <td class="align-middle">DNS</td> <td>DNS Relay</td> </tr> <tr> <td class="align-middle">DHCP</td> <td>DHCP server</td> </tr> <tr> <td class="align-middle">VLAN</td> <td>Port-based VLAN IEEE 802.1Q VLAN</td> </tr> <tr> <td class="align-middle">Multicast</td> <td>Supports IGMP snooping Supports CTC-defined dynamic multicast Supports MLD snooping Supports full routing multicast</td> </tr> <tr> <td class="align-middle">QoS</td> <td>Backpressure flow control (half-duplex) IEEE 802.3x flow control (full-duplex) Preventing Head-of-Line Blocking IEEE 802.1p, CoS 8 Priority Queues per Port WR, SP, and FIFO Port Rate Limiting</td> </tr> <tr> <td class="align-middle">Reliability</td> <td>Loop Detection Dying-Gasp Type B Dual Homing Protection</td> </tr> <tr> <td class="align-middle">Security</td> <td>Port MAC Address Limitation Port Protection Port Storm Suppression Supports firewall MAC/IP/Port/URL/Domain filtering Supports DDoS protection</td> </tr> <tr> <td class="align-middle">Management Configuration</td> <td>Web, TELNET, TR069, OMCI Software Upgrade through TFTP, WEB, TR069, and OLT</td> </tr> </tbody> <thead> <tr> <th colspan="2">VoIP Protocols and Standard</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Standard</td> <td>T.38 (G.711 Fax pass-through)</td> </tr> <tr> <td class="align-middle">Voice Codec</td> <td>G.711A/G.711U/G.723/G.729</td> </tr> <tr> <td class="align-middle">Voice Standard</td> <td>VAD (Voice Activity Detection)</td> </tr> </tbody> <thead> <tr> <th colspan="2">Standards Conformance</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Standards</td> <td>ITU-T G.987.3, G.988, G.989 GB/T 39577-2020 10Gbit/s Passive Optical Networks (XG-PON) IEEE 802.1Q, VLAN</td> </tr> </tbody> <thead> <tr> <th colspan="2">Environment Specifications</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Operating</td> <td>Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)</td> </tr> <tr> <td class="align-middle">Storage</td> <td>Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)</td> </tr> </tbody> </table>
• product_editor_4421_tab_content: <strong>XG-PON</strong> <ul> <li>1 SC/UPC type XG-PON port</li> <li>Up to 2.5Gbps upstream and 10Gbps downstream</li> <li>Maximum data transmission of up to 20km</li> <li>128-bit triple DES (3DES) encryption algorithm</li> <li>LED indicators for link status</li> </ul>   <strong>Ethernet</strong> <ul> <li>802.1Q VLAN, and QoS for virtual LAN tagging and traffic prioritization</li> <li>Broadcast storm protection to prevent and limit broadcast traffic</li> <li>Bandwidth control to manage and allocate network bandwidth</li> <li>IGMP snooping/proxy for efficient multicast traffic management</li> <li>IPv4 and IPv6 protocols supported</li> </ul>   <strong>Wireless</strong> <ul> <li>Up to 3000Mbps bandwidth</li> <li>Compatible with 802.11ax Wi-Fi 6</li> <li>Backward compatible with 802.11b/g/n/ac</li> <li>Compatible to equipment working on 2.4GHz and 5GHz</li> </ul>   <strong>QoS</strong> <ul> <li>IEEE 802.3x flow control for full-duplex communication</li> <li>Queue scheduling algorithms including WRR, Strict Priority, and FIFO</li> </ul>   <strong>Multicast</strong> <ul> <li>IGMP snooping v1/v2/v3</li> <li>IGMP proxy function</li> </ul>   <strong>Security</strong> <ul> <li>Firewall with MAC/IP/Port/URL/Domain filtering</li> <li>DDoS attack protection</li> </ul>   <strong>Physical Hardware</strong> <ul> <li>Four 10/100/1000Mbps Gigabit Ethernet ports</li> <li>5 Wi-Fi 6 external antennas</li> </ul>   <strong>Features</strong> <ul> <li>Dynamic Bandwidth Allocation (DBA) support</li> <li>IEEE 802.3x flow control</li> <li>WR, SP, and FIFO queue scheduling algorithms for traffic management</li> <li>Port-based VLAN and IEEE 802.1Q VLAN</li> <li>Firewall like MAC/IP/Port/URL/Domain filtering</li> <li>DDoS protection to safeguard against distributed denial-of-service attacks</li> <li>Loop detection to prevent network loops</li> <li>Dying-gasp mechanism for graceful device shutdown</li> <li>Type B dual-homing protection</li> </ul>   <strong>Management</strong> <ul> <li>Web, TELNET, TR-069, OMCI, and OAM remote management</li> <li>Firmware upgrade via TFTP, Web, TR-069, and OLT</li> </ul>
• datasheet_0_date: 20250418
• datasheet_0_version: 1.0
• datasheet_0_description: Initial release.
• datasheet_0_download_pdf: https://www.planet.com.sa/storage/products/XGPN-400AXV/EMQ-XGPN-400AXV_v1.0.pdf
• astra-migrate-meta-layouts: set

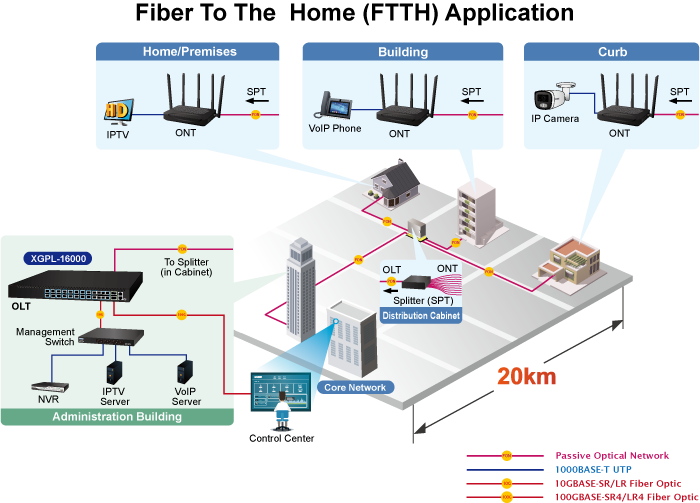

• applications_tab: <p><strong>Seamless 10G XG-PON Connectivity for Residential Triple-Play and FTTH Services</strong></p><p>PLANET XGPN-400AXV is a high-performance XG-PON Home Gateway Unit designed for next-generation fiber-to-the-home (FTTH) deployments. Working seamlessly with PLANET’s XGPL-16000 OLT, the XGPN-400AXV delivers up to 10Gbps downstream and 2.5Gbps upstream connectivity, providing users with ultra-fast, low-latency broadband services across various environments, from single homes to multi-dwelling units.</p><p> </p><p>With dual-band Wi-Fi 6, Gigabit Ethernet LAN ports, and a built-in VoIP FXS port, it supports triple-play services, including high-definition IPTV, IP telephony, and high-speed internet, all in a single, compact device. Its extended 20km transmission distance and support for 1:256 split ratio enable wide-area deployment while keeping cost and infrastructure complexity low.</p><p> </p><p>Perfect for modern FTTH networks, the XGPN-400AXV ensures a highly-scalable, service-ready solution for both residential and commercial users, enabling stable wired and wireless access with superior throughput and coverage.</p><p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/planet-storage/2025/04/XGPL-16000-3.png" alt="" width="700" height="503"></p>
• key_features_tab: <p><strong>XG-PON</strong></p><ul> <li>1 SC/UPC type XG-PON port</li> <li>Up to 2.5Gbps upstream and 10Gbps downstream</li> <li>Maximum data transmission of up to 20km</li> <li>128-bit triple DES (3DES) encryption algorithm</li> <li>LED indicators for link status</li> </ul><p> </p><p><strong>Ethernet</strong></p><ul> <li>802.1Q VLAN, and QoS for virtual LAN tagging and traffic prioritization</li> <li>Broadcast storm protection to prevent and limit broadcast traffic</li> <li>Bandwidth control to manage and allocate network bandwidth</li> <li>IGMP snooping/proxy for efficient multicast traffic management </li> <li>IPv4 and IPv6 protocols supported</li> </ul><p> </p><p><strong>Wireless</strong></p><ul> <li>Up to 3000Mbps bandwidth</li> <li>Compatible with 802.11ax Wi-Fi 6</li> <li>Backward compatible with 802.11b/g/n/ac</li> <li>Compatible to equipment working on 2.4GHz and 5GHz</li> </ul><p> </p><p><strong>QoS</strong></p><ul> <li>IEEE 802.3x flow control for full-duplex communication </li> <li>Queue scheduling algorithms including WRR, Strict Priority, and FIFO</li> </ul><p> </p><p><strong>Multicast</strong></p><ul> <li>IGMP snooping v1/v2/v3</li> <li>IGMP proxy function</li> </ul><p> </p><p><strong>Security</strong></p><ul> <li>Firewall with MAC/IP/Port/URL/Domain filtering</li> <li>DDoS attack protection</li> </ul><p> </p><p><strong>Physical Hardware</strong></p><ul> <li>Four 10/100/1000Mbps Gigabit Ethernet ports</li> <li>5 Wi-Fi 6 external antennas</li> </ul><p> </p><p><strong>Features</strong></p><ul> <li>Dynamic Bandwidth Allocation (DBA) support  </li> <li>IEEE 802.3x flow control</li> <li>WR, SP, and FIFO queue scheduling algorithms for traffic management</li> <li>Port-based VLAN and IEEE 802.1Q VLAN</li> <li>Firewall like MAC/IP/Port/URL/Domain filtering</li> <li>DDoS protection to safeguard against distributed denial-of-service attacks</li> <li>Loop detection to prevent network loops</li> <li>Dying-gasp mechanism for graceful device shutdown</li> <li>Type B dual-homing protection</li> </ul><p> </p><p><strong>Management</strong></p><ul> <li>Web, TELNET, TR-069, OMCI, and OAM remote management</li> <li>Firmware upgrade via TFTP, Web, TR-069, and OLT</li> </ul>
• specifications_tab: <table style="width:100%;" class="common_table_sky"><thead><tr><th colspan="2">Hardware Specifications</th></tr></thead><tbody><tr><td class="align-middle">UNI port</td><td>4 x 10/100/1000BASE-T RJ45 copper<br /> Wi-Fi 6 external 5 antennas<br /> 1 USB <br /> 1 x RJ11 FXS port</td></tr><tr><td class="align-middle">PON port</td><td>Transmission rate: Downlink 10Gbps and uplink 2.5Gbps <br /> Network Coverage Radius: 20 kilometers <br /> Receiver Sensitivity: ≤-28dBm <br /> Transmit Optical Power: 0.5~5dBm <br /> Optical interface type: SC/UPC</td></tr><tr><td class="align-middle">Button</td><td>1 x power ON/OFF button<br /> 1 x reset button (Press for about 15 seconds to reset the device to factory default.)<br /> 1 x WLAN enable/disable button<br /> 1 x WPS enable/disable button<br /> 1 x LED on/off button</td></tr><tr><td class="align-middle">Thermal Fan</td><td>Fanless</td></tr><tr><td class="align-middle">LED Indicators</td><td>PWR (<font color="Green"><b>Green</b></font>)<br /> LOS/PON (<font color="Red"><b>Red</b></font>)/(<font color="Green"><b>Green</b></font>)<br /> Internet (<font color="Green"><b>Green</b></font>)<br /> LAN1-LAN4 (<font color="Green"><b>Green</b></font>)<br /> Wi-Fi (<font color="Green"><b>Green</b></font>)<br /> WPS (<font color="Green"><b>Green</b></font>)<br /> USB (<font color="Green"><b>Green</b></font>)<br /> VoIP (<font color="Green"><b>Green</b></font>)</td></tr><tr><td class="align-middle">Installation</td><td>Desktop installation or wall mounting</td></tr><tr><td class="align-middle">Power Requirements</td><td>12V DC, 1.5A max.</td></tr><tr><td class="align-middle">Power Consumption</td><td>7.32W max.</td></tr><tr><td class="align-middle">Weight</td><td>494g</td></tr><tr><td class="align-middle">Enclosure</td><td>Plastic</td></tr><tr><td class="align-middle">Wi-Fi</td><td>802.11b/g/n/ac/ax <br /> MIMO, with a maximum rate of 3000Mbps. <br /> multiple SSIDs and SSID encryption</td></tr><tr><td class="align-middle">Dimensions (WxDxH)</td><td>185 x 135 x 36mm (excluding antennas)</td></tr><tr><td class="align-middle">Heat dissipation</td><td>Extended use (24 hours) does not result in performance degradation or damage due to device overheating or deformation.</td></tr></tbody><thead><tr><th colspan="2">Wireless Interface Specifications</th></tr></thead><tbody><tr><td class="align-middle">Standard</td><td>IEEE 802.11ax 5GHz<br /> IEEE 802.11ax 2.4GHz<br /> IEEE 802.11a/b/g/n/ac compatible</td></tr><tr><td class="align-middle">Frequency Band</td><td>Simultaneous 2.4GHz and 5GHz</td></tr><tr><td class="align-middle">Modulation Type</td><td>802.11ax: OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM)<br /> 802.11n/g/a: OFDM<br /> 802.11b: DSSS (DBPSK / DQPSK / CCK)</td></tr><tr><td class="align-middle">Data Transmission Rates</td><td>2.4GHz up to 574Mbps<br /> 5GHz up to 2402Mbps @ 160MHz)</td></tr><tr><td class="align-middle">Channel</td><td>2.4GHz:<br /> FCC (America): 2.412–2.462GHz (11 Channels)<br /> ETSI (Europe): 2.4122.472GHz (13 Channels)<br /> 5.180~5.825GHz (up to 24 channels, depending on country)</td></tr><tr><td class="align-middle">Channel Width</td><td>802.11ax: 20/40/80/160MHz</td></tr><tr><td class="align-middle">Max. RF Power / EIRP</td><td>2.4GHz: < 20dBm<br /> 5GHz: < 23dBm (varies by region)</td></tr></tbody><thead><tr><th colspan="2">Wireless Management Features</th></tr></thead><tbody><tr><td class="align-middle">Encryption Security</td><td>64/128-bit WEP, WPA, WPA2-PSK, WPA3-SAE</td></tr><tr><td class="align-middle">Wireless Security</td><td>SSID broadcast enable/disable <br /> Wireless MAC address filtering <br /> WPS (Wi-Fi Protected Setup) support <br /> Client isolation</td></tr><tr><td class="align-middle">Wireless Advanced</td><td>Transmit power adjustment <br /> Beacon interval configuration <br /> WMM (Wi-Fi Multimedia) support <br /> Band steering (2.4GHz/5GHz auto-switch) <br /> Wi-Fi schedule</td></tr><tr><td class="align-middle">Max. Supported Clients</td><td>Up to 128 wireless clients</td></tr></tbody><thead><tr><th colspan="2">Router Features</th></tr></thead><tbody><tr><td class="align-middle">Data Forwarding</td><td>Routing mode, bridging mode, and routing + bridging hybrid Mode</td></tr><tr><td class="align-middle">DNS</td><td>DNS Relay</td></tr><tr><td class="align-middle">DHCP</td><td>DHCP server</td></tr><tr><td class="align-middle">VLAN</td><td>Port-based VLAN<br /> IEEE 802.1Q VLAN</td></tr><tr><td class="align-middle">Multicast</td><td>Supports IGMP snooping<br /> Supports CTC-defined dynamic multicast <br /> Supports MLD snooping<br /> Supports full routing multicast</td></tr><tr><td class="align-middle">QoS</td><td>Backpressure flow control (half-duplex) <br /> IEEE 802.3x flow control (full-duplex) <br /> Preventing Head-of-Line Blocking <br /> IEEE 802.1p, CoS <br /> 8 Priority Queues per Port <br /> WR, SP, and FIFO <br /> Port Rate Limiting</td></tr><tr><td class="align-middle">Reliability</td><td>Loop Detection<br /> Dying-Gasp<br /> Type B Dual Homing Protection</td></tr><tr><td class="align-middle">Security</td><td>Port MAC Address Limitation <br /> Port Protection<br /> Port Storm Suppression<br /> Supports firewall MAC/IP/Port/URL/Domain filtering <br /> Supports DDoS protection</td></tr><tr><td class="align-middle">Management Configuration</td><td>Web, TELNET, TR069, OMCI<br /> Software Upgrade through TFTP, WEB, TR069, and OLT</td></tr></tbody><thead><tr><th colspan="2">VoIP Protocols and Standard</th></tr></thead><tbody><tr><td class="align-middle">Standard</td><td>T.38 (G.711 Fax pass-through)</td></tr><tr><td class="align-middle">Voice Codec</td><td>G.711A/G.711U/G.723/G.729</td></tr><tr><td class="align-middle">Voice Standard</td><td>VAD (Voice Activity Detection)</td></tr></tbody><thead><tr><th colspan="2">Standards Conformance</th></tr></thead><tbody><tr><td class="align-middle">Standards</td><td>ITU-T G.987.3, G.988, G.989<br /> GB/T 39577-2020 10Gbit/s Passive Optical Networks (XG-PON)<br /> IEEE 802.1Q, VLAN</td></tr></tbody><thead><tr><th colspan="2">Environment Specifications</th></tr></thead><tbody><tr><td class="align-middle">Operating</td><td>Temperature: 0 ~ 50 degrees C<br /> Relative Humidity: 5 ~ 95% (non-condensing)</td></tr><tr><td class="align-middle">Storage</td><td>Temperature: -10 ~ 60 degrees C<br /> Relative Humidity: 5 ~ 95% (non-condensing)</td></tr></tbody></table>
