applications_tab: <p><strong>Cost-effective, Long-distance and High-bandwidth Triple Play or Surveillance Applications</strong><p>PLANET GPL-1000 delivers high-speed voice, data and video services to residential and business subscribers. With the PON technology, the GPL-1000 offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs from the reduction of “active” components, support of up to 20km distance between equipment nodes, easy Installation and maintenance, and most importantly, offering of much greater bandwidth.</p><p>The GPL-1000 is the perfect solution for triple play or surveillance applications by offering benefits of cost-effectiveness, scalability and flexibility to network deployment.</p><p> </p><p style="text-align: center;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/06/GPL-1000-4.png" alt="" width="700" height="464"></p><p style="text-align: center;"> </p><p style="text-align: center;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/06/GPL-1000-5.png" alt="" width="700" height="605"></p></p>
key_features_tab: <p><strong>GPON Port</strong><ul>
<li>1 GPON OLT SC/UPC Connector (TX: 9dBm & Sen: -32dBm) (TX: 1490nm & RX: 1310nm)</li>
<li>Up to 2.5Gbps downstream and 1.25Gbps upstream</li>
<li>Maximum transfer distance of up to 20km</li>
<li>PON port supports up to 128 ONT/HGU</li>
<li>Compliant with G.984</li>
</ul><p> </p><p><strong>Physical Ports</strong></p><ul>
<li>2 10/100/1000BASE-T RJ45 copper ports</li>
<li>1 10GBASE-SR/LR SFP+ slot, compatible with 1000BASE-SX/LX/BX SFP</li>
<li>One USB console interface for basic management and setup</li>
</ul><p> </p><p><strong>Switching</strong></p><ul>
<li>Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X</li>
<li>Features Store-and-Forward mode with wire-speed filtering and forwarding rates</li>
<li>IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation, working with Rate Limit(Kbps) function</li>
<li>Jumbo frame size
<ul>
<li>10/100/1000BASE-T RJ45 copper ports: 9022Bytes</li>
<li>GPON OLT SC/UPC Connector: 1652 Bytes</li>
<li>10GBASE-SR/LR SFP+ slot: 9036 Bytes</li>
</ul>
</li>
<li>Automatic address learning and address aging</li>
</ul><p> </p><p><strong>Uplink Port Management</strong></p><ul>
<li>Traffic Statistics and Optical information display</li>
<li>Port Config for description/Admin Status/Speed/Flow Control/Isolate/PVID/Broadcast and Unicast Storm Limit/Ingress & Egress Rate Limit/MAC Limit</li>
</ul><p> </p><p><strong>OLT Management</strong></p><ul>
<li>User-friendly GUI management</li>
<li>2 control interfaces
<ul>
<li>Out-of-Band IP – the USB serial port</li>
<li>In-Band IP – the Gigabit TP and 10G SFP+ uplink ports</li>
</ul>
</li>
<li>Supports ONT/HGU authentication; averts illegal ONT access to network</li>
</ul><p> </p><p><strong>ONT/HGU Management</strong></p><ul>
<li>ONT/HGU port control</li>
<li>ONT/HGU VLAN mode</li>
</ul><p> </p><p><strong>PON Management</strong></p><ul>
<li>Traffic Statistics and Optical information display</li>
<li>Port Config for description/Admin Status/Broadcast and Unicast Storm Limit/Ingress & Egress Rate Limit</li>
<li>PON Range config and ALS Config</li>
</ul><p> </p><p><strong>ONU Management</strong></p><ul>
<li>ONU List</li>
<li>Automatic Discovery</li>
<li>Automatic Learn</li>
<li>ONU Image Upgrade</li>
<li>Rogue ONU Table List and Config</li>
</ul><p> </p><p><strong>Profile Management</strong></p><ul>
<li>ONU Profile Config</li>
<li>ONU Profile Bind</li>
<li>Rapid Deployment</li>
</ul><p> </p><p><strong>Layer 3 IP Routing Features</strong></p><ul>
<li>IPv4/IPv6 static routing</li>
<li>Routing interface provides per VLAN routing mode</li>
<li>Loopback function for all Ethernet and PON interfaces</li>
</ul><p> </p><p><strong>Layer 2 Features</strong></p><ul>
<li>Supports VLAN
<ul>
<li>IEEE 802.1Q tag-based VLAN</li>
<li>VLAN Translation</li>
<li>Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported</li>
<li>PON P2P</li>
<li>DSCP-to-CoS QoS Mapping: Supports bi-directional mapping between Layer 3 DSCP fields and Layer 2 CoS (IEEE 802.1p) within VLAN tags</li>
</ul>
</li>
<li>Supports Spanning Tree Protocol
<ul>
<li>RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)</li>
</ul>
</li>
<li>MAC for MAC Table & PON MAC Table display and Aging configuration</li>
<li>Link Layer Discovery Protocol (LLDP)</li>
<li>Port mirroring to monitor the incoming or outgoing traffic on a particular port</li>
</ul><p> </p><p><strong>Quality of Service</strong></p><ul>
<li>Ingress and egress rate limit per port bandwidth control</li>
<li>4 priority queues on all switch ports</li>
<li>Strict priority and Weighted Round Robin (WRR) CoS policies</li>
</ul><p> </p><p><strong>Multicast</strong></p><ul>
<li>Supports IPv4 IGMP snooping v1 and v2</li>
<li>Supports IPv6 MLD snooping v1 and v2</li>
<li>Querier mode support</li>
</ul><p> </p><p><strong>Security</strong></p><ul>
<li>Authentication
<ul>
<li>TACACS+ users access authentication</li>
</ul>
</li>
<li>IPv4/IPv6 Access Control List
<ul>
<li>IP-based Access Control List (ACL)</li>
<li>MAC-based Access Control List (ACL)</li>
<li>Port-based Access Control List (ACL)</li>
<li>Protocol-based Access Control List (ACL)</li>
</ul>
</li>
<li>DHCP Snooping to filter distrusted DHCP messages</li>
<li>Dynamic ARP Restriction discards ARP packets with invalid MAC address to IP address binding</li>
</ul><p> </p><p><strong>WAN</strong></p><ul>
<li>IPv4/IPv6/IPv4 & IPv6 versions
<ul>
<li>Static/DHCP/PPPoE connect mode options</li>
</ul>
</li>
</ul><p> </p><p><strong>NAT</strong></p><ul>
<li>NAT1/NAT2/NAT4(default) for NAT Config options</li>
<li>NAT DMZ Hosts</li>
</ul><p> </p><p><strong>Management</strong></p><ul>
<li>IPv4 and IPv6 dual stack management</li>
<li>IPV4 DNS/IPv4 Gateway</li>
<li>IPv6 SLAAC/IPv6 Gateway</li>
<li>Switch Management Interfaces
<ul>
<li>Console and Telnet Command Line Interface</li>
<li>HTTPs web switch management</li>
<li>SNMP v1 and v2c switch management</li>
<li>SSHv2, and SNMP v3 secure access</li>
</ul>
</li>
<li>SNMP Management
<ul>
<li>Four RMON groups (history, statistics, alarms, and events)</li>
<li>SNMP trap for interface Link Up and Link Down notification</li>
</ul>
</li>
<li>BOOTP and DHCP for IP address assignment</li>
<li>System Maintenance
<ul>
<li>Firmware upgrade via HTTPs</li>
<li>Configuration upload/download through Web interface</li>
<li>Reset button for system reboot or reset to factory default</li>
</ul>
</li>
<li>DHCP Functions:
<ul>
<li>DHCP Relay</li>
<li>DHCP Option 82</li>
<li>DHCP Snooping</li>
<li>DHCP Server</li>
<li>DHCPv6 Server</li>
<li>DHCPv6 Relay</li>
</ul>
</li>
<li>User Privilege levels control</li>
<li>Network Time Protocol (NTP)</li>
<li>FAN config</li>
<li>Network Diagnostic
<ul>
<li>ICMP remote IP ping</li>
<li>Tracert Diagnose Config</li>
</ul>
</li>
<li>Syslog remote alarm</li>
<li>System Log</li>
</ul></p>
specifications_tab: <table style="width:100%;" class="common_table_sky"><thead><tr><th colspan="2">Hardware Specifications</th></tr></thead><tbody><tr><td class="align-middle">PON Interface</td><td>1 x GPON port</td></tr><tr><td class="align-middle">Ethernet Interface</td><td>2 x 10/100/1000BASE-T Copport port, port-1 to port-2<br />
<br />
1 x 10GBASE-X SFP+ slot, supporting 10GBASE-SR/LR SFP+ transceiver<br />
Backward compatible with 1000BASE-X SFP transceiver</td></tr><tr><td class="align-middle">Console</td><td>One USB serial port (115200, 8, N, 1)</td></tr><tr><td class="align-middle">RAM</td><td>512MB</td></tr><tr><td class="align-middle">Flash Memory</td><td>256MB</td></tr><tr><td class="align-middle">Dimensions (W x D x H)</td><td>210 x 173 x 43.6mm</td></tr><tr><td class="align-middle">Weight</td><td>1.2kg</td></tr><tr><td class="align-middle">Power Consumption</td><td>AC 240V:<br />
Max. 9.5 watts/32.4BTU (Power on without any connection)<br />
Max.14.8 watts/50.4BTU (Full loading)<br />
<br />
DC 12V:<br />
Max. 9.5 watts/32.4BTU (Power on without any connection)<br />
Max.14.5 watts/49.4BTU (Full loading)</td></tr><tr><td class="align-middle">Power Requirements - AC</td><td>100~240V AC, 1A max.</td></tr><tr><td class="align-middle">Power Requirements - DC</td><td>12 DC, 2A max.</td></tr><tr><td class="align-middle">Fan</td><td>1</td></tr></tbody><thead><tr><th colspan="2">GPON Specifications</th></tr></thead><tbody><tr><td class="align-middle">Connector</td><td>1 GPON OLT SC/UPC Connector (TX: 9dBm & Sen: -32dBm)</td></tr><tr><td class="align-middle">Transmission Speed</td><td>Downstream: 2.5Gbps<br />
Upstream: 1.25Gbps</td></tr><tr><td class="align-middle">Optical Split Ratio</td><td>Up to 128</td></tr><tr><td class="align-middle">Transmission Distance</td><td>20km</td></tr><tr><td class="align-middle">PON Module Wavelength</td><td>TX: 1490nm; RX: 1310nm</td></tr><tr><td class="align-middle">PON Fiber Type</td><td>9/125um SMF(Single mode fiber optic)</td></tr></tbody><thead><tr><th colspan="2">Switching</th></tr></thead><tbody><tr><td class="align-middle">Switch Architecture</td><td>Store-and-forward</td></tr><tr><td class="align-middle">Switch Fabric</td><td>29Gbps</td></tr><tr><td class="align-middle">Switch Throughput</td><td>21Mpps</td></tr><tr><td class="align-middle">Address Table</td><td>8K</td></tr><tr><td class="align-middle">ARP Table</td><td>8K</td></tr><tr><td class="align-middle">Jumbo Frame</td><td>10/100/1000BASE-T RJ45 copper ports: 9022Bytes<br />
GPON OLT SC/UPC Connector: 1652 Bytes<br />
10GBASE-SR/LR SFP+ slot: 9036 Bytes</td></tr><tr><td class="align-middle">Flow Control</td><td>Back pressure for half duplex<br />
IEEE 802.3x pause frame for full duplex<br />
Working with Rate Limit(Kbps) function</td></tr></tbody><thead><tr><th colspan="2">Layer 3 Functions</th></tr></thead><tbody><tr><td class="align-middle">IP Interfaces</td><td>Max. 512 VLAN interfaces for IPv4<br />
Max. 512 VLAN interfaces for IPv6</td></tr><tr><td class="align-middle">Routing Protocols</td><td>IPv4/IPv6 static routing</td></tr><tr><td class="align-middle">WAN</td><td>IPv4/IPv6/IPv4 & IPv6 versions<br />
Static/DHCP/PPPoE connect mode options</td></tr><tr><td class="align-middle">NAT</td><td>NAT1/NAT2/NAT4(default) for NAT Config options<br />
NAT DMZ Hosts</td></tr></tbody><thead><tr><th colspan="2">Layer 2 Functions</th></tr></thead><tbody><tr><td class="align-middle">Port Configuration</td><td>Description<br />
Admin Status (Port disable/enable)<br />
Speed<br />
Flow control<br />
Isolate<br />
PVID<br />
Broadcast and Unicast Storm Limit<br />
Ingress & Egress Rate Limit</td></tr><tr><td class="align-middle">Port Mirroring</td><td>TX/RX/Both<br />
1 to 1</td></tr><tr><td class="align-middle">VLAN</td><td>IEEE 802.1Q tag-based VLAN, up to 512 VLAN groups<br />
VLAN Translation<br />
Bridging (VLAN Q-in-Q, IEEE 802.1ad)<br />
PON P2P<br />
DSCP-to-CoS QoS Mapping: Supports bi-directional mapping between Layer 3 DSCP fields and Layer 2 CoS (IEEE 802.1p) within VLAN tags</td></tr><tr><td class="align-middle">Spanning Tree Protocol</td><td>IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)</td></tr><tr><td class="align-middle">Multicast</td><td>IPv4 IGMP snooping v1 and v2<br />
Up to 256 multicast groups<br />
<br />
IPv6 MLD v1/v2 snooping<br />
Up to 510 multicast groups <br />
<br />
Querier mode support</td></tr><tr><td class="align-middle">Storm Control</td><td>Broadcast Storm Limit<br />
Unicast Storm Limit<br />
0/64-13000kbps</td></tr><tr><td class="align-middle">Bandwidth Control</td><td>Ingress Rate Limit<br />
Egress Rate Limit<br />
0/64-1000000kbps</td></tr><tr><td class="align-middle">QoS</td><td>PON interfaces:<br />
Dynamic Bandwidth Allocation (DBA)<br />
Service Level Agreement (SLA)<br />
Limiting the upstream/downstream rate based on each ONT/ONU/HGU<br />
<br />
4 priority queues on all switch ports<br />
Scheduling for priority queues<br />
Weighted Round Robin (WRR)<br />
Strict priority<br />
Traffic classification:<br />
IEEE 802.1p CoS/DSCP/Precedence<br />
VLAN ID<br />
Policy-based ingress and egress QoS</td></tr></tbody><thead><tr><th colspan="2">Security Functions</th></tr></thead><tbody><tr><td class="align-middle">Access Control List</td><td>Supports Standard and Expanded ACL<br />
IP-based ACL<br />
MAC-based ACL<br />
Port-based ACL<br />
Protocol-based ACL<br />
ACL based on:<br />
MAC Address<br />
IPv4/IPv6 IP Address<br />
Protocol-number<br />
Port<br />
Up to 1k entries</td></tr><tr><td class="align-middle">Security</td><td>Transmission data encryption on the PON interface<br />
DHCP snooping<br />
Dynamic ARP inspection</td></tr><tr><td class="align-middle">Authentication</td><td>TACACS+ users access authentication</td></tr></tbody><thead><tr><th colspan="2">Management Functions</th></tr></thead><tbody><tr><td class="align-middle">System Configuration</td><td>Console and Telnet<br />
Web browser<br />
SNMP v1, v2c</td></tr><tr><td class="align-middle">Secure Management Interfaces</td><td>SSHv2</td></tr><tr><td class="align-middle">System Management</td><td>IPv4 and IPv6 dual stack management<br />
IPV4 DNS/IPv4 Gateway<br />
IPv6 SLAAC/IPv6 Gateway<br />
SNMP MIB and TRAP<br />
SNMP RMON 1, 2, 3, 9 four groups<br />
Firmware upgrade by HTTPs protocol through Ethernet network<br />
Configuration upload/download through HTTPs protocol<br />
IEEE 802.1ab LLDP protocol<br />
NTP client</td></tr><tr><td class="align-middle">DHCP Function</td><td>DHCP Relay<br />
DHCP Option 82<br />
DHCP Snooping<br />
DHCP Server<br />
DHCPv6 Server<br />
DHCPv6 Relay</td></tr><tr><td class="align-middle">Event Management</td><td>Remote syslog<br />
System log</td></tr><tr><td class="align-middle">SNMP MIBs</td><td>RFC 1213 MIB-II<br />
RFC 1215 Internet Engineering Task Force<br />
RFC 1271 RMON<br />
RFC 1354 IP-Forwarding MIB<br />
RFC 1493 Bridge MIB<br />
RFC 1643 Ether-like MIB<br />
RFC 1907 SNMPv2<br />
RFC 2011 IP/ICMP MIB<br />
RFC 2012 TCP MIB<br />
RFC 2013 UDP MIB<br />
RFC 2096 IP forward MIB<br />
RFC 2233 if MIB<br />
RFC 2452 TCP6 MIB<br />
RFC 2454 UDP6 MIB<br />
RFC 2465 IPv6 MIB<br />
RFC 2466 ICMP6 MIB<br />
RFC 2573 SNMPv3 notification<br />
RFC 2574 SNMPv3 VACM<br />
RFC 2674 Bridge MIB Extensions</td></tr></tbody><thead><tr><th colspan="2">Standard Conformance</th></tr></thead><tbody><tr><td class="align-middle">Regulatory Compliance</td><td>CE / LVD</td></tr><tr><td class="align-middle">Standards Compliance</td><td>ITU-T G.984.x GPON<br />
IEEE 802.3z Gigabit 1000BASE-SX/LX<br />
IEEE 802.3ae 10Gb/s Ethernet<br />
IEEE 802.3x Flow Control and Back Pressure<br />
IEEE 802.1w Rapid Spanning Tree Protocol<br />
IEEE 802.1p Class of Service<br />
IEEE 802.1Q VLAN tagging<br />
IEEE 802.1ab LLDP<br />
RFC 768 UDP<br />
RFC 783 TFTP<br />
RFC 792 ICMP<br />
RFC 793 IP<br />
RFC 1112 IGMP v1<br />
RFC 2236 IGMP v2<br />
RFC 3376 IGMP v3<br />
RFC 2710 MLD v1<br />
FRC 3810 MLD v2<br />
RFC 5246 (TLS 1.2)</td></tr></tbody><thead><tr><th colspan="2">Environments</th></tr></thead><tbody><tr><td class="align-middle">Operating</td><td>Temperature: -20 ~60 degrees C<br />
Relative Humidity: 5 ~ 95% (non-condensing)</td></tr><tr><td class="align-middle">Storage</td><td>Temperature: -40 ~ 70 degrees C<br />
Relative Humidity: 5 ~ 95% (non-condensing)</td></tr></tbody></table>
product_editor_4418_tab_content: <p><strong>Cost-effective, Long-distance and High-bandwidth Triple Play or Surveillance Applications</strong></p>
<p>PLANET GPL-1000 delivers high-speed voice, data and video services to residential and business subscribers. With the PON technology, the GPL-1000 offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs from the reduction of “active” components, support of up to 20km distance between equipment nodes, easy Installation and maintenance, and most importantly, offering of much greater bandwidth.</p>

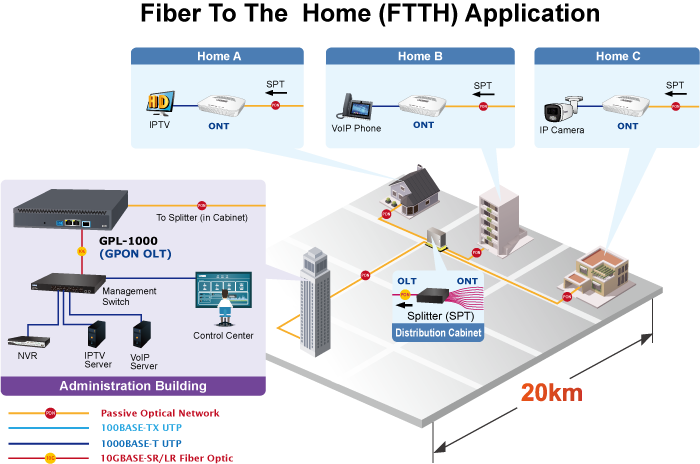

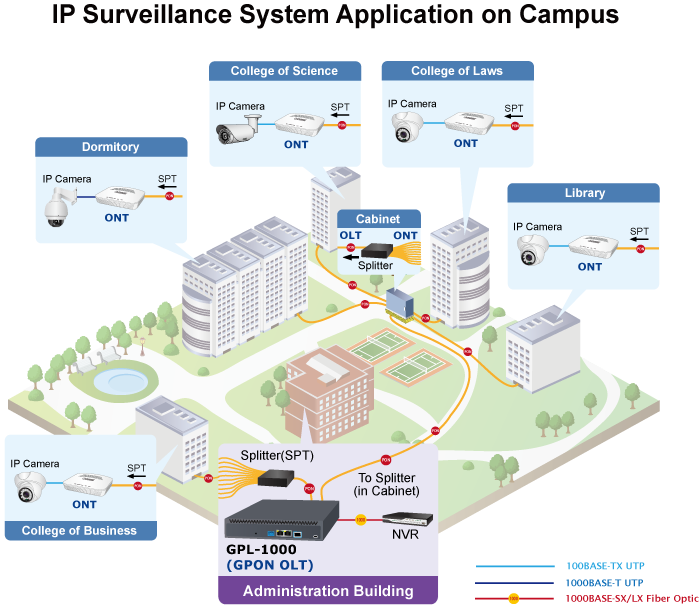

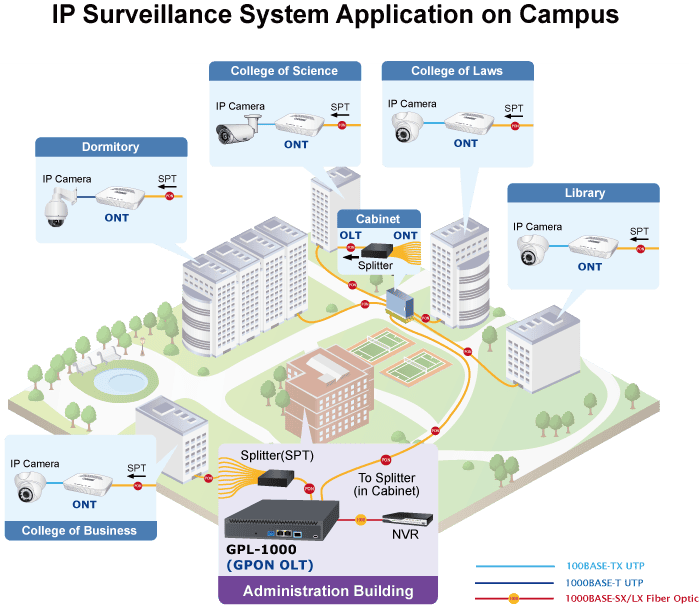

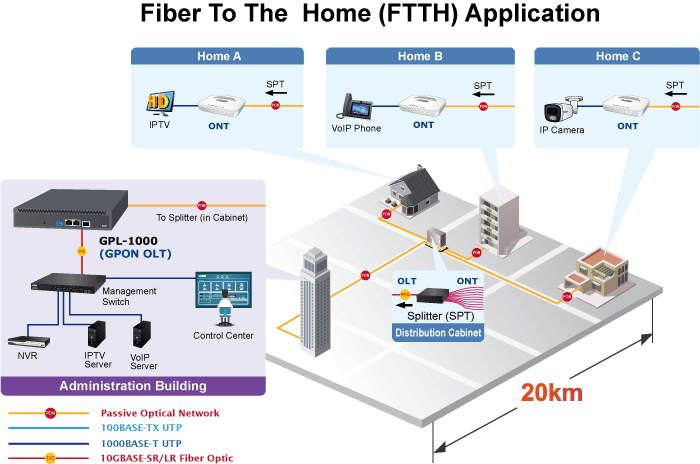

<p>The GPL-1000 is the perfect solution for triple play or surveillance applications by offering benefits of cost-effectiveness, scalability and flexibility to network deployment.</p>
<p> </p>
<p style="text-align: center;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/06/GPL-1000-4.png" alt="" width="700" height="464" /></p>
<p style="text-align: center;"> </p>
<p style="text-align: center;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/06/GPL-1000-5.png" alt="" width="700" height="605" /></p>

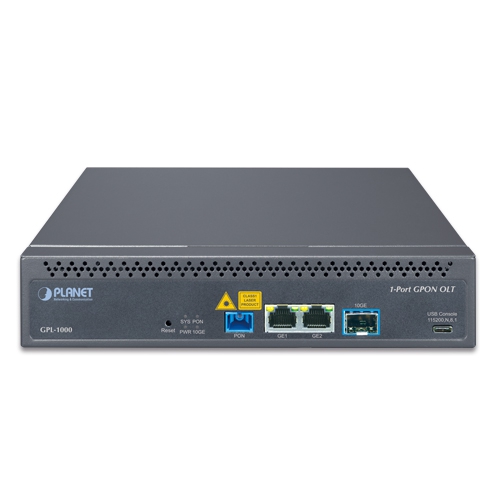

PLANET GPL-1000 GPON Optical Line Terminal (OLT) consists of one GPON port, two Gigabit Ethernet ports, one 10G SFP+ port and one management port. It complies with ITU-T G.984 and meets the requirements about GPON OLT in network access technical requirements.

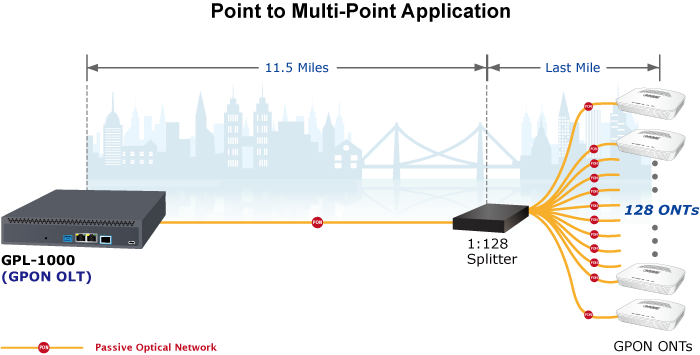

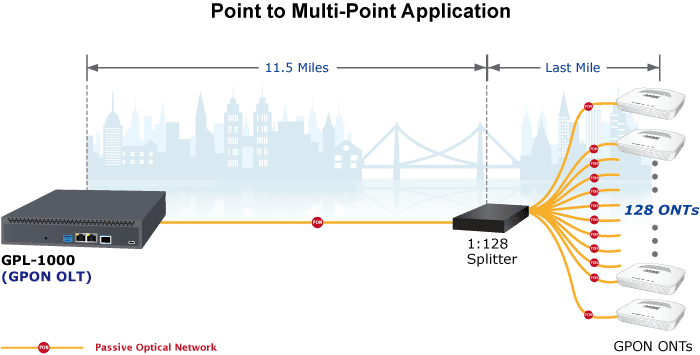

It is easy to install and maintain a GPON deployment up to 128 ONU and HGU devices, providing highly-effective GPON solutions and convenient management for fiber optic broadband network.
High-speed and Long-distance Coverage for Triple Play Services
The GPL-1000 provides a high bandwidth of up to 2.5Gbps for downstream and 1.25Gbps for upstream, long-distance coverage of up to 20km between equipment nodes, and flexibility for network deployment. It is a cost-effective access technology with reliable and scalable network for triple-play service applications such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia.
High Split Ratio for a Cost-effective Network Solution
The GPL-1000 is an ideal solution for FTTx applications. It helps to minimize the investment cost for carriers by offering a high split ratio of 1:128 per port and supporting the usage of PLANET ONUs. The GPL-1000 provides strong functionalities for Ethernet features such as VLAN, Dynamic Bandwidth Allocation (DBA), Service Level Agreement (SLA) and Access Control List. GPON protocol allows a Gigabit Ethernet communications fiber to be shared by multiple end users using a passive optical splitter.
Flexible and Extendable 10Gb Ethernet Solution
The GPL-1000 has one 10G SFP+ uplink port to deliver ultra-high speed networking over long distances to service providers. The 10G SFP+ slot supports dual speed and 10GBASE-SR/LR or 1000BASE-SX/LX. With its 10G Ethernet link capability and additional 2-port 1G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The GPL-1000 provides broad bandwidth and powerful processing capacity for FTTx applications for distribution data link.

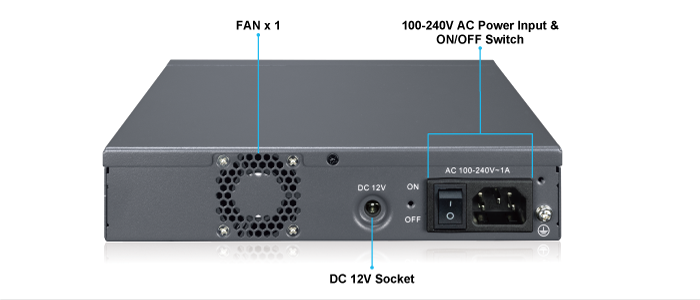

Extractive Power Supply Design to Increase Flexibility

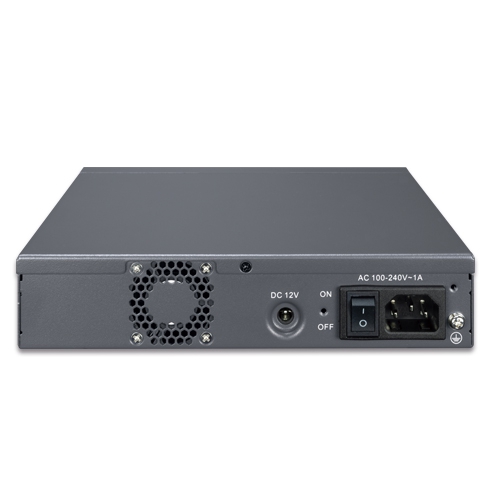

The GPL-1000 is equipped with one extractive 100~240V AC power supply unit, so it is easy to replace the power for users. Besides, the GPL-1000 reserves another backup power slot on the rear panel and users can add the second AC or DC power to the redundant power supply installation. The AC power or DC power is optional. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.
Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the GPL-1000 not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.
Robust Layer 2 Features
The GPL-1000 can be programmed for basic switch management functions such as port speed configuration, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP/MLD snooping. It also supports 802.1Q tagged VLAN, Q-in-Q and DSCP Protocol. In addition, the number of VLAN interfaces is 512.
Efficient and Secure Management
For efficient management, the GPL-1000 is equipped with console, Web and SNMP management interfaces.
With the built-in Web-based management interface, the GPL-1000 offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, it can be accessed via Telnet and the console port.
For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.
Moreover, the GPL-1000 offers secure remote management by supporting SSHv2 connection which encrypts the packet content at each session.
Cost-effective, Long-distance and High-bandwidth Triple Play or Surveillance Applications
PLANET GPL-1000 delivers high-speed voice, data and video services to residential and business subscribers. With the PON technology, the GPL-1000 offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs from the reduction of “active” components, support of up to 20km distance between equipment nodes, easy Installation and maintenance, and most importantly, offering of much greater bandwidth.
The GPL-1000 is the perfect solution for triple play or surveillance applications by offering benefits of cost-effectiveness, scalability and flexibility to network deployment.
PON interfaces: Dynamic Bandwidth Allocation (DBA) Service Level Agreement (SLA) Limiting the upstream/downstream rate based on each ONT/ONU/HGU
4 priority queues on all switch ports Scheduling for priority queues Weighted Round Robin (WRR) Strict priority Traffic classification: IEEE 802.1p CoS/DSCP/Precedence VLAN ID Policy-based ingress and egress QoS
Security Functions
Access Control List
Supports Standard and Expanded ACL IP-based ACL MAC-based ACL Port-based ACL Protocol-based ACL ACL based on: MAC Address IPv4/IPv6 IP Address Protocol-number Port Up to 1k entries
Security
Transmission data encryption on the PON interface DHCP snooping Dynamic ARP inspection
Authentication
TACACS+ users access authentication
Management Functions
System Configuration
Console and Telnet Web browser SNMP v1, v2c
Secure Management Interfaces
SSHv2
System Management
IPv4 and IPv6 dual stack management IPV4 DNS/IPv4 Gateway IPv6 SLAAC/IPv6 Gateway SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups Firmware upgrade by HTTPs protocol through Ethernet network Configuration upload/download through HTTPs protocol IEEE 802.1ab LLDP protocol NTP client
DHCP Function
DHCP Relay DHCP Option 82 DHCP Snooping DHCP Server DHCPv6 Server DHCPv6 Relay
