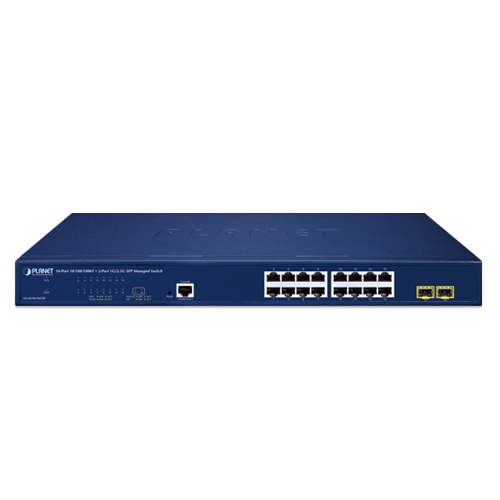

16-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch

» GS-4210-16T2S

Cost-optimized Managed Switch with Advanced L2/L4 Switching and Security

PLANET GS-4210-16T2S is an ideal Gigabit Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. Besides the popular IPv6/IPv4 management and abundant L2/L4 switching functions, the GS-4210-16T2S comes with fanless feature and green technology to provide a quiet, energy-saving, high-speed and reliable office network environment.

The GS-4210-16T2S is equipped with 16 10/100/1000BASE-T Gigabit Ethernet ports and 2 additional 100/1G/2.5GBASE-X SFP interfaces with inner power system. It offers a rack-mountable, affordable, safe and reliable Gigabit network switch solution for SMBs deploying networks, or requiring enhanced data security and network traffic management.



Cybersecurity Network Solution to Minimize Security Risks

The GS-4210-16T2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.





Redundant Ring, Fast Recovery for Critical Network Applications

The GS-4210-16T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.



IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-16T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.



Robust Layer 2 Features

The GS-4210-16T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-16T2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.



Efficient Traffic Control

The GS-4210-16T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance at VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



Powerful Security

PLANET GS-4210-16T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port.



Friendly and Secure Management

For efficient management, the GS-4210-16T2S is equipped with Command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the GS-4210-16T2S offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.

Moreover, the GS-4210-16T2S offers secure remote management by supporting SSHv2, TLSv1.2/TLSv1.3 and SNMP v3 connections which encrypt the packet content at each session.



Remote Management Solution

PLANET’s Universal Network Management System (UNI-NMS) and NMSViewerPro/CloudViewerPro app support IT staff by remotely managing all network devices and monitoring PDs’ operational statuses. Thus, they’re designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or NMSViewerPro/CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform.



PLANET CloudNMS – Cloud-Based Universal Network Management

PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts.

With CloudNMS, businesses can manage diverse network deployments more efficiently, securely, and intelligently—all from a single cloud-based platform.

Flexible Extension Solution

The two slots built in the GS-4210-16T2S are compatible with the 100BASE-FX/1000/2500BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitor center in long distance. The distance can be extended from 100 meters (RJ45 to SFP) or 300m and 500m (Multi-mode, LC) to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.



Intelligent SFP Diagnosis Mechanism

The GS-4210-16T2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

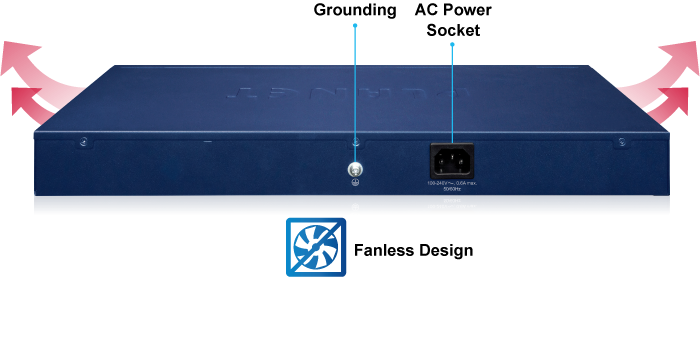

Fanless Design

Adopting the latest chip process and green technology, the GS-4210-16T2S successfully reduces substantial power consumption with the fanless and noiseless design collocating with the effective cooler. Therefore, the GS-4210-16T2S is able to operate stably and quietly in any environment without affecting its performance.

Department/Edge Security and QoS Switch

The GS-4210-16T2S connects up to 16 high speed workstations in the Ethernet environment, in which its two SFP interfaces provide an uplink to a department backbone. Moreover, the Switch provides 42Gbps switch fabric and high bandwidth for backbone connection. The GS-4210-16T2S improves the network efficiency and safeguards the network clients with its powerful features:

  • IPv6/IPv4 management
  • Layer 2 to Layer 4 security
  • QoS
  • 802.1x port-based and MAC-based network access authentication security
  • Multicast IGMP snooping

The advanced functionality of the GS-4210-16T2S eliminates traditional issues associated with the use of Ethernet. Users can be separated with advanced VLAN functionality to enhance security. It makes the GS-4210-16T2S one of the best and most cost-effective switch solutions for SMBs.

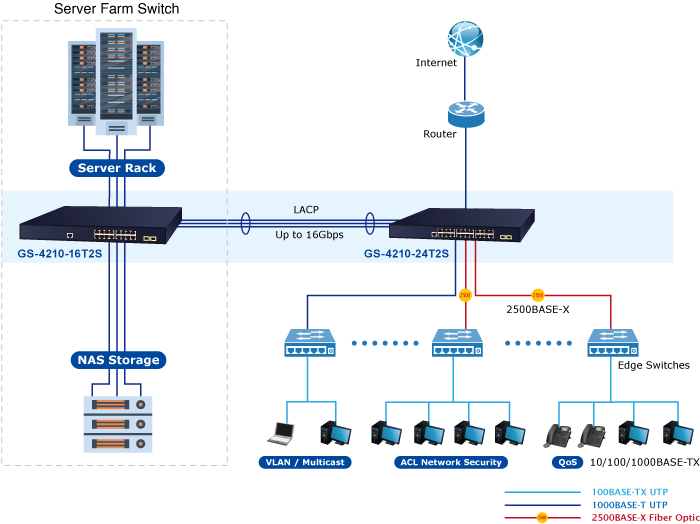

High-performance Backbone/Server Farm Switch

Gigabit Ethernet supported equipment has become the fundamental unit of enterprises and network servers. With up to 42 Gbps non-blocking switch fabric, the GS-4210-16T2S can easily provide a local high bandwidth Gigabit Ethernet network for backbone of enterprises or telecoms. With its port trunking function, a 16 GB fat pipe is provided to connect to the backbone if required. It is ideal to be used as a server farm switch connecting to servers. The GS-4210-16T2S can offer the uplink to the edge network through Gigabit Ethernet LX/SX SFP modules with the two SFP ports.



FTTX/MAN Application

The GS-4210-16T2S applies the double tag VLAN (Q-in-Q) technology to providing low cost and easy operation for service providers carrying traffic for multiple customers across their networks. It features SNMP v3 and RMON Groups. The SNMP v3 security structure consists of security models, with each model having its own security levels. With two triple-speed SFP slots built in, the deployment distance of the GS-4210-16T2S can be extended up to 120 kilometers (single-mode fiber), which provides a high-performance edge service for FTTx solutions.

To build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for enterprises, the various distances of SFP and Bidi (WDM) transceivers are optional for customers’ choices. For security and various applications, the 16 Gigabit ports of the GS-4210-16T2S can be configured with VLAN settings and connected to different units, offices, floors, houses and departments.

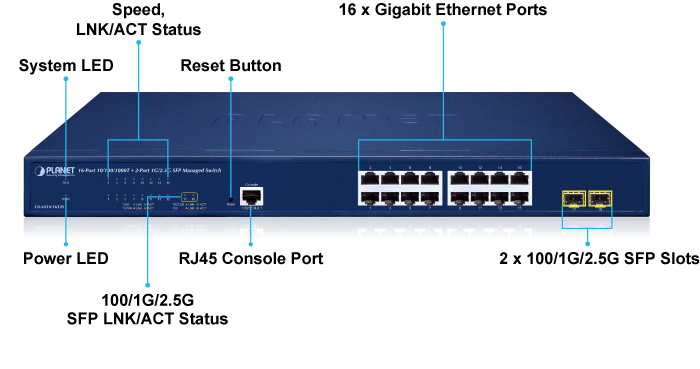

Physical Port

  • 16-port 10/100/1000BASE-T Gigabit RJ45 copper
  • 2 100/1000/2500BASE-X SFP slots
  • RJ45 console interface for switch basic management and setup
  • Reset button for system factory default



Switching

  • Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 12K jumbo frame
  • Power saving ability for Green networking
  • Supports ESD protection
    • Contact Discharge 6KV DC
    • Air Gap Discharge 8KV DC
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol



Layer 2 Features

  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    • Protocol VLAN
    • Voice VLAN
    • Private VLAN (Protected port)
    • Management VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • STP (Spanning Tree Protocol)
    • RSTP (Rapid Spanning Tree Protocol)
    • MSTP (Multiple Spanning Tree Protocol)
    • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 8 trunk groups, up to 8 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)



Quality of Service

  • Ingress/Egress Rate Limit per port bandwidth control
  • Storm Control support
    • Broadcast/unknown unicast/unknown multicast
  • Traffic classification
    • IEEE 802.1p CoS
    • TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies



Multicast

  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering



Security

  • Authentication
    • IEEE 802.1X port-based network access authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • DHCP Option 82
    • RADIUS/TACACS+ login user access authentication
  • Access Control List
    • IPv4/IPv6 IP-based ACL
    • IPv4/IPv6 IP-based ACE
    • MAC-based ACL
    • MAC-based ACE
  • MAC Security
    • Static MAC
    • MAC Filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention



Management

  • IPv4 and IPv6 dual stack management
  • Switch management interface
    • Web switch management
    • Console/Telnet Command Line Interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2/TLSv1.3 and SNMP v3 secure access
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System maintenance
    • Firmware upload/download via HTTP/TFTP
    • Configuration upload/download through web interface
    • Dual images
    • Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Cable diagnostics
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • SNMP trap for interface link up and link down notification
  • Four RMON groups (history, statistics, alarms and events)
  • Event message logging to remote Syslog server
  • SMTP remote alarm
  • PLANET Smart Discovery utility automatically finds PLANET devices on the network
  • PLANET NMS system and NMSViewerPro/CloudViewerPro/CloudNMS App for deployment management
Hardware Specifications
Hardware Version3
Copper Ports16 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Slots2 100/1000/2500BASE-X SFP interfaces, supporting 100/1000/2500Mbps triple mode
Console1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H)440 x 207 x 44 mm (1U height)
Weight1.9kg
ESD Protection±8KV air gap discharge
±6KV contact discharge
EnclosureMetal
Power Requirements100~240V AC, 50/60Hz, 0.6A (max.)
Power Consumption/DissipationMax. 3.9 watts / 13.3 BTU (Power on without any connection)
Max. 10.5 watts / 35 BTU (Full Loading)
LEDSystem:
　SYS (Green), Power (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 16):
　1000 LNK/ACT (Green), 10/100 LNK/ACT (Amber)
100/1000/2500BASE-X SFP Interfaces (Port 17 to Port 18):
　1G/2.5G LNK/ACT (Green), 100 LNK/ACT (Amber)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric42Gbps/non-blocking
Switch Throughput@64 bytes31.2Mpps @64 bytes
MAC Address Table16K entries
Shared Data Buffer4.1 megabits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame12K bytes
Layer 2 Functions
Port MirroringTX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLANIEEE 802.1Q tagged-based VLAN
IEEE 802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP and static trunk
Supports 8 groups of 8-port trunk
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP SnoopingIPv4 IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
MLD SnoopingIPv6 MLD (v1/v2) snooping
Up to 256 multicast groups
QoS8 mapping IDs to 8 level priority queues
　Port number
　802.1p priority
　DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
RingSupports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms
Security Functions
Access Control ListIPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries
Port SecurityIEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC SecurityIP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries
Enhanced SecurityDHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management InterfacesRS232 to RJ45 Console
Web browser
Telnet
SNMP v1, v2c
Secure Management InterfacesSSHv2, TLSv1.2/TLSv1.3, SNMP v3
System ManagementFirmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS system
PLANET NMSViewerPro/CloudViewerPro/CloudNMS
Event ManagementRemote/Local Syslog
System log
SMTP remote alarm
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 3635 Ethernet-like MIB
LLDP MIB
PLANET-Aggr-MIB
PLANET-DDMI-MIB
PLANET-Firmware-MIB
PLANET-GVRP-MIB
PLANET-LACP-MIB
PLANET-SYSUTIL-MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 ERPS Ring
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
DateVersionDescriptionDownload
2017/03/061.0

GS-4210-16T2S

 Download Icon
DateVersionDescriptionDownload
2024/31/051.11

[Release for hardware version 2.0.]
Add PSTI description.

 Download Icon
2021/05/112.2

[Release for hardware version 2.0.]
Add GS-4210-8P2C.

 Download Icon
2021/11/062.1

[Release for hardware version 2.0.]
Add GS-4210-8T2S.

 Download Icon
2017/12/102.0

Release for hardware version 2.0.

 Download Icon
2015/17/021.0

Initial release.

 Download Icon
DateVersionDescriptionDownload
2023/05/052.2

[Release for hardware version 2.0.]
Modify contents of user manual.

 Download Icon
2021/03/112.1

[Release for hardware version 2.0.]
Release for GS-4210-Series with ERPS/Cloudviewer function.

 Download Icon
2017/17/032.0

Release for hardware version 2.0.

 Download Icon
DateVersionDescriptionDownload
2022/21/012.0

EC Declaration.

 Download Icon
DateVersionDescriptionDownload
2024/24/122.305b241115

[Release for hardware version 2.0.]
Enhanced product security.

 Download Icon
2024/12/122.305b241024

[Release for hardware version 2.0.]
Enhanced product security.

 Download Icon
2021/29/042.305b210427

[Release for hardware version 2.0.]
1. Added ERPS ring support.
2. Added enhanced cybersecurity support.

 Download Icon
2020/21/092.305b200904

[Release for hardware version 2.0]
Added PLANET CloudViewer app support

 Download Icon
2017/17/032.0b160727

Initial Release for hardware version 2.0.

 Download Icon


Model

Description

GS-4210-8UP2S

8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000X SFP Managed Ethernet Switch

GS-4210-8P2S

8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch

GS-4210-24T2S

24-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch

GS-4210-24P4C / GS-4210-24PL4C

24-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch

GS-4210-16UP4C

16-Port 10/100/1000T 802.3bt PoE++ plus 4-Port Gigabit TP/SFP Combo Managed Switch

GS-4210-16P4C

16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch

Ordering Information

GS-4210-16T2S

16-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch

Ordering Information

GS-4210-16T2S

16-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch


Subscribe to PLANET e Newsletter

Receive the latest product information and company news!
