• product_code: IPM-8222

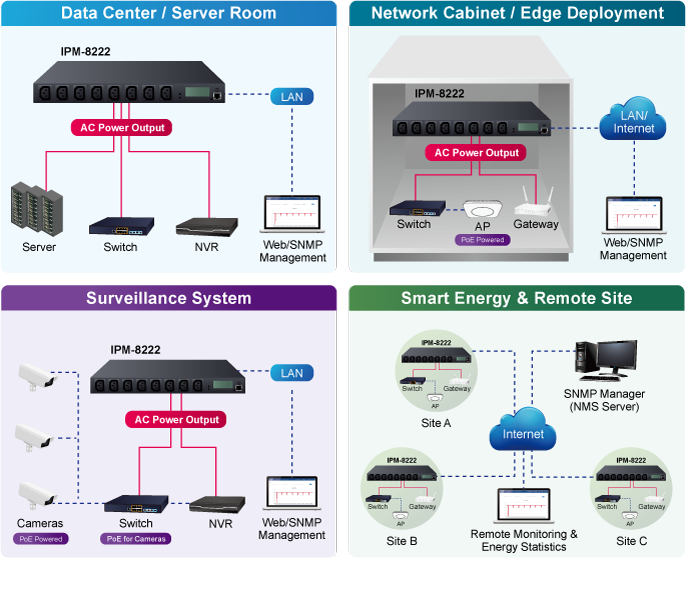

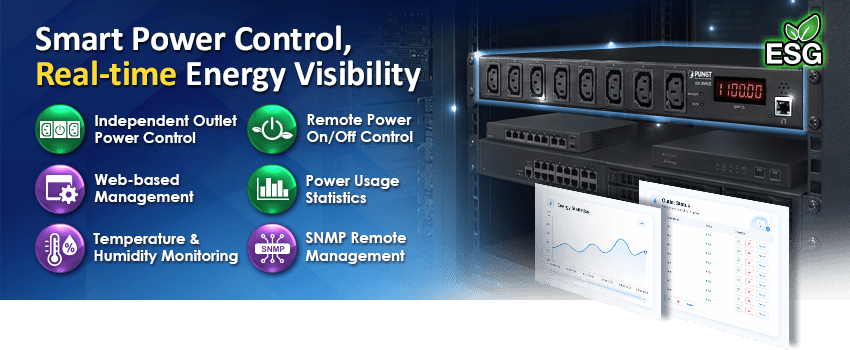

• applications_tab: <p><strong>Remote Management via Network</strong><p>PLANET Switched IPM consolidates power control, current monitoring, web-based management, e-mail notification, and SNMP functions into a single device. The IPM-8222 enables technical staff to remotely monitor and control connected equipment through the network, allowing rapid response to abnormal conditions and reducing the need for on-site maintenance.</p><p> </p><p><strong>Simplified Power Control for IT Equipment</strong></p><p>The IPM-8222 provides an efficient solution for managing power in network cabinets, server rooms, and edge installations. With independently controlled outlets, administrators can remotely reboot devices such as switches, routers, and IP cameras, minimizing downtime and improving system availability.</p><p> </p><p><strong>Built-in Environmental Monitoring</strong></p><p>With integrated temperature monitoring, the IPM-8222 allows users to observe environmental conditions without additional sensors. This helps ensure that equipment operates within a safe temperature range and reduces the risk of overheating in enclosed spaces such as racks or cabinets.</p><p> </p><p><strong>Energy-saving and Cost-effective Operation</strong></p><p>By providing real-time power consumption monitoring and scheduled power control, the IPM-8222 helps organizations optimize energy usage. This contributes to lower electricity costs and more efficient operation of network infrastructure.</p><p> </p><p style="text-align: center;"><img src="https://www.planet.com.sa/planet-storage/2026/05/IPM-8222-5.png" alt="" width="700" height="613"></p></p>

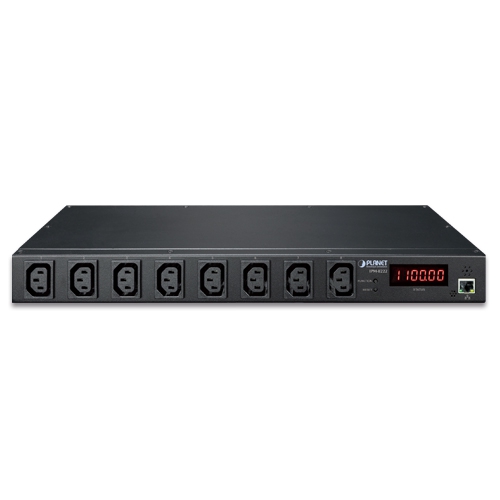

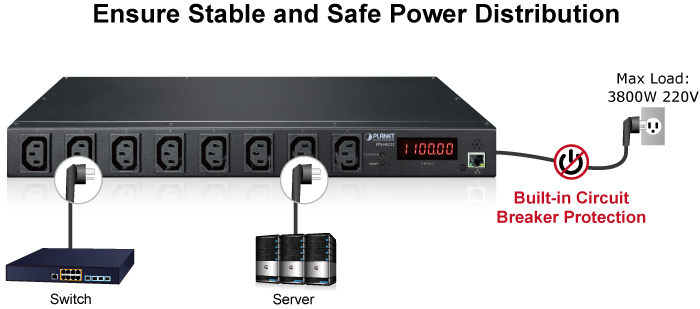

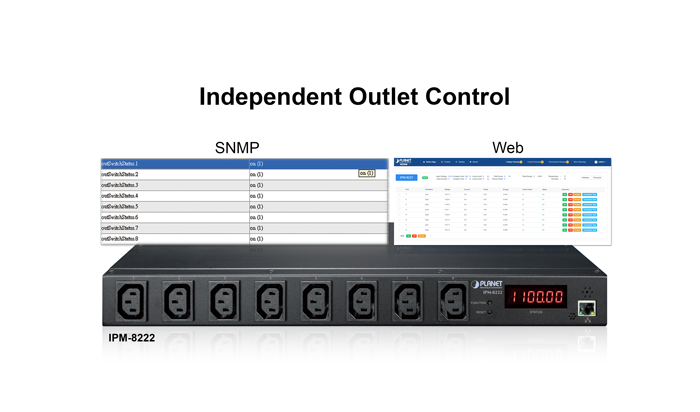

• key_features_tab: <p><strong>Hardware</strong><ul> <li>1U rack-mount size design</li> <li>IEC outlet models</li> <li>8 power outlets that support real-time current monitoring</li> <li>LED display panel displays current, voltage, energy and network information</li> <li>Optional button lock function to prevent unauthorized operation</li> <li>Circuit breaker can avoid damage caused by overload</li> <li>LED display to visually present the operating status of ports and PDU</li> <li>Each PDU can supply a maximum load of 3800W</li> <li>Built-in temperature monitoring for environmental awareness</li> </ul><p> </p><p><strong>Power Distribution</strong></p><ul> <li>Maximum amps/Inlet: IEC 16A for 1 inlet</li> <li>Maximum amps/Outlets: IEC 10A per outlet</li> <li>Full frequency range: 50~60Hz</li> <li>Individual power sockets can be controlled locally and remotely</li> <li>The user can set the power-on sequence and delay time for each socket</li> <li>Supports current, power, and power factor monitoring of each outlet</li> <li>Supports per-outlet threshold warning and automatic power-off</li> </ul><p> </p><p><strong>Remote Access</strong></p><ul> <li>Remote power control via TCP/IP and a built-in 10/100Mbps Ethernet port</li> <li>Multi-browser support (Edge, Google Chrome, Firefox, Safari, Opera)</li> </ul><p> </p><p><strong>Management</strong></p><ul> <li>Network protocols: TCP/IP, UDP, HTTP/HTTPS (TLS 1.2), NTP, DHCP, Ping</li> <li>Event notification via pop-up message or e-mail</li> <li>SNMP support with available MIB files</li> <li>Outlet naming support for easier management</li> <li>Voltage, current, wattage and total kWh reporting</li> <li>Configurable over-current protection per outlet</li> <li>Activity log for system monitoring</li> <li>PDU energy usage statistics</li> <li>Zero meter clearing function</li> <li>Firmware upgrade via network</li> <li>Multiple language support</li> <li>Displays current and voltage alarms on the web interface with historical records</li> <li>PLANET's Universal Network Management System and Smart Discovery Utility to remotely monitor all operational status of connected PDUs</li> </ul><p> </p><p><strong>Security</strong></p><ul> <li>Dynamic password verification enhances login security</li> <li>Multi-level user access (Administrator / Operator / Visitor)</li> <li>IP filtering to prevent unauthorized access</li> </ul></p>

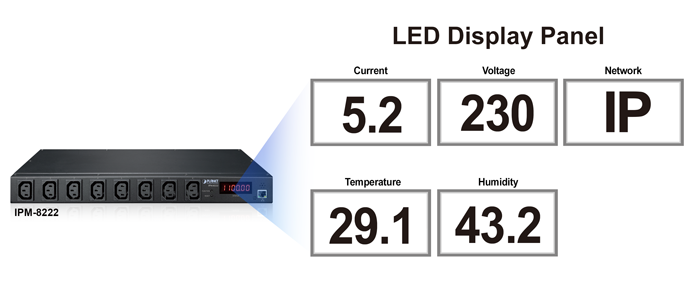

• specifications_tab: <table style="width:100%;" class="common_table_sky"><thead><tr><th colspan="2">Hardware Specifications</th></tr></thead><tbody><tr><td class="align-middle">Outlet Power Port</td><td>8</td></tr><tr><td class="align-middle">Inlet Power Port</td><td>1</td></tr><tr><td class="align-middle">Network Connector</td><td>1 RJ45 port for 10/100BASE-TX</td></tr><tr><td class="align-middle">Sensor Function</td><td>Embedded temperature and humidity sensor</td></tr><tr><td class="align-middle">Button</td><td>1 x Function Button<br /> 1 x Reset Button<br /> Press over 10 seconds to reset the device to factory default</td></tr><tr><td class="align-middle">LED</td><td>State of the socket / Power：LED Displays<br /> 10/100M：1 (<font color="Green">Green</font>/<font color="Orange">Orange</font>)</td></tr><tr><td class="align-middle">LED Display Panel</td><td>Displays voltage, current, temperature, humidity and IP address</td></tr><tr><td class="align-middle">Housing</td><td>Metal</td></tr><tr><td class="align-middle">Dimensions (W x D x H)</td><td>442 x 159 x 44.5mm</td></tr><tr><td class="align-middle">Weight</td><td>1.9kg</td></tr><tr><td class="align-middle">Installation</td><td>1U rack-mountable, desktop</td></tr><tr><td class="align-middle">Breaker</td><td>1 x 16A</td></tr><tr><td class="align-middle">Surge Protection</td><td>Surge Protection (IEC 61000-4-5)<br /> 1kV (Line-to-Line)<br /> 2kV (Line-to-Ground)</td></tr></tbody><thead><tr><th colspan="2">Power Distribution</th></tr></thead><tbody><tr><td class="align-middle">Power</td><td><table class="table-bordered-bone"><tr><td width="150" align="middle"><font color="black">Inlet</font></td><td width="150" align="middle"><font color="black">Outlet</font></td></tr></table></td></tr><tr><td class="align-middle">Voltage</td><td><table><td rowspan="2">      100~240V</td></table></td></tr><tr><td class="align-middle">Frequency</td><td><table><td rowspan="2" >      50~60Hz</td></table></td></tr><tr><td class="align-middle">Connection</td><td><table class="table-bordered-bone"><tr><td width="150" align="middle"><font color="black">1 x IEC320 C20</font></td><td width="150" align="middle"><font color="black">8 x IEC320 C13</font></td></tr></table></td></tr><tr><td class="align-middle">Maximum Current</td><td><table class="table-bordered-bone"><tr><td width="150" align="middle"><font color="black">16A (total)</font></td><td width="150" align="middle"><font color="black">10A per outlet</font></td></tr></table></td></tr></tbody><thead><tr><th colspan="2">Management</th></tr></thead><tbody><tr><td class="align-middle">User Account</td><td>Administrator / Operator / Visitor</td></tr><tr><td class="align-middle">Management / Monitor Utility</td><td>Web browser, SNMP<br /> PLANET Smart Discovery Utility</td></tr><tr><td class="align-middle">Security</td><td>IP filter</td></tr></tbody><thead><tr><th colspan="2">Standards Conformance</th></tr></thead><tbody><tr><td class="align-middle">Computer Interface</td><td>IEEE 802.3 10BASE-T<br /> IEEE 802.3u 10/100BASE-TX</td></tr><tr><td class="align-middle">Regulatory Compliance</td><td>CE, FCC</td></tr></tbody><thead><tr><th colspan="2">Environments</th></tr></thead><tbody><tr><td class="align-middle">Operating Temperature</td><td>0 ~ 60 degrees C</td></tr><tr><td class="align-middle">Operating Humidity</td><td>0 ~ 90%</td></tr></tbody></table>
