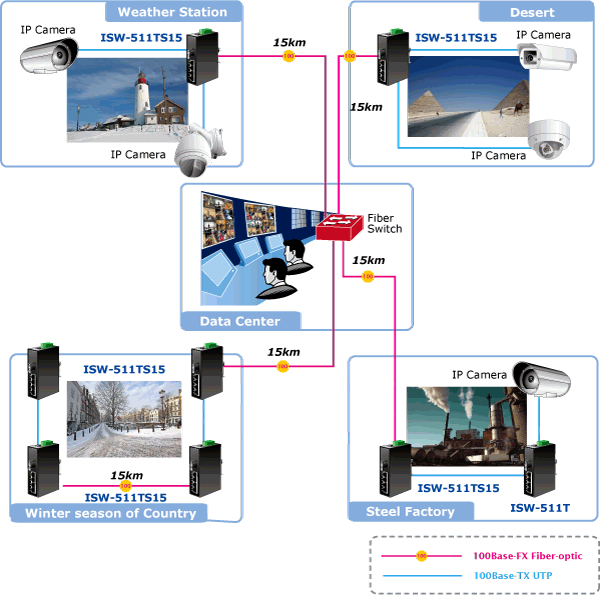

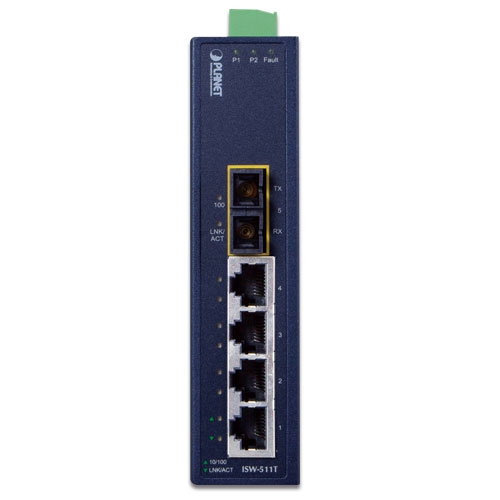

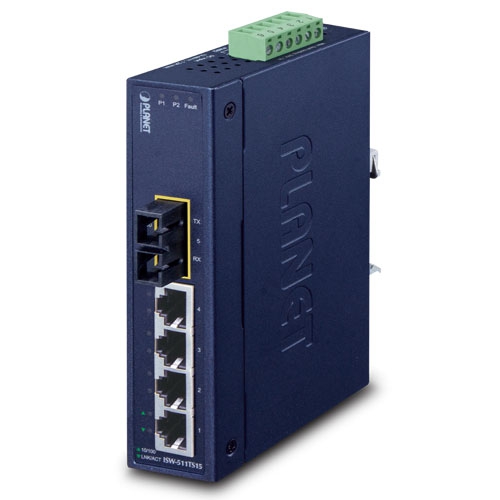

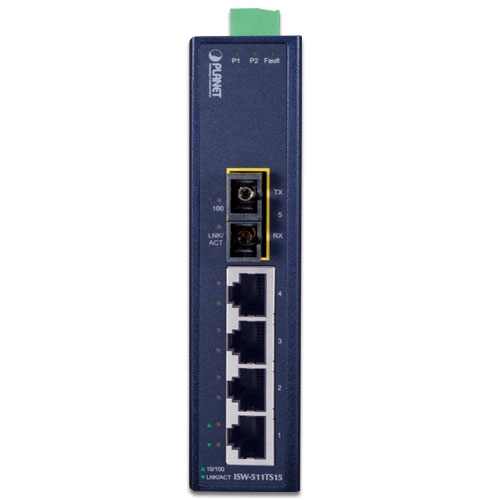

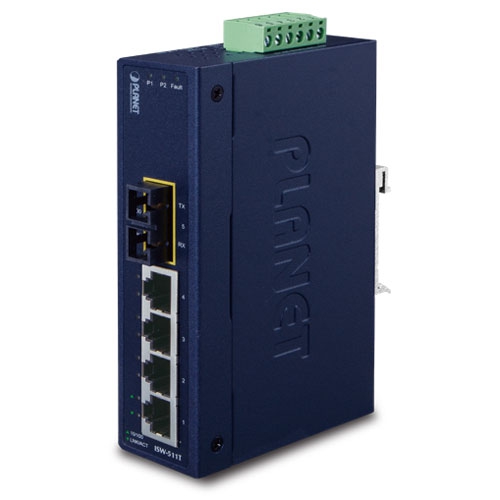

• product_editor_4418_tab_content: <strong>Industrial Switch for High Performance Data Collect and Forward</strong> The ISW-511T and ISW-511TS15 are equipped with four 10/100Mbps ports offering auto MDI / MDIX feature and one 100Base-FX optic-fiber SC interface providing 1Gps non-blocking switch fabric and the 2K MAC address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-511T / ISW-511TS15, with come in the slim type IP 30 metal shape, is ideal for most Heavy Industrial demanding environments. <p style="text-align: center;"><img class="img-fluid" src="https://www.planet.com.sa/planet-storage/2025/01/ISW-511T_ISW-511TS15_L.gif" /></p>
• product_editor_4418_tab_enabled: yes
• product_editor_4418_tab_content_changed: yes
• product_editor_4418_tab_title: Applications

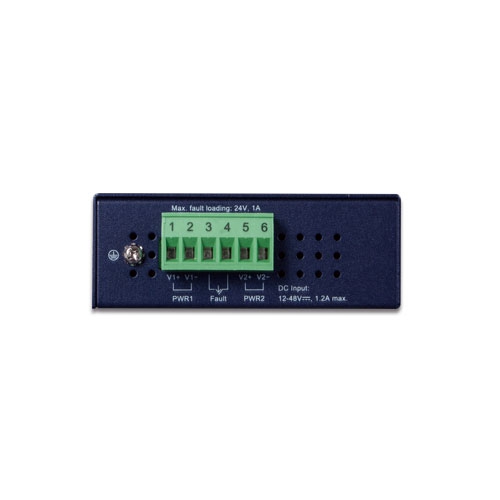

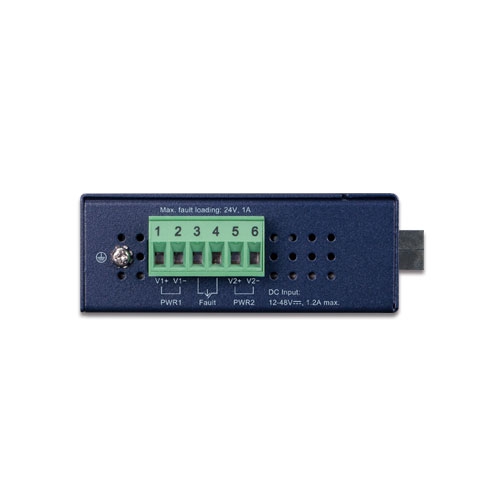

• product_editor_4421_tab_content: <strong>Physical Port</strong> • 4-port 10/100Base-TX RJ-45 with auto MDI / MDI-X function for ISW-511T series • 1-port 100Base-FX interface on ISW-511T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance • 1-port 100Base-FX interface on ISW-511TS15 for up to 15km (single-mode fiber 9/125µm) transmission distance <strong>Layer 2 Features</strong> • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard • Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port • High performance Store and Forward architecture • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) • Backplane (Switching Fabric): 1Gbps • Integrated address look-up engine, supports 2K absolute MAC addresses • 1Mbit on-chip frame buffer • Automatic address learning and address aging • CSMA / CD Protocol <strong>Industrial Case / Installation</strong> • IP-30 metal case / protection • DIN rail and wall mount design • 12 to 48V DC, redundant power with polarity reverse protection and connective removable terminal block for master and slave power • Supports EFT protection 6000V DC for power line • Supports 6KV DC Ethernet ESD protection • -40 to 75 degrees C wide operating temperature
• product_editor_4421_tab_enabled: yes
• product_editor_4421_tab_content_changed: yes
• product_editor_4421_tab_title: Key Features
• product_editor_4422_tab_content:   <div class="table-responsive"> <table class="common_table_sky" style="width: 100%;"> <thead> <tr> <th colspan="2">Hardware Specifications</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Copper</td> <td><b>Ports</b> 4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X<b>Cable</b> 10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.)</td> </tr> <tr> <td class="align-middle">Optical</td> <td><b>Port</b> 1 x 100Base-FX<b>Cable</b> ISW-511T: 50/125μm / 62.5/125μm fiber ISW-511TS15: 9/125μm fiber<b>Mode</b> ISW-511T: Multi-mode ISW-511TS15: Single-mode<b>Distance</b> ISW-511T: 2km ISW-511TS15: 15km<b>Frequency</b> ISW-511T: 1310nm ISW-511TS15: 1310nm <b>Launch Power </b> ISW-511T: Max. -14dBm, Min. -20dBm ISW-511TS15: Max. 0dBm, Min. -20dBm <b>Receive Sensitivity</b> ISW-511T: -32dBm ISW-511TS15: -32dBm <b>Max. Input Power</b> ISW-511T: -14dBm ISW-511TS15: 0dBm</td> </tr> <tr> <td class="align-middle">Dimensions (W x D x H)</td> <td>135 x 87.8 x 32 mm</td> </tr> <tr> <td class="align-middle">Weight</td> <td>436g</td> </tr> <tr> <td class="align-middle">Power Requirements</td> <td>12~48V DC Redundant power with polarity reverse protection function</td> </tr> <tr> <td class="align-middle">Power Consumption / Dissipation</td> <td>13.7 watts / 46 BTU</td> </tr> <tr> <td class="align-middle">Installation</td> <td>DIN rail kit and wall mount ear</td> </tr> <tr> <td class="align-middle">Alarm</td> <td>Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V</td> </tr> </tbody> <thead> <tr> <th colspan="2">Switch Specifications</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Switch Processing Scheme</td> <td>Store-and-Forward</td> </tr> <tr> <td class="align-middle">Address Table</td> <td>2K entries</td> </tr> <tr> <td class="align-middle">Buffer</td> <td>1Mbit</td> </tr> <tr> <td class="align-middle">Flow Control</td> <td>Back pressure for half duplex, IEEE 802.3x pause frame for full duplex</td> </tr> <tr> <td class="align-middle">Switch Fabric</td> <td>1Gbps</td> </tr> <tr> <td class="align-middle">Throughput (Packet Per Second)</td> <td>0.74Mpps @ 64Bytes</td> </tr> </tbody> <thead> <tr> <th colspan="2">Standards Conformance</th> </tr> </thead> <tbody> <tr> <td class="align-middle">Standards Compliance</td> <td>IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex flow control</td> </tr> <tr> <td class="align-middle">Temperature</td> <td>Operating: -40~75 degrees C Storage: -40~85 degrees C</td> </tr> <tr> <td class="align-middle">Humidity Operating</td> <td>Operating: 5~90% Storage: 5~90% (Non-condensing)</td> </tr> <tr> <td class="align-middle">Regulation Compliance</td> <td>FCC Part 15 Class A, CE</td> </tr> <tr> <td class="align-middle">Stability Testing</td> <td>IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)</td> </tr> </tbody> </table> </div>
