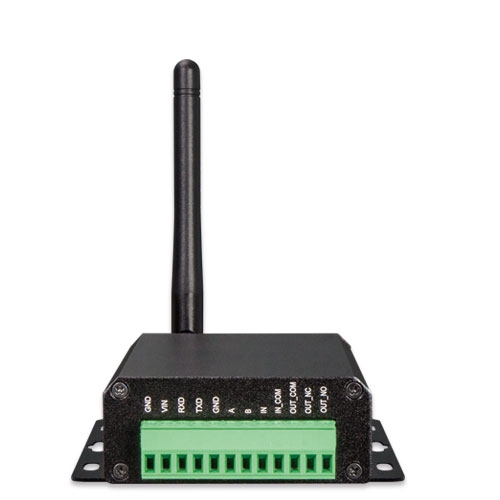

Indoor IP30 LoRa Node Controller

» LN1152

Build a Smarter, Connected World

PLANET LN1152 is an indoor LoRa node controller used for data acquisition from multiple sensors. It contains different I/O interfaces including analog inputs, digital inputs, relay outputs and serial ports to simplify the deployment and replacement of LoRaWAN networks. Besides, the LN1152 can trigger multiple conditions and actions without a network. With its industrial design and IP30 metal case, the LN1152 is widely used in indoor applications like smart industries, building automation, etc.

edm LN1152



LoRaWAN-based Controller with Rich Industrial Interfaces

The LN1152 LoRaWAN Controller with built-in multiple industrial interfaces connects to all types of sensors, meters and other appliances. It also bridges Modbus data between serial and Ethernet network via LoRaWAN. The LN1152 supports LoRaWAN class C protocol to be in full compatibility with standard LoRaWAN gateways including PLANET LCG-300 series. It is ideal for large-scale IoT application deployments, such as projects for building automation, smart metering, HVAC system, etc. With multiple interfaces, LoRaWAN Controller can perfectly help retrofit legacy assets into IoT enablement.

  • RS232
  • RS485
  • GPIO



Highlights
  • Easy to connect with multiple wired sensors through GPIO/RS232/RS485 interfaces
  • Ultra-wide-distance transmission up to 10km with line of sight
  • Triggers multiple conditions and actions
  • Embedded watchdog for work stability
  • Industrial metal case design with wide operating temperature range
  • Compliant with standard LoRaWAN gateways and network servers


Wireless Transmission
TechnologyLoRaWAN
Antenna Connector1 × 50 Ω SMA Connector (Center Pin: SMA Female)
FrequencyLN1152-868: IN865, EU868, RU864 LN1152-915: US915, AU915, KR920, AS923
Tx Power16dBm(868)/20dBm(915)
Sensitivity-147dBm @300bps
Work ModeOTAA/ABP Class C
Data Interfaces
Interface Type3.5mm Terminal Block
IODigital Input Opto-isolated Digital Inputs, 3-24VDC (pulse counter support)Digital Output SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 V
Serial PortPorts RS232/RS485Baud Rate 4800~115200bps (RS232)/1200~115200 bps(RS485) Protocol Transparent (RS232), Modbus RTU (RS485)
Others
Configuration Port1 × Micro USB

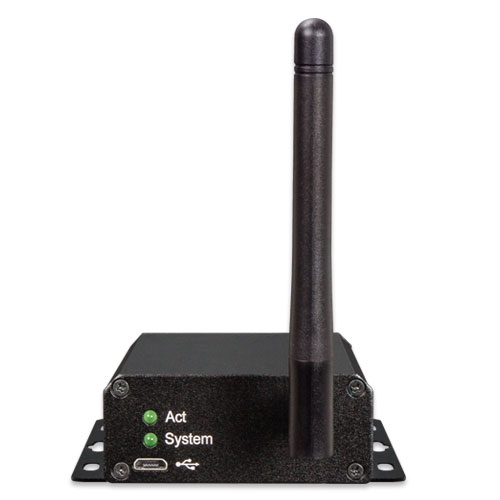

LED Indicators1 × System, 1 × ACT
Built-inWatchdog, Timer
Physical Characteristics
Power Connector3.5mm Terminal Block
Power Supply5-24 VDC
Ingress ProtectionIP30
Operating Temperature-40°C to +70°C
Relative Humidity0% to 95% (non-condensing)
Dimensions79 × 60 × 24 mm
InstallationDesktop, Wall mounting
Standards Conformance
Regulatory ComplianceCE, FCC
DateVersionDescriptionDownload
2024/21/061.0

LN1152

 Download Icon
DateVersionDescriptionDownload
2022/29/041.0

Initial release

 Download Icon
DateVersionDescriptionDownload
2022/25/071.0

Initial release.

 Download Icon
DateVersionDescriptionDownload
2022/12/077.0.7

LoRa Node Controller ToolBox Utility

 Download Icon


Model

Description

LN502

IP67 Outdoor Solar LoRa Node Controller

LN501

Outdoor IP67 LoRa Node Controller

LN1140

Industrial IP30 LoRa Node Controller (2 DI, 2 DO, EU868/US915 Sub 1G)

LN1130

Industrial IP30 LoRa Node Controller (Modbus RS232, RS485, EU868/US915 Sub 1G)

Ordering Information

LN1152

Indoor IP30 LoRa Node Controller

Ordering Information

LN1152-868

Indoor IP30 LoRa Node Controller (RS232, RS485, DI, DO, EU868 Sub 1G)

LN1152-915

Indoor IP30 LoRa Node Controller (RS232, RS485, DI, DO, US915 Sub 1G)

✉
