• product_code: PLANET Outdoor Wall-Mount Steel Enclosure

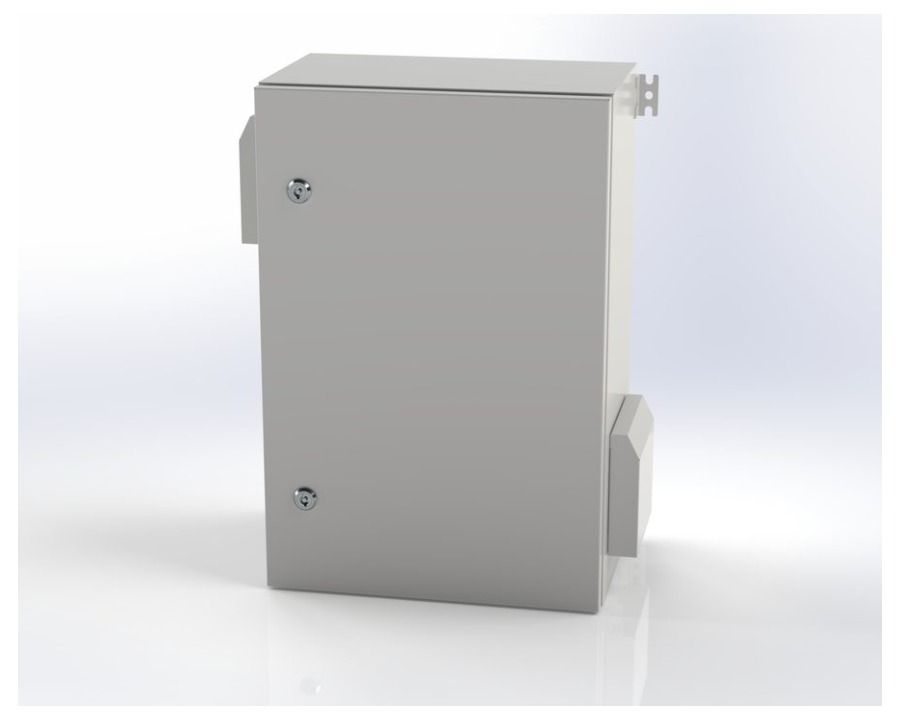

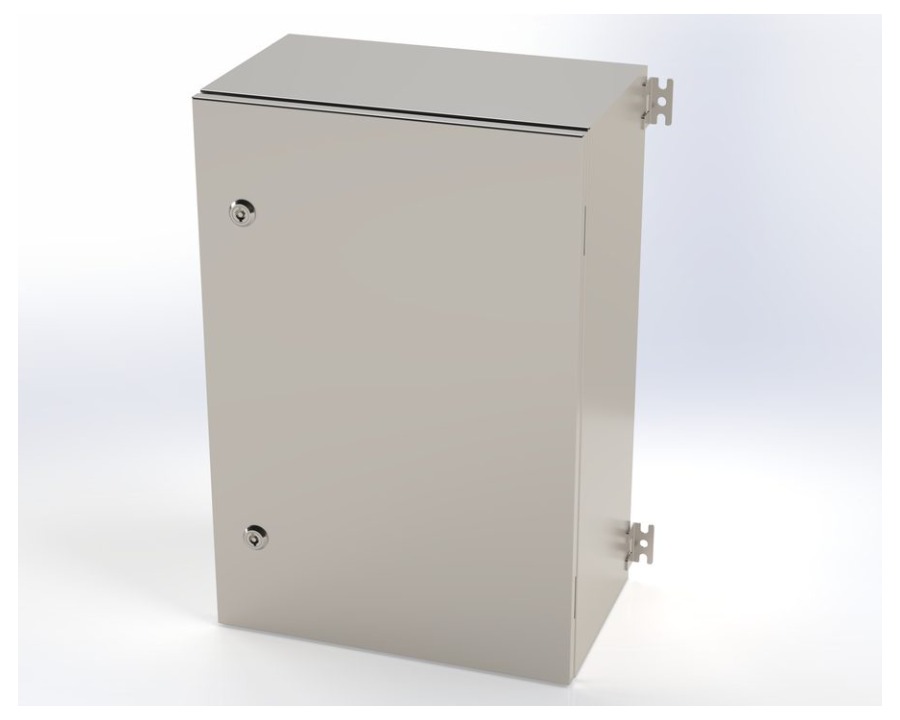

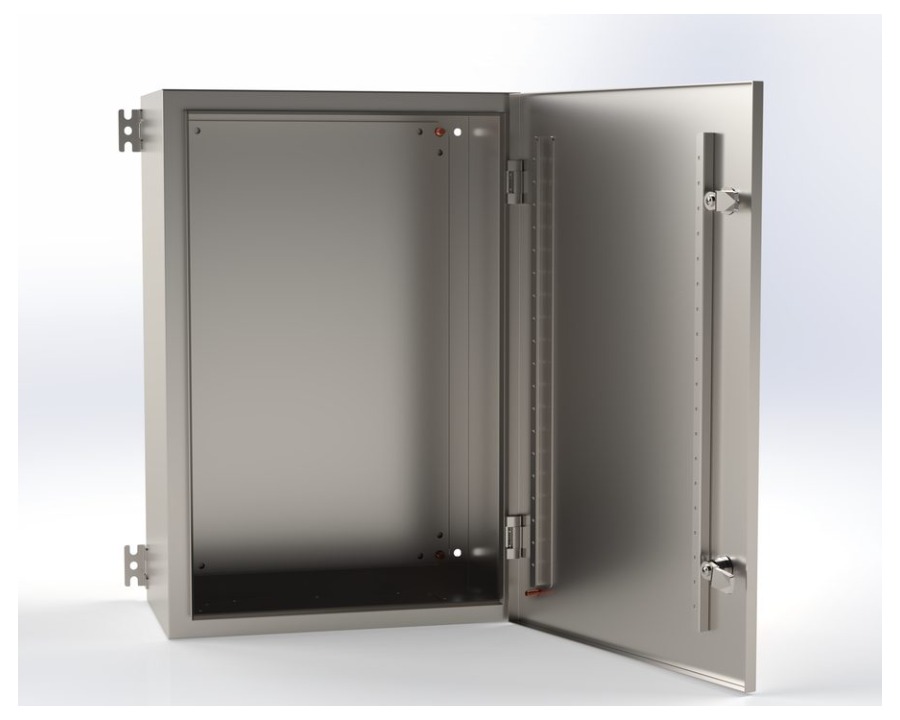

• applications_tab: <p><strong>Outdoor, Industrial and Smart City Installations</strong></p> <p>PLANET Outdoor Wall-Mount Steel Enclosures protect network, power and control equipment wherever it has to be installed outside the comfort of a server room:</p> <div style="display:flex;flex-wrap:wrap;justify-content:center;margin:0 -9px 26px -9px;"><div style="flex:0 0 33.333%;max-width:33.333%;box-sizing:border-box;padding:9px;text-align:center;"><div style="border:1px solid #dfe6f1;background:#fff;padding:10px 10px 12px;height:100%;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/08/app-01-outdoor-network-telecom-cabinet.jpg" alt="Outdoor Network and Telecom Cabinets" style="display:block;width:100%;height:auto;margin:0 auto 8px;" /><span style="display:block;font-size:15px;line-height:1.35;font-weight:600;color:#28527a;">Outdoor Network & Telecom Cabinets</span></div></div><div style="flex:0 0 33.333%;max-width:33.333%;box-sizing:border-box;padding:9px;text-align:center;"><div style="border:1px solid #dfe6f1;background:#fff;padding:10px 10px 12px;height:100%;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/08/app-02-smart-city-street-cabinet.jpg" alt="Smart City Street Cabinets and Traffic Control" style="display:block;width:100%;height:auto;margin:0 auto 8px;" /><span style="display:block;font-size:15px;line-height:1.35;font-weight:600;color:#28527a;">Smart City Street Cabinets & Traffic Control</span></div></div><div style="flex:0 0 33.333%;max-width:33.333%;box-sizing:border-box;padding:9px;text-align:center;"><div style="border:1px solid #dfe6f1;background:#fff;padding:10px 10px 12px;height:100%;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/08/app-03-cctv-surveillance-stainless-enclosure.jpg" alt="CCTV and IP Surveillance Infrastructure" style="display:block;width:100%;height:auto;margin:0 auto 8px;" /><span style="display:block;font-size:15px;line-height:1.35;font-weight:600;color:#28527a;">CCTV & IP Surveillance Infrastructure</span></div></div><div style="flex:0 0 33.333%;max-width:33.333%;box-sizing:border-box;padding:9px;text-align:center;"><div style="border:1px solid #dfe6f1;background:#fff;padding:10px 10px 12px;height:100%;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/08/app-04-electrical-distribution-panel.jpg" alt="Electrical Distribution and Protection Panels" style="display:block;width:100%;height:auto;margin:0 auto 8px;" /><span style="display:block;font-size:15px;line-height:1.35;font-weight:600;color:#28527a;">Electrical Distribution & Protection Panels</span></div></div><div style="flex:0 0 33.333%;max-width:33.333%;box-sizing:border-box;padding:9px;text-align:center;"><div style="border:1px solid #dfe6f1;background:#fff;padding:10px 10px 12px;height:100%;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/08/app-05-industrial-automation-control-panel.jpg" alt="Industrial Automation Control Panels" style="display:block;width:100%;height:auto;margin:0 auto 8px;" /><span style="display:block;font-size:15px;line-height:1.35;font-weight:600;color:#28527a;">Industrial Automation Control Panels</span></div></div><div style="flex:0 0 33.333%;max-width:33.333%;box-sizing:border-box;padding:9px;text-align:center;"><div style="border:1px solid #dfe6f1;background:#fff;padding:10px 10px 12px;height:100%;"><img src="https://www.planet.com.sa/wp-content/uploads/2026/08/app-06-ups-battery-active-cooling.jpg" alt="Power Supply and UPS Battery Housing" style="display:block;width:100%;height:auto;margin:0 auto 8px;" /><span style="display:block;font-size:15px;line-height:1.35;font-weight:600;color:#28527a;">Power Supply & UPS Battery Housing</span></div></div></div> <ul> <li>Outdoor network and telecommunication cabinets</li> <li>CCTV and IP surveillance infrastructure enclosures</li> <li>Smart city street cabinets and traffic control systems</li> <li>Industrial automation control panels</li> <li>Electrical distribution and protection panels</li> <li>IoT and LoRaWAN node enclosures</li> <li>Power supply and UPS battery housing</li> <li>Remote outdoor communication nodes</li> </ul>

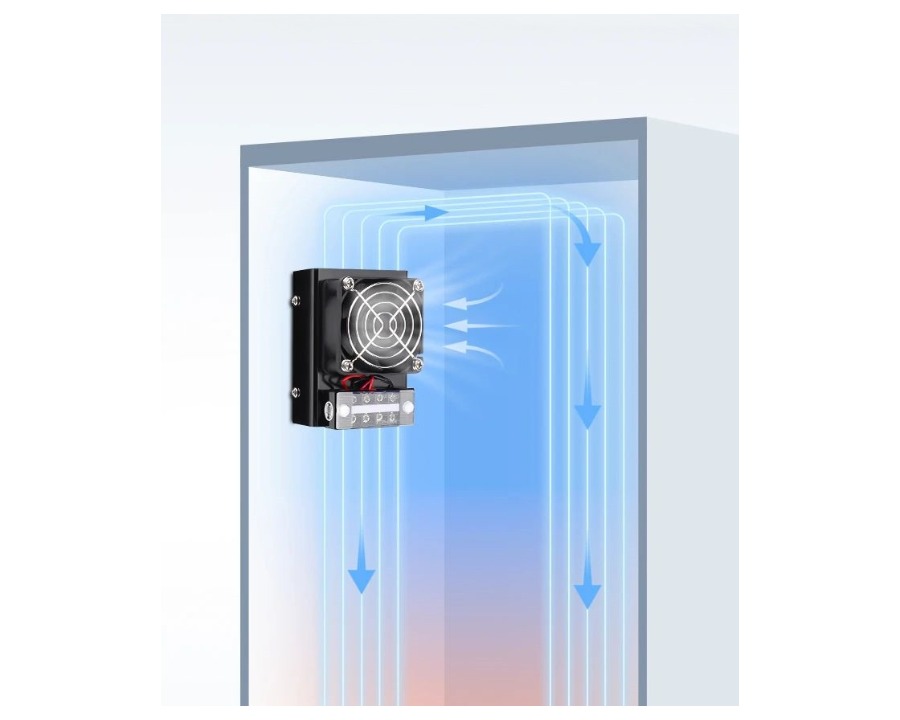

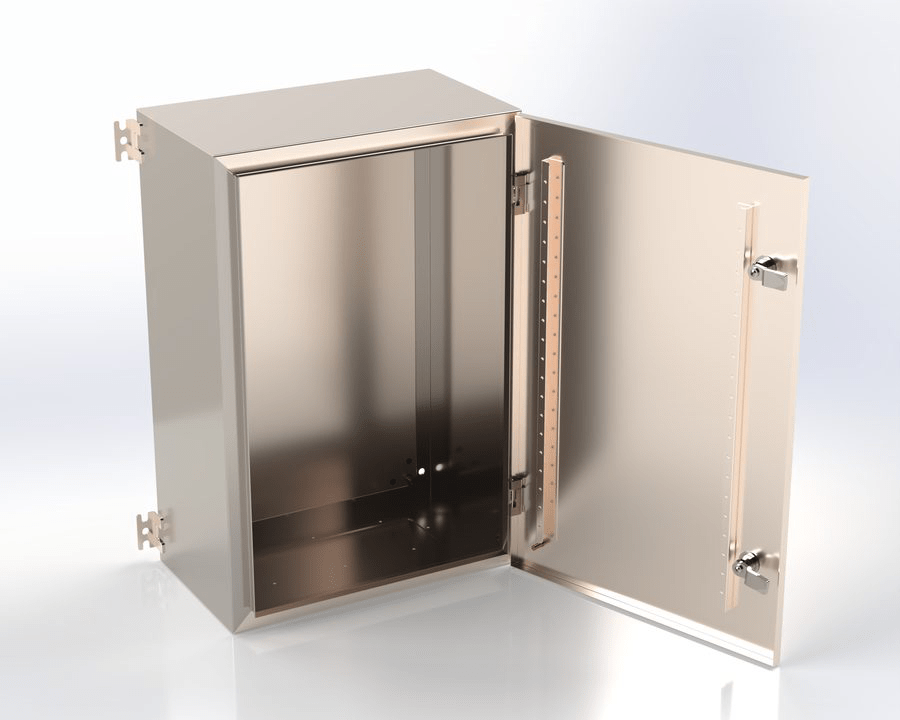

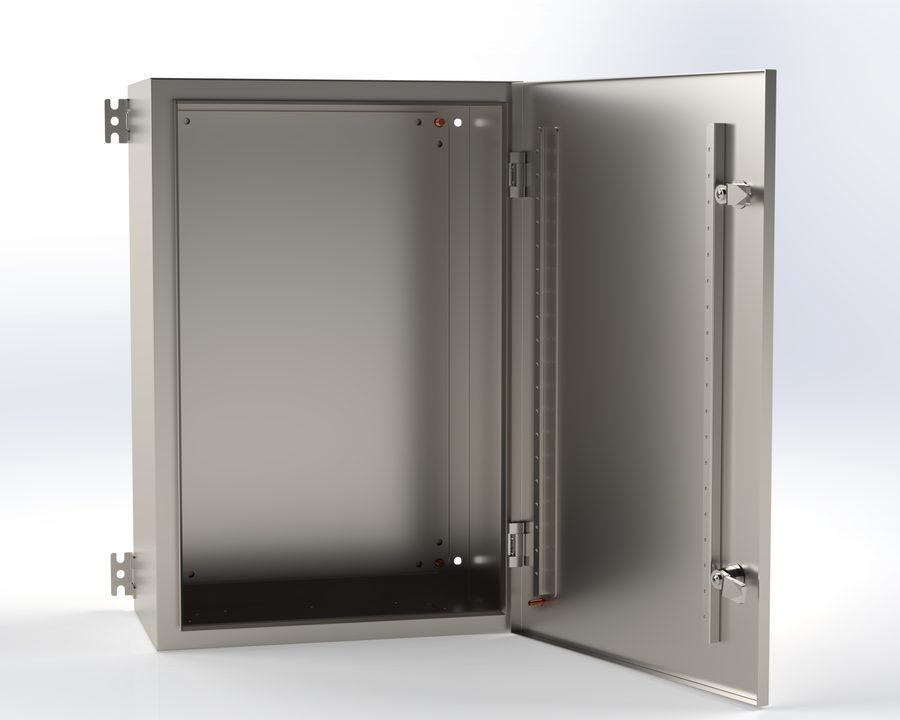

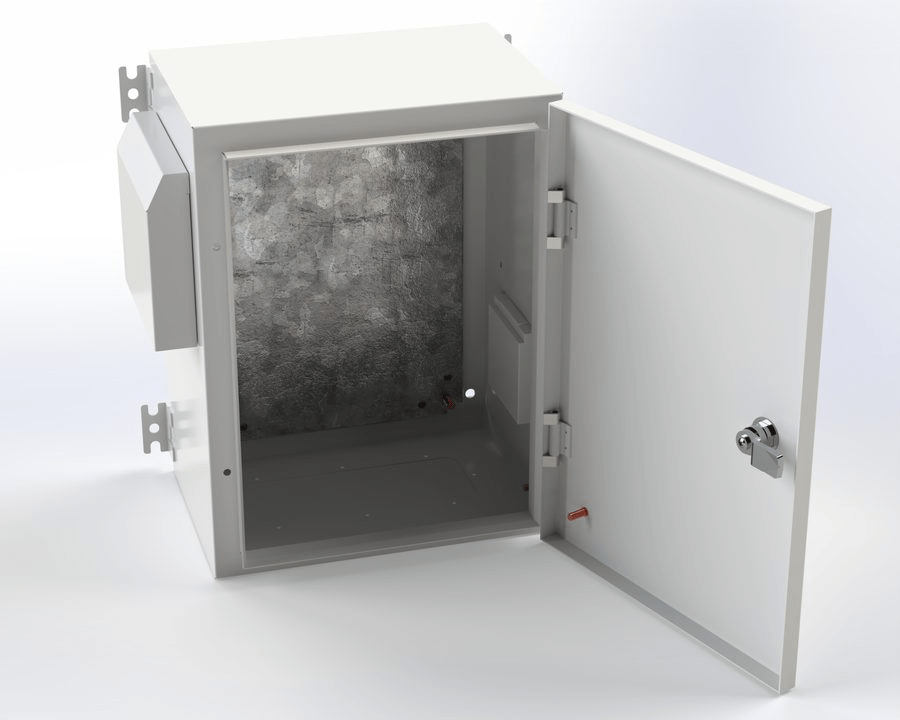

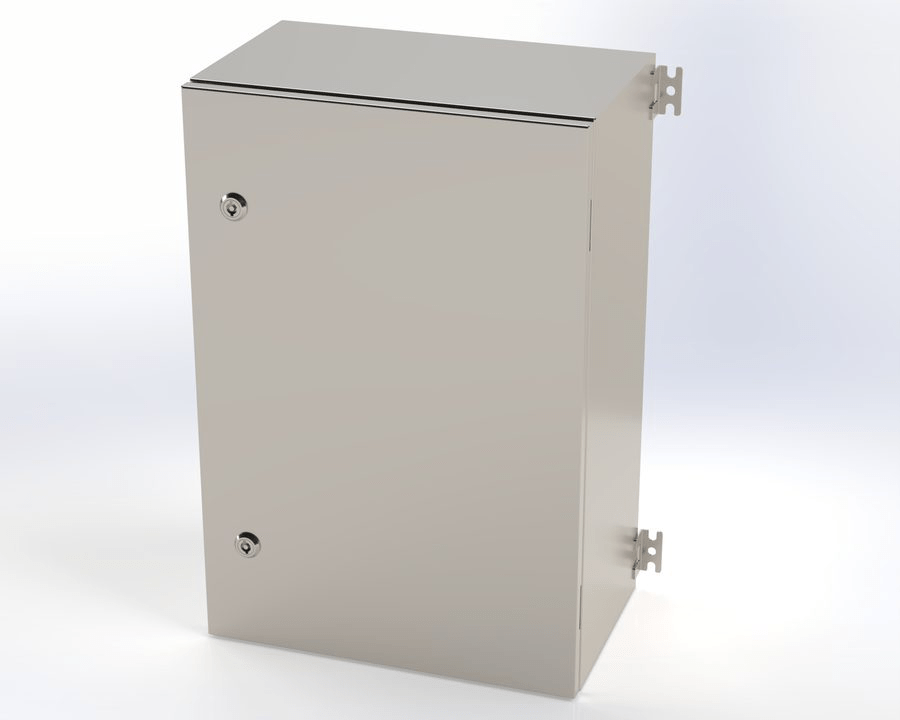

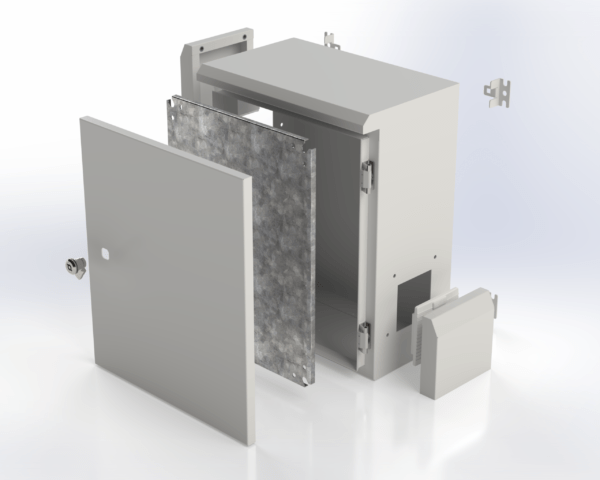

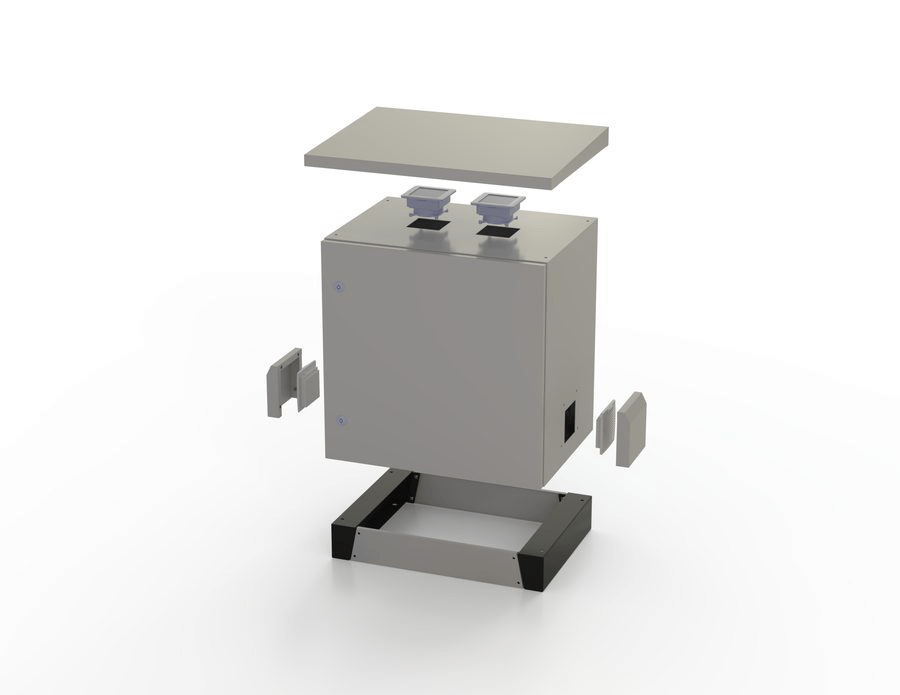

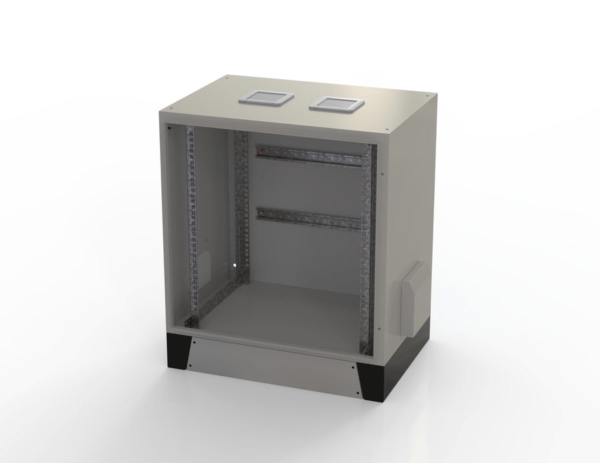

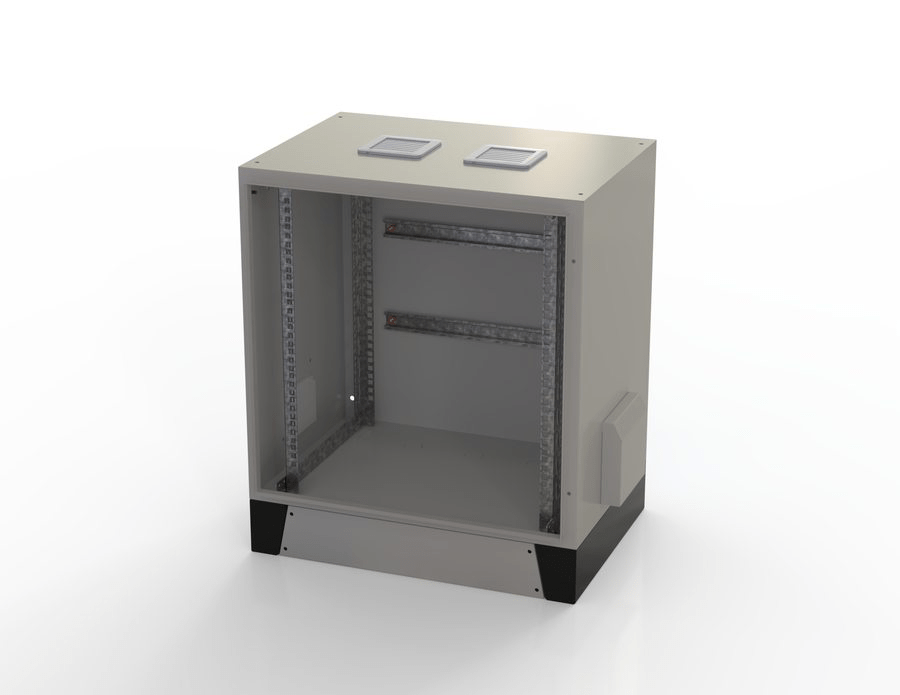

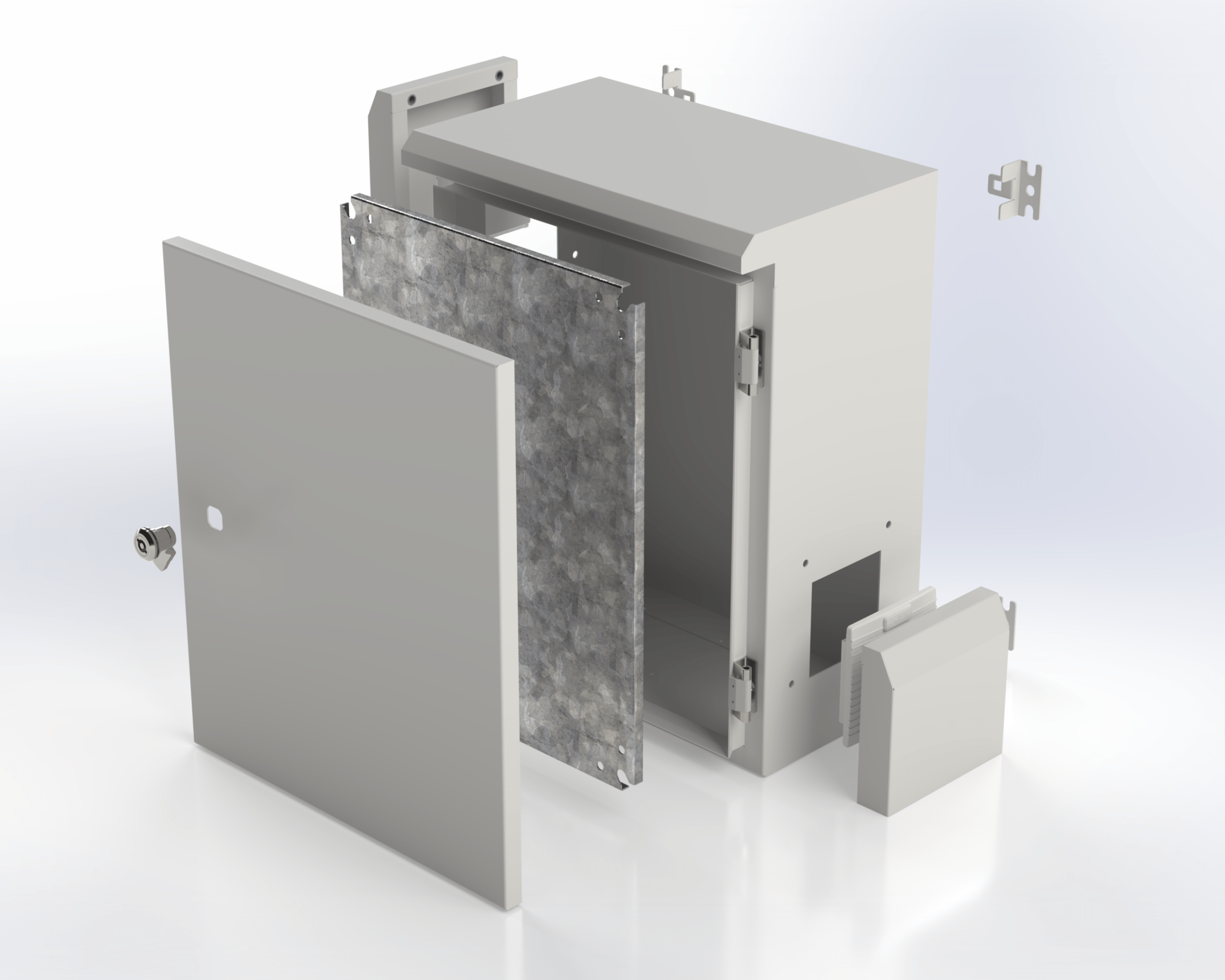

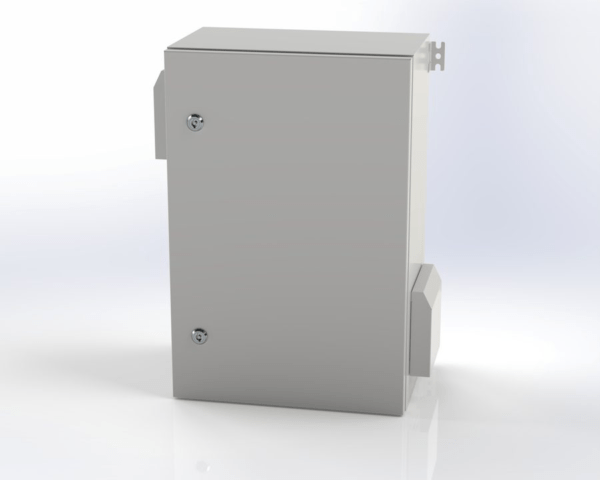

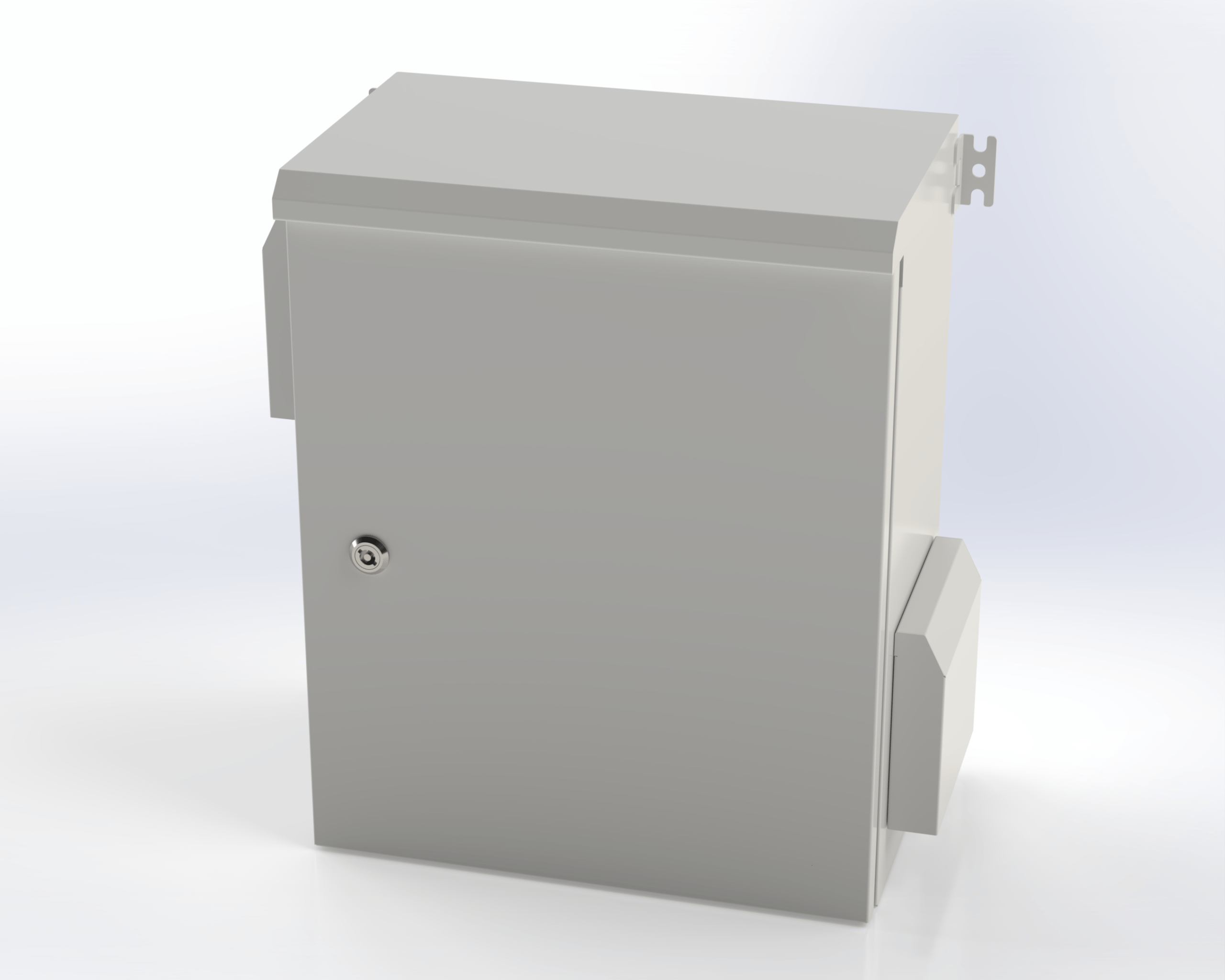

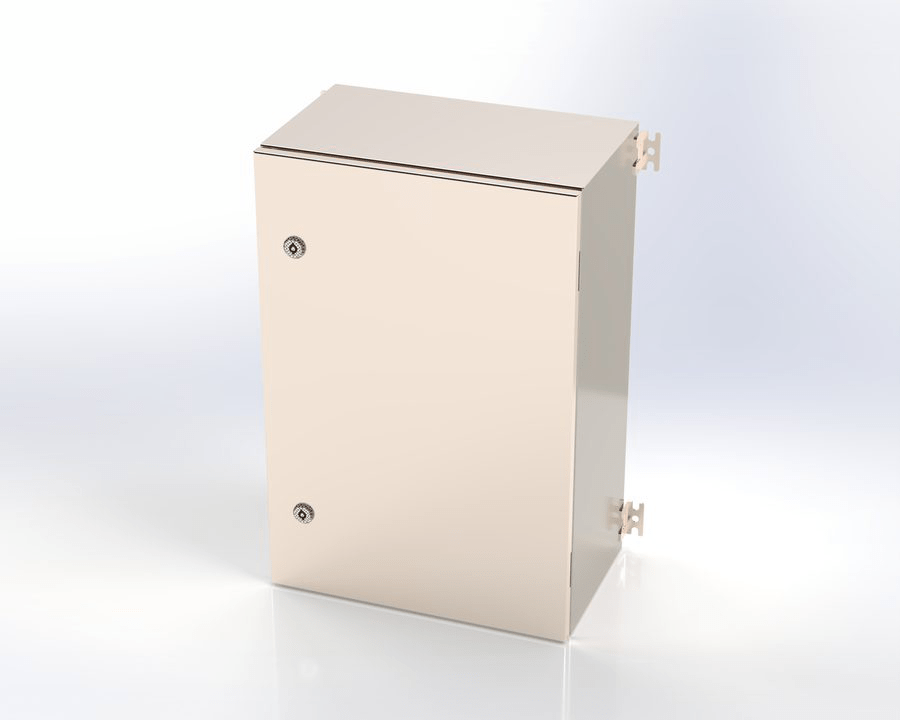

• key_features_tab: <p><strong>Construction & Finish</strong></p> <ul> <li>Steel structure with electrostatic powder coating</li> <li>Galvanized sheet-steel body and door</li> <li>Available in Standard Grey (RAL 7035), Black, Orange (RAL 2004), Red (RAL 3020) or brushed Stainless Steel AISI 304 / 316L (suffix -SS)</li> <li>Custom RAL colour finishes available as an option</li> <li>Optional anti-corrosion coating (C5) for harsh environments</li> <li>Includes galvanized steel mounting plate (chassis)</li> <li>IP65 dust and splash protection, IK10 impact resistance (IP66 on stainless steel versions)</li> </ul> <p><strong>Security & Access</strong></p> <ul> <li>Universal lock system with tamper-resistant key-lock mechanism</li> <li>Up to 3 locking points on larger models for enhanced security</li> <li>Optional transparent door for visual status monitoring</li> <li>Robust continuous hinge system on all models</li> <li>Two-door design available on larger formats, with anti-vandal lock and 300mm plinths</li> </ul> <p><strong>Thermal Management</strong></p> <ul> <li>Passive ventilation louvers (side-mounted) for natural airflow</li> <li>Dual airflow architecture: cool air intake through the upper fan, hot air exhaust through the lower louver</li> <li>Active cooling: fan + filter option for heat-sensitive equipment</li> <li>Ventilation kit with filters, resistance heating and thermostat for smart ventilation control</li> <li>FD-100W semiconductor TEC air conditioner for sealed, closed-loop internal cooling</li> <li>Optional AC unit integration for extreme environments</li> <li>Thermal analysis available upon request</li> </ul> <p><strong>Mounting Options</strong></p> <ul> <li>Fully wall-mountable (wall mounting kit included)</li> <li>Pole mounting brackets available for outdoor installations</li> <li>Suitable for pole, wall or surface mounting in harsh conditions</li> <li>Bottom cable entry with gland plate for IP-rated sealing (gland size varies by model)</li> </ul> <p><strong>Accessories</strong></p> <ul> <li>Rain canopy and protection hood against rain, dust and direct sunlight</li> <li>Heavy-duty wall mounting brackets and pole mount kit</li> <li>Sealed cable glands for secure cable entry and strain relief</li> <li>Earthing kit</li> <li>Plinths, wall supports, roofs and custom-built solutions on request</li> </ul>

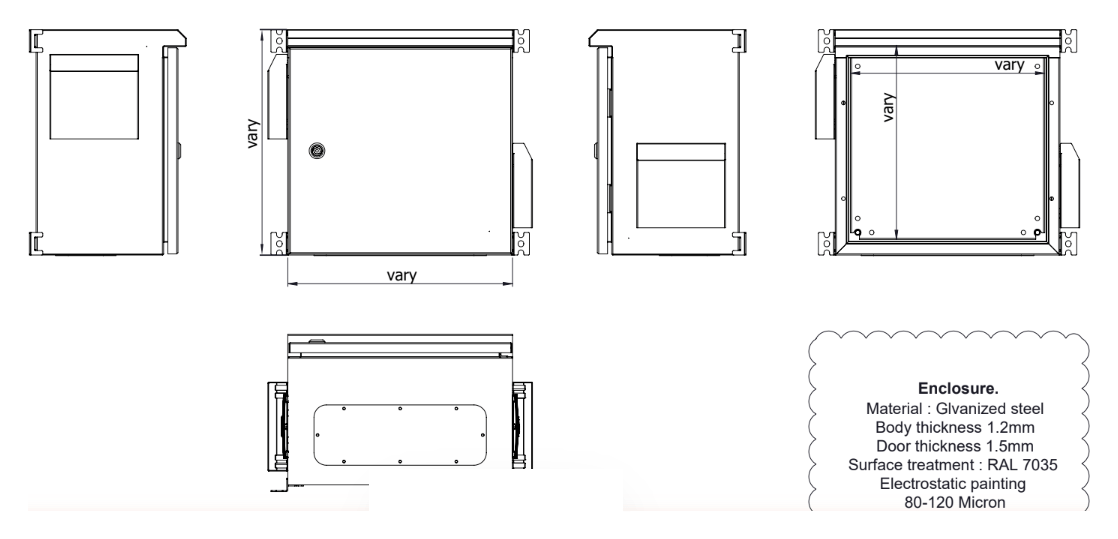

• specifications_tab: <table class="common_table_sky"> <thead> <tr> <th colspan="2">Protection</th> </tr> </thead> <tbody> <tr> <td>Ingress Protection</td> <td>IP65 (dust and splash protection)</td> </tr> <tr> <td>Impact Resistance</td> <td>IK10</td> </tr> <tr> <td>Stainless Steel Versions</td> <td>IP66</td> </tr> <tr> <td>Optional Corrosion Protection</td> <td>C5 anti-corrosion coating</td> </tr> </tbody> <thead> <tr> <th colspan="2">Construction</th> </tr> </thead> <tbody> <tr> <td>Body Material</td> <td>Galvanized steel</td> </tr> <tr> <td>Body Thickness</td> <td>1.2mm</td> </tr> <tr> <td>Door Thickness</td> <td>1.5mm</td> </tr> <tr> <td>Mounting Plate</td> <td>Galvanized steel chassis included</td> </tr> <tr> <td>Hinges</td> <td>Robust continuous hinge, all models</td> </tr> </tbody> <thead> <tr> <th colspan="2">Finish</th> </tr> </thead> <tbody> <tr> <td>Surface Treatment</td> <td>Electrostatic powder coating, 80 – 120 micron</td> </tr> <tr> <td>Standard</td> <td>Grey (RAL 7035)</td> </tr> <tr> <td>Optional</td> <td>Black (-B), Orange RAL 2004 (-OR), Red RAL 3020 (-RD)</td> </tr> <tr> <td>Stainless Steel</td> <td>AISI 304 / 316L, brushed finish (-SS)</td> </tr> <tr> <td>Custom</td> <td>Custom RAL colours on request</td> </tr> </tbody> <thead> <tr> <th colspan="2">Security</th> </tr> </thead> <tbody> <tr> <td>Lock System</td> <td>Universal tamper-resistant key lock</td> </tr> <tr> <td>Locking Points</td> <td>1 to 3, depending on enclosure size</td> </tr> <tr> <td>Options</td> <td>Transparent door, two-door design, anti-vandal lock</td> </tr> </tbody> <thead> <tr> <th colspan="2">Mounting</th> </tr> </thead> <tbody> <tr> <td>Wall Mount</td> <td>Wall mounting kit included</td> </tr> <tr> <td>Pole Mount</td> <td>Heavy-duty pole mounting brackets available</td> </tr> </tbody> <thead> <tr> <th colspan="2">Cable Entry</th> </tr> </thead> <tbody> <tr> <td>Type</td> <td>Bottom gland plate</td> </tr> <tr> <td>Gland Plate Reference</td> <td>0 – no gland plate | A – 100mm gland | B – 216mm gland | C – 330mm gland | D – 2x 330mm gland | E – 3x gland configuration</td> </tr> </tbody> <thead> <tr> <th colspan="2">Thermal Management</th> </tr> </thead> <tbody> <tr> <td>Standard</td> <td>Passive side ventilation louvers</td> </tr> <tr> <td>Airflow</td> <td>Dual airflow: upper fan intake, lower louver exhaust</td> </tr> <tr> <td>Active Cooling</td> <td>Fan + filter kit</td> </tr> <tr> <td>Ventilation Kit</td> <td>Filters, resistance heating, thermostat</td> </tr> <tr> <td>Air Conditioning</td> <td>FD-100W semiconductor TEC air conditioner, closed-loop cooling</td> </tr> <tr> <td>Optional</td> <td>Full AC unit integration</td> </tr> </tbody> <thead> <tr> <th colspan="2">Dimensions</th> </tr> </thead> <tbody> <tr> <td>Available Sizes</td> <td>38 wall-mount sizes, 200 x 200 x 150mm to 800 x 1200 x 200mm (W x H x D)</td> </tr> <tr> <td>Model Code</td> <td>Size code + finish suffix, e.g. PL504023-B = 400W x 500H x 230D mm in Black</td> </tr> </tbody> </table> <table class="common_table_sky"> <thead> <tr> <th colspan="6">Selection Guide – Wall Mount (38 Models)</th> </tr> <tr> <td><strong>Size Code</strong></td> <td><strong>W (mm)</strong></td> <td><strong>H (mm)</strong></td> <td><strong>D (mm)</strong></td> <td><strong>Locks</strong></td> <td><strong>Gland</strong></td> </tr> </thead> <tbody> <tr> <td>PL202015</td> <td>200</td> <td>200</td> <td>150</td> <td>1</td> <td>0</td> </tr> <tr> <td>PL252515</td> <td>250</td> <td>250</td> <td>150</td> <td>1</td> <td>A</td> </tr> <tr> <td>PL302015</td> <td>200</td> <td>300</td> <td>150</td> <td>1</td> <td>A</td> </tr> <tr> <td>PL302515</td> <td>250</td> <td>300</td> <td>150</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL303015</td> <td>300</td> <td>300</td> <td>150</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL403015</td> <td>300</td> <td>400</td> <td>150</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL304015</td> <td>400</td> <td>300</td> <td>150</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL204015</td> <td>400</td> <td>200</td> <td>150</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL305015</td> <td>500</td> <td>300</td> <td>150</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL405015</td> <td>500</td> <td>400</td> <td>150</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL505015</td> <td>500</td> <td>500</td> <td>150</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL605015</td> <td>500</td> <td>600</td> <td>150</td> <td>2</td> <td>B</td> </tr> <tr> <td>PL506015</td> <td>600</td> <td>500</td> <td>150</td> <td>2</td> <td>B</td> </tr> <tr> <td>PL606015</td> <td>600</td> <td>600</td> <td>150</td> <td>2</td> <td>B</td> </tr> <tr> <td>PL253020</td> <td>300</td> <td>250</td> <td>200</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL303020</td> <td>300</td> <td>300</td> <td>200</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL403023</td> <td>300</td> <td>400</td> <td>230</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL404023</td> <td>400</td> <td>400</td> <td>230</td> <td>1</td> <td>B</td> </tr> <tr> <td>PL504023</td> <td>400</td> <td>500</td> <td>230</td> <td>1</td> <td>C</td> </tr> <tr> <td>PL406023</td> <td>400</td> <td>600</td> <td>230</td> <td>2</td> <td>C</td> </tr> <tr> <td>PL505020</td> <td>500</td> <td>500</td> <td>200</td> <td>1</td> <td>D</td> </tr> <tr> <td>PL604025</td> <td>400</td> <td>600</td> <td>250</td> <td>2</td> <td>C</td> </tr> <tr> <td>PL605020</td> <td>500</td> <td>600</td> <td>200</td> <td>2</td> <td>D</td> </tr> <tr> <td>PL606020</td> <td>600</td> <td>600</td> <td>200</td> <td>2</td> <td>D</td> </tr> <tr> <td>PL705030</td> <td>500</td> <td>700</td> <td>300</td> <td>2</td> <td>D</td> </tr> <tr> <td>PL706020</td> <td>600</td> <td>700</td> <td>200</td> <td>2</td> <td>D</td> </tr> <tr> <td>PL806025</td> <td>600</td> <td>800</td> <td>250</td> <td>2</td> <td>D</td> </tr> <tr> <td>PL806030</td> <td>600</td> <td>800</td> <td>300</td> <td>2</td> <td>E</td> </tr> <tr> <td>PL1006020</td> <td>600</td> <td>1000</td> <td>200</td> <td>3</td> <td>D</td> </tr> <tr> <td>PL1008020</td> <td>800</td> <td>1000</td> <td>200</td> <td>3</td> <td>E</td> </tr> <tr> <td>PL1206020</td> <td>600</td> <td>1200</td> <td>200</td> <td>3</td> <td>D</td> </tr> <tr> <td>PL1208020</td> <td>800</td> <td>1200</td> <td>200</td> <td>3</td> <td>E</td> </tr> <tr> <td>PL404025</td> <td>400</td> <td>400</td> <td>250</td> <td>1</td> <td>C</td> </tr> <tr> <td>PL406025</td> <td>600</td> <td>400</td> <td>250</td> <td>1</td> <td>D</td> </tr> <tr> <td>PL504025</td> <td>400</td> <td>500</td> <td>250</td> <td>1</td> <td>C</td> </tr> <tr> <td>PL505025</td> <td>500</td> <td>500</td> <td>250</td> <td>1</td> <td>D</td> </tr> <tr> <td>PL605025</td> <td>500</td> <td>600</td> <td>250</td> <td>2</td> <td>D</td> </tr> <tr> <td>PL606025</td> <td>600</td> <td>600</td> <td>250</td> <td>2</td> <td>D</td> </tr> </tbody> </table> <p>Gland plate reference: 0 – no gland plate | A – 100mm gland | B – 216mm gland | C – 330mm gland | D – 2x 330mm gland | E – 3x gland configuration</p> <p><strong>Ordering Information</strong></p> <p>Each wall-mount enclosure is ordered with a single model code built from the size code, the finish suffix and the required cable-gland option – for example PL504023-B (500 x 400 x 230 mm, black) or PL604025-SS (600 x 400 x 250 mm, stainless steel).</p> <table class="common_table_sky"> <thead><tr><th colspan="2">Model Code Structure</th></tr></thead> <tbody> <tr><td>Prefix</td><td>PL – PLANET outdoor enclosure series</td></tr> <tr><td>Size code (6 digits)</td><td>Width / Height / Depth in centimetres, e.g. 604025 = 600 x 400 x 250 mm</td></tr> <tr><td>Finish suffix</td><td>Added after the size code – see Finish & Colour Options below</td></tr> <tr><td>Cable gland option</td><td>Gland code 0 / A / B / C / D / E as listed in the Selection Guide above</td></tr> <tr><td>Model code examples</td><td>PL403023, PL504023-B, PL604025-SS, PL806030-SS</td></tr> </tbody> <thead><tr><th colspan="2">Finish & Colour Options</th></tr></thead> <tbody> <tr><td>No suffix</td><td>Standard Pebble Grey RAL 7035, electrostatic powder coating 80–120 micron</td></tr> <tr><td>-B</td><td>Black</td></tr> <tr><td>-OR</td><td>Orange RAL 2004</td></tr> <tr><td>-RD</td><td>Red RAL 3020</td></tr> <tr><td>-SS</td><td>Stainless steel AISI 304 / 316L, brushed finish (IP66, IK10)</td></tr> <tr><td>Custom</td><td>Other RAL colours available on request</td></tr> </tbody> <thead><tr><th colspan="2">Accessories & Options Ordered Separately</th></tr></thead> <tbody> <tr><td>Mounting</td><td>Wall mounting bracket set, pole mounting kit, 300 mm plinth</td></tr> <tr><td>Weather protection</td><td>Rain canopy, protection hood</td></tr> <tr><td>Cable entry</td><td>Cable gland plates and cable glands</td></tr> <tr><td>Thermal management</td><td>Ventilation kit (fan + filter), spare filters, resistance heating, thermostat</td></tr> <tr><td>Active cooling</td><td>FD-100W semiconductor TEC air conditioner with 360° circulating convection</td></tr> <tr><td>Earthing</td><td>Earthing / bonding kit</td></tr> <tr><td>Security options</td><td>Anti-vandal lock, two-door configuration, transparent inspection door</td></tr> </tbody> </table>
