DC Single Output Industrial DIN Rail Power Supply Units

» PWR-120-48/PWR-240-48/PWR-480-48/PWR-75-48/PWR-960-48

Compact Size with more Practicability and Convenience

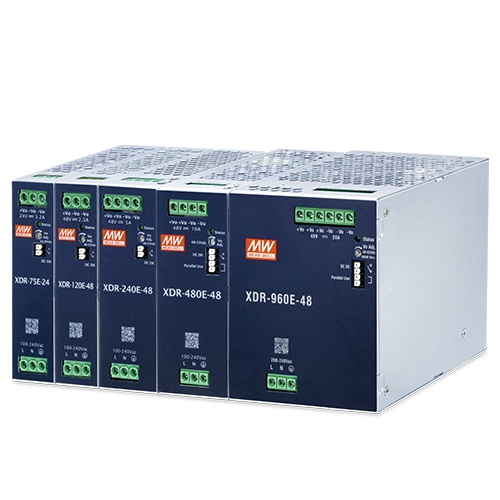

PLANET has released a series of DC single output industrial DIN-rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily.

PLANET DC single output industrial DIN rail power supply units accept universal 100-240V AC input voltage and provide 48V DC power output with various watt values. Its power supply units are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for Industrial equipment under heavy Industrial environments.





Stable Performance under Difficult Environments

PLANET DC single output industrial DIN-rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -40 to 70 degrees C (maximum), the DC single output industrial DIN-rail power supply units can be placed in almost any difficult environments.

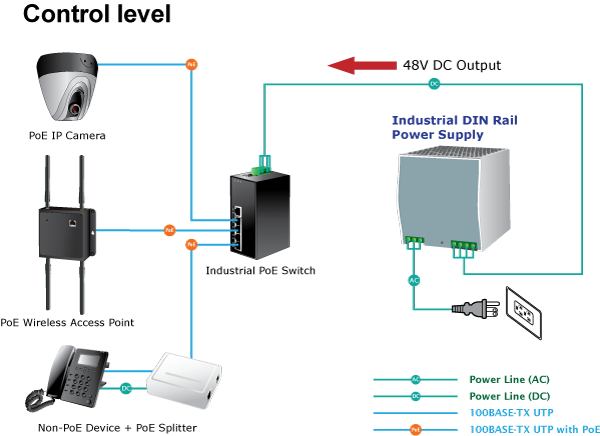

Ideal 48V DC Power Feeding Solution for PoE Industrial Equipment

The following DC single output industrial DIN-rail power supply units provide sufficient 48V power to industrial PoE equipment, such as industrial PoE Ethernet switches and industrial PoE wireless access points. The model names and specifications are:

  • PWR-75-48 (MEAN WELL -- XDR-75E-48):
    • 75W 48V DC Single Output Industrial DIN-rail Power Supply (-40 ~ 70 degrees C)
  • PWR-120-48 (MEAN WELL -- XDR-120E-48):
    • 120W 48V DC Single Output Industrial DIN-rail Power Supply (-40 ~ 70 degrees C)
  • PWR-240-48 (MEAN WELL -- XDR-240E-48):
    • 240W 48V DC Single Output Industrial DIN-rail Power Supply (-40 ~ 70 degrees C)
  • PWR-480-48 (MEAN WELL -- XDR-480E-48):
    • 480W 48V DC Single Output Industrial DIN-rail Power Supply (-40 ~ 70 degrees C)
  • PWR-960-48 (MEAN WELL -- XDR-960E-48):
    • 960W 48V DC Single Output Industrial DIN-rail Power Supply (-40 ~ 70 degrees C)





PWR-75-48 (MEAN WELL -- XDR-75E-48)

  • Universal AC input for full operation
  • ITE 62368-1, Industrial 61558-1/-2-16, 61010 certificates
  • Built-in constant current limiting circuit
  • Protection features: short circuit, overload, over voltage and over temperature
  • Cooling by free air convection
  • Operating altitude up to 5000 meters
  • Built-in DC OK Relay contact
  • DIN rail TS-35/7.5 or 15 installation

PWR-120-48 (MEAN WELL -- XDR-120E-48)

  • Universal AC input for full operation
  • ITE 62368-1, Industrial 61558-1/-2-16, 61010 certificates
  • Built-in constant current limiting circuit
  • Protection features: short circuit, overload, over voltage and over temperature
  • Cooling by free air convection
  • Operating altitude up to 5000 meters
  • Built-in DC OK Relay contact
  • DIN rail TS-35/7.5 or 15 installation

PWR-240-48 (MEAN WELL -- XDR-240E-48)

  • Universal AC input for full operation
  • ITE 62368-1, Industrial 61558-1/-2-16, 61010 certificates
  • Built-in constant current limiting circuit
  • Protection features: short circuit, overload, over voltage and over temperature
  • Cooling by free air convection
  • Operating altitude up to 5000 meters
  • Built-in DC OK Relay contact
  • DIN rail TS-35/7.5 or 15 installation

PWR-480-48 (MEAN WELL -- XDR-480E-48)

  • Universal AC input full operation
  • ITE 62368-1, Industrial 61558-1/-2-16, 61010 certificates
  • Built-in constant current limiting circuit
  • Protection features: short circuit, overload, over voltage and over temperature
  • Cooling by free air convection
  • Operating altitude up to 5000 meters
  • Built-in DC OK Relay contact
  • DIN rail TS-35/7.5 or 15 installation

PWR-960-48 (MEAN WELL -- XDR-960E-48)

  • Universal AC input full operation
  • Built-in active PFC function
  • ITE 62368-1, Industrial 61558-1/-2-16, 61010 certificates
  • Protection features: short circuit, overload, over voltage and over temperature
  • Cooling by free air convection
  • Operating altitude up to 5000 meters
  • Built-in DC OK Relay contact
  • DIN rail TS-35/7.5 or 15 installation
PWR-75-48 (MEAN WELL -- XDR-75E-48)
Hardware Version2
Dimensions (W x H x D)30 x 125 x 116 mm
Weight400g
Input Voltage85 ~ 264VAC, 50/60Hz
127 ~ 370VDC
[DC input operation possible by connecting AC/L(+), AC/N(-)]
Power Output75 watts,48V, 1.6A
TemperatureOperating:-40~70 degrees C (**)
Storage:-40~85 degrees C
HumidityOperating: 20 ~ 95% (non-condensing)
Storage: 10 ~ 95% (non-condensing)
InstallationDIN rail TS-35/7.5 or 15
Safety & FunctionUL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16, / ; CB IEC62368-1, IEC61558-1, ; TUV BS EN EN61010 IEC61010
RCM AS/NZS 61558-1/-2-16; BSMI CNS1 -1; CCC GB4943.1
EAC TPTC004 approved; KC KC62368-1 BIS IS13252 (Part 1):2010 certified
Remark*The specification is for PWR-75-48 hardware version 2 only.
** Please refer to output load derating curve from product specification.

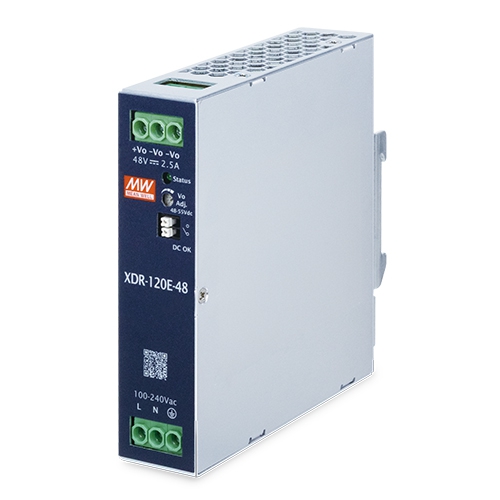

PWR-120-48 (MEAN WELL -- XDR-120E-48)
Hardware Version3
Dimensions (W x H x D)30 x 125 x 116 mm
Weight420g
Input Voltage85 ~ 264VAC, 50/60Hz
127 ~ 370VDC
[DC input operation possible by connecting AC/L(+), AC/N(-)]
Power Output120 watts, 48V, 2.5A
TemperatureOperating:-40~70 degrees C (**)
Storage:-40~85 degrees C
HumidityOperating: 20 ~ 95% (non-condensing)
Storage: 10 ~ 95% (non-condensing)
InstallationDIN rail TS-35/7.5 or 15
Safety & FunctionUL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16, / ; CB IEC62368-1, IEC61558-1, ; TUV BS EN EN61010 IEC61010
RCM AS/NZS 61558-1/-2-16; BSMI CNS1 -1; CCC GB4943.1
EAC TPTC004 approved; KC KC62368-1 BIS IS13252 (Part 1):2010 certified
Remark*The specification is for PWR-120-48 hardware version 3 only.
** Please refer to output load derating curve from product specification.

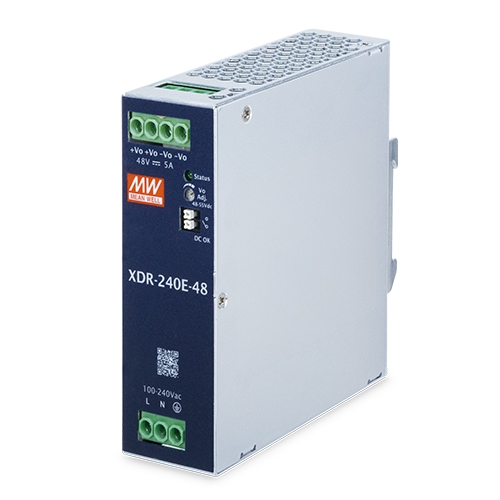

PWR-240-48 (MEAN WELL -- XDR-240E-48)
Hardware Version3
Dimensions (W x H x D)40 x 125 x 116 mm
Weight610g
Input Voltage85 ~ 264VAC, 50/60Hz
127 ~ 370VDC
Power Output240 watts, 48V, 5A
TemperatureOperating: -40~70 degrees C (**)
Storage:-40~85 degrees C
HumidityOperating: 20 ~ 95% (non-condensing)
Storage: 10 ~ 95% (non-condensing)
InstallationDIN rail TS-35/7.5 or 15
Safety & FunctionUL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16, / ; CB IEC62368-1, IEC61558-1, ; TUV BS EN EN61010 IEC61010
RCM AS/NZS 61558-1/-2-16; BSMI CNS1 -1; CCC GB4943.1
EAC TPTC004 approved; KC KC62368-1 BIS IS13252 (Part 1):2010 certified
Remrk*The specification is for PWR-240-48 hardware version 3 only.
** Please refer to output load derating curve from product specification.

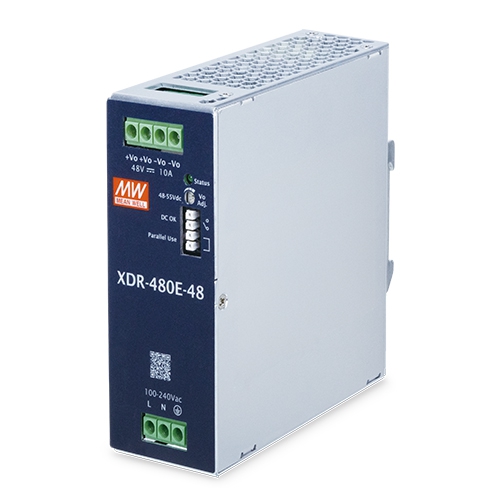

PWR-480-48 (MEAN WELL -- XDR-480E-48)
Hardware Version3
Dimensions (W x H x D)48 x 125 x 125mm
Weight890g
Input Voltage85 ~ 264VAC, 50/60Hz
127 ~ 370VDC
Power Output480 watts, 48V, 10A
TemperatureOperating:-40~70 degrees C (**)
Storage:-40~85 degrees C
HumidityOperating:20~95%(non-condensing)
Storage: 10 ~ 95% (non-condensing)
InstallationDIN rail TS-35/7.5 or 15
Safety & FunctionUL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16, / ; CB IEC62368-1, IEC61558-1, ; TUV BS EN EN61010 IEC61010
RCM AS/NZS 61558-1/-2-16; BSMI CNS1 -1; CCC GB4943.1
EAC TPTC004 approved; KC KC62368-1 BIS IS13252 (Part 1):2010 certified
Remark*The specification is for PWR-480-48 hardware version 3 only.
** Please refer to output load derating curve from product specification.

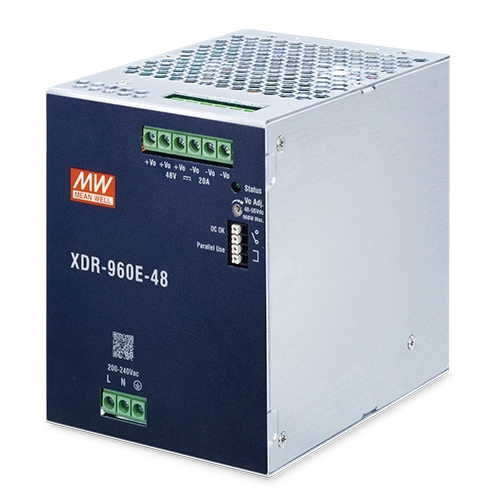

PWR-960-48 (MEAN WELL -- XDR-960E-48)
Hardware Version2
Dimensions (W x H x D)96 x 125 x 132mm
Weight2.47kg
Input Voltage180 ~ 264VAC, 50/60Hz
254 ~ 370VDC
Power Output960 watts, 48V,20A
TemperatureOperating:-40~70 degrees C (**)
Storage:-40~85 degrees C
HumidityOperating:20~95%(non-condensing)
Storage: 10 ~ 95% (non-condensing)
InstallationDIN rail TS-35/7.5 or 15
Safety & FunctionUL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16, / ; CB IEC62368-1, IEC61558-1, ; TUV BS EN EN61010 IEC61010
RCM AS/NZS 61558-1/-2-16; BSMI CNS1 -1; CCC GB4943.1
EAC TPTC004 approved; KC KC62368-1 BIS IS13252 (Part 1):2010 certified
Remark*The specification is for PWR-960-48 hardware version 2 only.
** Please refer to output load derating curve from product specification.
DateVersionDescriptionDownload
2024/12/042.1

PWR-120-48/PWR-240-48/PWR-480-48/PWR-75-48/PWR-960-48

 Download Icon
DateVersionDescriptionDownload
2023/01/091.6

Release for PWR-120-48/240-48/PWR-480-48 Version 2.0, add New model PWR-960-48.

 Download Icon
2016/23/091.4

Release for PWR-120-48/240-48/PWR-480-48 Version 2.0, add New model PWR-75-48.

 Download Icon
2013/09/081.3

Add PWR-480-48.

 Download Icon


Model

Description

PWR-40-24 / PWR-60-24 / PWR-75-24

DC Single Output Industrial DIN-rail Power Supply Units

Ordering Information

PWR-120-48/PWR-240-48/PWR-480-48/PWR-75-48/PWR-960-48

DC Single Output Industrial DIN Rail Power Supply Units

Ordering Information

PWR-75-48　(MEAN WELL/NDR-75-48)

75W 48V DC Single Output Industrial DIN-rail Power Supply

PWR-120-48 (MEAN WELL/NDR-120-48):

120W 48V DC Single Output Industrial DIN-rail Power Supply

PWR-240-48 (MEAN WELL/NDR-240-48):

240W 48V DC Single Output Industrial DIN-rail Power Supply

PWR-480-48 (MEAN WELL/NDR-480-48):

480W 48V DC Single Output Industrial DIN-rail Power Supply

PWR-960-48 (MEAN WELL/SDR-960-48):

960W 48V DC Single Output Industrial DIN-rail Power Supply

✉

Join Our Newsletter

Get the latest news, offers and updates from PLANET Technology straight to your inbox.

We respect your privacy. Unsubscribe anytime.

Subscribe to PLANET e Newsletter

Receive the latest product information and company news!
