product_editor_4418_tab_content: <p>Ideal DC 24V Power Feeding Solution for Non-PoE Industrial Devices</p>
<p>The following DC single output industrial DIN-rail power supply units are able to supply sufficient 24V power to non-PoE industrial devices, such as industrial Fast/Gigabit Ethernet switches and industrial VDSL2 converters. The model names and specifications are: </p>
<ul>
<li><strong>PWR-40-24 (MEAN WELL/MDR-40-24): </strong></li>
40W 24V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C)</ul>
<ul>
<li><strong>PWR-60-24 (MEAN WELL/MDR-60-24): </strong></li>
60W 24V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C)</ul>
<ul>
<li><strong>PWR-75-24 (MEAN WELL/NDR-75-24): </strong></li>
75W 24V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C)</ul>
<p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/wp-content/uploads/2025/01/PWR-40-24_PWR-75-24_L1.gif" alt="" width="600" height="414" /></p>

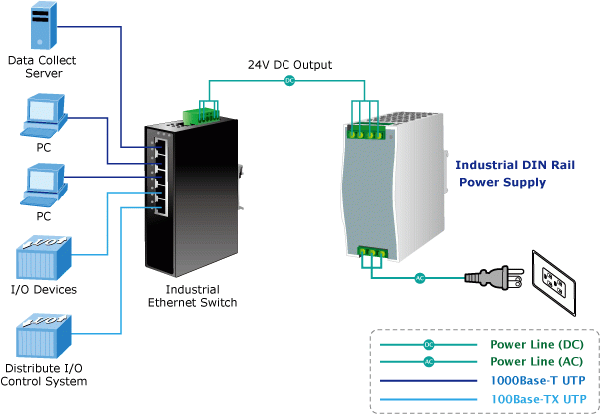

applications_tab: <p><strong>Ideal 24V DC Power Feeding Solution for Non-PoE Industrial Devices</strong></p><p>The following DC single output industrial DIN-rail power supply units are able to supply sufficient 24V power to non-PoE industrial devices, such as industrial Fast/Gigabit Ethernet switches and industrial VDSL2 converters. The model names and specifications are: </p><ul>
<li><strong>PWR-40-24 (MEAN WELL/MDR-40-24): </strong>
<ul>
<li>40W <strong>24V</strong> DC Single Output Industrial DIN-rail Power Supply （-20 ~ 70 degrees C）</li>
</ul>
</li>
<li><strong>PWR-60-24 (MEAN WELL/MDR-60-24):</strong>
<ul>
<li>60W<strong> 24V</strong> DC Single Output Industrial DIN-rail Power Supply （-20 ~ 70 degrees C）</li>
</ul>
</li>
<li><strong>PWR-75-24 (MEAN WELL/XDR-75E-24):</strong>
<ul>
<li>75W <strong>24V</strong> DC Single Output Industrial DIN-rail Power Supply （-40 ~ 70 degrees C）</li>
</ul>
</li>
</ul><p> </p><p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://www.planet.com.sa/wp-content/uploads/2025/01/PWR-40-24_PWR-75-24_L2.gif" alt="" width="600" height="414"></p>
key_features_tab: <p><strong>PWR-40-24 (MEAN WELL/MDR-40-24)</strong></p><ul>
<li>Universal AC input / full range</li>
<li>Protection: short circuit, overload and over voltage</li>
<li>Cooling by free air convection</li>
<li>For installation on DIN rail TS-35/7.5 or 15</li>
<li>NEC class 2 / LPS compliant</li>
<li>LED indicator for power on</li>
<li>DC OK relay contact</li>
<li>No load power consumption<0.75W</li>
<li>100% full load burn-in test</li>
</ul><p> </p><p><strong>PWR-60-24 (MEAN WELL/MDR-60-24)</strong></p><ul>
<li>Universal AC input / full range</li>
<li>Protection: short circuit, overload and over voltage</li>
<li>Cooling by free air convection</li>
<li>For installation on DIN rail TS-35/7.5 or 15</li>
<li>LED indicator for power on</li>
<li>DC OK relay contact</li>
<li>No load power consumption<0.75W</li>
<li>100% full load burn-in test</li>
</ul><p> </p><p><strong>PWR-75-24 (MEAN WELL/XDR-75E-24)</strong></p><ul>
<li>Universal AC input / full range</li>
<li>ITE 62368-1, Industrial 61558-1/-2-16, 61010 certificates</li>
<li>Built-in constant current limiting circuit</li>
<li>Protection: short circuit, overload, over voltage and over temperature</li>
<li>Cooling by free air convection</li>
<li>Operating altitude up to 5000 meters</li>
<li>Built-in DC OK Relay contact</li>
<li>For installation on DIN rail TS-35/7.5 or 15</li>
</ul>
specifications_tab: <table style="width:100%;" class="common_table_sky"><thead><tr><th colspan="2">PWR-40-24 (MEAN WELL/MDR-40-24)</th></tr></thead><tbody><tr><td class="align-middle">Dimensions (W x D x H)</td><td>40 x 100 x 90mm</td></tr><tr><td class="align-middle">Weight (kg)</td><td>0.3kg</td></tr><tr><td class="align-middle">Input Voltage</td><td>85 ~ 264VAC ,50/60Hz<br />
120 ~ 370VDC</td></tr><tr><td class="align-middle">Output Voltage Adj. Range</td><td>24-30V</td></tr><tr><td class="align-middle">Power Output</td><td>40 watts, 24V, 1.7A</td></tr><tr><td class="align-middle">Protection Overload</td><td>105-150% rated output power<br />
Protection type: constant current limiting, recovers automatically after fault condition is removed</td></tr><tr><td class="align-middle">Protection Over Voltage</td><td>31.2~36V<br />
Protection type: Shut down o/p voltage, re-power on to recover</td></tr><tr><td class="align-middle">Temperature</td><td><b>Operating:</b> -20~70 degrees C<br />
<b>Storage:</b> -40~85 degrees C</td></tr><tr><td class="align-middle">Humidity</td><td><b>Operating:</b> 20 ~ 90%<br />
<b>Storage:</b> 10 ~ 95% (non-condensing)</td></tr><tr><td class="align-middle">Installation</td><td>DIN Rail TS-35/7.5 or 15</td></tr><tr><td class="align-middle">Safety & Function</td><td>UL508, TUV EN60950-1 approved, NEC class 2 / LPS compliant</td></tr></tbody><thead><tr><th colspan="2">PWR-60-24 (MEAN WELL/MDR-60-24)</th></tr></thead><tbody><tr><td class="align-middle">Dimensions (W x D x H)</td><td>40 x 100 x 90mm</td></tr><tr><td class="align-middle">Weight (kg)</td><td>0.3kg</td></tr><tr><td class="align-middle">Input Voltage</td><td>85 ~ 264VAC,50/60Hz<br />
120 ~ 370VDC</td></tr><tr><td class="align-middle">Output Voltage Adj. Range</td><td>24-30V</td></tr><tr><td class="align-middle">Power Output</td><td>60 watts, 24V, 2.5A</td></tr><tr><td class="align-middle">Protection Overload</td><td>105-150% rated output power<br />
Protection type: constant current limiting, recovers automatically after fault condition is removed</td></tr><tr><td class="align-middle">Protection Over Voltage</td><td>31.2~36V<br />
Protection type: Shut down o/p voltage, re-power on to recover</td></tr><tr><td class="align-middle">Temperature</td><td><b>Operating:</b> -20~70 degrees C<br />
<b>Storage:</b> -40~85 degrees C</td></tr><tr><td class="align-middle">Humidity</td><td><b>Operating:</b> 20 ~ 90%<br />
<b>Storage:</b> 10 ~ 95% (non-condensing)</td></tr><tr><td class="align-middle">Installation</td><td>DIN Rail TS-35/7.5 or 15</td></tr><tr><td class="align-middle">Safety & Function</td><td>UL508, TUV EN60950-1 approved</td></tr></tbody><thead><tr><th colspan="2">PWR-75-24 (MEAN WELL/XDR-75E-24)</th></tr></thead><tbody><tr><td class="align-middle">Hardware Version</td><td>3</td></tr><tr><td class="align-middle">Dimensions (W x D x H)</td><td>30 x 116 x 125mm</td></tr><tr><td class="align-middle">Weight (kg)</td><td>0.4kg</td></tr><tr><td class="align-middle">Input Voltage</td><td>85 ~ 264VAC, 50/60Hz<br />
127 ~ 370VDC <br />
[DC input operation possible by connecting AC/L(+), AC/N(-)</td></tr><tr><td class="align-middle">Output Voltage Adj. Range</td><td>24-29V</td></tr><tr><td class="align-middle">Power Output</td><td>75 watts, 24V, 3.2A</td></tr><tr><td class="align-middle">Protection Overload</td><td>105-130% rated output power, constant current limiting without shutdown, recovers automatically after fault condition is removed</td></tr><tr><td class="align-middle">Protection Over Voltage</td><td>30~34V<br />
Protection type: Shut down o/p voltage, re-power on to recover</td></tr><tr><td class="align-middle">Protection Over Temperature</td><td>Protection type: Hiccup mode, recovers automatically after fault condition is removed</td></tr><tr><td class="align-middle">Temperature</td><td><b>Operating:</b> -40~70 degrees C<br />
<b>Storage:</b> -40~85 degrees C</td></tr><tr><td class="align-middle">Humidity</td><td><b>Operating:</b> 20 ~ 95% (non-condensing)<br />
<b>Storage:</b> 10 ~ 95% (non-condensing)</td></tr><tr><td class="align-middle">Installation</td><td>DIN Rail TS-35/7.5 or 15</td></tr><tr><td class="align-middle">Safety & Function</td><td>UL61010： TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16, BS EN/EN61010; CB IEC62368-1, IEC61558-1 IEC61010： RCM AS/NZS 62368-1, AS/NZS 61558-1/-2-16, BSMI CNS15598 -1, CCC GB4943.1,<br />
EAC TPTC004 approved： KC KC62368-1 and BIS IS13252 (Part 1):2010 certified</td></tr></tbody><thead><tr><th colspan="2">Remark</th></tr></thead><tbody></tbody></table>
rank_math_news_sitemap_robots: index
rank_math_robots: a:1:{i:0;s:5:"index";}
rank_math_internal_links_processed: 1

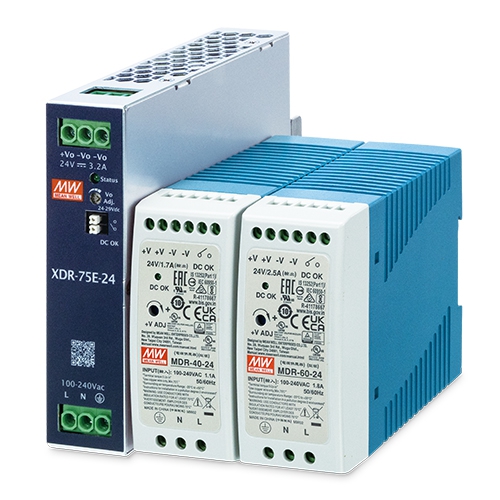

DC Single Output Industrial DIN-rail Power Supply Units
Compact Size with more Practicability and Convenience
PLANET has released a series of DC single output industrial DIN-rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily.
PLANET DC single output industrial DIN rail power supply units accept universal 100-240V AC input voltage and provide 24V DC power output with various watt values. Its power supply units are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for Industrial equipment under heavy Industrial environments.
Stable Performance under Difficult Environments
PLANET DC single output industrial DIN-rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -20 to 70 degrees C (maximum), the DC single output industrial DIN-rail power supply units can be placed in almost any difficult environments.
Ideal 24V DC Power Feeding Solution for Non-PoE Industrial Devices
The following DC single output industrial DIN-rail power supply units are able to supply sufficient 24V power to non-PoE industrial devices, such as industrial Fast/Gigabit Ethernet switches and industrial VDSL2 converters. The model names and specifications are:
PWR-40-24 (MEAN WELL/MDR-40-24):
40W 24V DC Single Output Industrial DIN-rail Power Supply （-20 ~ 70 degrees C）
PWR-60-24 (MEAN WELL/MDR-60-24):
60W 24V DC Single Output Industrial DIN-rail Power Supply （-20 ~ 70 degrees C）

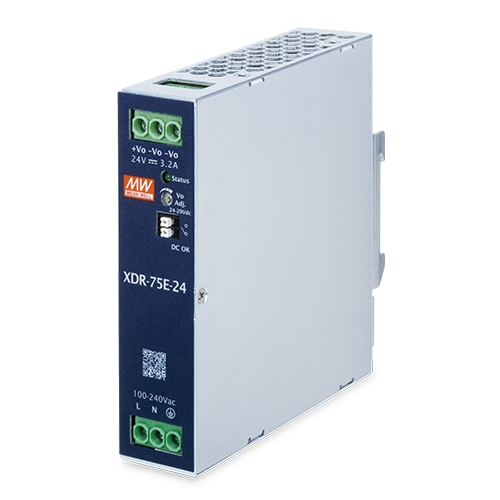

PWR-75-24 (MEAN WELL/XDR-75E-24):
75W 24V DC Single Output Industrial DIN-rail Power Supply （-40 ~ 70 degrees C）
PWR-40-24 (MEAN WELL/MDR-40-24)
Universal AC input / full range
Protection: short circuit, overload and over voltage
Cooling by free air convection
For installation on DIN rail TS-35/7.5 or 15
NEC class 2 / LPS compliant
LED indicator for power on
DC OK relay contact
No load power consumption<0.75W
100% full load burn-in test
PWR-60-24 (MEAN WELL/MDR-60-24)
Universal AC input / full range
Protection: short circuit, overload and over voltage
