Powerful 10Gbps and Layer 3 Routing Solution for Enterprise Backbone and Data Center Networking

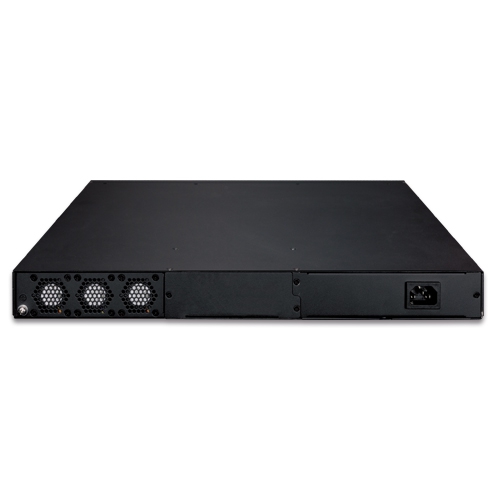

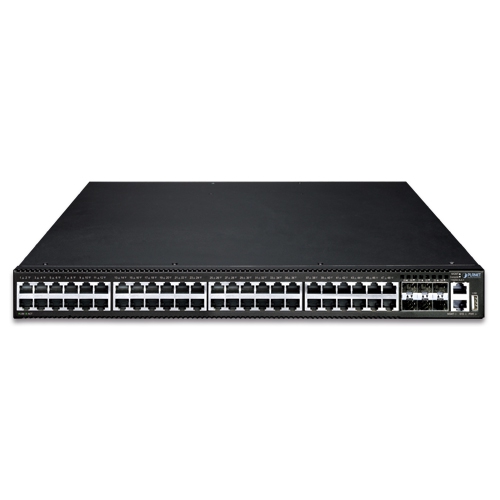

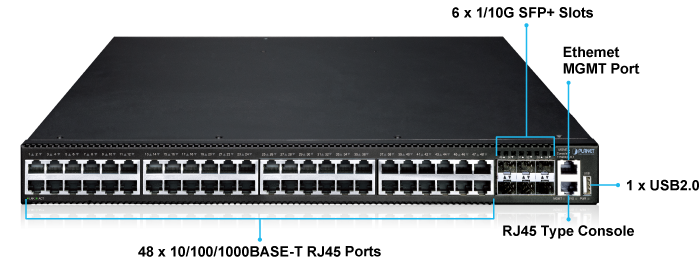

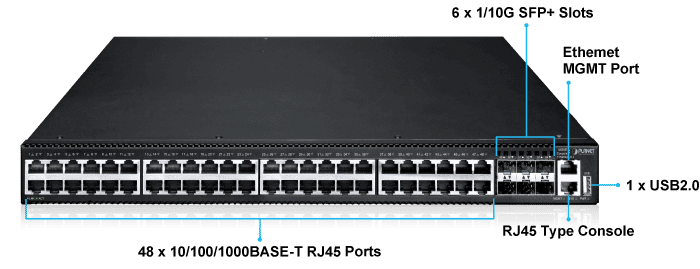

PLANET SGS-6341-48T6X is a brand-new Layer 3 Stackable Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The SGS-6341-48T6X features 48 10/100/1000BASE-T RJ45 ports and 6 1G/10GBASE-X SFP+ ports with 216Gbps switch fabric delivered in a 1U rugged case design.
PLANET SGS-6341-48T6X provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First), the SGS-6341-48T6X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and Network Security features make the SGS-6341-48T6X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.

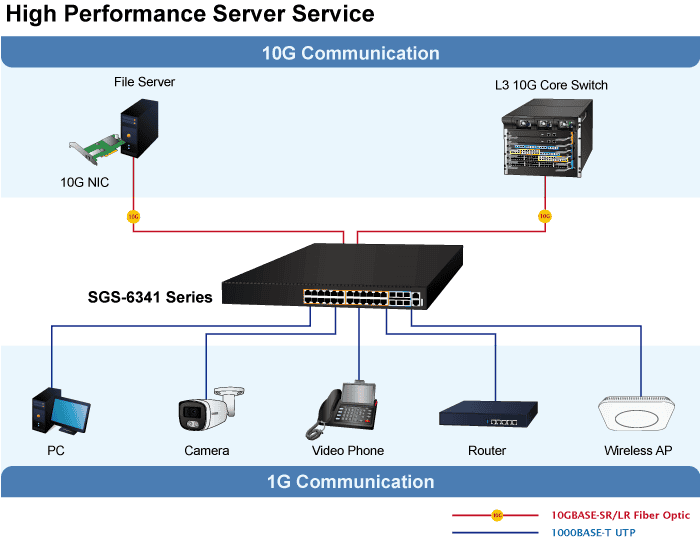

High Performance 10Gbps Ethernet Capacity
The six SFP+ slots built in the SGS-6341-48T6X support dual-speed, 10GBASE-SR/LR or 1000BASE-SX/LX. With 10Gbps uplink interfaces, the SGS-6341-48T6X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 216 Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

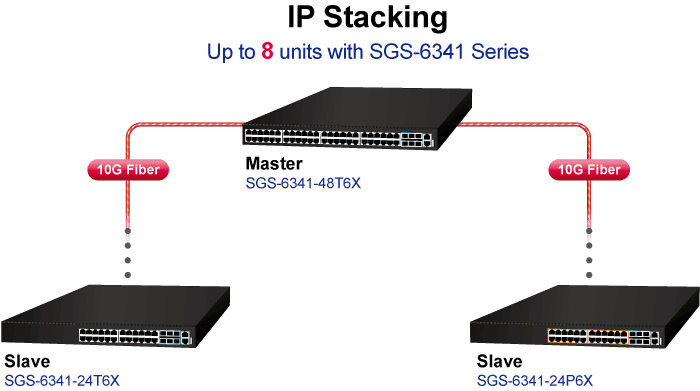

Central IP Stacking Management
Positioned as the distribution or aggregation layer switch for large networks, the SGS-6341-48T6X supports IP stacking function that helps network managers to easily configure up to 8 switches in the same series via one single IP address instead of connecting and setting each unit one by one. The IP Stacking technology groups PLANET SGS-6341 switch series together to enable centralized management through a single unit, regardless of physical location or switch type, as long as they are connected to the same local network.

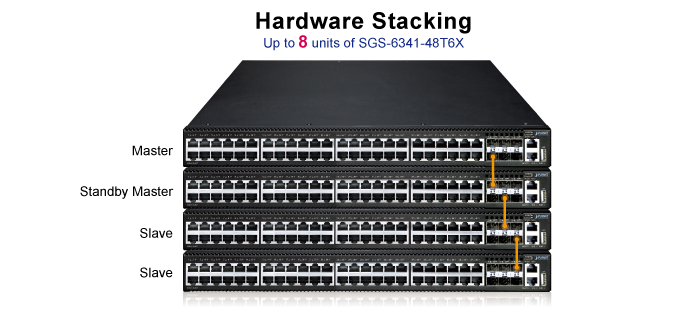

Centralized Hardware Stacking Management
Up to 8 SGS-6341-48T6X units can be stacked to operate as a single logical switch, simplifying network management and expansion. The ring-based stacking design provides redundancy so that data traffic continues even if one unit fails. The switches can also be hot-swapped without service interruption, greatly streamlining upgrades and scaling for increasing bandwidth demands.

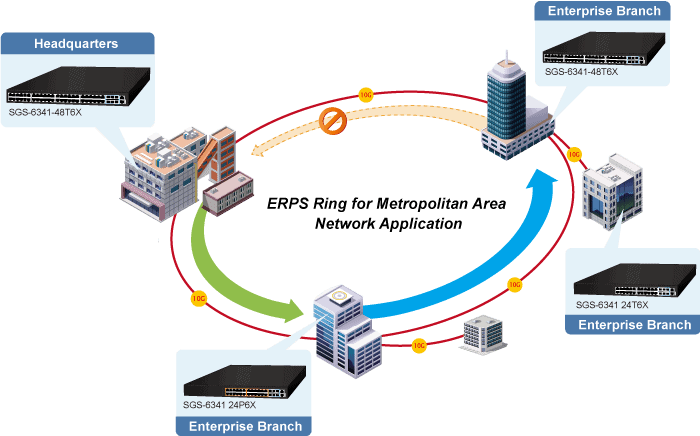

Redundant Ring, Fast Recovery for Critical Network Applications
The SGS-6341-48T6X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 50ms to quickly bring the network back to normal operation.
Layer 3 Routing Support
The SGS-6341-48T6X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, and the RIP or OSPF settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.
Rich Multi-layer Networking Protocols
The SGS-6341-48T6X comes with the complete Layer 3 managed function with comprehensive protocols and applications to facilitate the rapid service deployment and management for both the traditional L2 and L3 networks. With support for advanced features, including RIP, RIPng, OSPFv2, OSPFv3, BGP, BGP4+, etc., this switch is ideal for the traditional or fully-virtualized data center.
Strong Multicast
The SGS-6341-48T6X supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Registration (MVR), multicast receiver/sender control and illegal multicast source detection functions can be had. In Layer 3 multicast protocols, it features PIM-DM, PIM-SM and PIM-SSM which make the SGS-6341-48T6X great for any robust networking.
Full IPv6 Support
The SGS-6341-48T6X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.
Robust Layer 2 Features
The SGS-6341-48T6X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. In addition, the number of VLAN interfaces is 1K and the number of VLAN IDs is 4K. By supporting port aggregation, the SGS-6341-48T6X allows the operation of a high-speed trunk combined with multiple ports. It enables up to 32 groups for trunk with a maximum of 8 ports for each group.
Excellent Layer 2 to Layer 4 Traffic Control
The SGS-6341-48T6X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.
Powerful Security from Layer 2 to Layer 4
The ACL policies supported can classify the traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The SGS-6341-48T6X also provides IEEE 802.1x port-based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Thus, the SGS-6341-48T6X empowers enterprises and campuses to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.

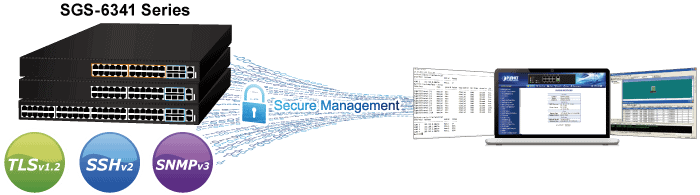

Efficient and Secure Management
For efficient management, the SGS-6341-48T6X Managed Switch is equipped with console, Web and SNMP management interfaces.
- With its built-in Web-based management interface, the SGS-6341-48T6X offers an easy-to-use, platform-independent management and configuration facility.
- The SGS-6341-48T6X supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software.
- For reducing product learning time, the SGS-6341-48T6X offers Cisco-like command via Telnet or console port. Moreover, the SGS-6341-48T6X offers secure remote management by supporting SSH connection which encrypts the packet content at each session.
Moreover, the SGS-6341-48T6X offers secure remote management by supporting SSHv1/v2 and TLSv1.2 connection which encrypts the packet content at each session.
Intelligent SFP Diagnosis Mechanism
The SGS-6341-48T6X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
