product_editor_4418_tab_content: <strong><span style="color: darkblue;">Highly Integrated IT Services</span></strong>

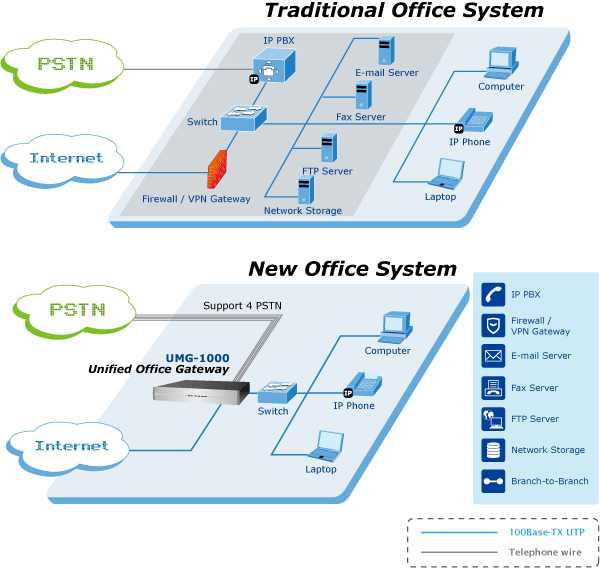

Providing IP PBX / VoIP, Internet Security, E-mail and Fax Server services, the UMG-1000 features single point of management to improve IT service ability. The UMG-1000 beneficially provides the SMBs with lower cost of ownership, quick and easy deployment, low noise, space saving and energy conservation for better business environment.
<p style="text-align: center;"><img class="img-fluid" src="https://www.planet.com.sa/wp-content/uploads/2025/01/UMG-1000-1_L.gif" /></p>

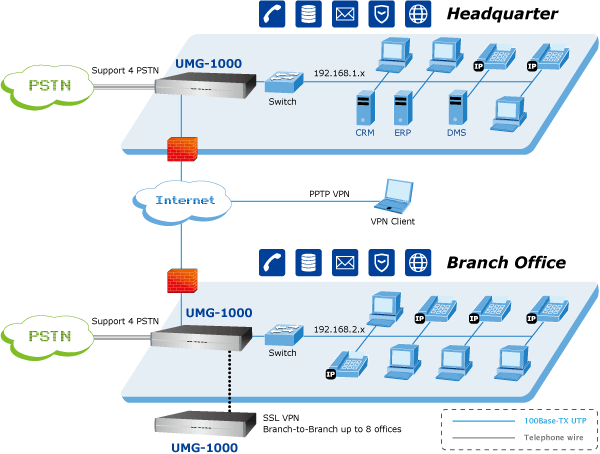

<strong><span style="color: darkblue;">Office Voice and Data Communication</span></strong>
The exchange of business data and voice with high security and superior performance is in great demand. The Unified Office Gateway UMG-1000 meets the requirements. A secure channel based on SSL VPN is built for data synchronization. A private voice switching system helps to avoid local or long distance charges by exchanging voice via a secure Internet tunnel. Additionally, web-based remote management makes it possible to manage all IT resources in your branches without leaving your own office. The UMG-1000 supports Branch-to-Branch voice and data communication up to 8 offices.
<p style="text-align: center;"><img class="img-fluid" src="https://www.planet.com.sa/wp-content/uploads/2025/01/UMG-1000-2_L.gif" /></p>
product_editor_4418_tab_enabled: yes
product_editor_4418_tab_content_changed: yes
product_editor_4418_tab_title: Applications
product_editor_4421_tab_content: <span style="color: #5070ab; font-family: 'Didact Gothic', Arial, 'Microsoft JhengHei', sans-serif;"><strong>IP PBX / VoIP Service</strong></span>
<ul>
<li>SIP 2.0 (RFC3261)</li>
<li>PSTN Support</li>
<li>Call-Parking, Echo Cancellation</li>
<li>FXO Disconnection Tone Detection</li>
<li>QoS Support</li>
<li>Music on Hold</li>
<li>Telephone Conference, 3-Way Calling</li>
<li>Voicemail to E-mail</li>
<li>Forwards to Voicemail on No-Answer</li>
<li>Supports Call Hold, Call Waiting</li>
<li>Blacklist of Number Patterns</li>
<li>Call Privilege Control, Call Log</li>
<li>450 Minutes Recording Time</li>
<li>Unconditional, Unavailable, Busy Call Forward</li>
<li>Fax Server Support</li>
<li>Multiple SIP Trunk Support</li>
<li>Upload Sound Files for IVR</li>
<li>Least Cost Routing (LCR)</li>
<li>Busy Lamp Field (BLF)</li>
<li>Bridged Line Appearance (BLA)</li>
</ul>
<span style="box-sizing: border-box; font-weight: bolder; color: #5070ab; font-family: 'Didact Gothic', Arial, 'Microsoft JhengHei', sans-serif; font-size: 16px;">E-mail Service</span>
<ul>
<li>Supports POP3, SMTP, IMAP</li>
<li>Secured Socket Layer (SSL)</li>
<li>Junk Mail Filtering</li>
<li>E-mail Storage Quota</li>
<li>E-mail Alias Group Assignment</li>
<li>Mail Attachment Size Restriction</li>
<li>User E-mail Storage Quota</li>
<li>E-mail Log Record Management</li>
<li>Anti-Virus and Anti-Spam</li>
<li>Auto Backup, Auto Reply</li>
<li>E-mail White and Black list Based on Domain</li>
<li>Name, User Name, and E-mail Address</li>
<li>Supports Web Mail</li>
<li>Supports Mail Service via DDNS</li>
</ul>
<span style="box-sizing: border-box; font-weight: bolder; color: #5070ab; font-family: 'Didact Gothic', Arial, 'Microsoft JhengHei', sans-serif; font-size: 16px;">Internet Security Service</span>
<ul>
<li>Static IP, PPPoE, DHCP, PPTP, L2TP</li>
<li>Web Content Filter by Domain and Keyword</li>
<li>Access Control List (ACL)</li>
<li>URL / IM / P2P Blocking</li>
<li>Firewall / NAT</li>
<li>IPSec / PPTP / L2TP Pass-through</li>
<li>DoS Attack Protection (TCP SYN Flood, UDP Flood, ICMP Flood, Ping of Death)</li>
<li>UPnP and DMZ</li>
<li>Site-to-Site SSL VPN</li>
<li>PPTP VPN Remote Access</li>
<li>RIP / Static Route</li>
<li>IP-MAC Binding</li>
</ul>
<span style="box-sizing: border-box; font-weight: bolder; color: #5070ab; font-family: 'Didact Gothic', Arial, 'Microsoft JhengHei', sans-serif; font-size: 16px;">Network Storage Service</span>
<ul>
<li>Up to 1.5TB Hard Disk</li>
<li>Supports User Network Storage Quota</li>
<li>Compatible Windows 2000 / XP / Vista, Mac, Linux</li>
<li>Scheduled Auto Backup, Auto Snapshot</li>
<li>Supports User / Group Privilege ACL</li>
</ul>
<span style="box-sizing: border-box; font-weight: bolder; color: #5070ab; font-family: 'Didact Gothic', Arial, 'Microsoft JhengHei', sans-serif; font-size: 16px;">System Management</span>
<ul>
<li>Single Point of Management</li>
<li>System Logging with E-mail Alert</li>
<li>Fast Recovery with Remote Service</li>
<li>Environment Monitoring</li>
<li>Dynamic Domain Name Services (DDNS)</li>
<li>Multiple Domain Name Support</li>
<li>Multiple Hostname Support</li>
</ul>
product_editor_4421_tab_enabled: yes
product_editor_4421_tab_content_changed: yes
product_editor_4421_tab_title: Key Features
product_editor_4422_tab_content:
<div class="table-responsive">
<table class="common_table_sky" style="width: 100%;">
<thead>
<tr>
<th colspan="2">Hardware Specifications</th>
</tr>
</thead>
<tbody>

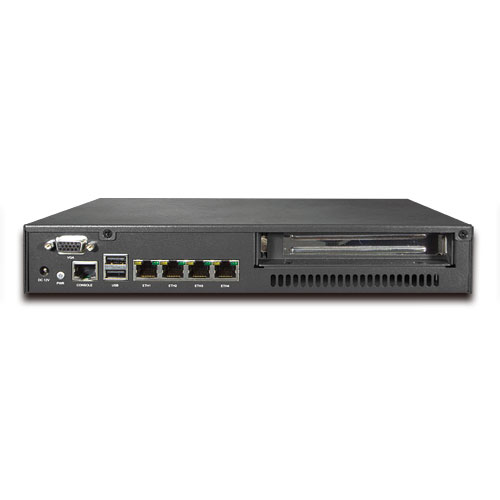

<tr>
<td class="align-middle">Case</td>
<td>Desktop placement</td>
</tr>
<tr>
<td class="align-middle">WAN</td>
<td>1 x RJ-45 (10/100/1000Base-TX, Auto-Negotiation, Auto MDI/MDI-X)</td>
</tr>
<tr>
<td class="align-middle">LAN</td>
<td>3 x RJ-45 (10/100/1000Base-T, Auto-Negotiation, Auto MDI/MDI-X)</td>
</tr>
<tr>
<td class="align-middle">SATA support</td>
<td>1-Port SATA Controller (For SATA I, SATA II Hard Disk)</td>
</tr>
<tr>
<td class="align-middle">Hard Disk support</td>
<td>1 x SATA 2.5" internal Hard Disk (up to 1.5TB)</td>
</tr>
<tr>
<td class="align-middle">Voice</td>
<td>4 x RJ-11 (4 x FXO)</td>
</tr>
<tr>
<td class="align-middle">USB</td>
<td>2 x USB2.0 (future feature)</td>
</tr>
<tr>
<td class="align-middle">CF slot</td>
<td>1 x On-board Compact Flash socket</td>
</tr>
<tr>
<td class="align-middle">Console</td>
<td>RJ-45 port (future feature)</td>
</tr>
<tr>
<td class="align-middle">LED Indicators</td>
<td>1 x PWR LED
1 x Internet LED
1 x WAN LED
3 x LAN LED</td>
</tr>
</tbody>
<thead>
<tr>
<th colspan="2">Software Specifications</th>
</tr>
</thead>
<tbody>
<tr>
<td class="align-middle">VoIP</td>
<td>SIP protocol
- SIP 2.0 (RFC3261,RFC2833)
Registration
- Max. 100 nodes
Calls
- Max. 30 concurrent calls
Voice Compression Code Technology
- G.711, G.726
Video Compression Code Technology
- H.261, H.263, H.263+, H.264
Echo Cancellation
- G.165/G.168
Gain Control
- In/Out +/-6db
Voice Processing
- Voice Activated Detection
- DTMF Detection/Generation
- G.165/G.168 Echo Cancellation (ECN)
- Comfort Noise Generation (CNG)
- Gain Control</td>
</tr>
<tr>
<td class="align-middle">IP PBX</td>
<td>- Support call hold, call waiting, 3-way call conference with feature phones
- Built-in in-line call transfer
- Unconditional, unavailable, busy call forward, custom time of no answer
- Per-calling-number forward and rejection
- Group-based call pick-up
- Call-parking
- Inter-PBX SIP Trunking
- Multi-room meet-me conference
- Auto-attendant
- Voice mail system
- Call privilege grouping
- FXO interface for PSTN Inbound/outbound
- FXO disconnection tone detection
- Caller ID detection
- In-band/RFC2833/SIP-INFO DTMF translation
- Music on hold (MoH), user upload MoH
- Direct line Outbound
- User upload IVR</td>
</tr>
<tr>
<td class="align-middle">Voicemail</td>
<td>- User PIN
- 450 minutes for personal record
- E-mail notification
- Personal reception on unavailability
- Reply call or new call in voicemail menu</td>
</tr>
<tr>
<td class="align-middle">E-mail</td>
<td>Protocol
- POP3,IMAP,SMTP
Support accounts
- 100 users
Email Security
- Secured Socket Layer (SSL)
Anti-Virus
- ClamAV
Anti-Spam
Junk mail block
Mailbox size Limit
- 200M/500M/1G/2G/No Limit
Attachment
- 2M/5M/10M/20M/50M/No Limit
White & Black List
- Share/User/Domain security modes
Email Backup
- Auto-Backup</td>
</tr>
<tr>
<td class="align-middle">Network Storage</td>
<td>Data Sharing
- Windows Network Sharing, NFSv3</td>
</tr>
<tr>
<td class="align-middle">Security</td>
<td>Network Security
- DoS attack Prevention
VPN Max. connection
- 100 PPTP VPN tunnels
- 8 Site-to-Site SSL VPN tunnels
VPN pass-through
- IPSec, PPTP, L2TP pass-through
Internet Security
- Domain/Keyword Content Filter, Access Control
- IP-MAC Binding</td>
</tr>
<tr>
<td class="align-middle">Other Protocol / Function</td>
<td>Protocol
- TCP/IP, NAT, DHCP, HTTP, DNS, NTP, HTTPS, CIFS/SMB, NFSv3
Internet Access
- Static IP, PPPoE, DHCP, PPTP, L2TP
DMZ
UPnP
QoS
DDNS
Multiple Domain Name</td>
</tr>
<tr>
<td class="align-middle">Management</td>
<td>- Web based GUI management
- Firmware upgradeable via local</td>
</tr>
</tbody>
</table>
</div>
