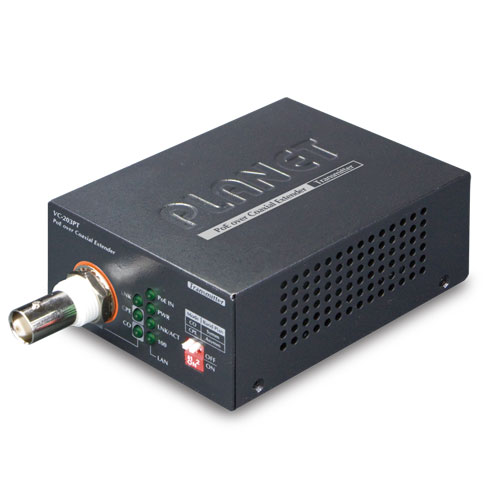

PoE over Coaxial Extender – Transmitter

» VC-203PT

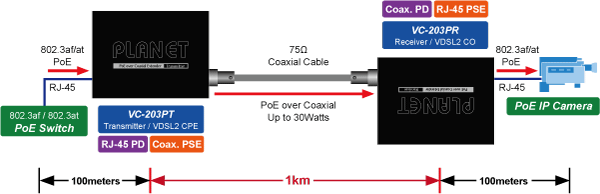

PLANET VC-203Px series of PoE over Coaxial Extender is designed to extend IP Ethernet transmission and inject power over an existing coaxial cable for distance up to 1000m (3280ft) to PoE IP camera, PoE Wireless AP and any 802.3af/at complied powered device (PD).

The VC-203Px consists of a Transmitter and Receiver set which can work in pair without any power adapter and anywhere on your network infrastructure. The solution contains two brand-new products:

ã€€â– VC-203PT: 1-Port 10/100TX PoE PD + 1-Port BNC PoE over Coaxial PSE Extender – Transmitter
ã€€â– VC-203PR: 1-Port 10/100TX PoE PSE + 1-Port BNC PoE over Coaxial PD Extender – Receiver

Models		VC-203PT	VC-203PR
Power over Coax. Extender		Transmitter	Receiver
Power Input (Optional)	PoE	RJ-45: 802.3af/at PoE In UTP cable, up to 100m	BNC: PoE over Coaxial In Coaxial cable, up to 1km
Power Input (Optional)	DC	DC Jack: 52~56V DC In	DC Jack: 52~56V DC In
Power Output	PoE	BNC: Power over Coaxial Out Coaxial cable, up to 1km	RJ-45: 802.3af/at PoE out UTP cable, up to 100m
Power Output	DC	—	2-Pin Terminal Block : Selectable 12V/24V DC

It is a perfect solution for sending IP Video links and power to remote PoE IP camera installation that are beyond the 100 meters distance limit of Ethernet.

Power over Coaxial
Based on IEEE 802.3at High Power over Ethernet and up to 25 watts of power output, PLANET PoE over coaxial extender solution eliminates the need for additional remote site power while allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and the camera at long range. This feature eliminates the need for local and remote site power supplies.

Stable Operating Performance under Difficult Environments
The VC-203PT and VC-203PR extenders are one perfect combined solution for extending data and power transmissions over long distances for places like warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network.

Applications of VC-203PT and VC-203PR
The VC-203PT, which functions with the VC-203PR can split into four different kinds of combinations. The VC-203PT can power by either from external DC power adapter or high power PoE switch. The power output of the VC-203PR is selectable - PoE output to the PoE Power Devices (PD) OR DC power output to the Non-PoE Devices.

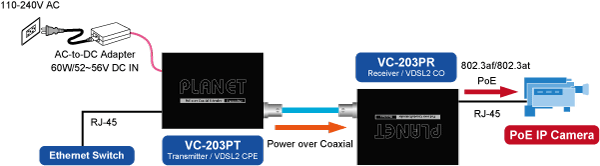

Type 1 – VC-203PT with 52~56V power adapter and VC-203PR with PoE power output

	CPE	CO
	VC-203PT	VC-203PR
Power Input	Power adapter with 52~56V DC in	BNC with DC power over coaxial input
Power Output	BNC with DC power over coaxial output	RJ-45 with 802.3at/af PoE output

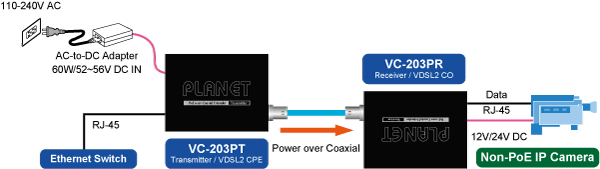

Type 2 – VC-203PT with 52~56V power adapter and VC-203PR with DC power output

	CPE	CO
	VC-203PT	VC-203PR
Power Input	Power adapter with 52~56V DC in	BNC with DC power over coaxial input
Power Output	BNC with DC power over coaxial output	DC Terminal block with 12V or 24V DC output

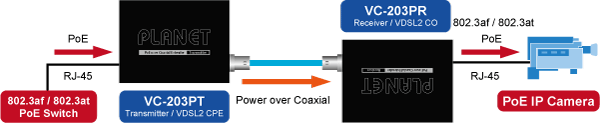

Type 3 – VC-203PT with PoE power input and VC-203PR with PoE power output

	CPE	CO
	VC-203PT	VC-203PR
Power Input	RJ-45 with 802.3at/af PoE input	BNC with DC power over coaxial input
Power Output	BNC with DC power over coaxial output	RJ-45 with 802.3at/af PoE output

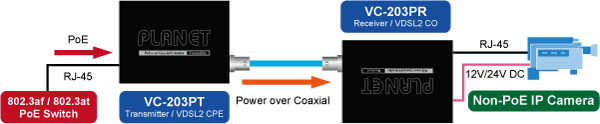

Type 4 – VC-203PT with PoE power input and VC-203PR with DC power output

	CPE	CO
	VC-203PT	VC-203PR
Power Input	RJ-45 with 802.3at/af PoE input	BNC with DC power over coaxial input
Power Output	BNC with DC power over coaxial output	DC Terminal block with 12V or 24V DC output

Physical Port

1 x 10/100Base-TX RJ-45 copper interface (PoE IN)
1 x BNC connector (Power and data transmitter)

Power over Ethernet

Eliminates Power cabling with PoE over Coaxial
Ethernet over coaxial up to 1km with 5C2V/RG6 75Ωcable
Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet on RJ-45 port
Supports PoE Power up to 30.8 watts (Varying with Power Source and Coaxial Distance)

Layer 2 Features

Supports auto-negotiation and 10/100Mbps half / full duplex
Prevents packet loss with back pressure (half duplex) and IEEE 802.3x pause frame flow control (full duplex)

VDSL2 Features

One box design, Master / Slave selectable via DIP Switch
Defines asymmetric (Band Plan 998) and symmetric band plans for the transmission of upstream and downstream signals

Industrial Case / Installation

Supports extensive LED indicators for network diagnostics
IP30 metal case protection
Flexible power source either extemal DC or PoE power input
Supports EFT protection 2000 VDC for power line
Supports 2000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature

Hardware Specifications

Interface

Copper:
　10/100Base-TX RJ-45
　Auto-negotiation/auto-MDI/MDI-X
　802.3at/af PoE Input
Coaxial:
　BNC, female
　Power over Coaxial output
DC Socket(Optional):
　52~56V DC input
DIP-Switch:
　2-position DIP Switch
　　■ Selectable CO or CPE mode
　　　(Default: CPE)
　　■ Selectable Band plan: asymmetric or symmetric
　　　(Default: asymmetric)

LED Indicators

LED is Green in Color:
System:		PoE:
	■ PWR		■ PoE IN
VDSL2:		Ethernet:
	■ LNK		■ LNK/ACT
	■ CO		■ 100
	■ CPE

ESD Protection

2KV DC

EFT Protection

2KV DC

Enclosure

IP30 metal case

Installation

Wall mount or DIN rail with optional kit

Dimensions (W x D x H)

94 x 70.3 x 39.2 mm

Weight

288g

Power Requirements

　■ RJ-45 PoE Input: 802.3at/af 44~57V DC
　■ DC Input: 52~56V DC

Power over Ethernet/Coaxial

PoE Standard

IEEE 802.3at Type 2
IEEE 802.3af

PSE Interface

BNC
44~57V DC
(Depending on what the DC/PoE Power Input is)

PD Interface

RJ-45, both Mid-Span and End-Span
Input Range: 44~57V DC

DC Power Output

Max. PoE Budget

Power Input by PoE
　BNC : 25 watts
Power Input by DC
　BNC : 30 watts

Performance 　*(Downstream / Upstream)*

Distance	Data Rate		VC-203PR PoE Output
Distance	Asymmetric Mode	Symmetric Mode	VC-203PT W/DC IN	VC-203PT W/PoE+ IN
200m	100/60 Mbps	90/100 Mbps	20W	13W
400m	95/55 Mbps	85/100 Mbps	16W	11W
600m	90/50 Mbps	70/80 Mbps	12W	10W
800m	85/45 Mbps	65/70 Mbps	7W	6W
1000m	70/35 Mbps	55/55 Mbps	5W	4W
1200m	60/25 Mbps	45/40 Mbps	-	-

Standards Conformance

Standards Compliance

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)

Regulation Compliance

FCC Part 15 Class A, CE

Environment

Temperature

Operating:	-40 ~ 75 degree C
Storage:	-40 ~ 75 degrees C

Humidity

Operating:	5 ~ 95% (non-condensing)
Storage:	5 ~ 95% (non-condensing)
