100/100Mbps Downstream/Upstream, High-performance Ethernet over Phone Wire Solution
PLANET VC-234, a new-designed and high-performance Fast Ethernet-over-VDSL2 Converter with the ITU-T G.993.2 VDSL2 17A/30A profile, works well with a pervasive telephone line network with a symmetric data rate of up to 100/100Mbps (Fast, 30A 6dB) over a distance of 200m and 23/21Mbps over a long distance of 1.4km. It is based on the two-core networking technology, Fast Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely the fastest data transmission speed over the existing copper telephone lines without the need of rewiring.
High-performance Ethernet over VDSL2
Via the latest VDSL2 technology, PLANET VC-234 offers high-speed access to Internet, up to 100Mbps for both upstream and downstream data transmissions. With integrated support for the ITU-T’s G.993.2 VDSL2 technology, the VC-234 works in conjunction with VDSL2 DSLAMs to remove crosstalk interference and improve maximum line bandwidth across the existing copper infrastructure.

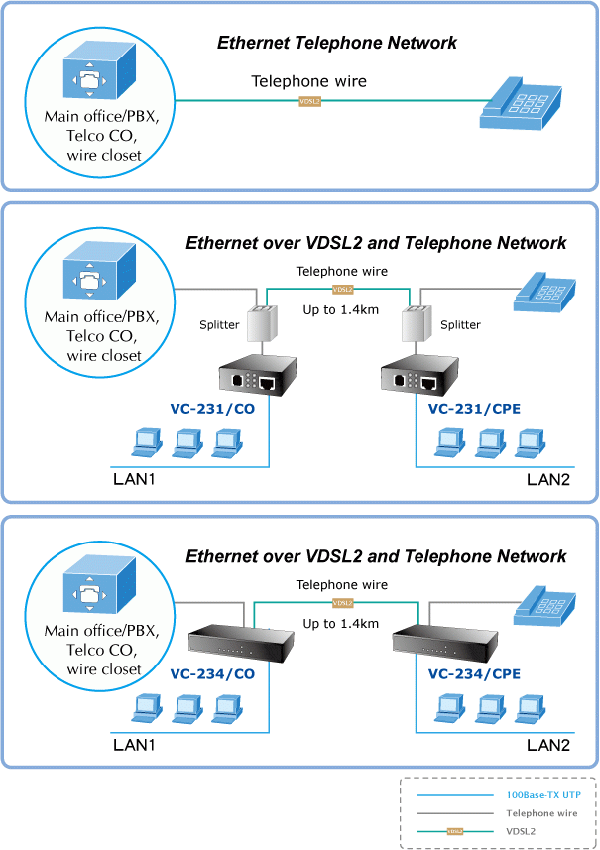

Implementing with Existing Telephone Copper Wires

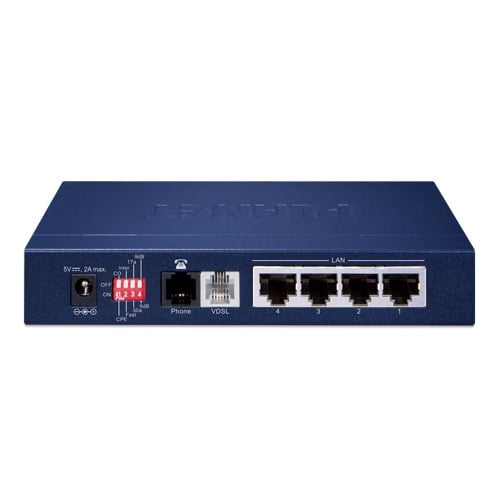

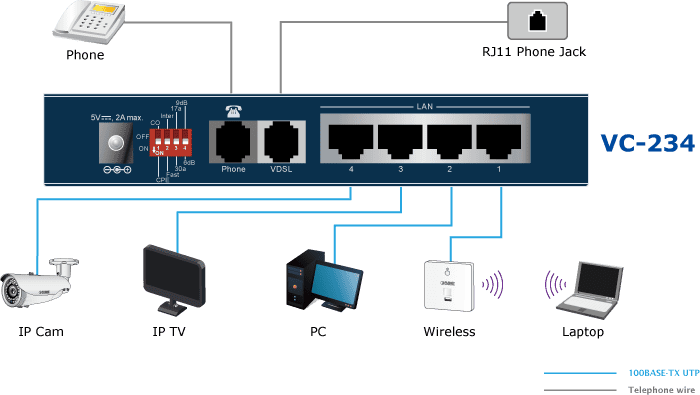

The VC-234 is also a Long Reach Ethernet (LRE) Bridge providing four RJ45 Ethernet ports and two RJ11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VC-234 has a built-in POTS splitter to share the existing phone line with POTS; therefore, there is no need to replace the existing copper wiring. Just plug the VC-234 into the existing RJ11 telephone jack and a high-performance VDSL2 network can be connected. The VC-234 is ideal to be used as an Ethernet extender to an existing Ethernet network.

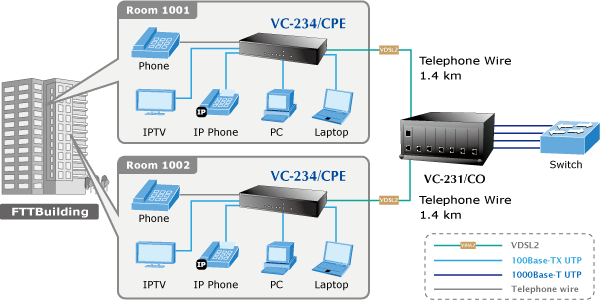

Delivering High-demanding Service Connectivity for ISP/Triple Play Devices

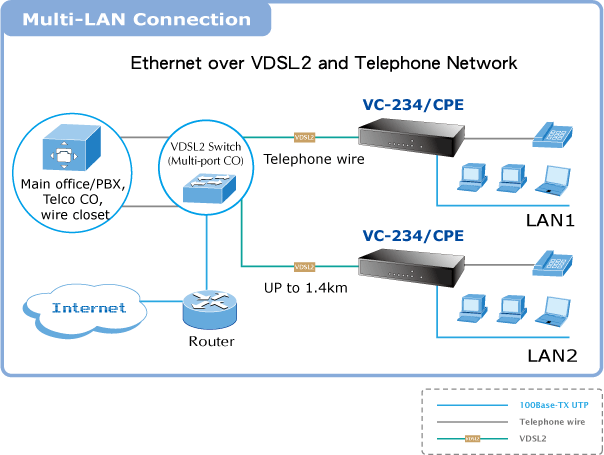

The VC-234 provides an excellent bandwidth demand for the triple play devices for home entertainment and communication. The Fast, 30A, 6dB VDSL2 profile with 100/100Mbps data transmission, the VC-234 enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, and so on, which is ideal for the following network applications:
- Long-distance IP network devices
- IP digital signage
- Cable TV to IPTV
- Distance video education
- Electronic billboards
- Other applications
Easy and Flexible Installation

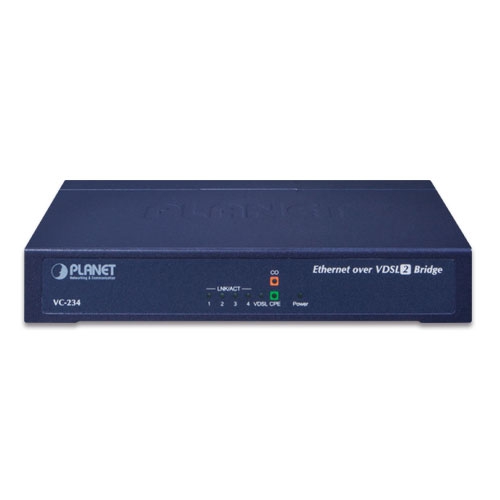

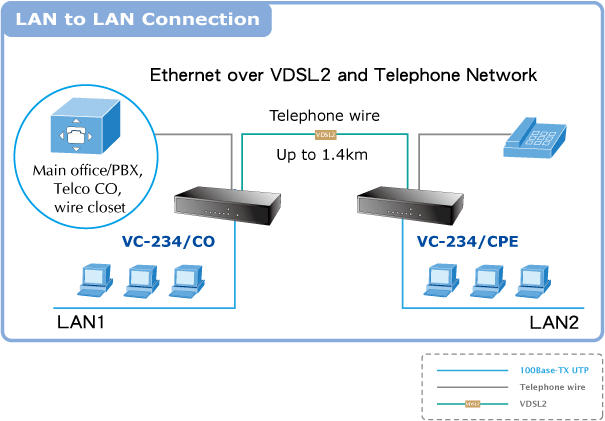

The Ethernet-over-VDSL2 Bridge comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-234 offers two modes, CPE and CO, for application — CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-234 and a CO mode VC-234 must be set up as one pair of Bridges to perform the connection.
ADSL2+ Fallback
For those ISPs that still provide ADSL broadband service, the VC-234 can support transmission rates up to 24Mbps downstream and 1Mbps upstream with the ADSL2+ technology. The VC-234 establishes a connection with ISP and can be also directly switched over to VDSL2 after the ISP network upgrade.
