10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter

» XST-705A

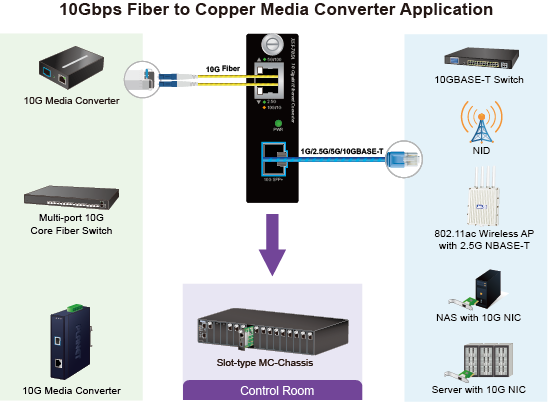

Flexible and Reliable Network Distance Extension Solution

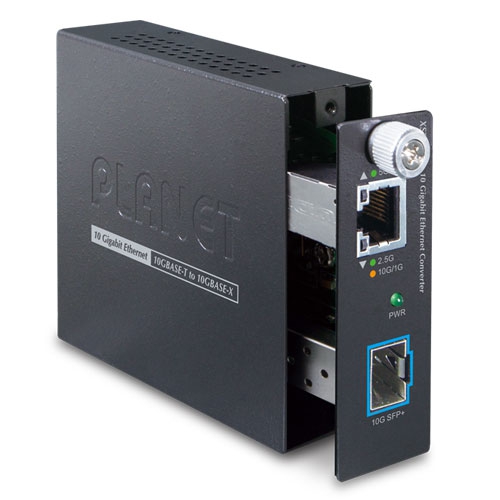

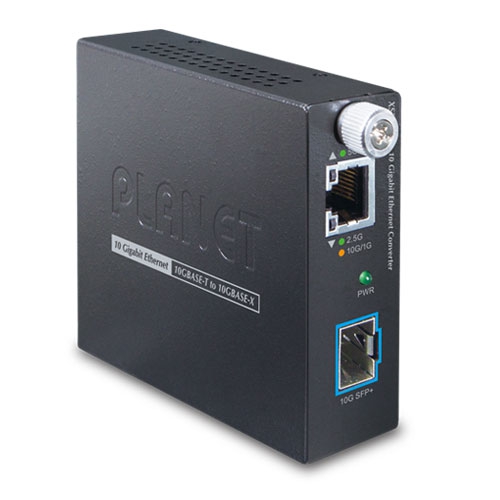

PLANET XST-705A Smart Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.

edm XST 705A

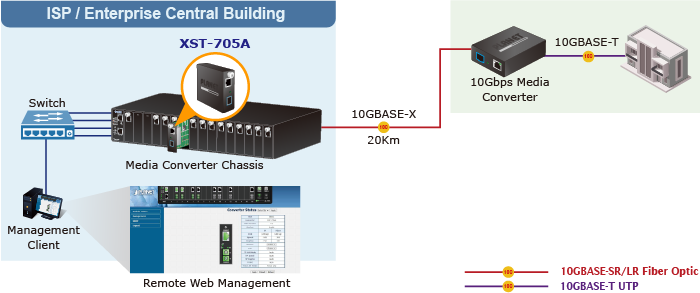

Diversified Central Management and Easy Chassis Installation

The XST-705A Smart Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET 19-inch Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48). When working with Managed media converter chassis, the chassis can assist in providing DC power to the XST-705A and can be managed. Its port status such as link on/off can be monitored through the local RS232 console or remote web interface. Installing multiple XST-705As in the MC-1610MR is ideal for telecom and corporate applications where a number of 10Gbps fiber links need to be managed and controlled from a central location.



XST 705A 3



High Performance 10Gbps Ethernet Capacity

The XST-705A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric and featuring auto negotiation support in its 10 Gigabit port, the XST-705A Smart Media Converter can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.



XST 705A 2

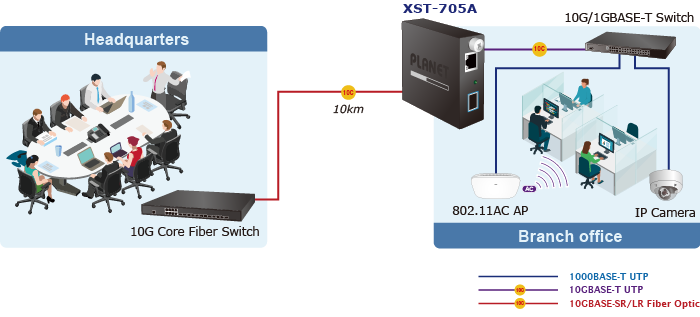

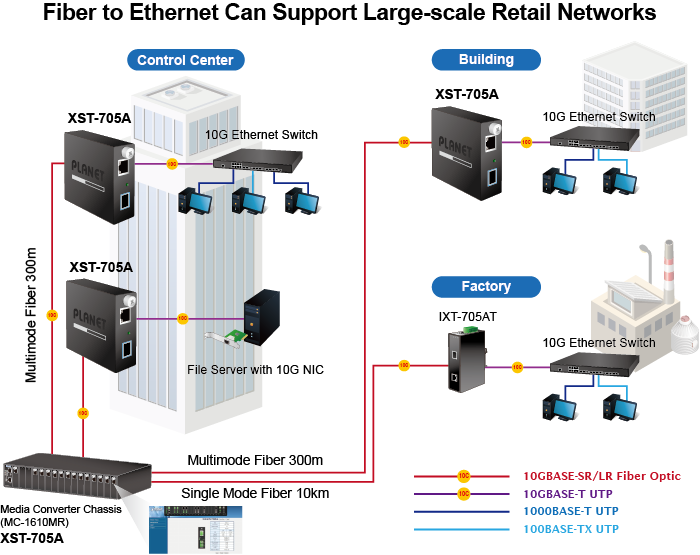

Fiber-optic Linking Capability Enables Extension of Network Deployment

The SFP+ slot of the XST-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions.



XST 705A 4



Low Power Consumption

The XST-705A adopting the advanced chip technology has the power-saving feature like a low power consumption of only 3.8watts when in full operation.

Fiber-optic Linking Capability Enables Extension of Network Deployment

The SFP+ slot of the XST-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the factory data centers and distributions.

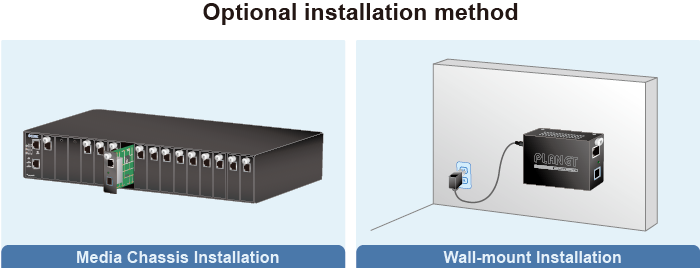

Standalone and Centrally-managed Media Converter Installation

PLANET XST-705A adopts advanced media conversion technology to meet the demand for today’s growing networking. It is very flexible for the XST-705A to work as a standalone device or to be installed in the central web smart media converter chassis for centralized management, which supports hot swapping to avoid network downtime. The XST-705A is provides a diverse choice of fiber connecting types to meet different network applications.



Physical Port

  • One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
  • One 10GBASE-X SFP+ slot



Layer 2 Features

  • IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
  • Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • 16K jumbo frame size support
  • Automatic address learning and address aging



Case and Installation

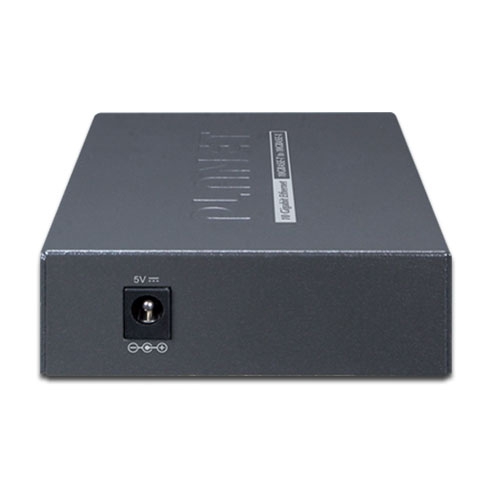

  • External 5V DC, 2A power supply
  • Wall-mount design
  • Supports 6000 VDC Ethernet ESD protection
  • 100 meters over Cat. 6A / Cat. 7 at 10Gbps
  • 0 to 50 degrees C operating temperature
  • Co-works with PLANET’s 19” Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48)
  • Plug and Play installation

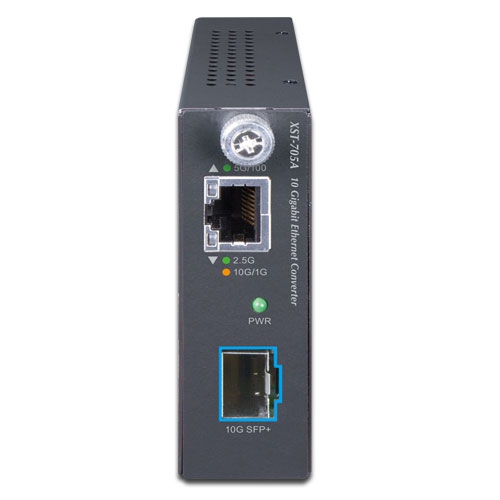

Hardware Specifications
Copper Interface1 x 10G/5G/2.5G/1G/100BASE-T RJ45
Auto-MDI/MDI-X, auto-negotiation
Fiber Optic Interface1 x 10GBASE-X SFP+ interface
LEDSystem:
　PWR (Green)
10G/5G/2.5G/1G/100 BASE-T RJ45 Interfaces:
　1G/10G LNK (Amber)
　5G/2.5G/100M LNK (Green)
ESD Protection6KV DC
EnclosureCompact-sized metal case
InstallationDesktop or wall mounting
Dimensions (WxDxH)93.8 x 80.75 x 26.4mm
Weight182g (device only)
Power Requirements5V DC, 2A max.
Power Consumption3.8 watts / 13 BTU per hour (max.)
Converter Specifications
Switch Processing SchemeStore and Forward
Flow ControlCopper Interface:
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Fabric20Gbps
Jumbo Frame16K
Network Cables10G/5G/2.5G/1G/100M BASE-T:
　10G--Cat. 6A/Cat. 7
　5G--Cat. 6/Cat. 6A/Cat. 7
　1G/2.5G--Cat. 5e/Cat. 6/Cat. 6A/Cat. 7
　100M--Cat. 5/Cat. 5e/Cat. 6/Cat. 6A/Cat. 7
　Cat. 5/5e/6/6A/7 UTP cable (100 meters, max.)
　EIA/TIA-568 100-ohm STP (100 meters, max.)
10GBASE-LR/SR/BX:
　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m
　9/125μm single-mode fiber optic cable, up to 60km
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Operating environment0 ~ 50 degrees C
Storage Environment-10 ~ 70 degrees C
Operating Humidity5 ~ 95%, relative humidity (non-condensing)
Storage Humidity5 ~ 95%, relative humidity (non-condensing)
Standards ComplianceIEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10Gbps Ethernet
IEEE 802.3x full-duplex flow control (Copper Port)
DateVersionDescriptionDownload
2022/08/041.0

XST-705A

 Download Icon
DateVersionDescriptionDownload
2022/14/011.0

Initial release.

 Download Icon
DateVersionDescriptionDownload
2022/29/091.0

EC Declaration.

 Download Icon


Model

Description

Ordering Information

XST-705A

10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter

Ordering Information

XST-705A

10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter
✉
