• product_code: XGPL-1000

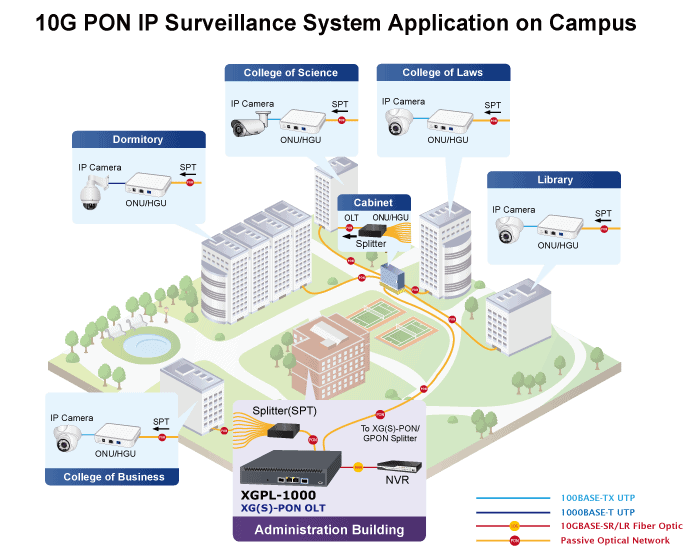

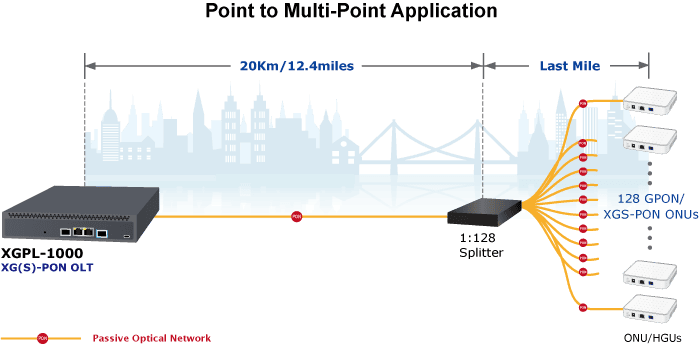

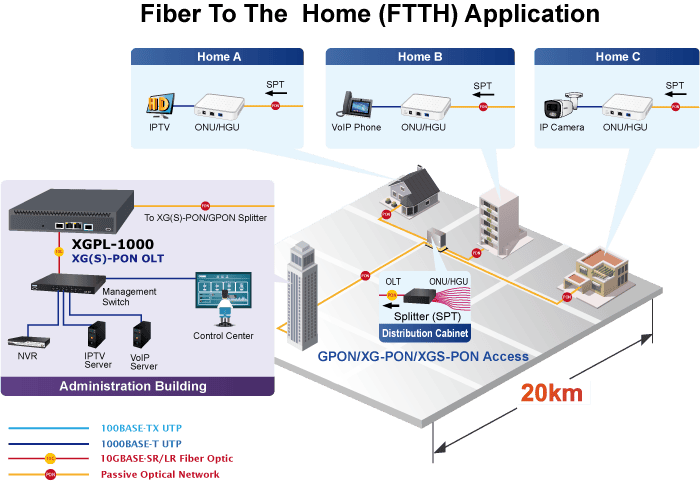

• applications_tab: <p><strong>Cost-effective 10G PON Access for Triple Play, Surveillance and FTTx Applications</strong><p>PLANET XGPL-1000 delivers high-speed voice, data and video services to residential and business subscribers through GPON, XG-PON and XGS-PON technologies. With PON technology, the XGPL-1000 offers competitive advantages including long-term fiber infrastructure deployment, lower operating costs from the reduction of active network components, support for up to 20km transmission distance between equipment nodes, easy installation and maintenance, and high-bandwidth access for next-generation broadband services.</p><p>Supporting up to 1:128 optical split ratio, the XGPL-1000 allows service providers to connect multiple ONU and HGU devices through a passive optical splitter, making it ideal for FTTH, FTTB, FTTO, SOHO and small business broadband access applications. With up to 9.953Gbps downstream and 9.953Gbps upstream bandwidth in XGS-PON mode, the XGPL-1000 is suitable for bandwidth-demanding applications such as HDTV, IPTV, VoIP, multimedia streaming, cloud services and IP surveillance networks.</p><p>The XGPL-1000 also supports existing GPON deployment while providing a smooth upgrade path to 10G PON networks. It is the perfect solution for service providers, system integrators and enterprises requiring a cost-effective, scalable and flexible fiber access network.</p></p>

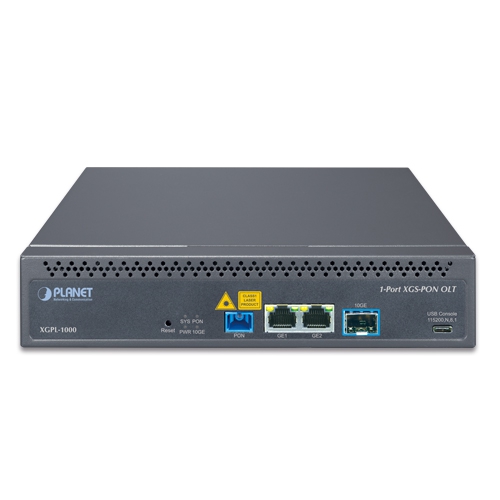

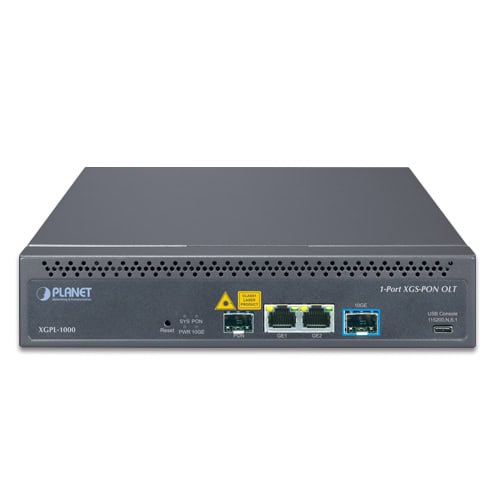

• key_features_tab: <p><strong>XG(S)-PON / GPON Combo Port</strong><ul> <li>1 XG(S)-PON / GPON Combo PON port</li> <li>Supports GPON, XG-PON and XGS-PON tri-mode coexistence</li> <li>Supports adaptive switching via different optical modules</li> <li>GPON: 2.488Gbps downstream and 1.244Gbps upstream</li> <li>XG-PON: 9.953Gbps downstream and 2.488Gbps upstream</li> <li>XGS-PON: 9.953Gbps downstream and 9.953Gbps upstream</li> <li>Maximum transmission distance of up to 20km</li> <li>PON port supports up to 128 ONT/HGU devices</li> <li>Compliant with ITU-T G.984.x, ITU-T G.987 and ITU-T G.9807 standards</li> <li>Supports T-CONT DBA and x-GEM traffic</li> <li>Supports data encryption, multicast, port VLAN and user separation</li> <li>Supports ONT auto-discovery, link detection and remote software upgrade</li> <li>Supports power-off alarm function for easy link problem detection</li> </ul><p> </p><p><strong>Physical Ports</strong></p><ul> <li>2 10/100/1000BASE-T RJ45 copper ports</li> <li>1 10GBASE-SR/LR SFP+ uplink slot, compatible with 1000BASE-SX/LX/BX SFP</li> <li>1 USB console interface for basic management and setup</li> <li>1 XG(S)-PON / GPON Combo SFP+ PON slot</li> </ul><p> </p><p><strong>Switching</strong></p><ul> <li>Hardware-based 10/100Mbps half/full duplex and 1000Mbps full duplex mode</li> <li>Supports flow control, auto-negotiation and auto MDI/MDI-X</li> <li>Features Store-and-Forward mode with wire-speed filtering and forwarding rates</li> <li>IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation</li> <li>Working with Rate Limit (Kbps) function</li> <li>Supports automatic address learning and address aging</li> <li>8K MAC address table</li> <li>30Gbps switch fabric</li> <li>44.64Mpps forwarding rate</li> </ul><p> </p><p><strong>Uplink Port Management</strong></p><ul> <li>Traffic statistics and optical information display</li> <li>Port configuration for description, admin status, speed, flow control, isolation, PVID, broadcast and unicast storm limit, ingress and egress rate limit, and MAC limit</li> </ul><p> </p><p><strong>OLT Management</strong></p><ul> <li>User-friendly GUI management</li> <li>2 control interfaces:</li> <li>Out-of-Band IP: USB serial port</li> <li>In-Band IP: Gigabit TP and 10G SFP+ uplink ports</li> <li>Supports ONT/HGU authentication to prevent illegal ONT access to the network</li> <li>Supports online ONT configuration and management</li> <li>Supports user management and alarm management</li> </ul><p> </p><p><strong>ONT/HGU Management</strong></p><ul> <li>ONT/HGU port control</li> <li>ONT/HGU VLAN mode</li> <li>ONT/HGU configuration and management</li> <li>ONT/HGU link detection</li> <li>ONT/HGU remote software upgrade</li> </ul><p> </p><p><strong>PON Management</strong></p><ul> <li>Traffic statistics and optical information display</li> <li>Port configuration for description, admin status, broadcast and unicast storm limit, ingress and egress rate limit</li> <li>PON range configuration and ALS configuration</li> <li>Supports VLAN division and user separation to avoid broadcast storms</li> <li>Supports broadcasting storm resistance function</li> </ul><p> </p><p><strong>ONU Management</strong></p><ul> <li>ONU List</li> <li>Automatic Discovery</li> <li>Automatic Learn</li> <li>ONU Image Upgrade</li> <li>Rogue ONU Table List and Config</li> </ul><p> </p><p><strong>Profile Management</strong></p><ul> <li>ONU profile configuration </li> <li>ONU profile binding </li> <li>Rapid deployment</li> </ul><p> </p><p><strong>Layer 3 IP Routing Features</strong></p><ul> <li>IPv4/IPv6 static routing</li> <li>Routing interface provides per VLAN routing mode</li> <li>Loopback function for all Ethernet and PON interfaces</li> <li>Supports dynamic/static ARP</li> <li>Supports WAN connection modes: <ul> <li>DHCP </li> <li>PPPoE </li> <li>Static IP</li> </ul> </li> <li>Supports NAT and DMZ</li> </ul><p> </p><p><strong>Layer 2 Features</strong></p><ul> <li>Supports VLAN</li> <li>IEEE 802.1Q tag-based VLAN</li> <li>VLAN translation</li> <li>Provider bridging, VLAN Q-in-Q, IEEE 802.1ad</li> <li>PON P2P</li> <li>DSCP-to-CoS QoS mapping</li> <li>Supports bi-directional mapping between Layer 3 DSCP fields and Layer 2 CoS within VLAN tags</li> <li>Supports Spanning Tree Protocol</li> <li>RSTP, IEEE 802.1w Rapid Spanning Tree Protocol</li> <li>MAC table and PON MAC table display and aging configuration</li> <li>Link Layer Discovery Protocol (LLDP)</li> <li>Port mirroring to monitor incoming or outgoing traffic on a specific port</li> <li>Supports port isolation</li> <li>Supports port rate limitation</li> <li>Supports 4096 VLANs</li> </ul><p> </p><p><strong>Quality of Service</strong></p><ul> <li>Ingress and egress rate limit per port bandwidth control</li> <li>Dynamic Bandwidth Allocation (DBA) on PON interfaces</li> <li>Service Level Agreement (SLA)</li> <li>Upstream/downstream rate limitation based on each ONT/ONU/HGU</li> <li>4 priority queues on all switch ports</li> <li>Scheduling for priority queues: <ul> <li>Weighted Round Robin (WRR)</li> <li>Strict Priority</li> </ul> </li> <li>Traffic classification: <ul> <li>IEEE 802.1p CoS</li> <li>DSCP</li> <li>Precedence</li> <li>VLAN ID</li> <li>Policy-based ingress and egress QoS</li> </ul> </li> </ul><p> </p><p><strong>Multicast</strong></p><ul> <li>Supports IPv4 IGMP snooping</li> <li>Supports IPv6 MLD snooping v1 and v2</li> <li>Supports 256 IP multicast groups</li> <li>Querier mode support</li> </ul><p> </p><p><strong>Security</strong></p><ul> <li>Authentication</li> <li>TACACS+ user access authentication</li> <li>IPv4/IPv6 Access Control List</li> <li>IP-based Access Control List</li> <li>MAC-based Access Control List</li> <li>Port-based Access Control List</li> <li>Protocol-based Access Control List</li> <li>DHCP snooping to filter distrusted DHCP messages</li> <li>Dynamic ARP inspection / restriction to discard ARP packets with invalid MAC address to IP address binding</li> <li>Transmission data encryption on the PON interface</li> </ul><p> </p><p><strong>WAN</strong></p><ul> <li>IPv4/IPv6/IPv4 & IPv6 versions</li> <li>Static / DHCP / PPPoE connection mode options</li> </ul><p> </p><p><strong>NAT</strong></p><ul> <li>NAT configuration options</li> <li>NAT DMZ Hosts</li> </ul><p> </p><p><strong>Management</strong></p><ul> <li>IPv4 and IPv6 dual stack management</li> <li>IPv4 DNS / IPv4 gateway</li> <li>IPv6 SLAAC / IPv6 gateway</li> <li>Switch management interfaces: <ul> <li>Console</li> <li>Telnet Command Line Interface</li> <li>Web management</li> <li>SNMP management</li> </ul> </li> <li>SSHv2 secure access</li> <li>SNMP management</li> <li>SNMP trap for interface Link Up and Link Down notification</li> <li>BOOTP and DHCP for IP address assignment</li> <li>Firmware upgrade via Web interface</li> <li>Configuration upload/download through Web interface</li> <li>Reset button for system reboot or reset to factory default</li> <li>User privilege level control</li> <li>Network Time Protocol (NTP)</li> <li>Network diagnostics: <ul> <li>ICMP remote IP ping</li> <li>Traceroute diagnosis</li> </ul> </li> <li>Remote syslog alarm</li> <li>System log</li> </ul><p> </p><p><strong>DHCP Functions</strong></p><ul> <li>DHCP relay</li> <li>DHCP Option 82</li> <li>DHCP snooping</li> <li>DHCP server</li> <li>DHCPv6 server</li> <li>DHCPv6 relay</li> </ul></p>

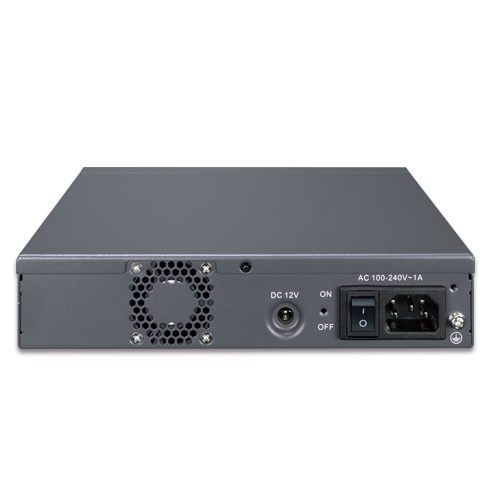

• specifications_tab: <table style="width:100%;" class="common_table_sky"><thead><tr><th colspan="2">Hardware Specifications</th></tr></thead><tbody><tr><td class="align-middle">PON Interface</td><td>1 x XG(S)-PON / GPON Combo SFP+ slot</td></tr><tr><td class="align-middle">Ethernet Interface</td><td>2 x 10/100/1000BASE-T copper ports, port-1 to port-2<br /> <br /> 1 x 10GBASE-X SFP+ slot, supporting 10GBASE-SR/LR SFP+ transceiver<br /> Backward compatible with 1000BASE-X SFP transceiver</td></tr><tr><td class="align-middle">Console</td><td>One USB serial port (115200, 8, N, 1)</td></tr><tr><td class="align-middle">RAM</td><td>512MB</td></tr><tr><td class="align-middle">Flash Memory</td><td>256MB</td></tr><tr><td class="align-middle">Dimensions (W x D x H)</td><td>210 x 173 x 43.6mm</td></tr><tr><td class="align-middle">Weight</td><td>1.07kg</td></tr><tr><td class="align-middle">Power Consumption</td><td>AC 240V:<br /> Max. 9.5 watts/32.4BTU (Power on without any connection)<br /> Max.14.8 watts/50.4BTU (Full loading)<br /> <br /> DC 12V:<br /> Max. 9.5 watts/32.4BTU (Power on without any connection)<br /> Max.14.5 watts/49.4BTU (Full loading)</td></tr><tr><td class="align-middle">Power Requirements - AC</td><td>100~240V AC, 1A max.</td></tr><tr><td class="align-middle">Power Requirements - DC</td><td>12V DC, 1A max.</td></tr><tr><td class="align-middle">Lightning Protection</td><td>Power supply 6KV / Device Interface 4KV</td></tr><tr><td class="align-middle">Fan</td><td>1</td></tr></tbody><thead><tr><th colspan="2">XG(S)-PON / GPON Specifications</th></tr></thead><tbody><tr><td class="align-middle">PON Port</td><td>1 x XG(S)-PON / GPON Combo PON port</td></tr><tr><td class="align-middle">Physical Interface</td><td>SFP+ slot</td></tr><tr><td class="align-middle">Connector Type</td><td>XG(S)-PON & GPON Combo mode: N2_C+</td></tr><tr><td class="align-middle">Transmission Speed</td><td>GPON: Downstream 2.488Gbps; Upstream 1.244Gbps<br /> XG-PON: Downstream 9.953Gbps; Upstream 2.488Gbps<br /> XGS-PON: Downstream 9.953Gbps; Upstream 9.953Gbps</td></tr><tr><td class="align-middle">Optical Split Ratio</td><td>Up to 128</td></tr><tr><td class="align-middle">Transmission Distance</td><td>20km</td></tr><tr><td class="align-middle">PON Module Wavelength</td><td>XG(S)-PON: Up 1270nm / Down 1577nm<br /> GPON: Up 1310nm / Down 1490nm</td></tr><tr><td class="align-middle">PON Fiber Type</td><td>9/125um SMF(Single mode fiber optic)</td></tr><tr><td class="align-middle">PON Function</td><td>T-CONT DBA<br /> x-GEM traffic<br /> Data encryption, multicast, port VLAN and user separation<br /> ONT auto-discovery, link detection and remote software upgrade<br /> VLAN division and user separation to avoid broadcast storms<br /> Power-off alarm function<br /> Broadcasting storm resistance function</td></tr></tbody><thead><tr><th colspan="2">Switching</th></tr></thead><tbody><tr><td class="align-middle">Switch Architecture</td><td>Store-and-forward</td></tr><tr><td class="align-middle">Switch Fabric</td><td>30Gbps</td></tr><tr><td class="align-middle">Switch Throughput</td><td>44.64Mpps</td></tr><tr><td class="align-middle">Address Table</td><td>8K</td></tr><tr><td class="align-middle">ARP Table</td><td>8K</td></tr><tr><td class="align-middle">Jumbo Frame</td><td>10/100/1000BASE-T RJ45 copper ports: 9022Bytes<br /> XG(S)-PON / GPON Combo PON port: 1652 Bytes<br /> 10GBASE-SR/LR SFP+ slot: 9036 Bytes</td></tr><tr><td class="align-middle">Flow Control</td><td>Back pressure for half duplex<br /> IEEE 802.3x pause frame for full duplex<br /> Working with Rate Limit(Kbps) function</td></tr></tbody><thead><tr><th colspan="2">Layer 3 Functions</th></tr></thead><tbody><tr><td class="align-middle">IP Interfaces</td><td>Max. 512 VLAN interfaces for IPv4<br /> Max. 512 VLAN interfaces for IPv6</td></tr><tr><td class="align-middle">Routing Protocols</td><td>IPv4/IPv6 static routing</td></tr><tr><td class="align-middle">WAN</td><td>IPv4/IPv6/IPv4 & IPv6 versions<br /> Static/DHCP/PPPoE connect mode options</td></tr><tr><td class="align-middle">NAT</td><td>NAT1/NAT2/NAT4(default) for NAT Config options<br /> NAT DMZ Hosts</td></tr><tr><td class="align-middle">ARP</td><td>Dynamic / static ARP</td></tr></tbody><thead><tr><th colspan="2">Layer 2 Functions</th></tr></thead><tbody><tr><td class="align-middle">Port Configuration</td><td>Description<br /> Admin Status (Port disable/enable)<br /> Speed<br /> Flow control<br /> Isolate<br /> PVID<br /> Broadcast and Unicast Storm Limit<br /> Ingress & Egress Rate Limit</td></tr><tr><td class="align-middle">Port Mirroring</td><td>TX/RX/Both<br /> 1 to 1</td></tr><tr><td class="align-middle">VLAN</td><td>IEEE 802.1Q tag-based VLAN, up to 512 VLAN groups<br /> VLAN Translation<br /> Bridging (VLAN Q-in-Q, IEEE 802.1ad)<br /> PON P2P<br /> DSCP-to-CoS QoS Mapping: Supports bi-directional mapping between Layer 3 DSCP fields and Layer 2 CoS (IEEE 802.1p) within VLAN tags</td></tr><tr><td class="align-middle">Spanning Tree Protocol</td><td>IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)</td></tr><tr><td class="align-middle">Multicast</td><td>IPv4 IGMP snooping v1 and v2<br /> Up to 256 multicast groups<br /> <br /> IPv6 MLD v1/v2 snooping<br /> Up to 256 multicast groups <br /> <br /> Querier mode support</td></tr><tr><td class="align-middle">Storm Control</td><td>Broadcast Storm Limit<br /> Unicast Storm Limit<br /> 0/64-13000kbps</td></tr><tr><td class="align-middle">Bandwidth Control</td><td>Ingress Rate Limit<br /> Egress Rate Limit<br /> 0/64-1000000kbps</td></tr></tbody><thead><tr><th colspan="2">Qos</th></tr></thead><tbody><tr><td class="align-middle">PON Interfaces</td><td>Dynamic Bandwidth Allocation (DBA)<br /> Service Level Agreement (SLA)<br /> Limiting the upstream/downstream rate based on each ONT/ONU/HGU</td></tr><tr><td class="align-middle">Priority Queue</td><td>4 priority queues on all switch ports</td></tr><tr><td class="align-middle">Scheduling for Priority Queues</td><td>Weighted Round Robin (WRR)<br /> Strict Priority</td></tr><tr><td class="align-middle">Traffic Classification</td><td>IEEE 802.1p CoS / DSCP / Precedence<br /> VLAN ID<br /> Policy-based ingress and egress QoS</td></tr></tbody><thead><tr><th colspan="2">Security Functions</th></tr></thead><tbody><tr><td class="align-middle">Access Control List</td><td>Supports Standard and Expanded ACL<br /> 　IP-based ACL<br /> 　MAC-based ACL<br /> 　Port-based ACL<br /> 　Protocol-based ACL<br /> ACL based on:<br /> 　MAC Address<br /> 　IPv4/IPv6 IP Address<br /> 　Protocol-number<br /> 　Port<br /> Up to 1k entries</td></tr><tr><td class="align-middle">Security</td><td>Transmission data encryption on the PON interface<br /> DHCP snooping<br /> Dynamic ARP inspection</td></tr><tr><td class="align-middle">Authentication</td><td>TACACS+ users access authentication</td></tr></tbody><thead><tr><th colspan="2">Management Functions</th></tr></thead><tbody><tr><td class="align-middle">System Configuration</td><td>Console and Telnet<br /> Web browser<br /> SNMP v1, v2c</td></tr><tr><td class="align-middle">Secure Management Interfaces</td><td>SSHv2<br /> SNMPv3<br /> HTTPS Web management</td></tr><tr><td class="align-middle">System Management</td><td>IPv4 and IPv6 dual stack management<br /> IPV4 DNS/IPv4 Gateway<br /> IPv6 SLAAC/IPv6 Gateway<br /> SNMP MIB and TRAP<br /> SNMP RMON 1, 2, 3, 9 four groups<br /> Firmware upgrade by HTTPS protocol through Ethernet network<br /> Configuration upload/download through HTTPS protocol<br /> IEEE 802.1ab LLDP protocol<br /> NTP client</td></tr><tr><td class="align-middle">DHCP Function</td><td>DHCP Relay<br /> DHCP Option 82<br /> DHCP Snooping<br /> DHCP Server<br /> DHCPv6 Server<br /> DHCPv6 Relay</td></tr><tr><td class="align-middle">Event Management</td><td>Remote syslog<br /> System log</td></tr><tr><td class="align-middle">Maintenance</td><td>Reset button for system reboot or reset to factory default<br /> User privilege levels control<br /> Network diagnostic<br /> ICMP remote IP ping<br /> Traceroute diagnosis</td></tr><tr><td class="align-middle">SNMP MIBs</td><td>RFC 1213 MIB-II<br /> RFC 1215 Internet Engineering Task Force<br /> RFC 1271 RMON<br /> RFC 1354 IP-Forwarding MIB<br /> RFC 1493 Bridge MIB<br /> RFC 1643 Ether-like MIB<br /> RFC 1907 SNMPv2<br /> RFC 2011 IP/ICMP MIB<br /> RFC 2012 TCP MIB<br /> RFC 2013 UDP MIB<br /> RFC 2096 IP forward MIB<br /> RFC 2233 if MIB<br /> RFC 2452 TCP6 MIB<br /> RFC 2454 UDP6 MIB<br /> RFC 2465 IPv6 MIB<br /> RFC 2466 ICMP6 MIB<br /> RFC 2573 SNMPv3 notification<br /> RFC 2574 SNMPv3 VACM<br /> RFC 2674 Bridge MIB Extensions</td></tr></tbody><thead><tr><th colspan="2">Standard Conformance</th></tr></thead><tbody><tr><td class="align-middle">Regulatory Compliance</td><td>CE / LVD</td></tr><tr><td class="align-middle">Standards Compliance</td><td>ITU-T G.984.x GPON<br /> ITU-T G.987 XG-PON<br /> ITU-T G.9807 XGS-PON<br /> IEEE 802.3z Gigabit 1000BASE-SX/LX<br /> IEEE 802.3ae 10Gb/s Ethernet<br /> IEEE 802.3x Flow Control and Back Pressure<br /> IEEE 802.1w Rapid Spanning Tree Protocol<br /> IEEE 802.1p Class of Service<br /> IEEE 802.1Q VLAN tagging<br /> IEEE 802.1ab LLDP<br /> RFC 768 UDP<br /> RFC 783 TFTP<br /> RFC 792 ICMP<br /> RFC 793 IP<br /> RFC 1112 IGMP v1<br /> RFC 2236 IGMP v2<br /> RFC 3376 IGMP v3<br /> RFC 2710 MLD v1<br /> RFC 3810 MLD v2<br /> RFC 5246 (TLS 1.2)</td></tr></tbody><thead><tr><th colspan="2">Environments</th></tr></thead><tbody><tr><td class="align-middle">Operating</td><td>Temperature: -20 ~60 degrees C<br /> Relative Humidity: 5 ~ 95% (non-condensing)</td></tr><tr><td class="align-middle">Storage</td><td>Temperature: -40 ~ 70 degrees C<br /> Relative Humidity: 5 ~ 95% (non-condensing)</td></tr></tbody></table>
