Outdoor-grade Wi-Fi 7 AP for High-speed and Reliable Wireless Coverage

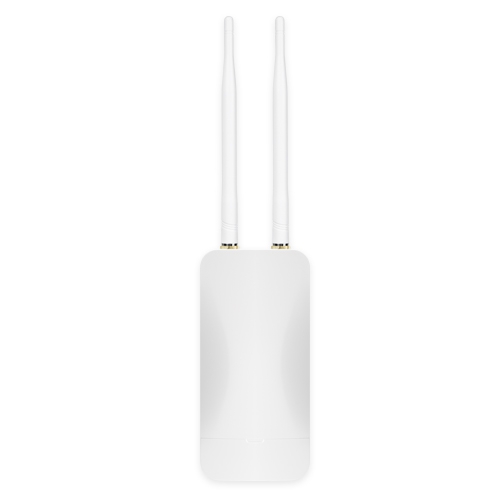

PLANET WDAP-3600BE is a rugged outdoor wireless access point that delivers next-generation Wi-Fi 7 (802.11be) performance with an aggregated throughput of up to 3600Mbps (2.4GHz: 688Mbps + 5GHz: 2882Mbps). Designed for harsh environments, it ensures ultra-fast, low-latency, and stable connectivity for outdoor campuses, industrial parks, resorts, and smart city deployments.

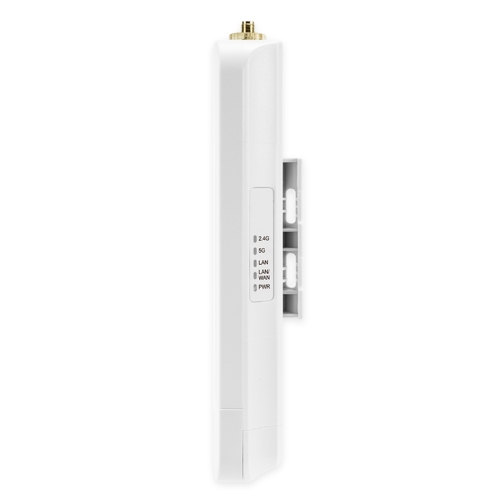

Ruggedized Outdoor Design

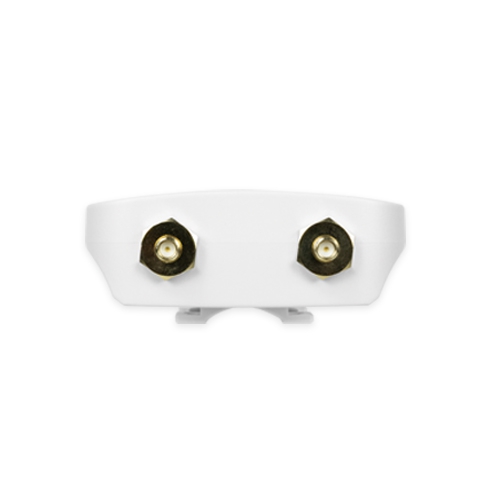

Built with a weatherproof housing, the WDAP-3600BE withstands -30°C to 70°Coperating temperatures and harsh outdoor conditions. Combined with dual high-gain external antennas, it provides extended coverage and reliable performance in wide-area wireless deployments.
High-density Wi-Fi 7 Performance
Equipped with advanced Wi-Fi 7 features such as 4096-QAM, MU-MIMO, OFDMA, BSS Coloring, and Beamforming, the WDAP-3600BE supports multiple simultaneous users with consistent connectivity—ideal for outdoor public Wi-Fi, transportation hubs, and enterprise campuses.
Robust Security and Business-ready Features
To safeguard sensitive business and personal data, the WDAP-3600BE supports the latest WPA3 encryption, VLAN-to-SSID mapping, and client isolation. Combined with its flexible SSID configuration and advanced access control, it ensures a secure and well-segmented wireless environment for both commercial and hospitality applications.

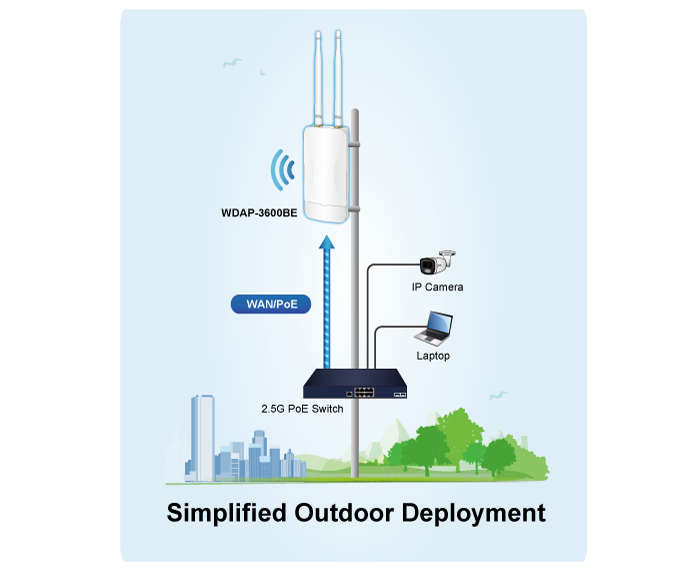

Flexible Power and Deployment

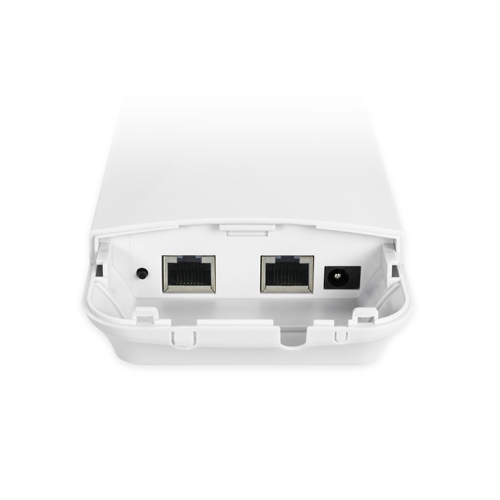

The WDAP-3600BE supports IEEE 802.3at PoE+ and 12V DC power, providing flexible installation options. Its 1 × 2.5GBASE-T PoE WAN port and 1 × Gigabit LAN port enable high-speed wired backhaul while reducing cabling complexity.
Multiple Operation Modes for Various Applications
The WDAP-3600BE supports the simplified usage modes of Access Point, Gateway, Repeater and WISP mode, through which they provide more flexibility for users when wireless network is established. Compared with general wireless access points, the WDAP-3600BE offers more powerful and flexible capability for wireless clients.
PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts.
With CloudNMS, businesses can manage diverse network deployments more efficiently, securely, and intelligently—all from a single cloud-based platform.
Smart Cities and Public Wi-Fi
The WDAP-3600BE enables municipalities to build next-generation smart city networks, providing fast and reliable Wi-Fi access in parks, plazas, bus stops, and transportation hubs. With its wide coverage and weatherproof housing, it not only supports public internet access but also powers city surveillance, IoT sensors, and digital kiosks, creating a safer and smarter urban experience.
Industrial and Logistics Parks
Warehouses, factories, and logistics yards demand robust connectivity for automation, tracking, and workforce mobility. The WDAP-3600BE ensures real-time data transfer for barcode scanners, AGVs, and surveillance cameras. Its -30°C to 70°C operating temperature guarantees reliable performance in harsh industrial conditions, minimizing downtime and boosting productivity.
Resorts, Hotels, and Campuses
Outdoor areas in hotels, resorts, and campuses require seamless Wi-Fi coverage to keep guests, students, and staff connected. The WDAP-3600BE delivers high-density performance, supporting hundreds of concurrent users for streaming, e-learning, and online collaboration. With centralized CloudNMS management, IT teams can easily monitor, configure, and optimize Wi-Fi service across multiple outdoor zones.
Event Venues and Outdoor Enterprises
Concerts, exhibitions, and outdoor co-working spaces need temporary but powerful wireless networks that handle peak traffic demands. The WDAP-3600BE offers 3600Mbps Wi-Fi 7 connectivity with advanced features like MU-MIMO and OFDMA to guarantee smooth user experiences, even in high-density environments. Its PoE+ power option simplifies rapid deployment, making it an ideal choice for pop-up networks and large-scale outdoor events.
Standard-compliant Outdoor Wireless LAN
Compliant with IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) dual-band wireless technology
Dual-band concurrent operation with a maximum wireless throughput of 3600Mbps (2.4GHz: 688Mbps, 5GHz: 2882Mbps)
Built-in support for advanced Wi-Fi 7 features: 4096-QAM, OFDMA, MU-MIMO, Beamforming, BSS Coloring, Seamless Roaming (802.11k/v/r)
Rugged Outdoor Hardware Design
1 × 100/1000/2500BASE-T PoE+ WAN port (802.3at PoE+ PD)
1 × 10/100/1000BASE-T LAN port
Dual-band high-gain external antennas for extended outdoor coverage
IP-rated weatherproof housing with wide temperature support (-30°C ~ 70°C)
WPA3 Personal WPA2/WPA3 Personal WPA2 Personal (AES) WPA2 Personal (TKIP) WPA2 Personal (TKIP+AES) WPA/WPA2 Personal (AES) WPA/WPA2 Personal (TKIP) WPA/WPA2 Personal (TKIP+AES) WPA2 Enterprise (802.1X) WPA/WPA2 Enterprise (802.1X)
Enable/Disable SSID broadcast Wireless max. 32 MAC address filtering User isolation
Max. SSIDs
8 (4 per radio)
Max. Clients
256 (128 is suggested, depending on usage)
Wireless QoS
Supports Wi-Fi Multimedia (WMM)
Wireless Advanced
Auto Channel Selection 5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Seamless roaming Beamforming BSS coloring
Status Monitoring
Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server
VLAN
IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs
