17″ 16-Port Combo VGA LCD IP KVM Switch

Name: IKVM-210-16M - 17" 16-Port Combo VGA LCD IP KVM Switch | PLANET KSA
SKU: IKVM-210-16M

» IKVM-210-16M

Control All Your PCs via IP-based KVM

PLANET IKVM-210-16M Combo VGA LCD IP KVM Switch comes with a rack-mountable keyboard, 17″ LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the IKVM-210-16M can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers.

Easy to Install

With the uniquely separate rail design, it helps to install the IKVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.

Multiple Operating Systems Supported

The IKVM-210-16M is the most cost-effective and simple solution for controlling a group of PCs in the network. Multiple computers can be managed via only one single set of monitor, keyboard and mouse directly. No software drivers or system configuration are required. iMac, Power Mac and Sun systems are also supported.

Remote Key Combination

You could set the multiple key combinations at IKVM Series. When you open IKVM software at remote client, you could use these key combinations to control these local PCs with a different OS via the internet.

Computer Switching

There are three convenient methods to access any computer connected to the installation:

Port select button
Hotkeys on keyboard
OSD (on screen display)

Security Protection

The two-level password security only authorizes up to one user and an administrator with a separate profile for each user. Data encryption options include AES, DES and 3DES, and they can be selected for keyboard, mouse and video signals.

Powerful Mouse/Keyboard Support

In the present computer applications, a mouse has become an indispensable device. The IKVM-210-16M fully supports all models of PS/2 mice on the market. The IKVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the IKVM for all kinds of servers, computers or their combination.

Remote Management via Network

With PLANET IKVM-210-16M, network administrators can control a server room locally or remotely through Internet. No additional software or license fee is needed; multiple users can securely access remote server by using a standard web browser to create an HTTP connection.

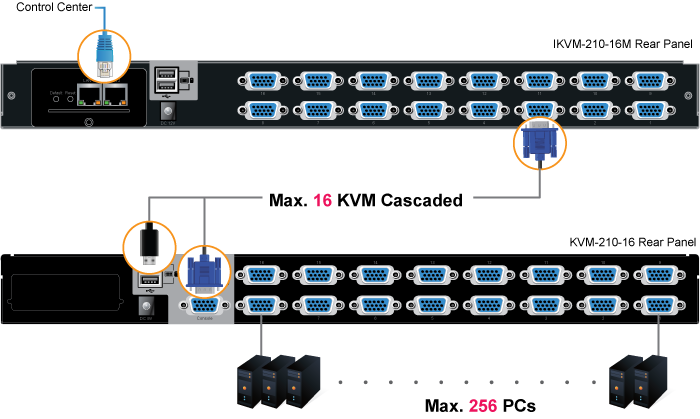

Cascade Operation

Easy to install, each IKVM-210-16M can control up to 16 computers/servers. Moreover, a maximum of eight KVM switches can be cascaded to enable to control up to 256 servers.

الأجهزة

Integrated 17” LCD monitor and keyboard/touchpad module within 1U chassis
Standalone machine controls up to 16 sets of computers
Up to 2 levels can be cascaded and up to 256 computers can be controlled.
Port Select Panel status LEDs give a clear indication of the active computers
Mouse touch board with two function buttons
Full-size 100-key keyboard with integrated number pad
Front panel with lock to prevent damage by accident

حماية

Two-layer password security protection
DES, AES and 3DES for data encryption

إدارة

Auto scan mode for monitoring computers
Requires no additional software or hardware
Computer selection via Port Select Button, Hotkey and On Screen Display (OSD)
Hot pluggable: Add or remove computers without having to power down the switch
QVS (Quick View Setting): Quickly select your computer by naming or SN number

Remote Access

Remotely control PC via TCP/IP and a built-in dual 10/100/1000Mbps Ethernet port
High Video Quality: Resolution up to 1280 x 1024 (local side) or 1920 x 1080 (remote side)
Sends the key combinations to a remote computer
Administrator and multiple users with password protection
Use of the absolute synchronistical technology of mouse to ensure the accuracy of the Windows operating system
Expedient bandwidth control

Compatibility

Multiplatform support -- Windows, Linux and Sun
Multibrowser support (IE, Chrome, Firefox)
Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice

الأجهزة
Number of Ports	16
Maximum	256 by cascading (KVM-210-16 x 16)
PC Ports	Keyboard：USB Type A female head Mouse：USB Type A female head Video：16 x VGA DB15 Blue Female Head
Port Select Panel	Number Key：10 Reset：1 Enter：1 LED：16 Segment display：1
LCD Panel	Monitor ：17＂ SXGA COLOR TFT-LCD Video Resolution：1280 x 1024 @ 60HZ Local Pixel Pitch：0.264 x 0.264 mm Support Color：16.7M colors Contrast Ratio：1000:1 Backlight：LED
LCD Button	6
Console USB Hub Ports	3 x USB 2.0 Type A female
Remote Console	2 RJ45 port for 10/100/1000BASE-T
دقة الفيديو	Local side: 1280 x 1024 (max) Remote side: 1920 x 1080 (max)
Keyboard	100-key chocolate ultra-thin keyboard
Touch Pad	1
السكن	معدن
الأبعاد (العرض × العمق × الارتفاع)	445 x 544 x 45mm
وزن	10.44 kg
متطلبات الطاقة	12V DC, 4A
تثبيت	1U rack-mountable
إدارة
Supported Protocol	TCP, IP, HTTP
Client Software	IPKVM Software
PC Selection	Port select button Hotkeys on keyboard OSD (on screen display)
Scan Interval	3~60 seconds
حماية	User password and super password DES, AES and 3DES
البيئة والشهادات
درجة حرارة التشغيل	0 ~ 50 درجة مئوية
درجة حرارة التخزين	-20 ~ 60 degrees C
رطوبة التشغيل	0-80% RH, no coagulation
التنظيمي	CE، FCC

ورقة البيانات

تاريخ	إصدار	وصف	تحميل
2023/13/10	2.0	IKVM-210-16M

دليل سريع

تاريخ	إصدار	وصف	تحميل
2024/24/04	2.1	[إصدار للأجهزة الإصدار 2.0] لإصدار PSTI.
2023/15/09	2.0	إصدار متوافق مع إصدار الجهاز 2.0.

أدلة المستخدم

تاريخ	إصدار	وصف	تحميل
2023/20/10	2.0	إصدار متوافق مع إصدار الجهاز 2.0.

جدوى

تاريخ	إصدار	وصف	تحميل
2025/02/01	3.4	[إصدار للأجهزة الإصدار 2.0.] Optimized mouse following performance.
2023/15/09	2.2	[إصدار للأجهزة الإصدار 2.0.] Update for IPKVM.

معلومات الطلب

IKVM-210-16M
