PLANET’s newly launched 10 جيجابت في الثانية 802.3bt PoE++ Managed Injector Hub -UPOE-1600XG offers a high-density, rack-mountable solution for rapid 10Gbps PoE++ deployment. It is designed to seamlessly upgrade existing network infrastructures to the IEEE 802.3bt standard without the need to replace current Ethernet Switch devices.
To ensure robust cybersecurity, the 10Gbps 802.3bt PoE++ Managed Injector Hub -UPOE-1600XG features enhanced management functions, including TLSv1.2 and TLSv1.3 protocols.
Furthermore, through integration with PLANET’s NMSViewerPro/CloudNMS apps, all kinds of businesses can efficiently manage their entire network from a single, centralized platform. This 10Gbps 802.3bt PoE++ Managed Injector Hub -UPOE-1600XG also supports PLANET DDNS/Easy DDNS services for flexible remote access.
A Perfect Managed 10G PoE++ Injector Hub with Full Power Budget
ال UPOE-1600XG, a high-density, rack-mountable managed IEEE 802.3bt PoE++ injector hub, features PLANET تقنية PoE الذكية functions through web user interface for remote management. It provides 16 10/100/1000/2.5G/5G/10GBASE-T Ethernet ports featuring 802.3bt type-4 PoE++ injector with a total PoE budget of 600 watts. Each PoE port can deliver up to 95-watt power over Cat.5/5e/6/7 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).
ال UPOE-1600XG enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and effective Power over Ethernet network solution for small businesses and enterprises.
نموذج | PoE Ports | Per PoE Power Output | معيار PoE | Total PoE Budget |
UPOE-1600XG | 16 | 95 واط | IEEE 802.3bt PoE++ IEEE 802.3at PoE+ | 600 watts |
حل طاقة 802.3bt PoE++ بقدرة 95 واط عبر كابل UTP رباعي الأزواج
As the UPOE-1600XG adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 واط of power by using all the four pairs of standard Cat.5/5e/6/7 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
- كاميرات PTZ ذات قبة متحركة بتقنية PoE
- أجهزة الشبكة
- عملاء خفيفون
- أجهزة الكمبيوتر المتكاملة التي تعمل باللمس، ونقاط البيع، وأكشاك المعلومات
- شاشات عرض رقمية عن بعد
- إضاءة PoE
إدارة وضع إخراج الطاقة المتقدمة بتقنية 802.3bt PoE++
To meet the demand of various powered devices consuming stable PoE power, the UPOE-1600XG supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, and 4-pair legacy and force modes to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- وضع إخراج الطاقة 95 واط بتقنية 802.3bt PoE++
- وضع إخراج الطاقة 802.3at PoE+ بقدرة 36 واط
- 36W Mid-span 802.3at PoE+ Power Output Mode
وات PoE | وضع تشغيل PoE | وضع إخراج الطاقة |
95 واط | 802.3bt PoE++ | (الدبابيس 1، 2، 3، 6 + الدبابيس 4، 5، 7، 8) |
36 واط | تقنية PoE 802.3at في نهاية النطاق | (الدبابيس 1، 2، 3، 6) |
36 واط | Mid-span 802.3at PoE | (Pins 4, 5, 7, 8) |
Quick and Easy 802.3bt/at PoE Network Deployment

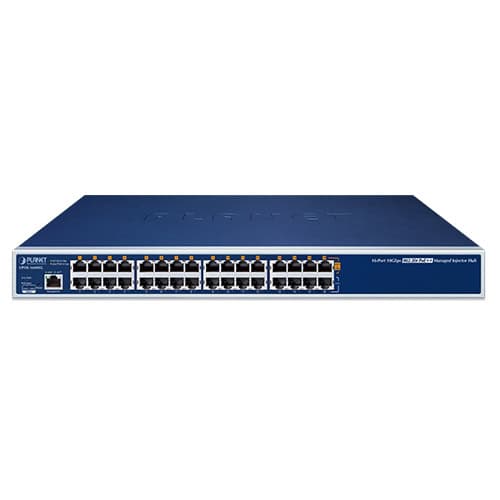

ال UPOE-1600XG is installed between a regular Ethernet Switch and the PDs. There are totally 32 RJ45 STP ports on the front panel of the UPOE-1600XG, of which the 16 ports are on the lower stack functioned as “Data input” while the other 16 ports are on the upper stack functioned as “PoE (Data and Power) output“. Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.
With data and Power over Ethernet from one unit, the UPOE-1600XG can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
Built-in Unique PoE Functions for Powered Device Management
As it is the 10Gbps Managed PoE++ Injector Hub for surveillance, wireless and VoIP networks, the UPOE-1600XG features the following special PoE management functions:
- جدول PoE
- فحص حالة PD
- إعادة تدوير الطاقة المجدولة
- PoE usage monitoring
فحص حالة الجهاز الذكي
ال UPOE-1600XG can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the UPOE-1600XG will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.
جدول PoE لتوفير الطاقة
Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the UPOE-1600XG can effectively control the power supply besides its capability of giving high watts power. The built-in “جدول PoE”تساعدك هذه الوظيفة على تمكين أو تعطيل تغذية الطاقة عبر تقنية PoE لكل منفذ PoE خلال فترات زمنية محددة، وهي وظيفة قوية لمساعدة الشركات الصغيرة والمتوسطة أو المؤسسات على توفير الطاقة والمال.
إعادة تشغيل الطاقة المجدولة
ال UPOE-1600XG can be scheduled to reboot at a specified time like every minute, every hour, every day to reduce the chance of PD device crash resulting from buffer overflow.
مراقبة استخدام تقنية PoE
Via the power usage chart in the web management interface, the UPOE-1600XG enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.
High Power Budget for PoE Extension
With up to 95-watt PoE output capability, the UPOE-1600XG can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET 802.3bt PoE++ Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.
Smart Fan Design for Silent Operation
ال UPOE-1600XG features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability, with low speed and high speed smart fan status display on web interface. ال UPOE-1600XG is able to operate reliably, stably and quietly in any environment without affecting its performance.
حلول شبكات الأمن السيبراني لتقليل المخاطر الأمنية
The cybersecurity feature included to protect the UPOE-1600XG management in a mission-critical network virtually needs no effort and cost to install. Both TLSv1.2 and TLSv1.3 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
User-friendly Web Management Interface
To efficiently manage the PDs, the UPOE-1600XG provides simple Web management interface in which administrators can control the system and PoE functions for PDs. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home.
بلانيت كلاود إن إم إس – إدارة الشبكات الشاملة القائمة على السحابة
كوكب CloudNMS تُمكّن المنصة وتطبيق الهاتف المحمول موظفي تقنية المعلومات من إدارة جميع أجهزة الشبكة والأجهزة المُزوّدة بالطاقة عن بُعد في الوقت الفعلي. صُممت منصة CloudNMS خصيصًا للمؤسسات والقطاعات الصناعية، وهي تُقلل الحاجة إلى استكشاف الأخطاء وإصلاحها في الموقع من خلال توفير مراقبة مركزية، واكتشاف الأعطال، وتنبيهات فورية.
مع CloudNMS, وبذلك، تستطيع الشركات إدارة عمليات نشر الشبكات المتنوعة بشكل أفضل. بكفاءة, بشكل آمن, وبذكاء—كل ذلك من خلال منصة واحدة قائمة على الحوسبة السحابية.
